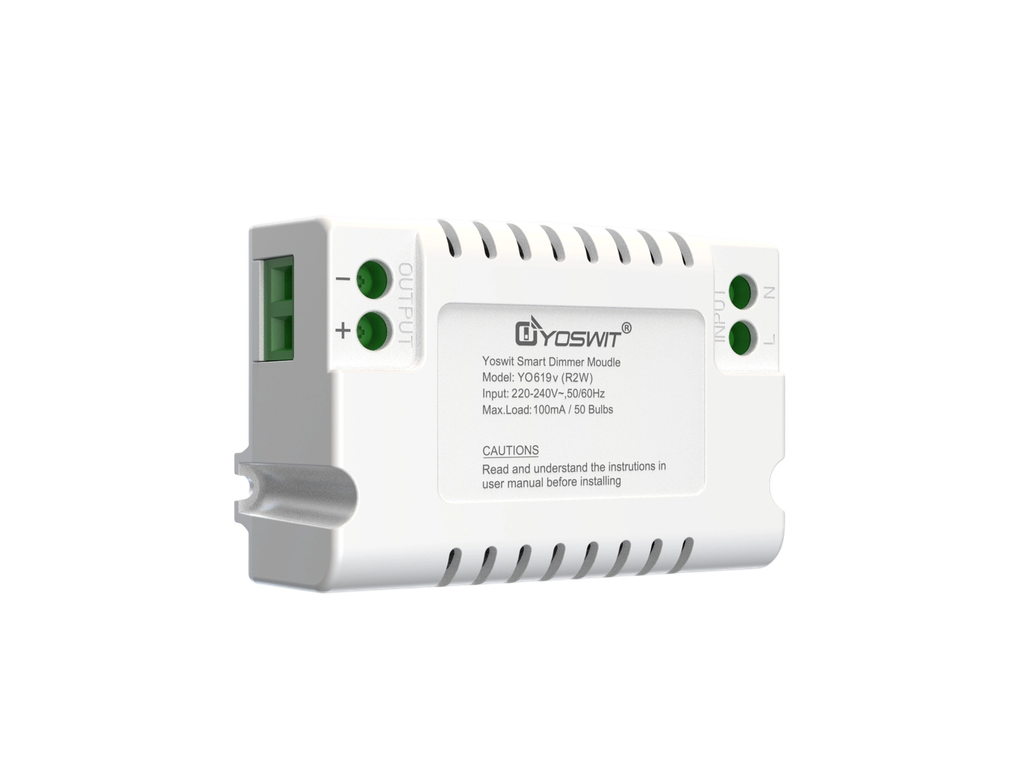

Yoswit Smart 0/1–10V Dimmer Switch Module

Model: YO619v (R2W)

Revision: V1

EAN / UPC: EAN 0765756498180 / UPC 765756498180

Type: Hidden / in-wall smart dimmer module

Manufacturer: Designed by Yoswit in Hong Kong; assembled in China

Compliance: CE, FCC, RoHS

Tagline

Smart your existing lighting with a 0/1–10V dimmer module — no wall switch replacement required.

Features

• No switch box dependency
  The module does not need to be installed inside a switch wall box. It can be placed behind furniture or above the ceiling.
• 0/1–10V dimming design
  Works with common 0/1–10V dimmable drivers. Enables precise lighting control from 0% to 100% with smooth, natural-light-like transitions.
• Brightness adjustment
  Customize brightness increments in the Yoswit App for smooth dimming and energy savings.
• Scene modes
  One-tap scene switching for different lighting scenarios — relaxed evening warmth, full-brightness party mode, etc.
• Brightness memory
  Yoswit automatically remembers the dimming level when the light is turned off and returns to the same level next time.
• Built-in timer / automation
  Schedule operation by week, day, hour or minute. Schedules are stored in the module and continue running even if the phone disconnects.
• Remote control via Yoswit App
  With built-in Wi-Fi / hub support, remotely manage lights from anywhere through the Yoswit App.
• Mesh-like network
  Yoswit’s proprietary Bluetooth-based mesh-like topology lets tens, hundreds or thousands of devices communicate reliably and securely.
• Default power-up state
  After power recovery, the module can default to On or Off according to user setting.
• Low power consumption
  Minimal standby power; intelligent dimming reduces power output as light level decreases.

Specifications

Installation Notes

• No switch box required.
• Disconnect power before wiring.
• Connect the module to an existing 0/1–10V dimmable driver / fixture.
• Place the module in a dry, indoor location behind furniture / above ceiling / suitable enclosure.
• Mains wiring must be done by a licensed electrician.
