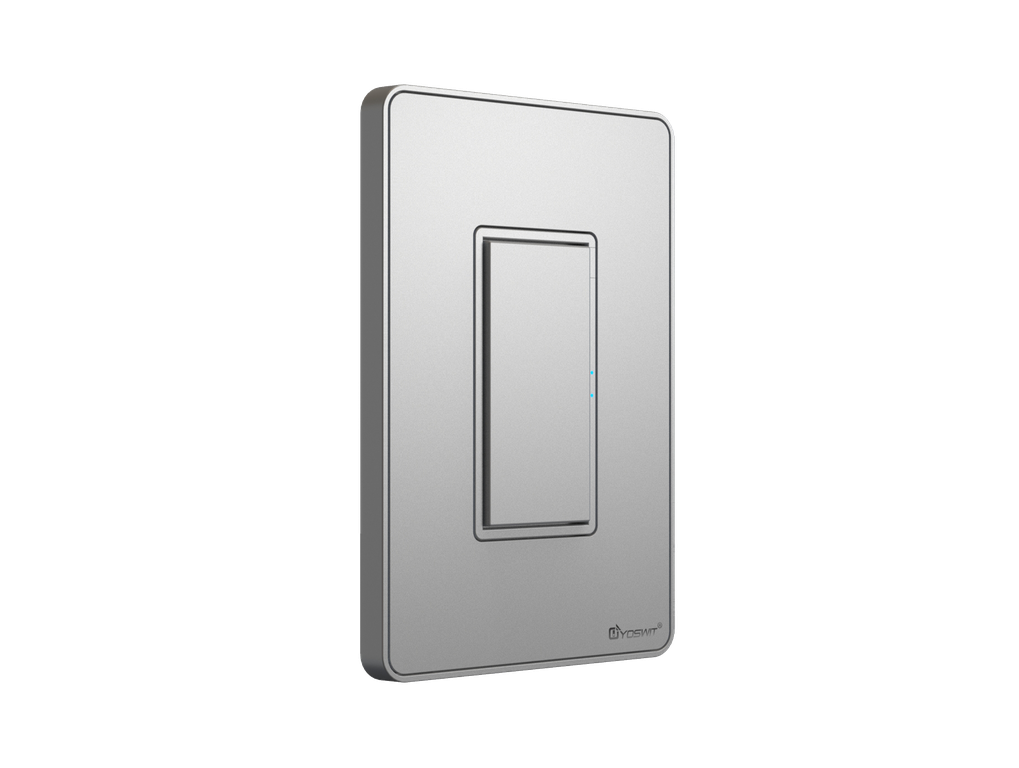

Yoswit Smart Light Switch

Model: YO811 (R2)

Product type: Smart lighting / appliance on-off switch

Gang: 1 Gang

Socket / panel type: 120

Category: Smart Home / Lighting Switches

Revision: V7.0

Technology: Bluetooth 4.2 (BLE)

Compliance: ETL, CE, FCC, RoHS

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

Tagline

Control your lights and appliances from anywhere with a no-hub Bluetooth smart wall switch.

Key Features

• No hub, no rewiring, no complex setup
  Replace your traditional wall switch and your home becomes smart immediately.
• 2-wire and 3-wire compatible
  Works with or without a neutral wire, making retrofit installations simple.
• High LED compatibility
  Supports incandescent, dimmable/non-dimmable LED and CFL loads; low-wattage LEDs supported on single-live wiring.
• App + manual control
  Control via the Yoswit App or directly from the wall.
• Timers and schedules
  Set automation from weekly cycles down to minutes; schedules run locally in the switch.
• Scenes, rooms and away detection
  Group devices, trigger scenes, and automate based on presence.
• Mesh-like Bluetooth network
  Yoswit devices extend range to one another; mobile can act as hub.
• Voice control / IFTTT / password protection
  Works with supported voice assistants via ecosystem integration, IFTTT, and app password protection.

Platform / Ecosystem

Network control · Voice control · Device mesh/grouping · Remote control · Room & scene modes · Presence/away detection · Schedule/timer · Password protection · IFTTT

Bluetooth & App

• Bluetooth: 4.2 / BLE
• Compatible devices: All Bluetooth Smart Ready devices — phones, tablets, smart set-top boxes
• iOS: 13.0 or later
• Android: 7.0 or later

Specifications

Installation

⚠️ Always disconnect power at the service panel before installation. Only licensed electricians should install the switch.

1. Turn off power at the breaker.
2. Remove the old switch and expose approx. 5mm of bare wire.
3. Pry off the wall plate using a small flat screwdriver.
4. Connect wires to the switch terminals according to the wiring diagram.
5. Ground the device as required by local regulations.
6. Secure the switch into the wall box / 120 socket frame.
7. Restore power and test by pressing the button 2–3 times.
8. Snap the faceplate onto the frame.
9. Open the Yoswit App — the switch is auto-detected.

Optional LED stabilizer:

If 2-wire installation causes flicker/no light, use 3-wire (with neutral) wiring or connect an LED power stabilizer across any lamp as shown in the manual.
