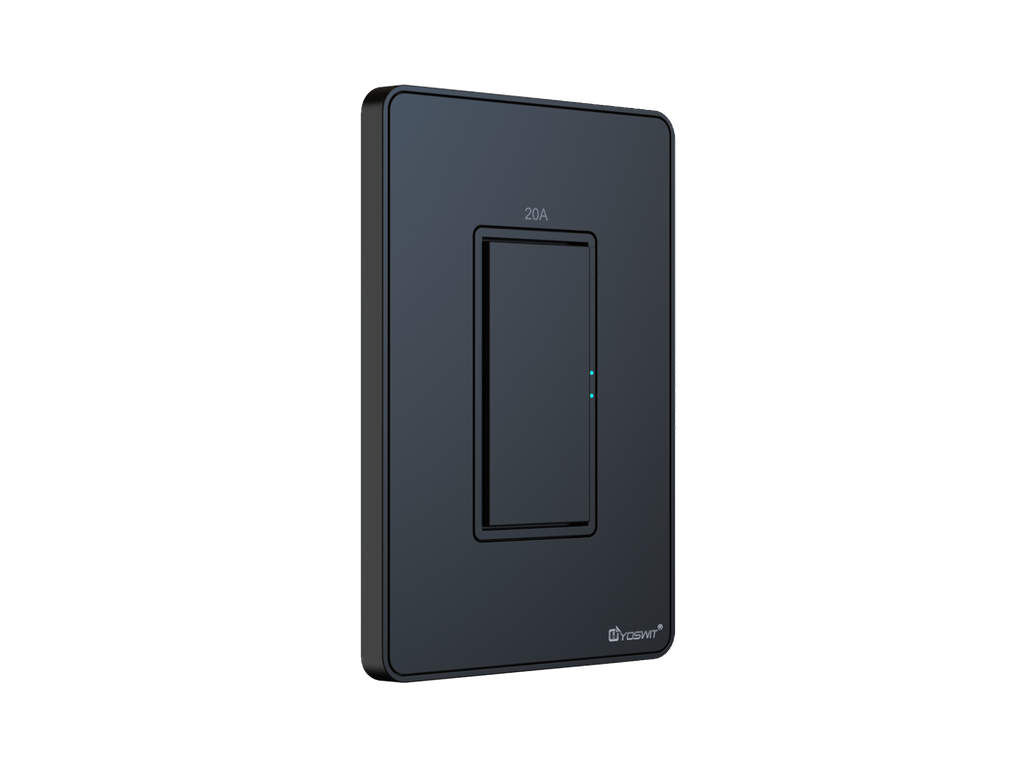

Yoswit Smart Double-Pole Switch with IR Emitter

Model: YO811c-IR (R2W)

Product name: Yoswit Smart Double-Pole Switch (IR Version)

Panel type: 120 type

Category: Smart Home / Appliance Switches & IR Control

Revision: V7.0

Input voltage: 100–240V AC, 50/60Hz

Technology: Wi-Fi 2.4G + BLE 4.2

IR emitter range: 2 m

Certifications: ETL, CE, FCC, RoHS

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

Tagline

Make high-power appliances smart — and control your IR devices from the same switch.

Key Features

• Built for high-power appliances
  Supports up to 20A / 2HP, suitable for water heaters, air conditioners, exhaust fans and other high-load devices.
• Built-in IR emitter + Yoswit App control
  Integrated IR blaster can control infrared appliances directly. Use the included IR remote experience or the Yoswit App for flexible, centralized control.
• Power consumption monitoring
  Track real-time and second-by-second energy usage for high-consumption appliances, helping reduce waste and save money.
• Built-in scheduling
  Set weekly, daily, hourly or per-minute rules. Schedules are stored in the switch and keep running even without a phone connection.
• Acts as a Yoswit gateway
  With built-in Wi-Fi, the switch works as a central hub to connect and manage other Yoswit smart products from one app.
• Bluetooth Mesh + Wi-Fi enhanced connectivity
  Extended coverage, stronger penetration through walls, and stable control indoors, upstairs or in the backyard.
• Compatible with major third-party smart home platforms
  Integrates with Google Home and other mainstream ecosystems for cross-platform control.
• OTA remote upgrade
  Automatically receives firmware updates with no manual intervention.

Platform / Ecosystem

Network control · Voice control · Device grouping/mesh · Remote control · Scene modes · Presence sensing · Timer/schedule · Password protection · IFTTT · IR control · Third-party platform integration · OTA upgrade

Bluetooth, Wi-Fi & IR

• Bluetooth: 4.2 / BLE
• Wi-Fi: 2.4GHz
• IR emitter: 2 m range
• Compatible devices: All Bluetooth Smart Ready devices — phones, tablets, smart set-top boxes
• iOS: 13.0 or later
• Android: 7.0 or later
