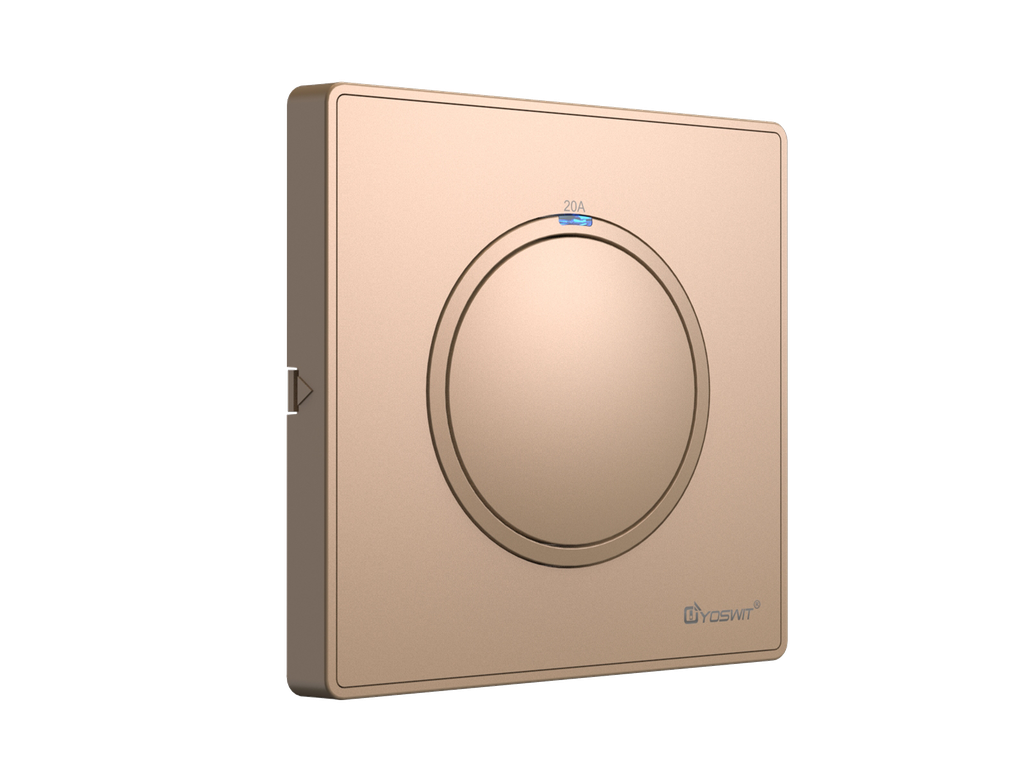

Yoswit Smart Double-Pole Switch with IR Emitter

Model: YO812c-IR (R2W)

Product name: Yoswit Smart Double-Pole Switch

Category: Smart Home / High-Power Switches

Panel type: 55-type

Revision: V7.0

Input voltage: 100–240V AC, 50/60Hz

Max load: 8A / 1HP

Standby power: ≤1W

Power measurement accuracy: ±3%

Connection: Wi-Fi 2.4G / BLE 4.2

IR emitter length: 2 m

IP rating: IP20

Operating temp.: -10°C to 40°C

Humidity: 0–95% RH, non-condensing

Certifications: CE, FCC, RoHS

Manufacturer: Designed by Yoswit in Hong Kong, assembled in China

Tagline

Make your household appliances smart with a powerful double-pole switch — and control IR devices directly from the same product.

Key Features

• Suitable for high-power appliances
  Controls high-load devices such as water heaters, air conditioners and exhaust fans.
• Built-in IR emitter, dual control
  Built-in infrared emitter can control IR appliances via IR remote or the Yoswit App, giving flexible and versatile control.
• Energy consumption monitoring
  Track real-time and per-second power usage for high-energy appliances, helping reduce waste and save money.
• Built-in scheduling
  Set weekly, daily, hourly or even per-minute schedules. Schedules are stored in the switch and run independently even if the phone disconnects.
• Works as a Yoswit gateway
  With built-in Wi-Fi, it acts as a central hub to manage other Yoswit smart products from one app.
• Bluetooth Mesh + Wi-Fi enhanced connectivity
  Extended coverage that penetrates walls and works across rooms, backyard or upstairs.
• Compatible with major third-party smart home platforms
  Integrates with systems such as Google Home for cross-platform control.
• OTA remote upgrade
  Receives firmware updates automatically with no manual intervention.

Platform / Ecosystem

Network control · Voice control · Device mesh/grouping · Remote control · Scene modes · Presence sensing · Timer/schedule · Password protection · IFTTT

Wireless

• Wi-Fi: 2.4GHz
• Bluetooth: 4.2 / BLE
• Frequency: 2.4GHz
• iOS: 13.0 or later
• Android: 7.0 or later
• Range: Open area > 50m; indoor 3–20m
