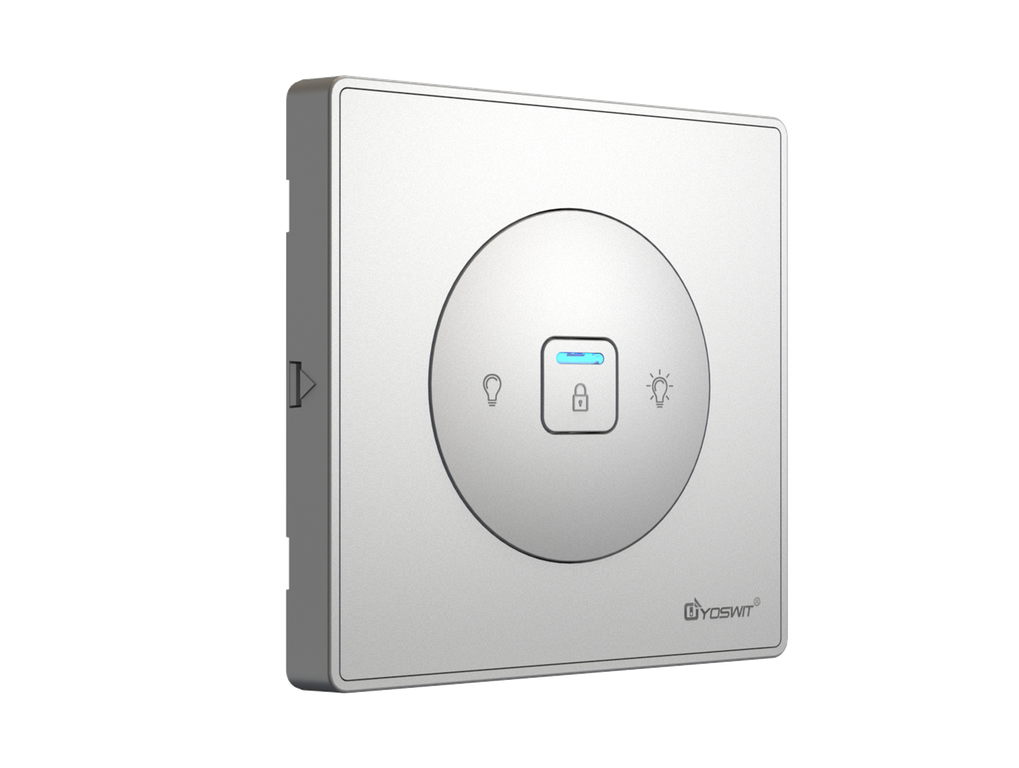

Yoswit Smart 0–10V Dimmer Switch

Model: YO812v (R2W)

Product name: Yoswit Smart 0–10V Dimmer Switch

Category: Smart Home / Lighting Dimmers

Panel type: 55-type

Revision: V7.0

Input voltage: 100–240V AC, 50/60Hz

Technology: BLE 4.2

Standby power: ≤1W

0–10V load: 100 mA / up to 50 drivers or fixtures

Certifications: CE, FCC, RoHS

Manufacturer: Designed by Yoswit in Hong Kong, assembled in China

Tagline

Easy brightness control with a smart dimmer switch — perfect for creating the ideal ambience throughout your home.

Key Features

• High compatibility
  Works with incandescent, dimmable LED and dimmable CFL loads. Supports both leading-edge and trailing-edge dimming.
• Works with common dimming drivers
  Can be used with standard 0–10V dimming drivers — no proprietary driver required. Just replace your traditional dimmer with the Yoswit smart dimmer.
• Adjustable dimming step
  Fine-tune the brightness increment in the Yoswit App for smooth, soft dimming and the right atmosphere while saving energy.
• High-precision adjustment
  Delivers stable dimming performance with no flicker.
• Voice and remote control via Yoswit App
  With a gateway, the dimmer can work with smart speakers and remote control for easier whole-home lighting management.
• Brightness memory
  When turned off, the dimmer remembers the current brightness level and restores it automatically next time it is switched on.
• Low power consumption
  Energy-efficient design reduces running cost without compromising performance.

Platform / Ecosystem

Network control · Voice control · Device grouping/mesh · Remote control · Scene modes · Presence sensing · Timer/schedule · Password protection · IFTTT

Bluetooth

• Bluetooth: 4.2 / BLE
• Frequency: 2.4GHz
• Compatible devices: All Bluetooth Smart Ready devices — phones, tablets, smart set-top boxes
• iOS: 13.0 or later
• Android: 7.0 or later
• Range: Open area > 50m; indoor 3–20m

Specifications
