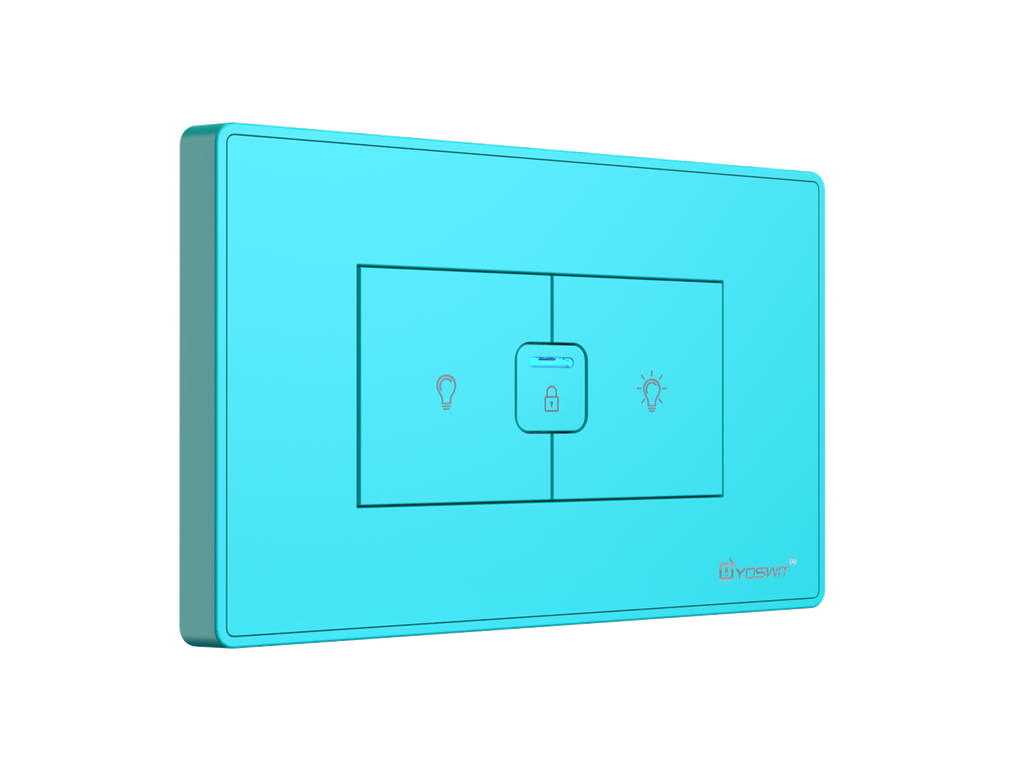

Yoswit Smart Dimmer Switch

Model: YO813d (R2)-220

Product type: Smart dimming switch / dimmer

Category: Smart Home / Smart Lighting – Dimming

Voltage note: “-220” indicates 220V market version

Technology: Bluetooth 4.2 (BLE)

Supported panels: 55 / 86 / 118 / 120

Certifications: CE, FCC, RoHS

Tagline

Easily master brightness — a smart dimmer switch that creates the ideal atmosphere for your entire home.

Key Features

• High compatibility
  Works with incandescent lamps, dimmable LED lamps and dimmable CFL lamps. Supports both leading-edge and trailing-edge dimming.
• Works with dimming drivers
  Compatible with common dimming drivers — no need to use a specific proprietary driver. Simply replace your traditional dimmer with the Yoswit smart dimmer.
• Custom dimming steps
  Adjust the brightness increment in the Yoswit App for smooth, soft dimming and the right mood at the right time, while saving energy.
• High-precision adjustment
  Provides excellent dimming accuracy for stable lighting performance with no flicker.
• Voice & remote control via Yoswit App
  With a gateway connected, the switch can link to smart speakers; remote control through the Yoswit App makes daily use more convenient.
• Brightness memory
  When the dimmer is turned off, Yoswit automatically remembers the current brightness and restores it the next time it is turned on.
• Low power consumption
  Energy-efficient and cost-saving, with lower power use and no reduction in performance.

Platform / Ecosystem

• Network control
• Voice control
• Device grouping / mesh
• Remote control
• Scene modes
• Human presence sensing
• Timer switch
• Password protection
• IFTTT support

Bluetooth & Compatibility

• Bluetooth version: Bluetooth 4.2 (Bluetooth Low Energy / BLE)
• Compatible devices: All Bluetooth Smart Ready devices — phones, tablets, smart set-top boxes
• iOS support: iOS 13.0 or later
• Android support: Android 7 or later

Technology Positioning

• 2-in-1: TRIAC (Silicon-Controlled Rectifier) + 0–10V
• Single-live compatible (TRIAC)
• Neutral-wire compatible (TRIAC / 0–10V)
• Leading-edge & trailing-edge supported

Specifications
