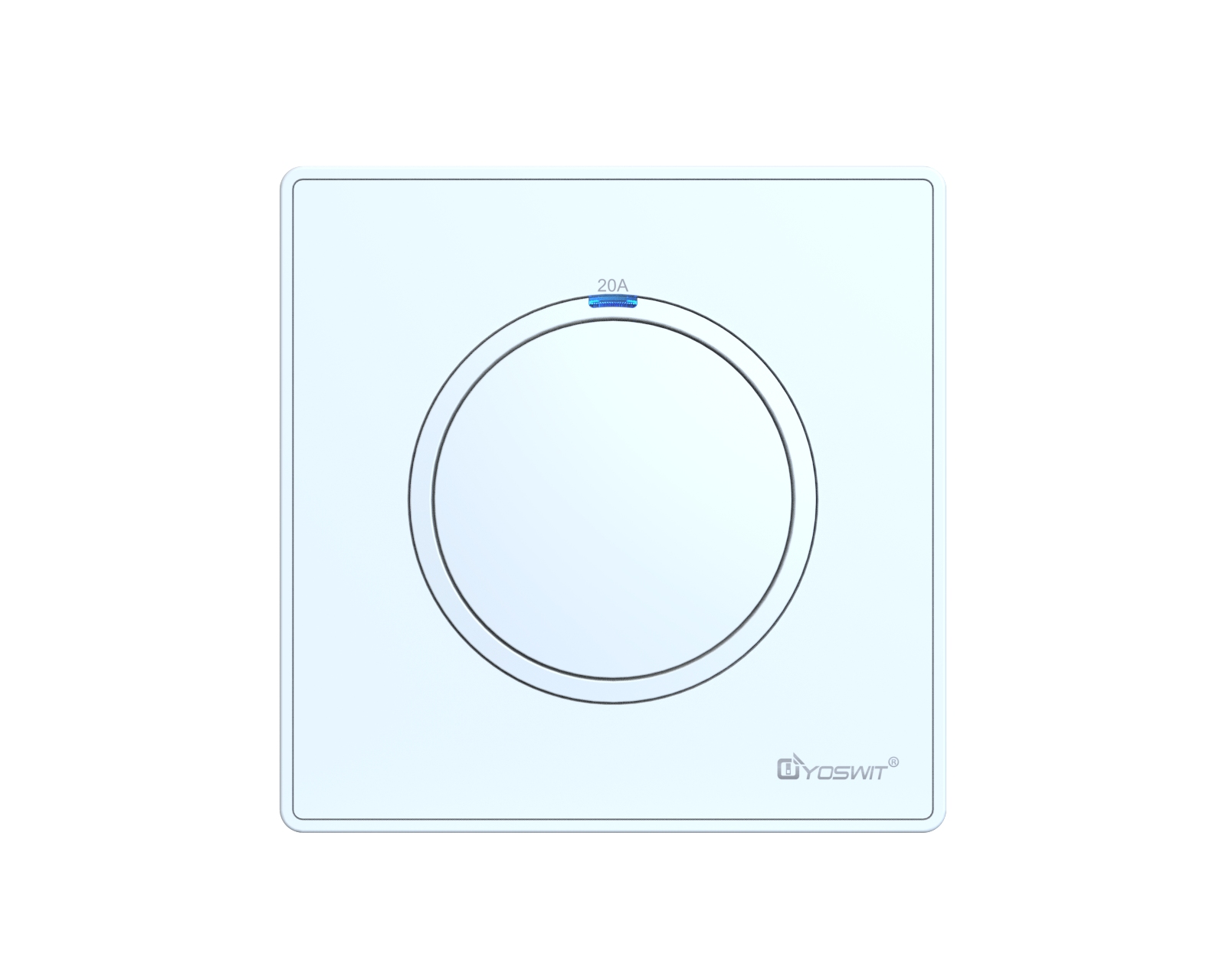

Yoswit Smart Double Pole Switch with IR

Model: YO815c-IR (R2W)

Product Name: Yoswit Smart Double Pole Switch with Infrared

Type: 86-type smart heavy-load / appliance switch with IR blaster + gateway function

Panel Type: 86-type

Revision: V7.0

Designed by: Yoswit, Hong Kong

Assembled in: Guangdong, China

Certifications: CE, FCC, RoHS

Tagline

Make your home appliances smart with a double-pole smart switch — control power, monitor energy, and drive IR appliances from one device.

Key Features

• Suitable for high-power appliances
  Supports high-load devices up to 20A; ideal for water heaters, air conditioners, exhaust fans and similar heavy appliances.
• Built-in IR transmitter + Yoswit App control
  Controls IR appliances directly via the built-in infrared blaster, and also via the Yoswit App for flexible dual control.
• Power consumption monitoring
  View real-time and second-by-second energy data for high-consumption appliances; helps reduce waste and electricity cost.
• Built-in schedule / timer
  Set weekly, daily, hourly or even per-minute operation rules. Schedules are stored in the switch and run independently even if the phone disconnects.
• Acts as a gateway for other Yoswit products
  With Wi-Fi onboard, it works as a hub to connect and manage other Yoswit smart devices from the Yoswit App.
• Bluetooth + Wi-Fi for stable, wider coverage
  Bluetooth mesh strengthens local control; Wi-Fi enables remote access and better signal coverage through rooms/walls.
• Compatible with major third-party smart home platforms
  Integrates with ecosystems such as Google Home and other mainstream smart-home apps for cross-platform control.
• OTA remote upgrade
  Receives firmware updates automatically; new features and fixes are pushed without user intervention.

Specifications *(shared Yoswit 86 / double-pole IR template)

Documents / Downloads

• User manual (EN / Simplified Chinese)
• Datasheet
• Leaflet: Smart Light Switch
• Product catalogue
• Product catalogue (Hong Kong)
• Yoswit App (iOS / Android APK)

Installation Warnings

• Disconnect power at the service panel before installation.
• Installation must be performed by a licensed electrician.

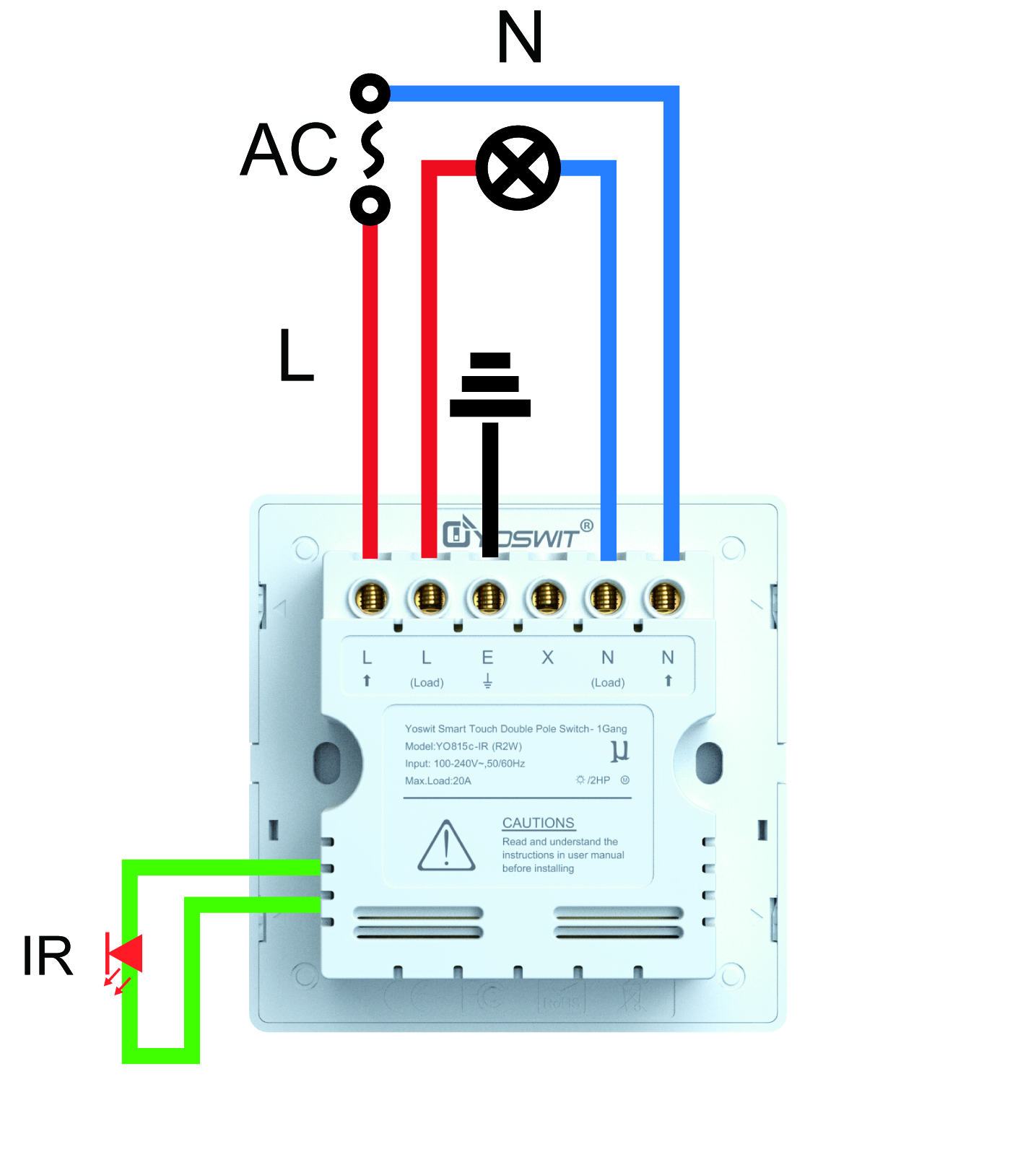

• Strip wires ≈5mm, follow the wiring diagram, and ground the device according to local regulations.
• No ground connection = unsafe installation and risk of personal injury.
• Mount to back box, restore power, test 2–3 times, then snap the faceplate until all corners “click”.
• Yoswit App auto-detects the switch and adds it to your device list.
