YO815D(R2)-220
Production Lead Time:
14 day(s)
产品型号:
YO815d (R2)-220
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

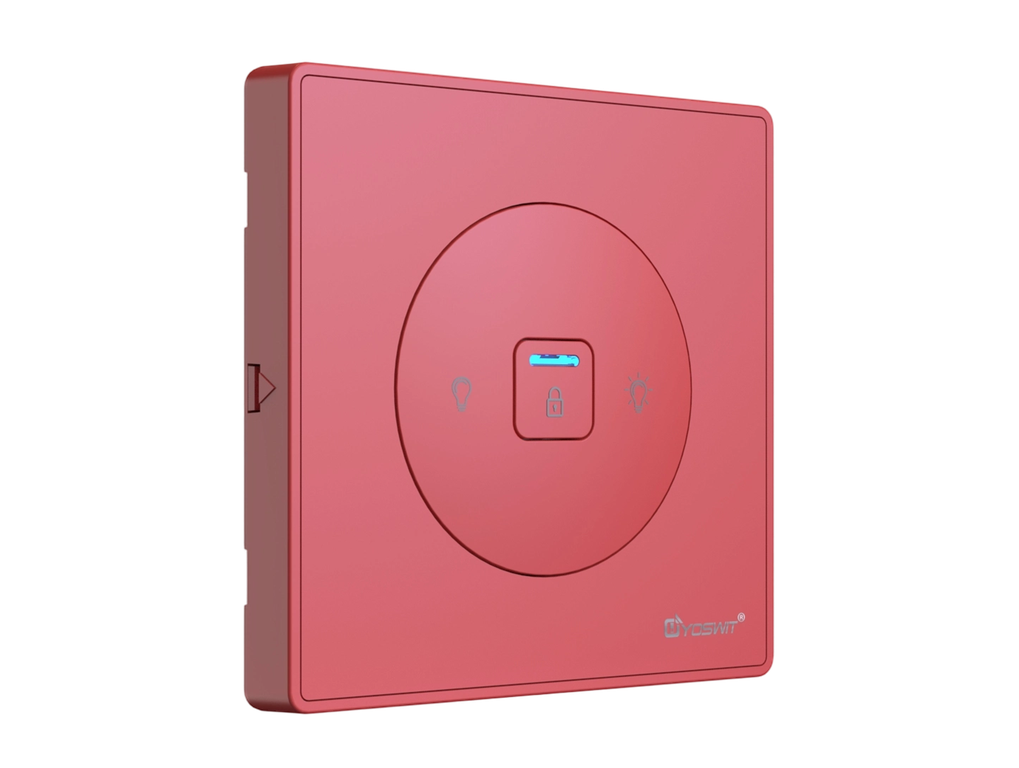

Yoswit Smart TRIAC Dimmer Switch
Model: YO815d (R2)-220
Product Name: Yoswit Smart TRIAC Dimmer Switch
Panel Type: 86-type
Revision: V7.0
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary
A 86-type BLE smart TRIAC dimmer switch for 200–240V markets. It replaces a traditional dimmer switch, supports incandescent / dimmable LED / dimmable CFL, leading-edge and trailing-edge dimming, app-based brightness control, brightness memory, and low power consumption. In Yoswit’s platform, the dimmer family supports TRIAC and 0–10V dimming; this model is the TRIAC version at 200–240V.
Key Features
- High compatibility: Works with incandescent, dimmable LED and dimmable CFL lamps; supports leading-edge (TRIAC / forward phase) and trailing-edge (reverse phase) dimming.
- Works with common dimming drivers: No need to match a proprietary driver—replace the traditional dimmer directly.
- Custom brightness adjustment: Adjust brightness increment/steps in the Yoswit App for smooth, soft dimming and energy saving.
- High-precision dimming: Stable performance, no flicker.
- Voice and remote control via Yoswit App: When connected to a gateway, can work with smart speakers and remote control.
- Brightness memory: Remembers the last dimming level when turned off, and restores it the next time the light is turned on.
- Low power consumption: ≤1W; energy-saving with no loss in performance.
- App + manual control.
Electrical Specifications
Item | Value |
|---|---|
Input Voltage | 200–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 1A |
Notes | TRIAC dimmer version; older datasheets/listings also reference 220W resistive load / 400W max depending on revision |
Mechanical Specifications
Item | Value |
|---|---|
Operating Environment | Indoor |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Panel Size | 86 × 86 mm (86-type) |
Wireless Specifications
Item | Value |
|---|---|
Connectivity | BLE 4.2 |
Frequency | 2.4GHz |
Range | Open area: >50 m / Indoor: 3–20 m |
App Compatibility
- iOS 13.0 or later
- Android 7.0 or later
- Yoswit App (iOS / Android APK)
- Bluetooth Smart Ready devices supported
Package / Documents
- Smart TRIAC dimmer switch main unit
- Mounting screws
- User manual (EN / Simplified Chinese)
- Datasheet
- Leaflet: Smart Lighting Switch
- Product catalogue / Hong Kong product catalogue
Installation Warnings
- Turn off power at the breaker before installation; licensed electrician only.
- Strip wires to approx. 5mm exposed conductor.

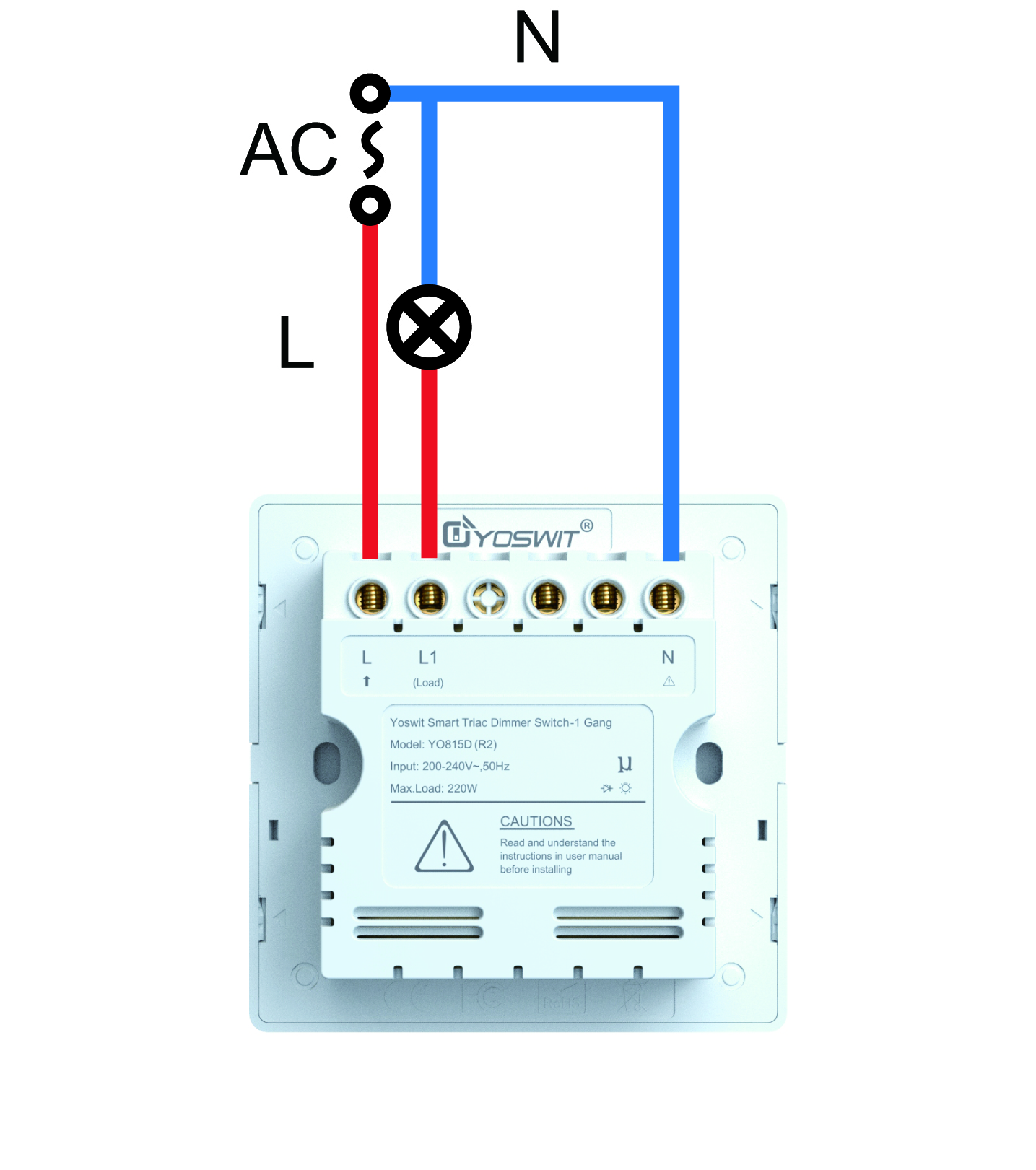

- Connect wires to terminals according to the wiring diagram.
- Ground the device per local electrical code; missing ground is unsafe.
- Mount firmly to the back box, restore power, test button 2–3 times.
- If LED flickers / no light on 2-wire install: use 3-wire (N) wiring or add the optional LED stabilizer across any lamp.
- Snap faceplate until all corners “click”; Yoswit App auto-detects the switch.
