YO815v(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO815V(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

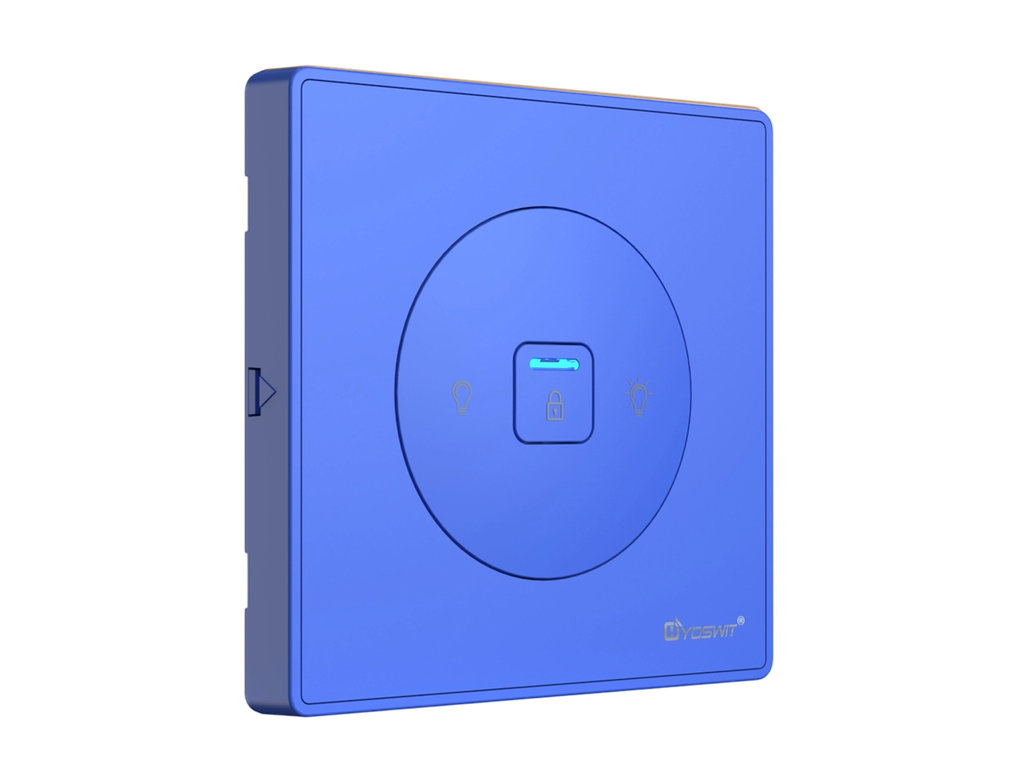

Yoswit Smart 0–10V Dimmer Switch
Model: YO815v (R2W)
Product Name: Yoswit Smart 0–10V Dimmer Switch
Panel Type: 86-type
Revision: V7.0
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary
A 86-type BLE smart dimmer switch supporting both triac and 0–10V dimming concepts in Yoswit’s platform positioning. The documented unit is the 0–10V dimmer: high compatibility with dimmable loads, adjustable brightness step, high-precision dimming, brightness memory, voice/remote control via gateway, and low power consumption.
Key Features
- High compatibility: Works with incandescent, dimmable LED and dimmable CFL lamps; supports leading-edge (TRIAC / Forward Phase) and trailing-edge (ELV / Reverse Phase) dimming.
- Works with common dimming drivers: Can be used with typical 0–10V / dimming drivers; no proprietary driver required. Replace the traditional dimmer switch directly.
- Custom dimming steps: Adjust brightness increment in the Yoswit App for smooth, soft dimming and energy saving.
- High-precision adjustment: Stable dimming performance, no flicker.
- Voice and remote control via Yoswit App: When connected to a gateway, works with smart speakers and remote control.
- Brightness memory: Remembers the last brightness level when turned off, and restores it next time the light is turned on.
- Low power consumption: ≤1W standby/power consumption; energy-saving without performance loss.
- App + manual control.
Electrical Specifications
Item | Value |
|---|---|
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 6A |
0–10V Output Load | 100 mA / up to 50 lamps |
Mechanical Specifications
Item | Value |
|---|---|
Operating Environment | Indoor |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Panel Size | 86 × 86 mm (86-type) |
Wireless Specifications
Item | Value |
|---|---|
Connectivity | BLE 4.2 |
Frequency | 2.4GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
- iOS 13.0 or later
- Android 7.0 or later
- Yoswit App (iOS / Android APK)
- Bluetooth Smart Ready devices supported
Package / Documents
- Smart dimmer switch main unit
- Mounting screws
- User manual (EN / Simplified Chinese)
- Datasheet
- Leaflet: Smart Lighting Switch
- Product catalogue / Hong Kong product catalogue
Installation Warnings
- Turn off the circuit breaker before installation; licensed electrician only.
- Strip wires to approx. 5mm exposed conductor.

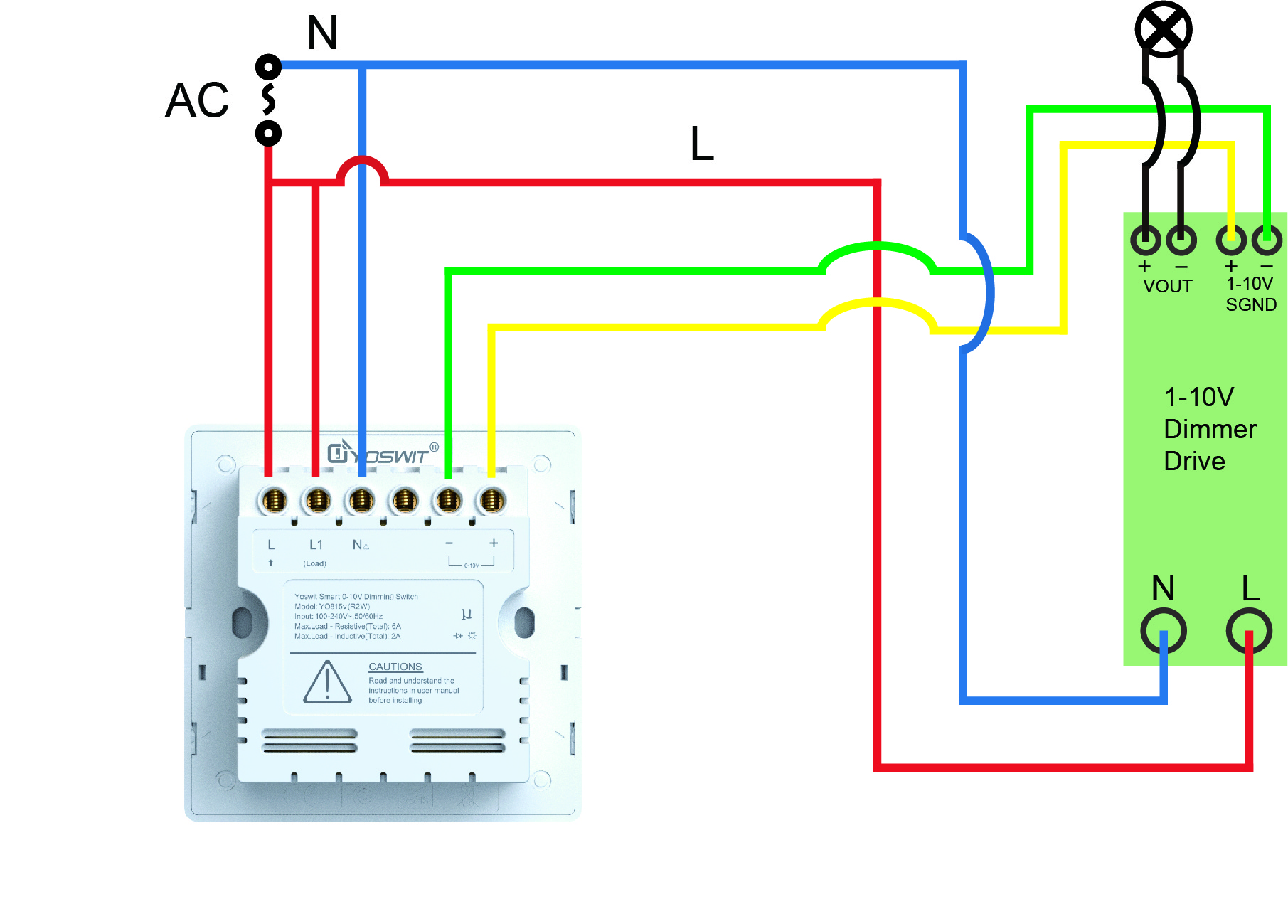

- Connect wires to terminals according to the wiring diagram.
- Ground the device per local electrical code; missing ground is unsafe.
- Mount firmly to back box, restore power, test button 2–3 times.
- If LED flickers / no light on 2-wire install: use 3-wire (N) wiring or add the optional LED stabilizer across any lamp.
- Snap faceplate until all corners “click”; Yoswit App auto-detects the switch.
