Flow rate : 10L/min adjustable

Purity : 93%±3%

Power supply : 220 V/50Hz or 110V/60Hz

Power consumption : 850VA

Noise : 60dB

Operation environment Temperature : 5℃-40℃ Humidity≤80%

                                                                  Atmospheric pressure: 86kPa-106kPa

Dimension : 335x320x620mm

Packing Size : 445x390x755mm

Net Weight : 19.2kgs

Gross Weight : 21.7kgs

Compressor : Germany imported pure copper oil free compressor

Molecular Sieve : Z12-07, USA imported

Filter : USA imported HEAP high efficiency filter

Alarm : Power failure, Over-heat, Low O2 purity alarm

Accessories : Nasal Cannula, adult mask, humidifier bottle, Oxygen tube, Nebulizer cup(optional)

NINE CHARACTERISTICS

1. Automatic alarm detection system and photosensitive LED display, oxygen purity monitoring, and cumulative timing, power failure

    alarm and other functions, Easy to operate.

2. Zero friction solenoid valve design, performance and life are more stable and durable.

3. Special high-efficiency Lithium Molecule (Z12-07), 30,000 hours of operation, stable performance and guaranteed.

4. Fully modularized internal design, integrated oxygen module system, ensure quick and convenient installation and maintenance.

5. High-efficiency and low-power design. Oxygen is produced within three minutes after power-on, and the oxygen purity is up to 93%±3%.

6. HEAP high efficiency filter, can be used continuously for 5000 hours.

7. HEAP high-efficiency bacterial filter (0.3um) to ensure that the oxygen produced is pure and sterile, in line with PM2.5 requirements.

8. Multi-level noise reduction, low noise operation below 40dB.

9. Oil-free patented compressor, lifetime is over 25000 hours.

PRODUCT OVERVIEW

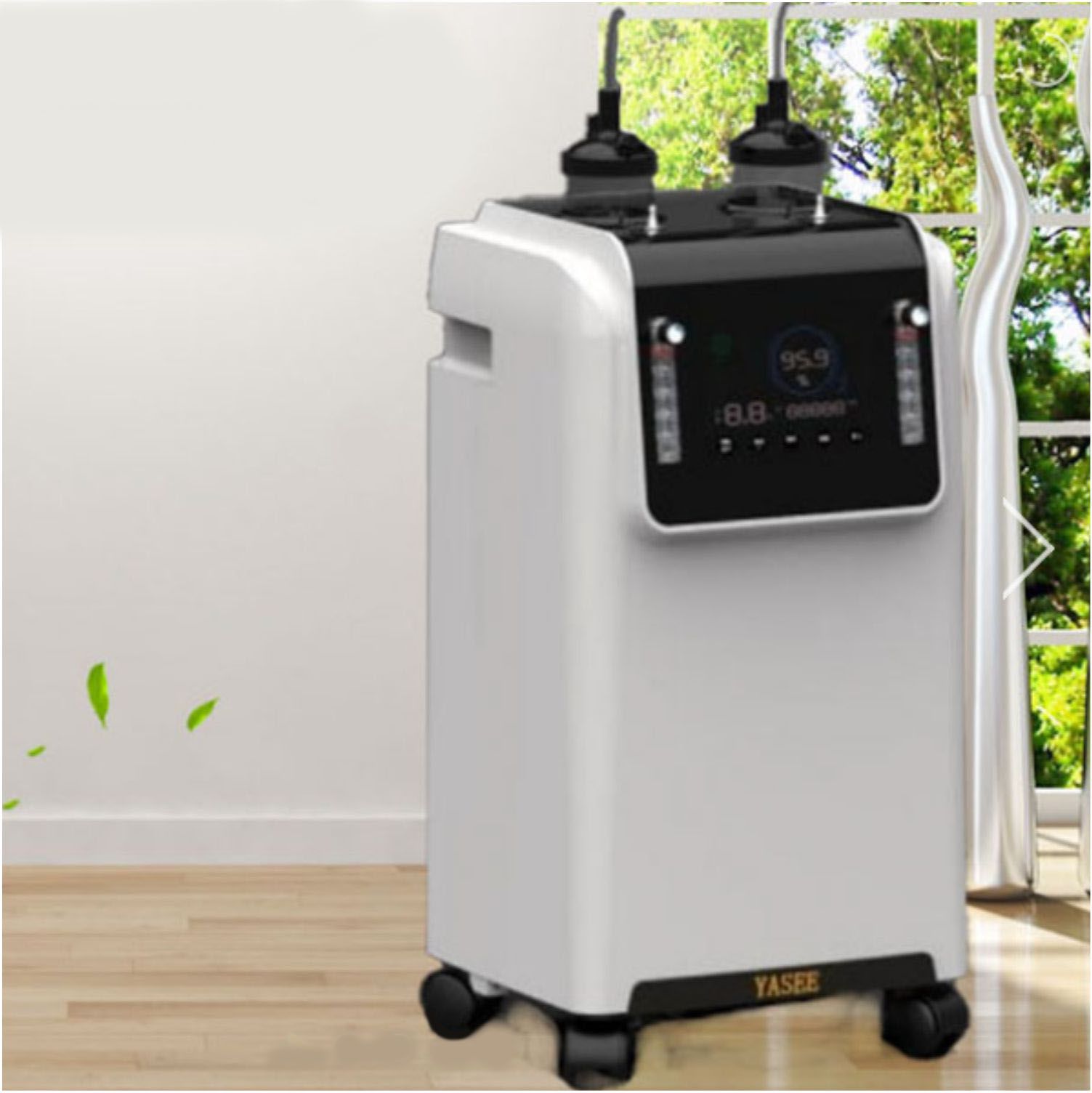

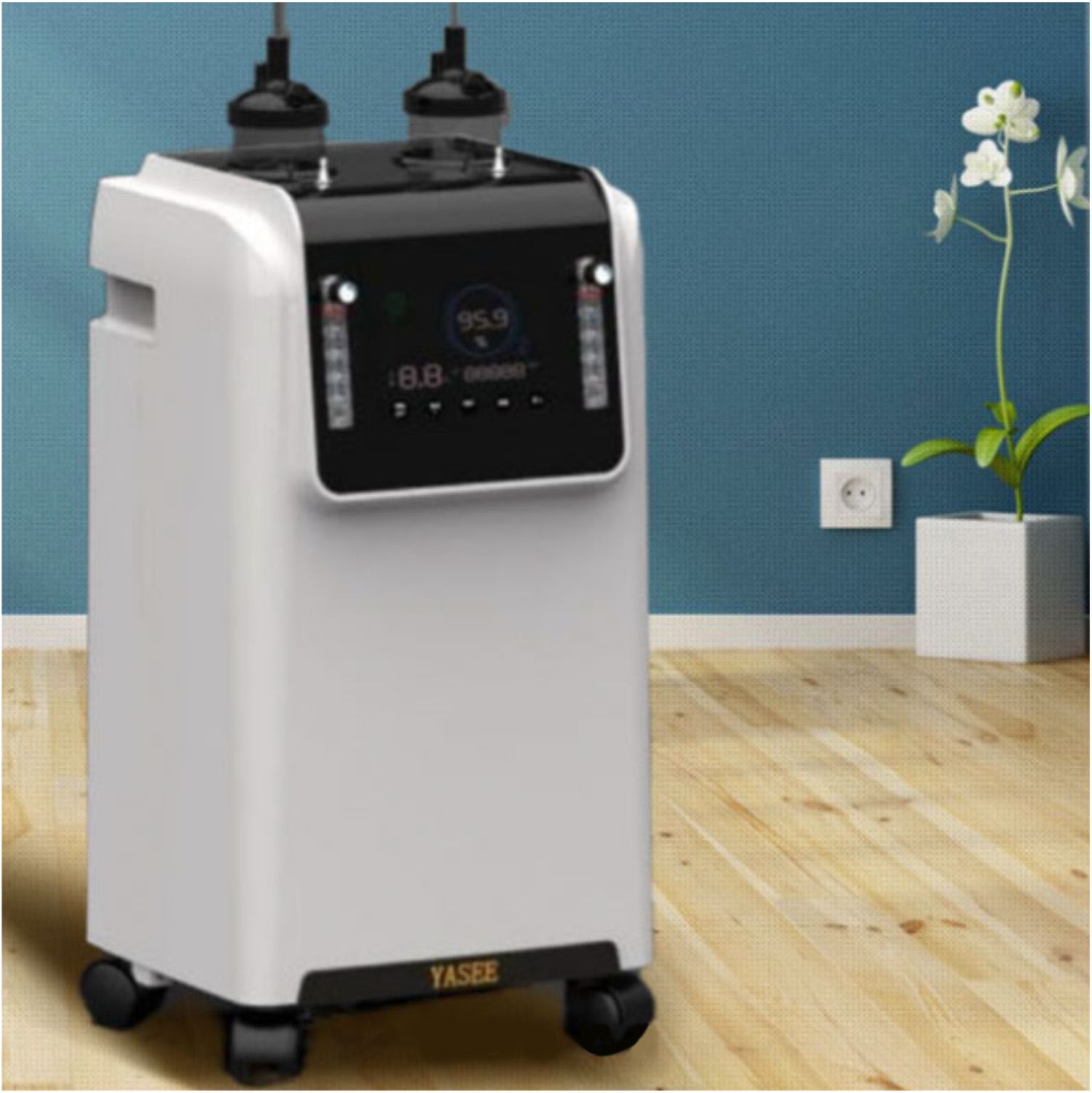

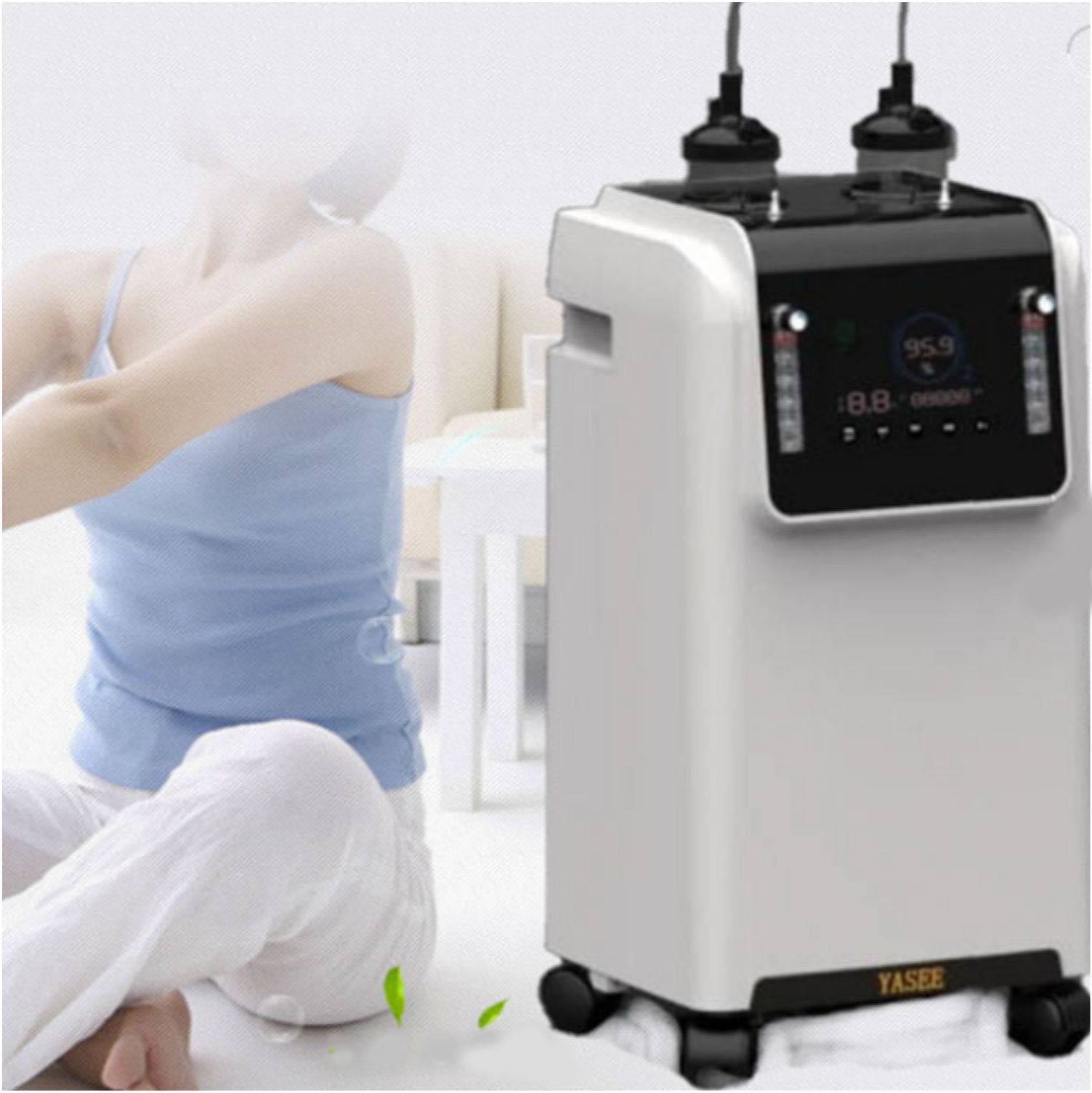

Product Name: Small medical oxygen concentrator Models: YS-100, YS-100Y, YS-100YW; YS-300, YS-300Y, YS-300YW, YS-500, YS-500Y, YS-500YW

Production license No.: Wan Medical Products Administration License No. 20160040 Product registration certificate No.: Wan appliance register

authorization No. 20162540272 Product technical requirement No.: Wan appliance register authorization No. 20162540272 Use period: 8000 hours

(cumulative use) or 5 years Factory number, production date: see product label Product structure: Oxygen generator, oxygen suction tube,

humidification bottle, oxygen concentration monitor and an atomizing device. An oxygen generator includ-ing compressor, molecular sieve

adsorption tower, solenoid valve, control circuit components and flow meter. Scope of application: Use air as raw material, use molecular sieve

to transform pressure attach process to produce oxygen with a concentration range of 90% ~ 96%
