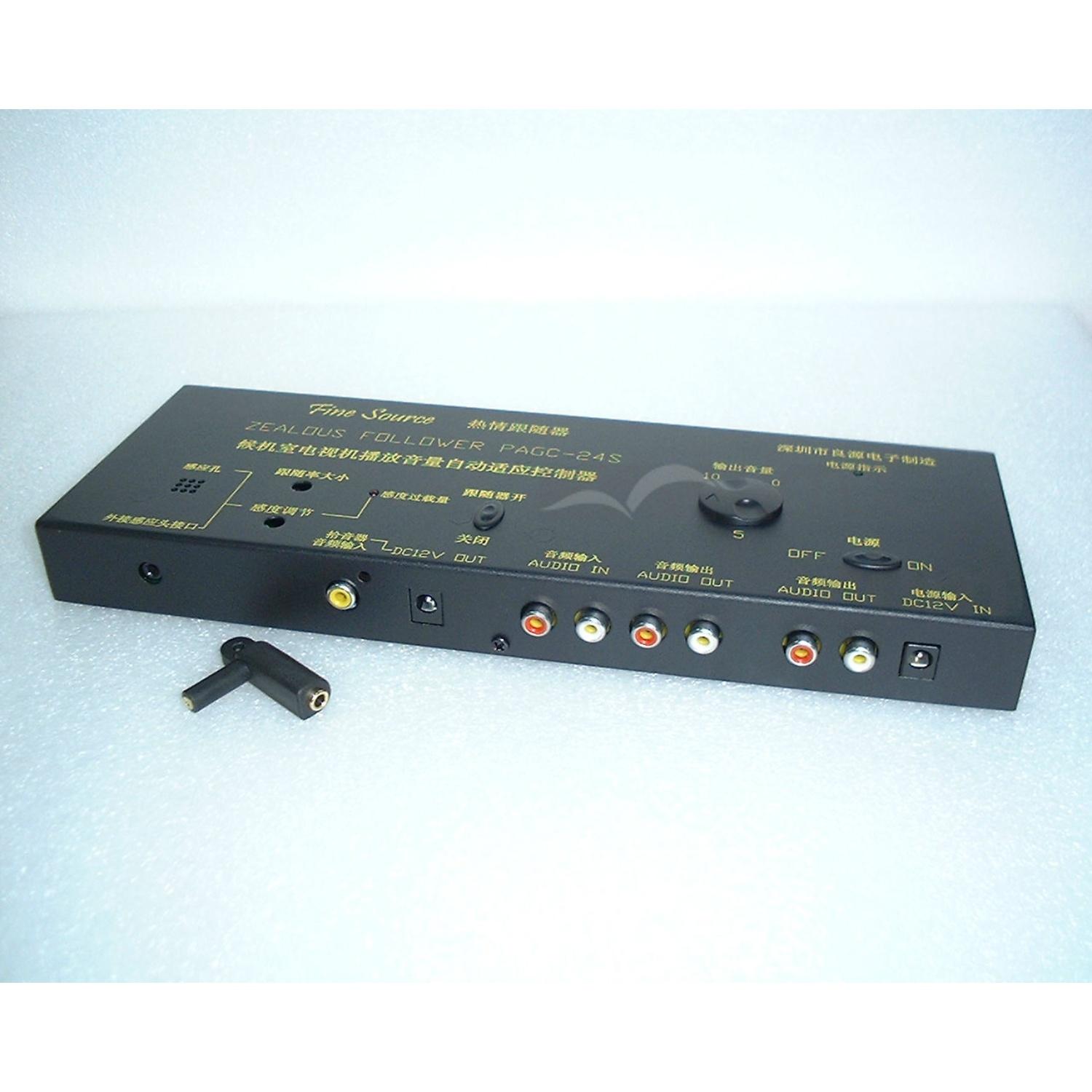

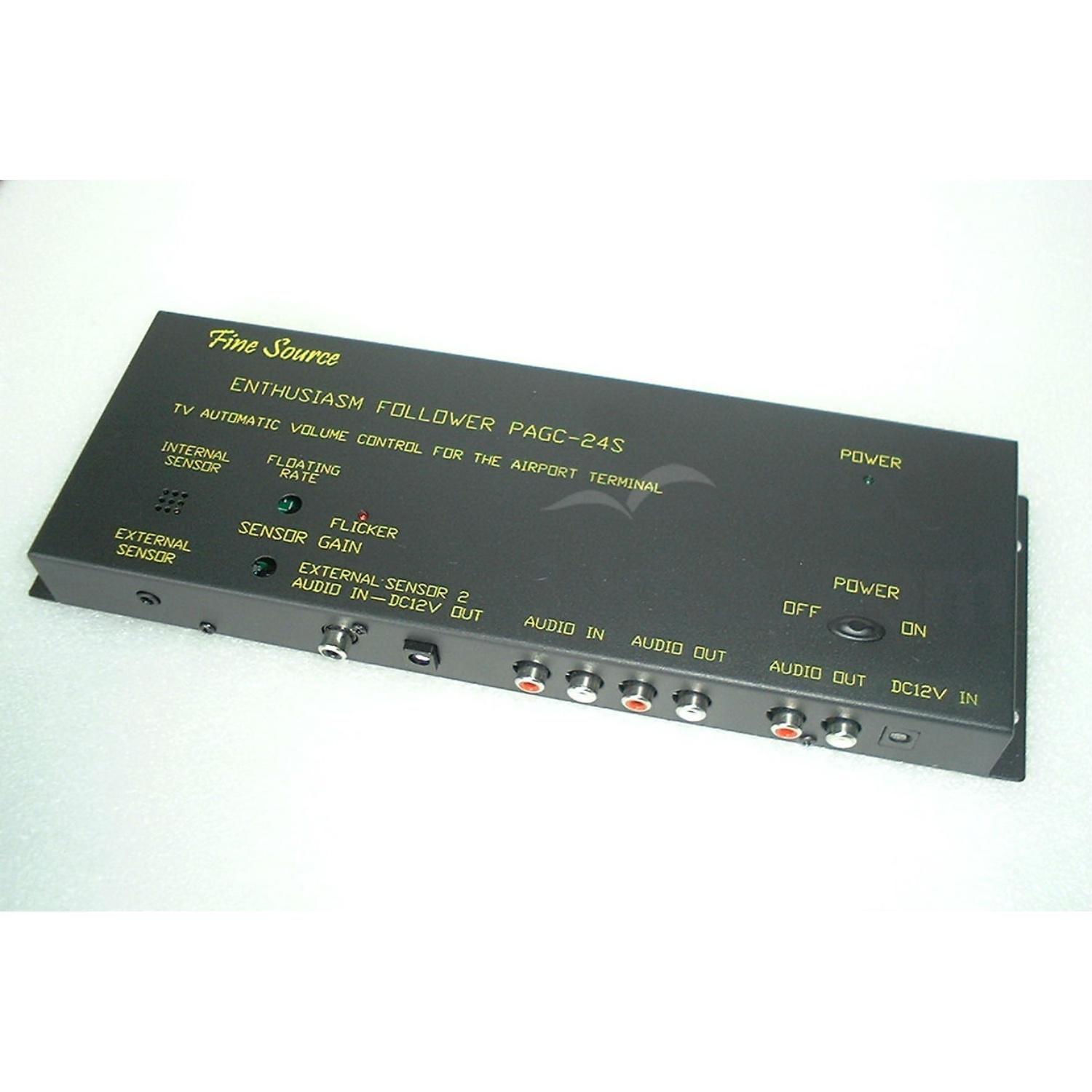

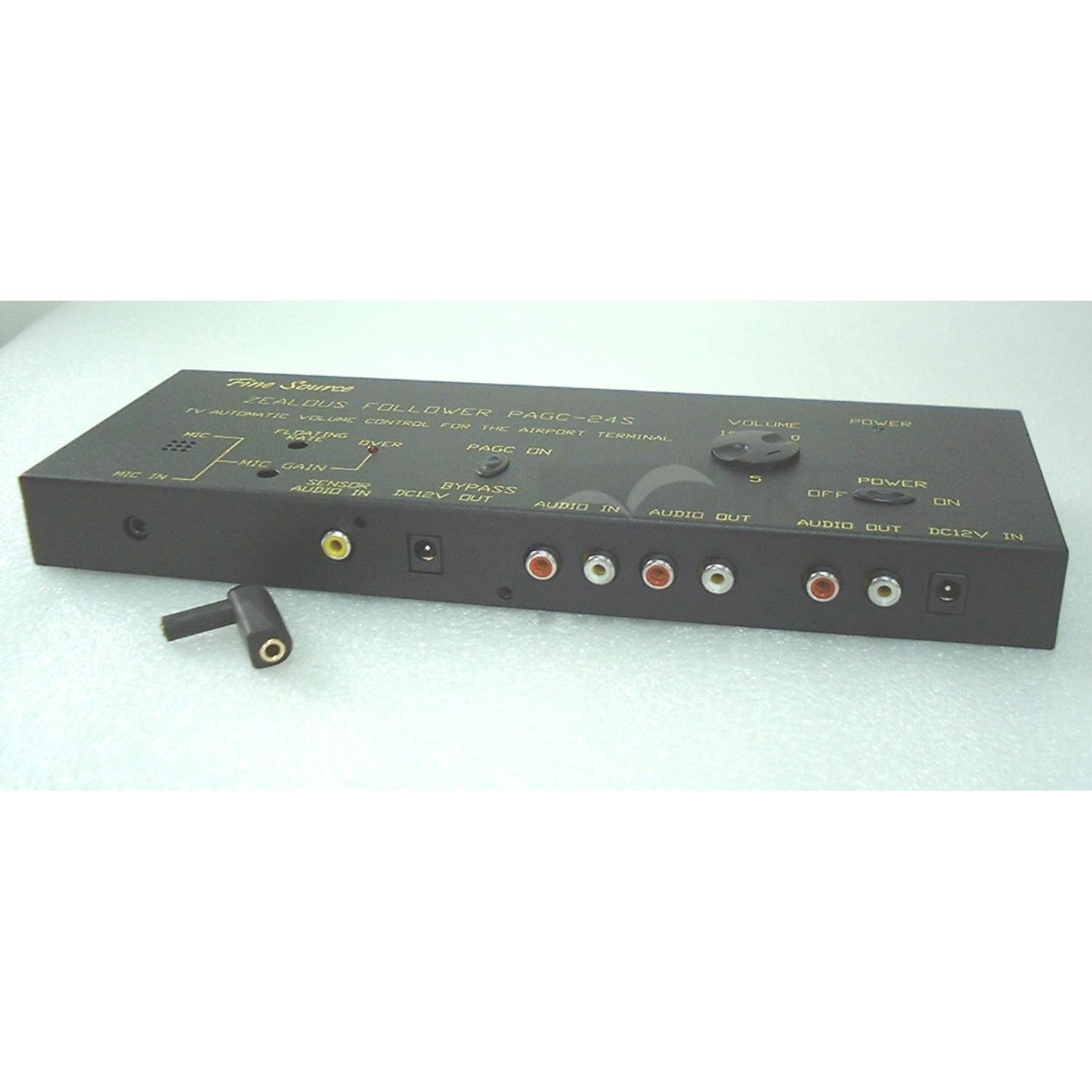

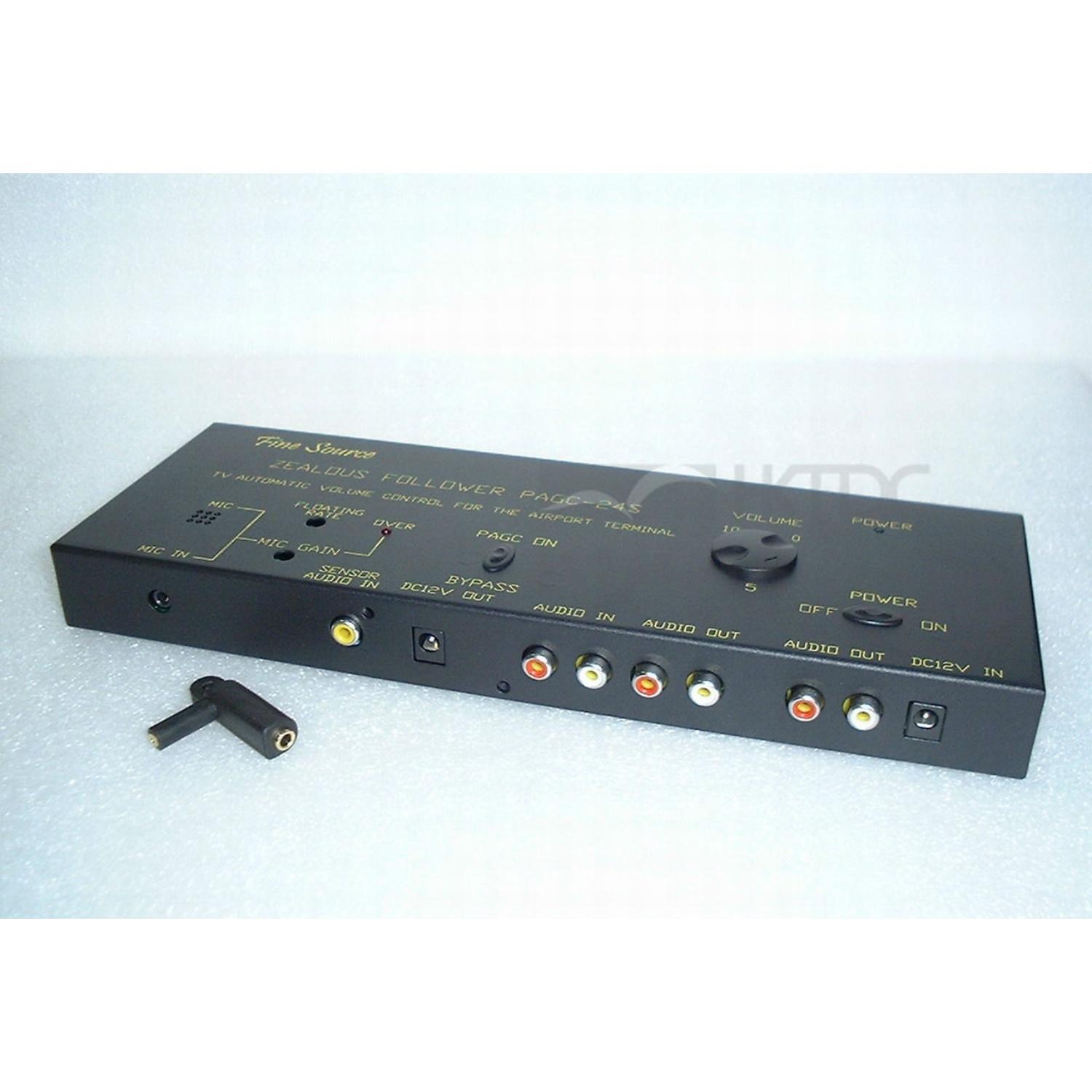

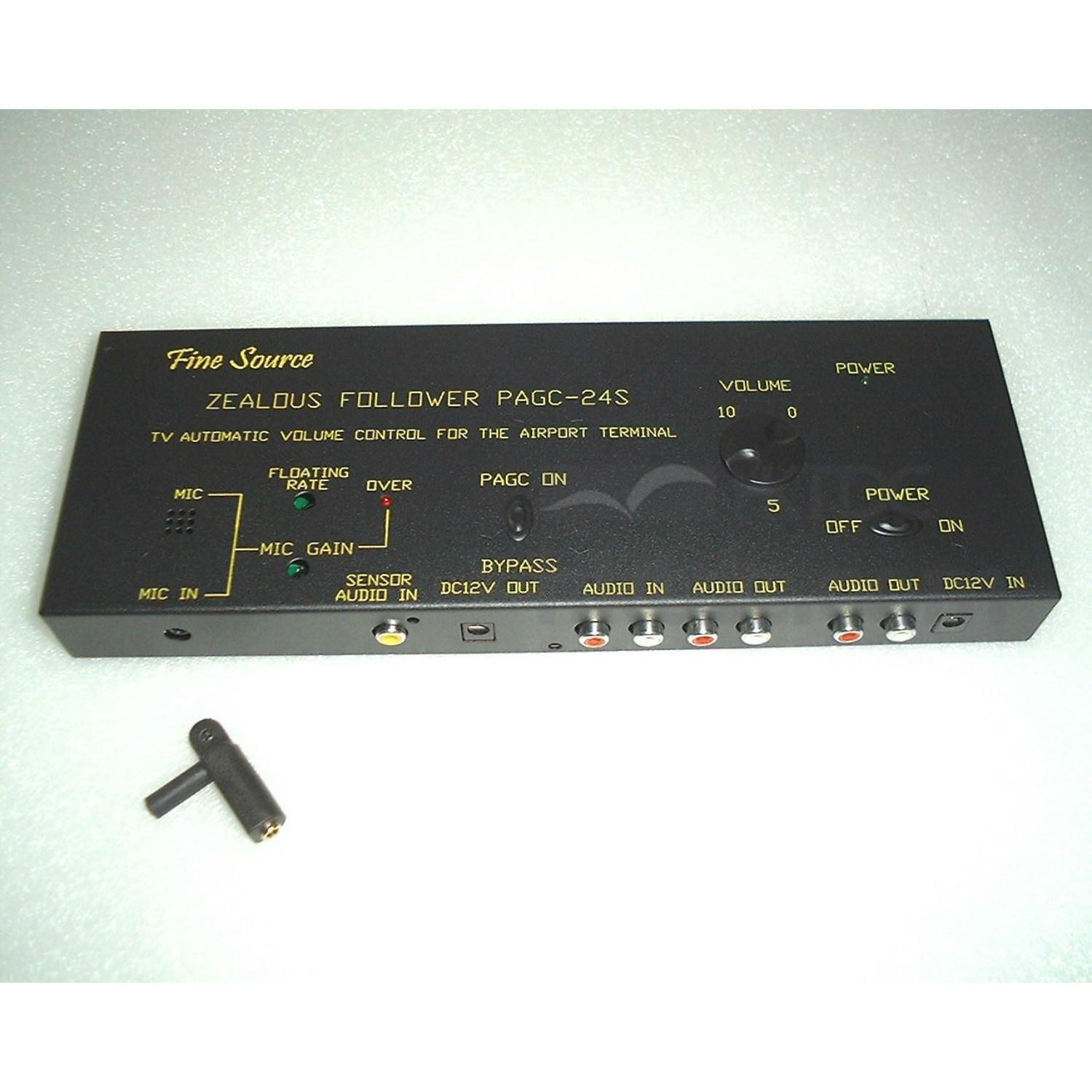

Zealous Follower PAGC-24S
Description
Contact Supplier
Description
TV Volume Adaptive Controller for Waiting Rooms
Zealous Follower PAGC-24S is able to automatically stabilize audio source by itself, and able to automatically changes TV volume at real-time based on the noise level of the site. Sometimes public places are crowded, sometimes are sparse, in addition, noise level varies with different groups and different times. Therefore, the TV volume must be adjusted accordingly based on the ambient noise level. When noise is high, TV volume will turn up, vice versa, regardless of what kind of TV programs or advertisements. If so, passengers will not feel the TV too loud or quiet, moreover, it will improve overall service quality of our public facilities.
Applications: waiting rooms of bus stations, railway stations and lounges of airports as well as various public waiting rooms.
Input voltage: DC 12V ± 0.6V
Power consumption: Max. 2.5W
Voltage requirements of audio input: AC 0.07Vrms ~ 2Vrms
Audio output Voltage: AC 0Vrms ~ 1.5 Vrms (adjustable)
Voltage requirements of pickup audio input: AC 1Vrms ~ 2Vrms
Output current of DC 12V Out: Max. 50mA
Volume automatic stabilizing capacity: 27dB
Volume automatically following capacity: 15dB (when detection sense distance is 3m)
Dimensions: 280x100x 28mm
Zealous Follower PAGC-24S is able to automatically stabilize audio source by itself, and able to automatically changes TV volume at real-time based on the noise level of the site. Sometimes public places are crowded, sometimes are sparse, in addition, noise level varies with different groups and different times. Therefore, the TV volume must be adjusted accordingly based on the ambient noise level. When noise is high, TV volume will turn up, vice versa, regardless of what kind of TV programs or advertisements. If so, passengers will not feel the TV too loud or quiet, moreover, it will improve overall service quality of our public facilities.
Applications: waiting rooms of bus stations, railway stations and lounges of airports as well as various public waiting rooms.
Input voltage: DC 12V ± 0.6V
Power consumption: Max. 2.5W
Voltage requirements of audio input: AC 0.07Vrms ~ 2Vrms
Audio output Voltage: AC 0Vrms ~ 1.5 Vrms (adjustable)
Voltage requirements of pickup audio input: AC 1Vrms ~ 2Vrms
Output current of DC 12V Out: Max. 50mA
Volume automatic stabilizing capacity: 27dB
Volume automatically following capacity: 15dB (when detection sense distance is 3m)
Dimensions: 280x100x 28mm
