Equipment Introduction:

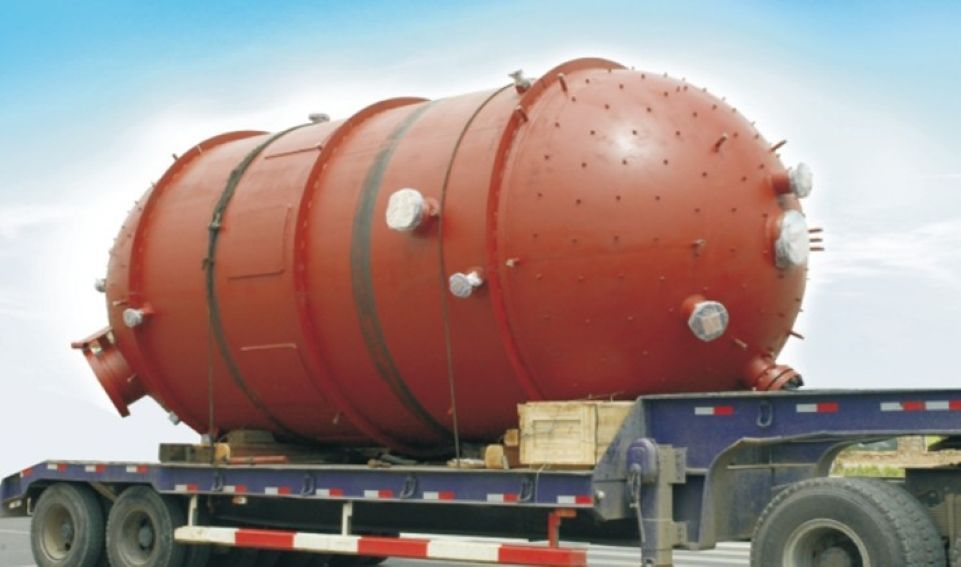

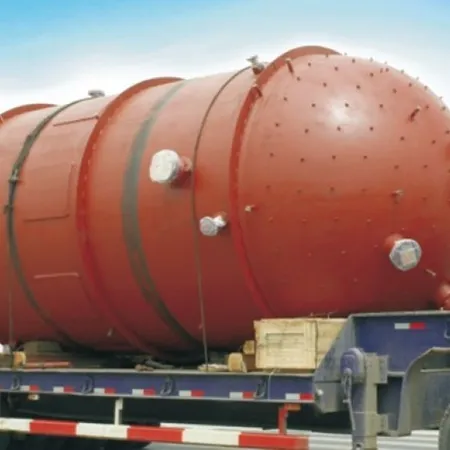

The acetic acid reactor is the core equipment in the acetic acid production process, mainly used to oxidize acetaldehyde into acetic acid. Acetic acid is an important chemical raw material, widely used in food, medicine, plastics, synthetic fibers and other fields.

Basic Parameters and Structural Features of the Equipment:

The main components of the zirconium heat exchanger include: shell, tube bundle, tube sheet, head, baffle, inlet and outlet, and support structure.

Main materials: stainless steel, nickel-based alloy, etc.

The equipment structure design and material selection can be optimized according to the specific needs of users.

Application Range:

acetic acid production.

Technical Parameters:

Diameter 1.5m to 3 m

Height 5m to 30m

Operating temperature 300℃ to 500℃

Operating pressure 0.5 MPa to 5.0 MPa.
