digital pressure gauge

Production Lead Time:

10 day(s)

Shipping Method:

AIR

Application:

The digital pressure gauge is used for measuring the pressure of gas medium (in the micro-pressure range)

warranty period:

10 years

Description

Contact Supplier

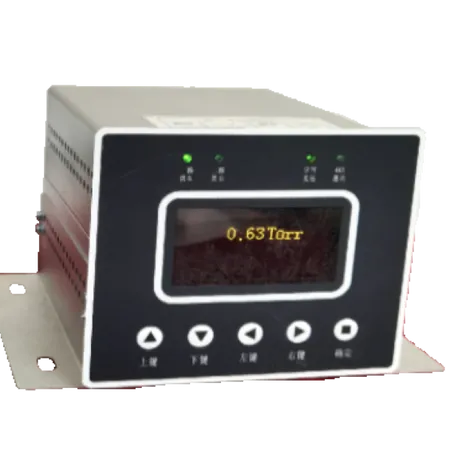

The digital pressure gauge is used for measuring the pressure of gas medium (in the micro-pressure range), which belongs to the differential pressure type instrument and has the functions of local display and signal transmission over long distance. The pressure measurement and display adopt a split structure. The sensing diaphragm is selected as a special one. The pressure interface is made of stainless steel. It has high precision, simple operation, strong shock resistance and good stability. It can be reset and enter automatic standby mode. It has functions such as delay control, reverse control, three kinds of pressure unit switching (MPa, kg, psi), and one-click error reset. The digital display case is made of aluminum alloy and the low-power processor chip is used. It has a long service life and good stability, which can meet various measurement requirements.

Technical indicators:

Range	0～133.3Pa(1Torr)、0～1.33kPa(10Torr)、0～2.66kPa(20Torr)、0～6.65kPa(50Torr)、0～10kPa(75Torr)、0～13.3kPa(100Torr)、0～100kPa
Precision	0.5%-1.6%
Output signal	1V～5VDC/0V～10VDC, Support RS485 communication
Supply voltage	220VAC
Power	≦12W

Functional highlight:

The product has strong corrosion resistance and can withstand the corrosion of hydrofluoric acid as well as strong acids and alkalis.

The product has strong resistance to electromagnetic interference.

The product is highly stable.

Service:

Pre-sales Service: Our professional team will offer you technical consultation and selection guidance. Based on your requirements, we will recommend the most suitable products and formulate personalized solutions. Products can be customized according to the required micro-pressure measurement range specified by the customers.

Pre-sale and in-sale services: Respond promptly to your order demands, ensure the timely, high-quality and adequate delivery of products, and provide detailed product information and installation and usage instructions.

After-sales Service: We offer comprehensive after-sales support. The product is guaranteed for 10 years. During the warranty period, if there is any quality issue, it will be repaired or replaced free of charge. Our professional after-sales team is always available to provide technical support for you and promptly solve the problems encountered during use.
