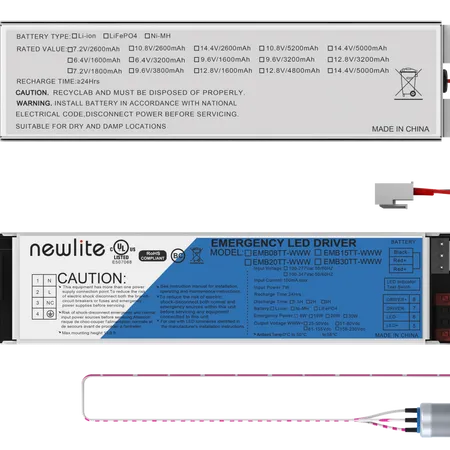

emergency driver EMB 8w/18w 170VDC
Share this page
Production Lead Time:
30 day(s)
Shipping Method:
EXW
Brand:
newlite
Description
Contact Supplier
Description

Output Power: 8w/18w
Output Voltage:170VDC
Input Power: 7w
Input Voltage:100-240VAC,50-60Hz
Emergency Time:180 minutes
Operating Temp:32°F-140°F(0°-60°)
Battery:lithium/LiFePO4
weight:2.3lbs(1.05kg)to 2.9lbs(1.32kg)

emergency Time                                                                                      90 Minutes


 Full Warranty                                                                                     5 Years


Universal Input Voltage                                                                     100-240 VAC, 50-60 Hz


AC Input Current                                                                                 100mA Maximum


 Output Voltage                                                                                   170 VDC


Output Power                                                                                       8/18W


Test Switch/Charging Indicator Light                                                 IP65 rated for ingress protection to dust and water jets.

                                                                                                                Test Switch Assembly is UL2043 Plenum-Rated


Battery                                                                                                   High-Temperature

                                                                                                                 Lithium Battery


Recharge Time                                                                                        24 Hours


Temperature Rating                                                                               Ambient: 0°C to +60°C (32°F to 140°F) Case: Tc (Max): 65°C


Dimensions                                                                                              L 6.8'' x H5.47” (173 mm x 139mm)


Weight                                                                                                      Without Conduit – 3.7lbs(1.7kg)/3.9 lbs (1.8kg)
