iSolar Lighting System
Production Lead Time:
45 day(s)
Model No.:
LS-01
Description
Contact Supplier
Description

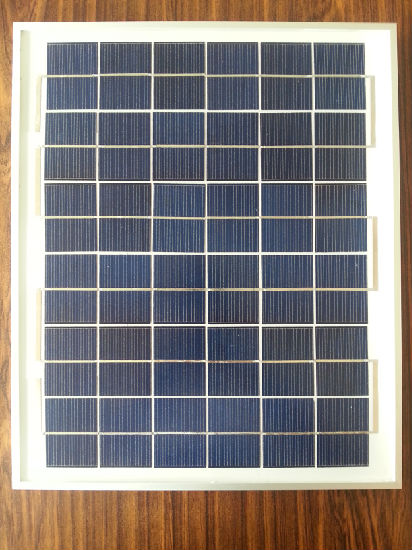

- Solar panel: one 10W panel.
- PV-cell material and conversion efficiency: poly-crystalline, conversion efficiency >16%.
- Voc (voltage open circuit): 22V.
- Max. charge circuit: 0.57A.
- Weight: 1150 gram (2.54lb).
- Open dimensions: 29 x 35cm (11.42 x 13.781 in).

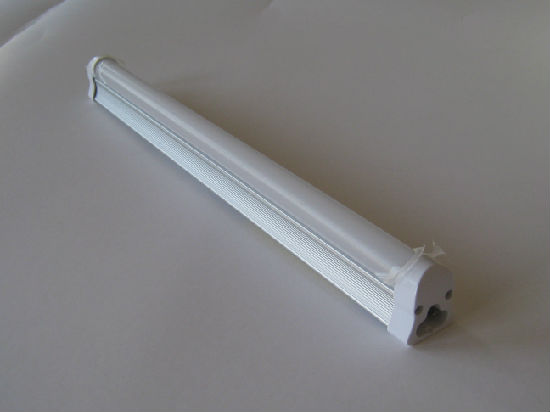

- 12V 5W LED tube.
- Input range: 10.5~14.0V DC.
- Input: 12V DC.
- Input power range: 5.1W~5.3W.
- Output power range: 4.5W~4.6W.
- Output currency: I LED 235mA (output currency adjustable).
- Output voltage range: VLED 18.0V~19.8V DC @6 series.
- unload voltage: ≤18.0V @output unload.
- Power supply typical efficiency: PE.
- ≥88% @13.5V DC, 6 series LED series, full load.
- ≥86% @11.0V DC, 6 series LED series, full load.
- Operating temperature: -20~+60℃.
- Storage temperature: -20~+50℃.
- Operating humidity: -20%~80%.
- Certificate: CE.
- Size: L: 300mm x W: 7mm x H: 15mm.
