kx6
US $55.00 - US $70.00
Production Lead Time:
20 day(s)
Shipping Method:
by sea
Description
Contact Supplier
Description
KX6

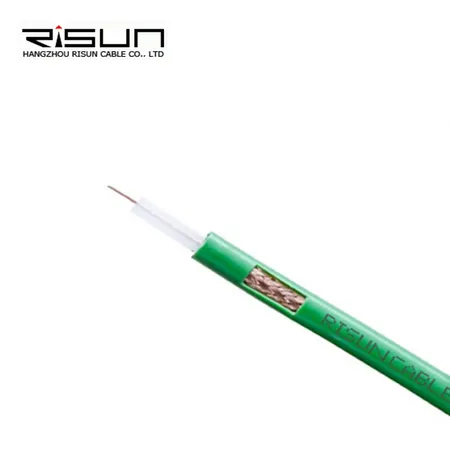

KX6 coaxial cable | ||||||||||
| DESCRIPTION | ||||||||||
| Used as a distribution cable for indoor CATV, CCTV system and as a connection cable for satellite system where lower attenuation required. | ||||||||||
| CABLE CONSTRUCTION | ||||||||||
| KX6 | ||||||||||
| Conductor | Stranded bare copper | 7*0,20 +/-0,005 mm | ||||||||
| Insulation | Solid PE | 3,70 +/-0,10 mm | ||||||||
| Shield | Aluminum alloy braid 16 x 6 x 0,12mm | 80% | ||||||||
| Sheath | PVC | 6,10+/-0,10 mm | ||||||||
| Color | Green | |||||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||||
Storage temperature | -15℃ + 70℃ | |||||||||
| ELECTRICAL SPECIFICATIONS | ||
| Nominal Impedance | 75+/-3 | Ohm |
| Capacitance approx | 67+/-3 | pF/m |
| Velocity ratio | 65.9 | % |
| Attenuation at 20°C MHz | dB/100 m | |||
| 10 | 5 | |||
| 50 | 8.1 | |||
| 100 | 13.0 | |||
| 200 | 18.5 | |||
| 400 | 22.5 | |||
| 800 | 34.5 | |||
| 950 | 37.5 | |||
| 1000 | 45.0 | |||
PACKING
100 m/box
305 m/wooden drum
305 m/plastic reel
500 m/wooden drum
All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
