motion sensor led tube

Production Lead Time:

7 day(s)

Model No.:

zlz-Tube-IR

Brand:

zhonglianzhan

Colour:

White

Size:

T8 x 1200

Port:

Shenzhen

Type of Payment:

L/C, D/A, T/T, Western Union, PayPal

Minimum Order Quantity:

Description

Contact Supplier

motion sensor led tube
Our LED tube is made by special view angles according to designs, Built-in high efficiency constant current driver, Lower degradation, more than 50000 hrs life-span.Super brightness, replacing the fluorescent lamp.

Features and Functions

Adopting LED SMD2835 as light source. Energy-saving, environment protecting and long life.
Using constant current to drive, Low working voltage, Low power consumption, good color saturation. secure and reliable.
Simple installation and easy wiring.
Transmission power only 0.3 mW, It will not harm the human body.
Color effects: White (according to your different scene demand, , we can configure for you different color temperature of LED light source)
We adopt this sensitive advanced sensor switche in lighting control, enabling the light to turn on automatically when one comes, automatically turn off when one goes out.
the built-in microwave sensor switch can penetrate plastic, glass, wood. so led tube with microwave sensor with high sensitivity.
we can also be set according to your needs (lighting mode, delay time, brightness).
Led microwave sensor light can work in a bright environment, we must be cancel the nonresistance the led MC sensor ceiling light with photo resistance, so it will be work under 10lux.
Technology parameter
Model ZLZ-Tube-20w (smd2835)
Name T8 Tube with Microwave sensor
Brand (Origin) Zhonglianzhan (Shenzhen)
Source SMD2835 By TAIWAN Epistar
Power Consumption 20W
Lighting Source LED=0.2W
LED Quantity 192PCS
LED Color White (2700-3000K, 3000k-3300k, 4000-4500k, 5500-6000k)
PCB Excellent thermal conductivity of aluminum plate
Total illuminance 2100-2300LM
Beam Angle 100°-160°
Sensing distance 6 to 8 Meters
Input Voltage AC85-265V, 50/60Hz
Delay adjustment 30S-2 minutes

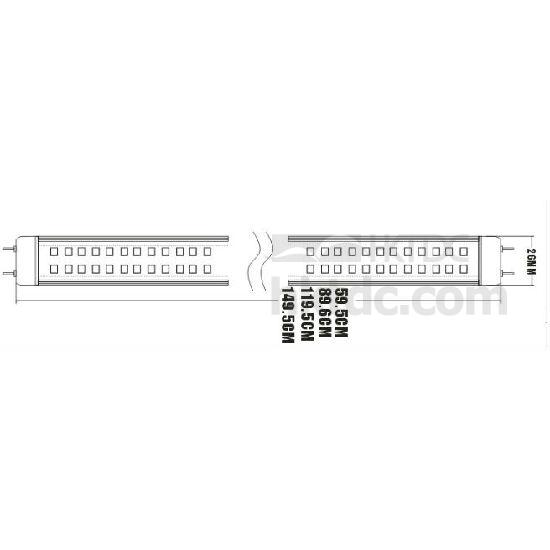

Specifications (MM) T8 Φ26 x 1198mm
Material Aluminum alloy + PC (Transparent, stripe, frosted)
Shell color Fog Silver Oxide + white
IP Rating IP50
Operating temperature-20°~+ 50°
Life Span 50,000hr
Power factor >80%
CRI >75%
Lumen Attenuation <5%@1,000hours
Net Weight: 300g
