oStar Micro Downlight Series: 44mm Cutout, IP44, Phase-cut Dimmable, Through Wiring
US $0.99 - US $98.01
US $1.00 - US $99.00
Production Lead Time:
28 day(s)
Shipping Method:
EXW Shenzhen
Brand:
oStar
Colour:
Texture Black, Texture White
Port:
Shenzhen
Minimum Order Quantity:
100
Use:
Recessed Downlight
Switch Type:
Motion Sensor Switch
Customized:
Yes
Voltage(V):
220-240
Certification:
CE, EMC, LVD, RoHS, SAA
Wattage(W):
4
Warranty:
5 year
Light Source:
COB LED
Is Dimmable:
Yes
Including Bulbs:
Yes
Application:
Residential, House, Hotel, Kitchen, etc.
Material:
Aluminium
Description
Contact Supplier
Description

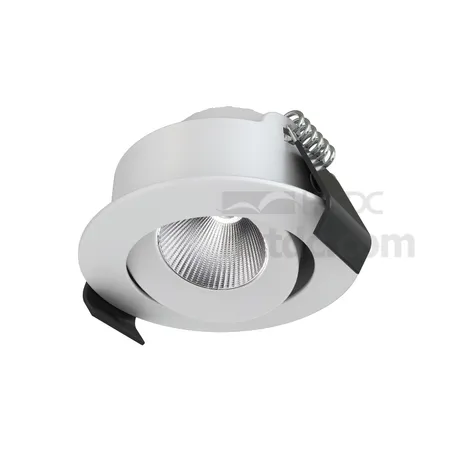

oStar, a 44mm cut-out tiny recessed downlight portfolios, includes adjustable and fixed version.
It equipped with high brightness COB LED, and provides attractive lighting solutions for living areas, cloakroom, kitchens and bathrooms.
Powered by phase-cut dimmable independent driver, very small in size, but provides 6pcs push-in connectors and pull relief, very easy for loop in and loop out.
| Product Code | 4.DL.132.A02 | 4.DL.132.C02 | 4.DL.133.A02 | 4.DL.133.C02 |
| Product Name | oStar Downlight Fix Dimmable D44 200 Dim-to-warm | oStar Downlight Fix Dimmable D44 230 | oStar Downlight Tilt Dimmable D44 200 Dim-to-warm | oStar Downlight Tilt Dimmable D44 230 |
| Input voltage | 220-240V | 220-240V | 220-240V | 220-240V |
| Adjustable | Fix | Fix | Tilt | Tilt |
| Max LED Power(W) | 3.24 | 3.24 | 3.24 | 3.24 |
| Max. LED Current(mA) | 180 | 180 | 180 | 180 |
| LED Voltage | 18 | 18 | 18 | 18 |
| CRI Option | CRI 90 | CRI 90 | CRI 90 | CRI 90 |
| Lumen Output | 200lm | 230lm | 200lm | 230lm |
| Beam Angle | 48° | 48° | 48° | 48° |
| Power factor | 0.85 | 0.85 | 0.85 | 0.85 |
| External Dimmable Driver | Phase-cut | Phase-cut | Phase-cut | Phase-cut |
| CCT Option | Dim-to-Warm 2000-2700K | 2700K,300K,4000K | Dim-to-Warm 2000-2700K | 2700K,300K,4000K |
| Dimension(mm) | D50*H38 | D50*H38 | D50*H33 | D50*H33 |
| Cut-out(mm) | 44 | 44 | 44 | 44 |
| Suitable for Ceiling Thickness | 1-15mm | 1-15mm | 1-15mm | 1-15mm |
| UGR | 12 | 12 | 12 | 12 |
| Air-tight | Yes | Yes | No | No |
| Electrical Connection | Push-fit looping terminals | Push-fit looping terminals | Push-fit looping terminals | Push-fit looping terminals |
| Finish | Black, White | Black, White | Black, White | Black, White |
| Quick installation | loop in and loop out system | loop in and loop out system | loop in and loop out system | loop in and loop out system |
| Material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Features & Benefits
- Input Voltage: AC 220V-240V, 50/60Hz
- Cut-out: 44mm
- Comfort and soft light output, UGR<12
- Quick installation, loop in and loop out system
- Die casting aluminum housing
- Dim to warm available
- Macadam 3 SDCM
- Bridgelux & Cree chips
- Certification: CE & ROSH
- IP44 with the functions of dust-proof, water-proof
