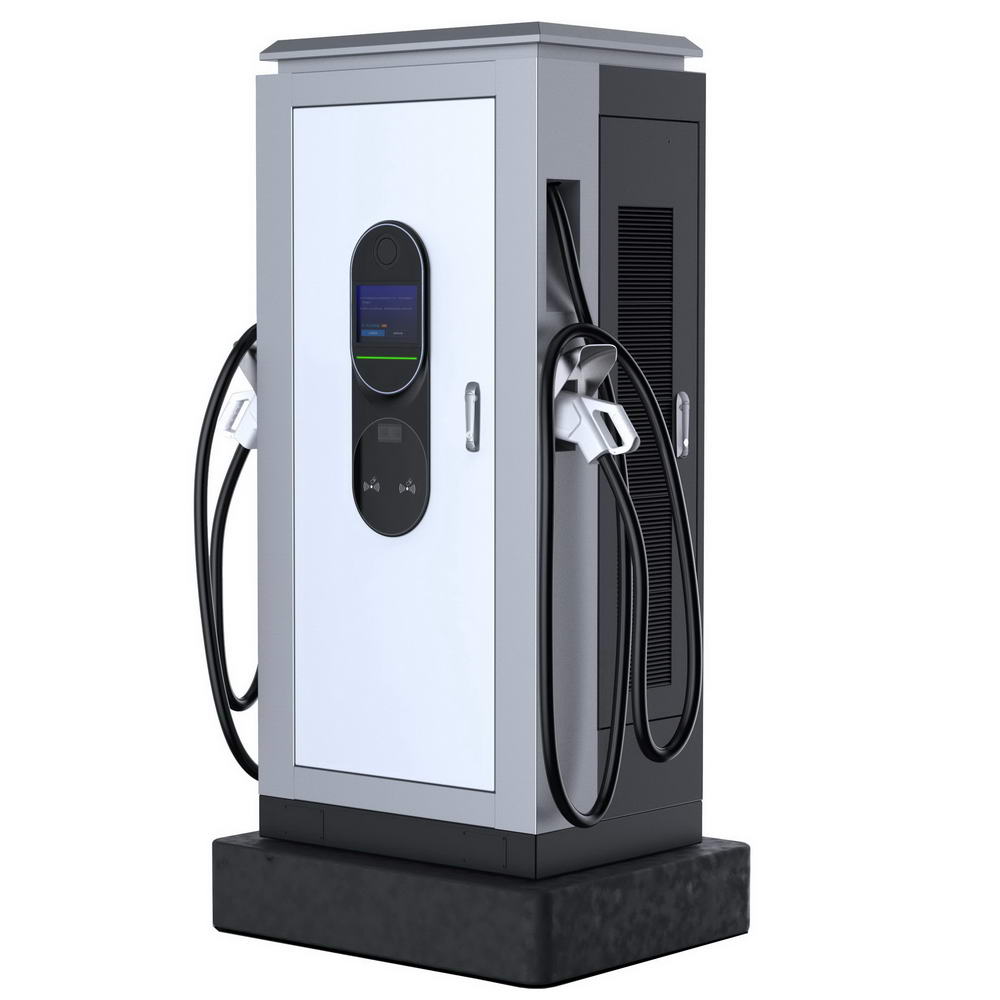

oneCHARGE DC + AC Charger 50-200kW
Model No.:
DC-50
Brand:
oneCHARGE
Colour:
Grey
Material:
Metal
Features:
EV Charger for Electric Vehicles
Customised:
Yes
Description
Contact Supplier
Description
- Product Dimension: 1500*700*500
- Product Weight: 9KG
- Standard: IEC 61851
- Cable Length: 5M
- Input Voltage: 380-400VAC 3Ø
- Input Current: 340A (3Ø)
- Output Voltage: 200V-1000V DC
- Output Current: 0-200A
- Simultaneous Charging: 90kW/per connector
- In Turn Charging: 180kW/CCS2 100kW/CHAdeMO
- Humidity:95% RH, Non-condensing 95%
- IP Rating: IP54
- Operation Temperature: -10~45 Celsius
- Electrical Protection: OVP, UVP, OTP, Leakage/ Surge/Lightening/ Ground Fault/ Charging/Relay Melting, CCID20 RFID: RFID (ISO 14443 & 15963)
- Communication Protocol: OCPP1.6 DIN SPEC 70121 CHAdeMO 1.0.0
- Communication Interface: RJ-45/ Wi-Fi/ 4G LTE
- Emergency Button: Button (Press to stop/ Twist to resume)
- Charging Interface: IEC62196-2/ SAE-1772/ GB/T20234-2015
- Cloud Connectivity: Control and Manage through oneCHARGE APP & Cloud
- Cloud Management: chargeOS embedded
- Transaction Record: Online & Offline Transaction Record
- Status Indicator: Animated 3-colour LED
- Computer Vision & AI: oneVISION AI & Visual Module Equipped
- Safety Standard: IEC61851 compatible
