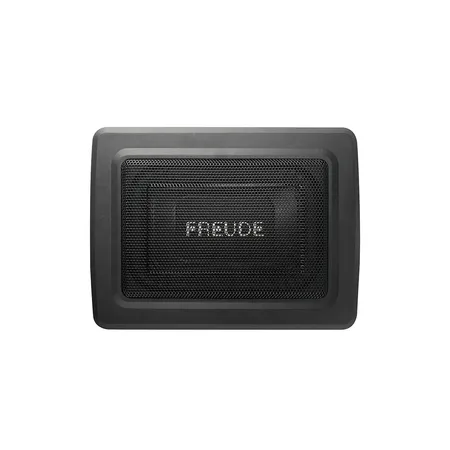

FED-690

6x9" Active Subwoofer

■ 6x9" metal diaphragm, strong rigidity, and powerful instant explosive force
■ Built-in Class-AB amplifier, with a peak power of 240W
■ Large R-rubbing rubber surround, good compliance, and fast response
■ Strong dynamics, fast transient response
■ Full aluminum body, robust and durable with excellent heat dissipation performance
■ 65mm ultra-thin design, can be installed under the seat
■ Can be connected to a remote control panel (control panel is an optional accessory)

Model:	FED-690
Type:	6x9" Active Subwoofer
Max Power:	240 W
Nom Power:	160 W
T.H.D:	<0.4%
Signal Noise Ratio:	>90 dB
Frequency Response:	20 Hz - 150 Hz
Hi-level Input Sensitivity:	0.9 V
Low-level Input Sensitivity:	130 mV
Bass Boost:	0 to +12dB
Fuse Rating:	15 A
Net Weight:	3.66 kg
Dimensions (LxWxH;mm):	290 x 215 x 65
