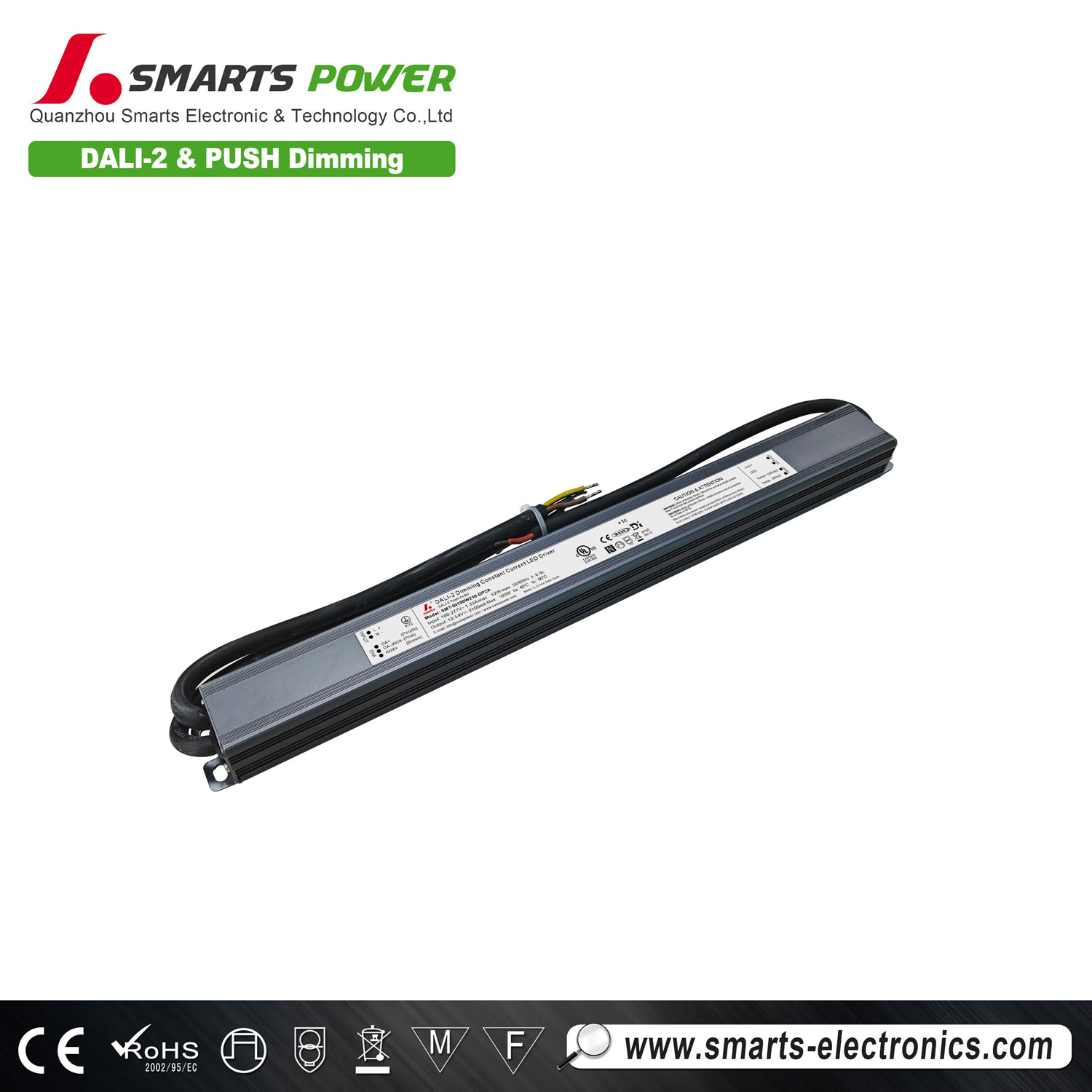

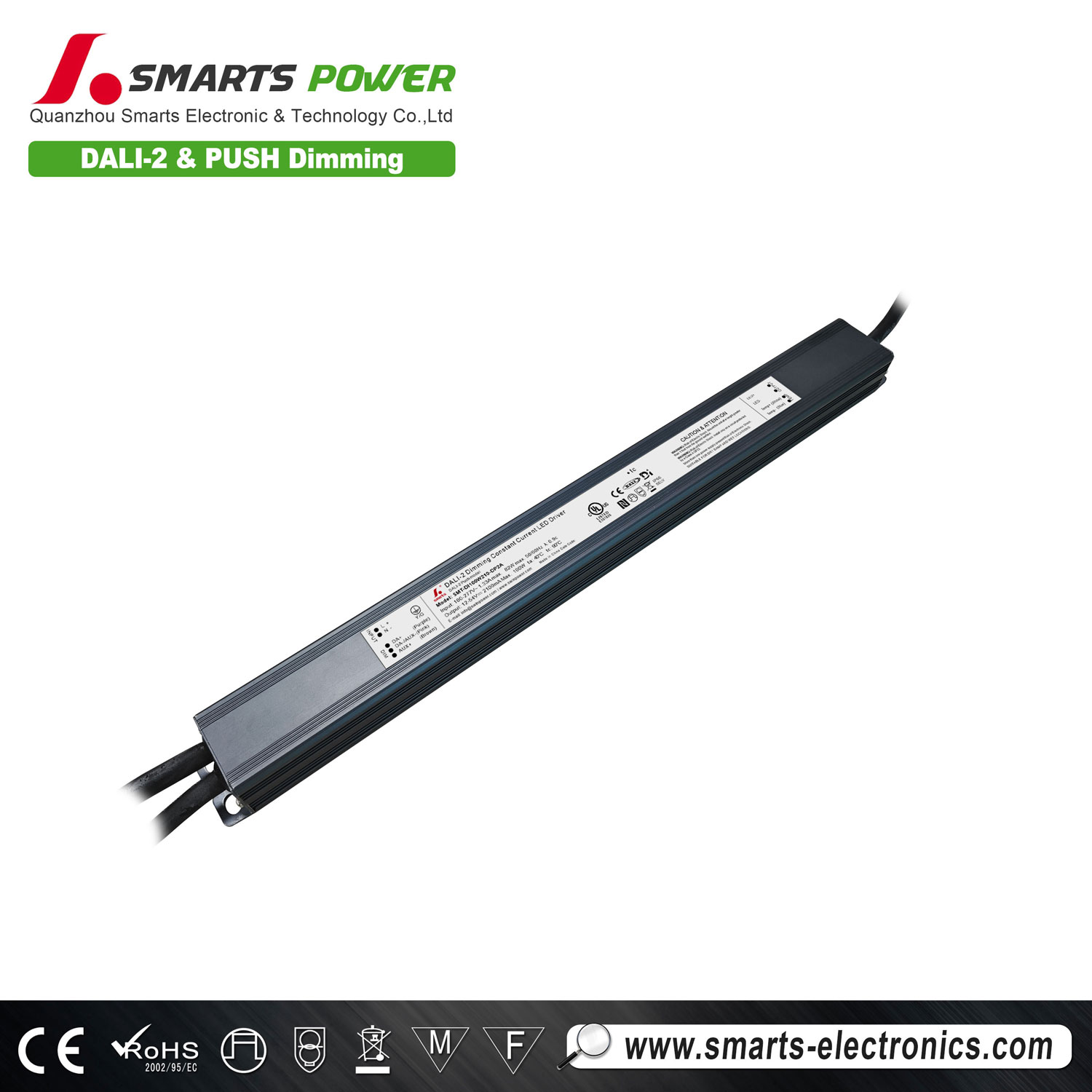

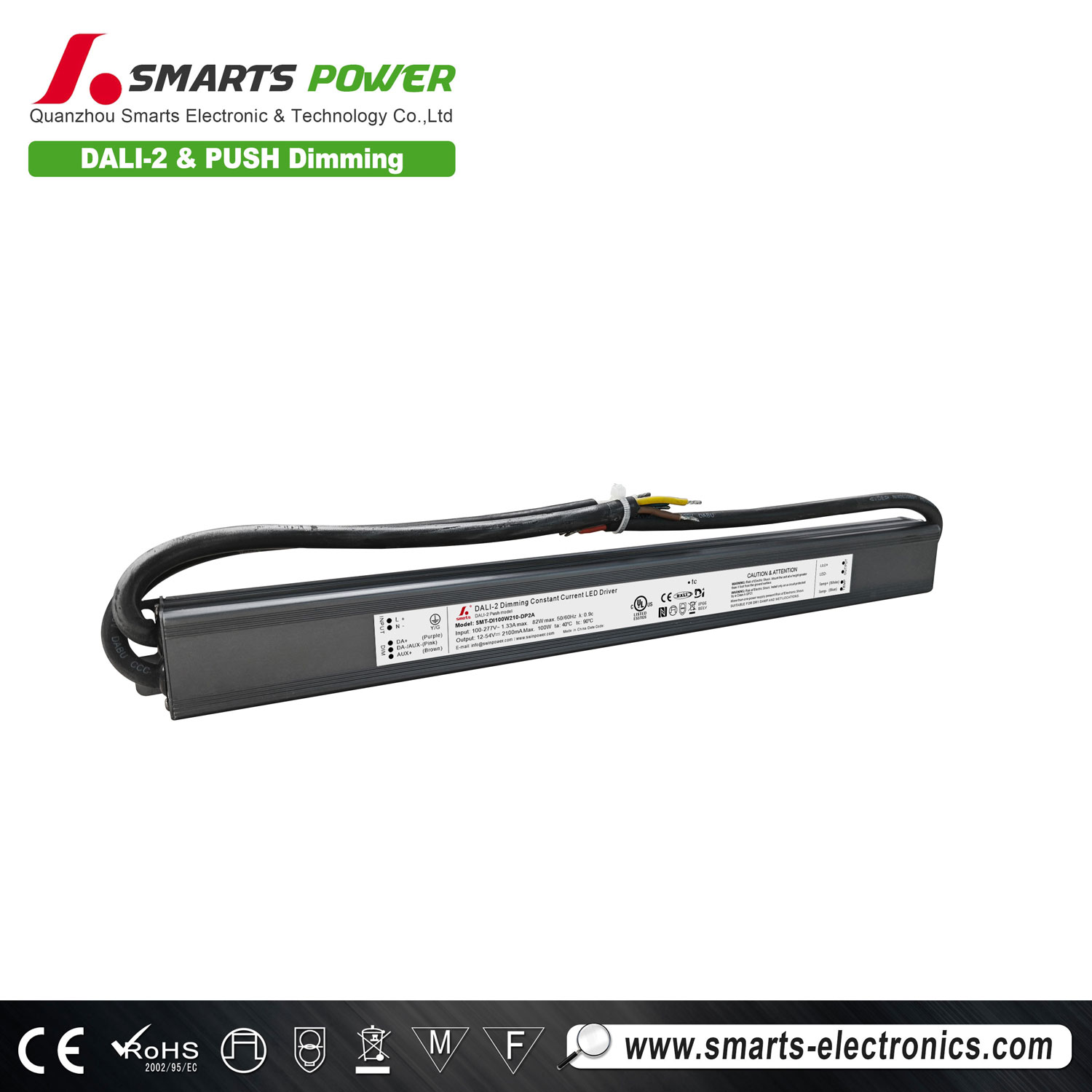

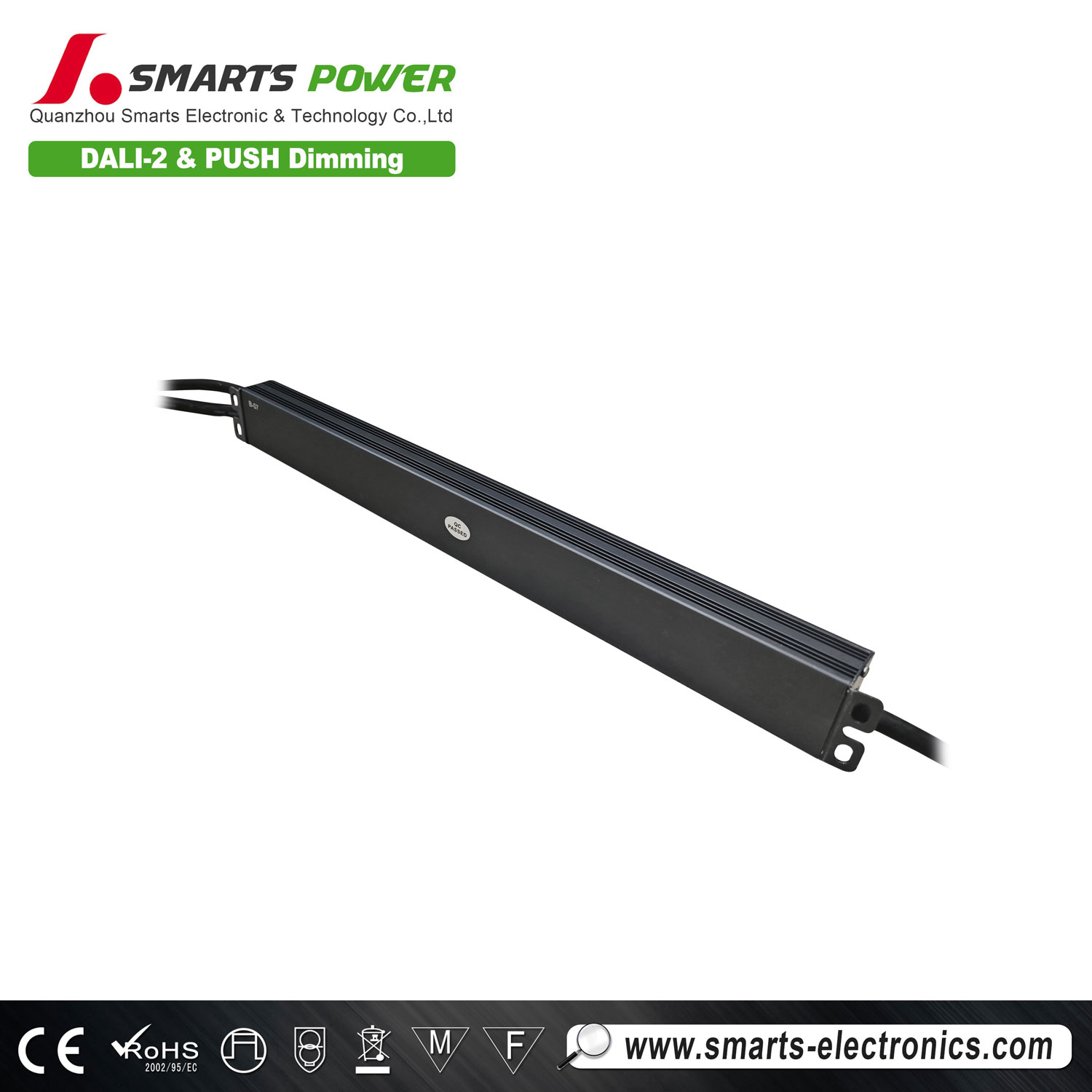

ul listed constant current DALI-2 & PUSH dimming led power supply driver 100w 2100ma

Model:

SMT-DI100W210-DP2A

Input Voltage:

100-277VAC

Output Voltage:

12V-54V

Working Mode:

Constant Current

Warranty:

7 years

Description

Contact Supplier

Model		SMT-DI100W210-DP2A
Certificate		UL / FCC / CE / RoHS / Reach / NFC
Output	Rated current	210mA-2100mA (multiple current for choice freely by ProNFC)
	DC Voltage	12V-54V
	Rated power	100Wmax
	Voltage Tolerance	±30mA
	No-load voltage	60Vmax
	Line Regulation	<0.1%
	Load Regulation	<0.1%
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor @ full load	≤0.95
	THD(Typ.) @ full load	<10%
	Efficiency @ full load	>88.5%@120VAC 60Hz >90.5%@230VAC 50HZ >90.5%@277VAC 60HZ
	No load power (Max)	<3W
	Standby power (max.)	<0.5W
	AC Current (Max.)	<1.33A
	Inrush Current (Typ.)	29.6A, 412us@50%Ipeak120V 56.8A, 120us@50%Ipeak230V 68.4A, 580us@50%Ipeak277V
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, restarts automatically after fault condition is removed
	Over Load	≤120% Hiccup mode or Constant power mode, recovers automatically after fault condition is removed
	Over temperature	Ambient temp. over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops.
Environment	Working TEMP	-40~+60℃ (see below derating curve)
	Working Humidity	20 -95%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13 (EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US)
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3 (EU) & FCC Part 15, Subpart B; ANSI C63.4:2014 (US)
	EMC Immunity	EN61000-4-2,3,4,5,6,11 EN61547 (EU)
	Lightning surge	DM:2KV CM:4KV
	Strobe test standard	IEEE 1789 flicker-free
Others	Net Weight	0.6KG
	Dimension	365.838.523.6mm (LWH)
	Packing	pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life , please reduce the loading at lower input voltage .
