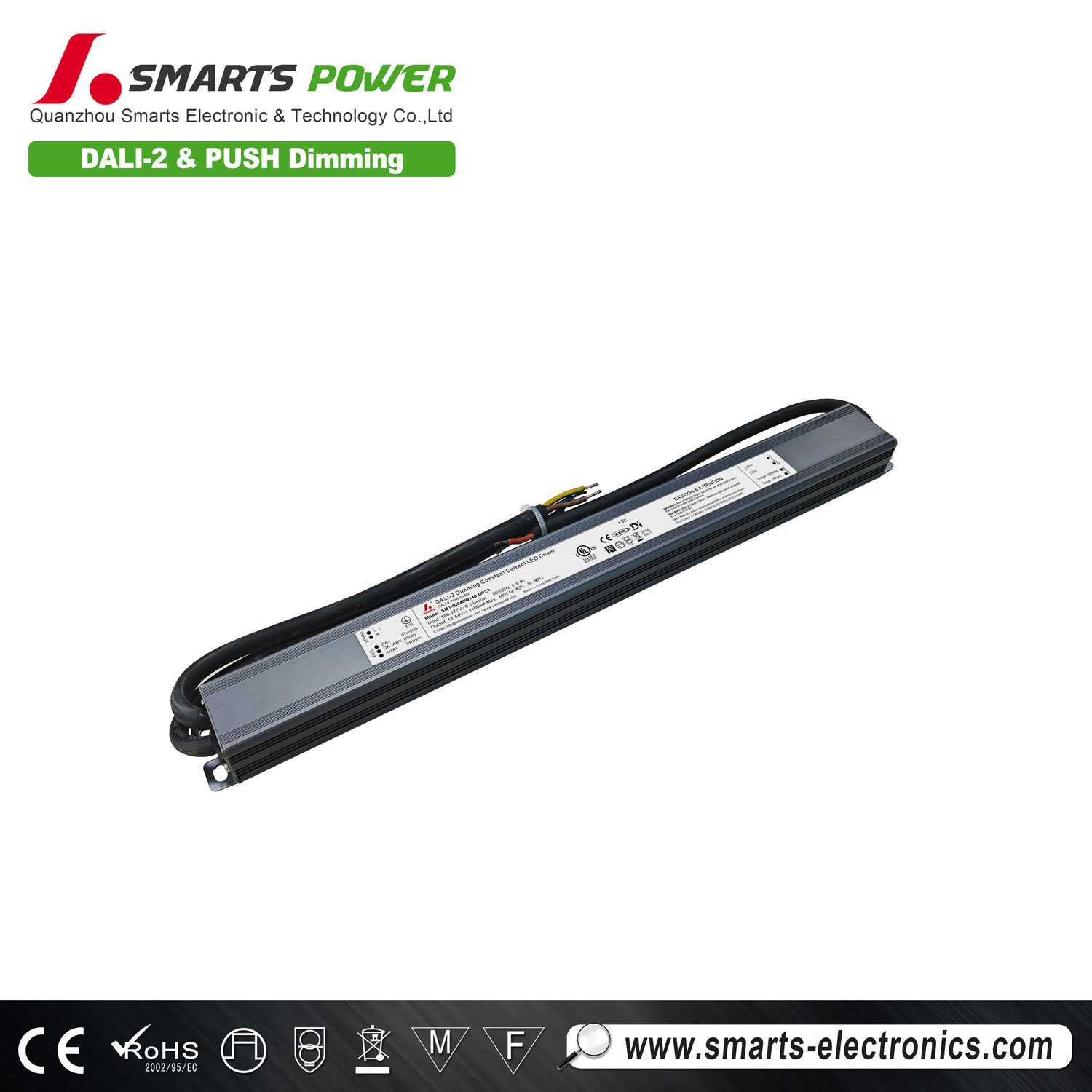

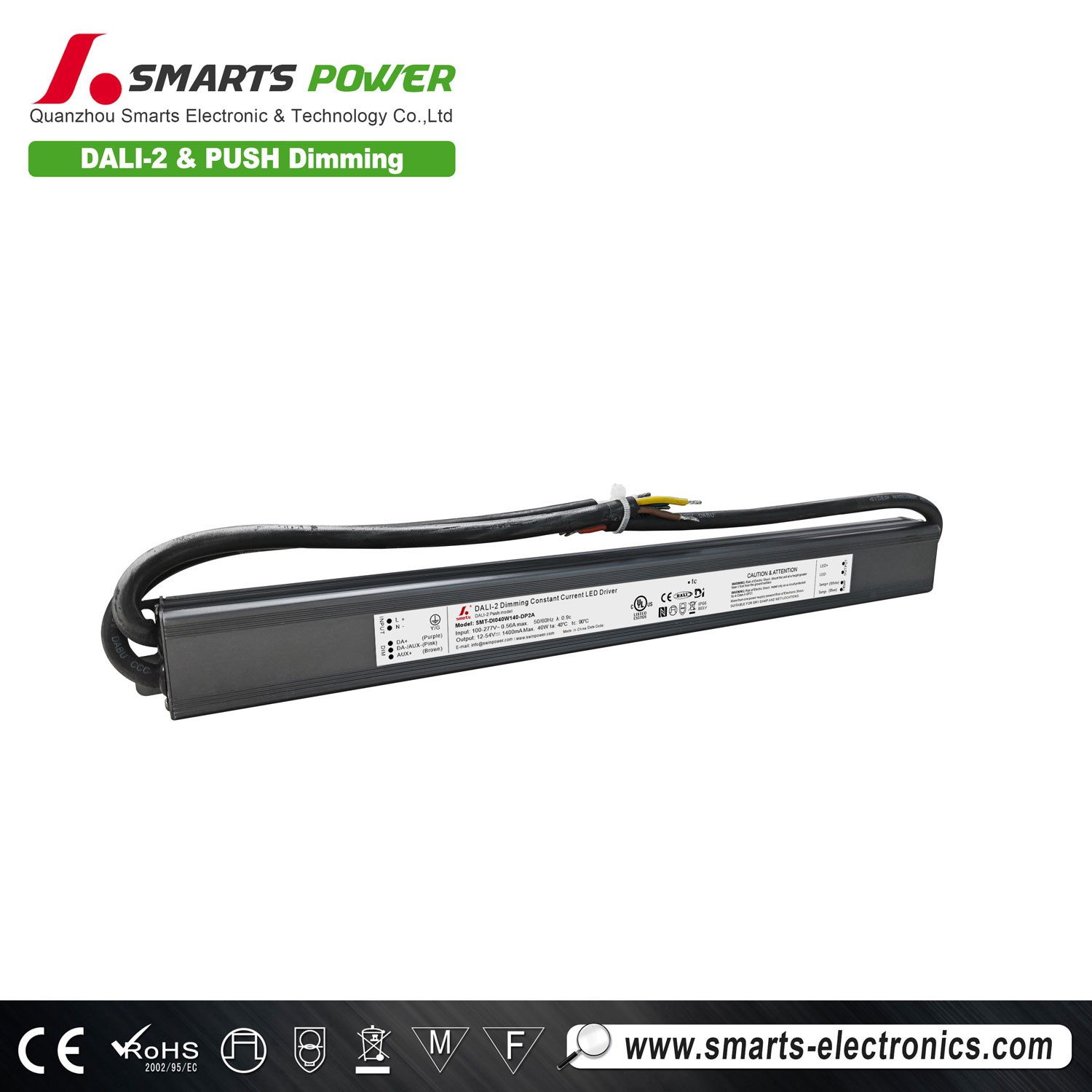

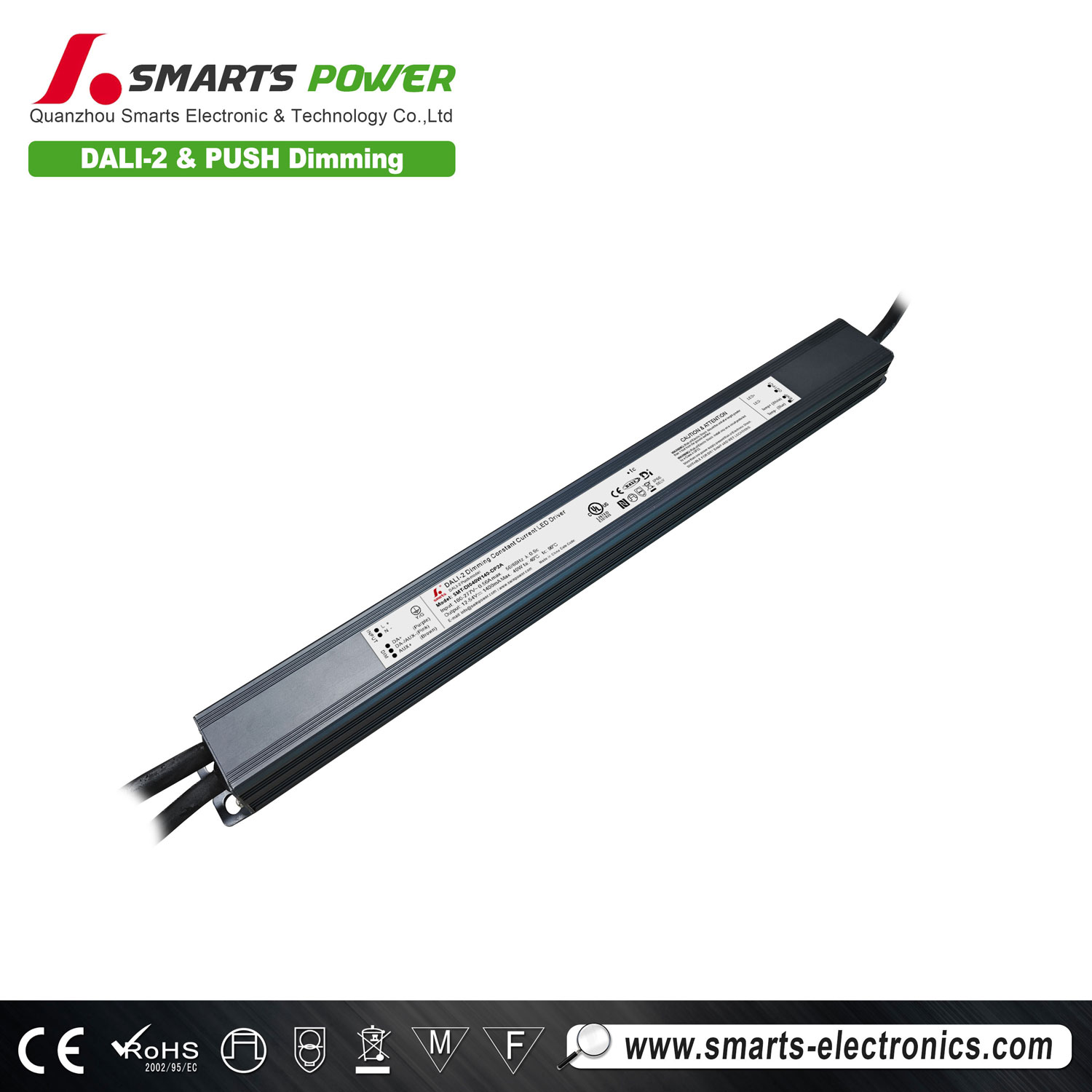

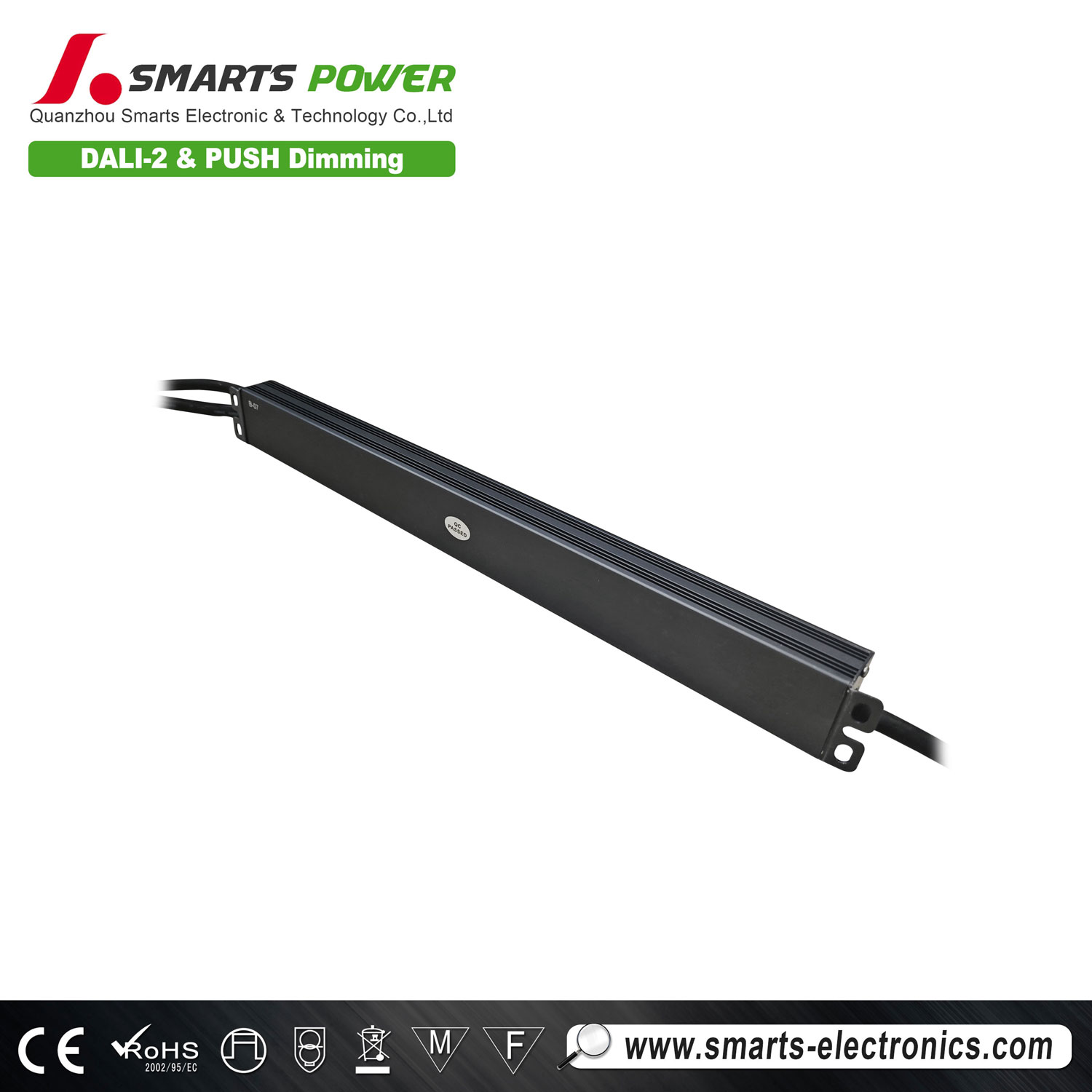

ultra slim ip66 waterproof constant current 40W dali-2 & push dimmable led driver power supply price

Model:

SMT-DI040W140-D4PA

Input Voltage:

100-277VAC

Output Voltage:

12V-54V

Working Mode:

Constant Current

Warranty:

7 years

Description

Contact Supplier

Model		SMT-DI040W140-D4PA
Certificate		UL/ FCC / CE / RoHS / Reach / NFC
Output	Rated current	140mA-1400mA (multiple current for choice freely by ProNFC)
	DC Voltage	12V-54V
	Rated power	40Wmax
	Voltage Tolerance	±30mA
	No-load voltage	60Vmax
	Line Regulation	<0.1%
	Load Regulation	<0.1%
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor @ full load	≥0.95
	THD(Typ.) @ full load	<10%
	Efficiency @ full load	>85.5%@120VAC 60Hz >86.5%@230VAC 50HZ >86.5%@277VAC 60HZ
	No load power (Max)	≤1.5W
	Standby power (max.)	<0.5W
	AC Current (Max.)	<0.56A
	Inrush Current (Typ.)	28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V 66.5A, 259us@50%Ipeak@277V
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, restarts automatically after fault condition is removed
	Over load	Hiccup or Constant power mode, restarts automatically after fault condition is removed
	Over temperature	Ambient temp.Over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.Over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops.
Environment	Working TEMP	-40~+60℃ (see below derating curve)
	Working Humidity	20 -95%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13 (EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US)
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3(EU) & FCC Part 15 ,Subpart B; ANSI C63.4:2014 (US)
	EMC Immunity	IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547(EU)
Power supply	Strobe test standard	IEEE 1789 Flicker free
Power supply	lightning surge	Line to line:2KV Line to FG:4KV
Others	Net Weight	0.48KG
	Dimension	314.738.523.6mm (LWH)
	Packing	******pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life , please reduce the loading at lower input voltage .
