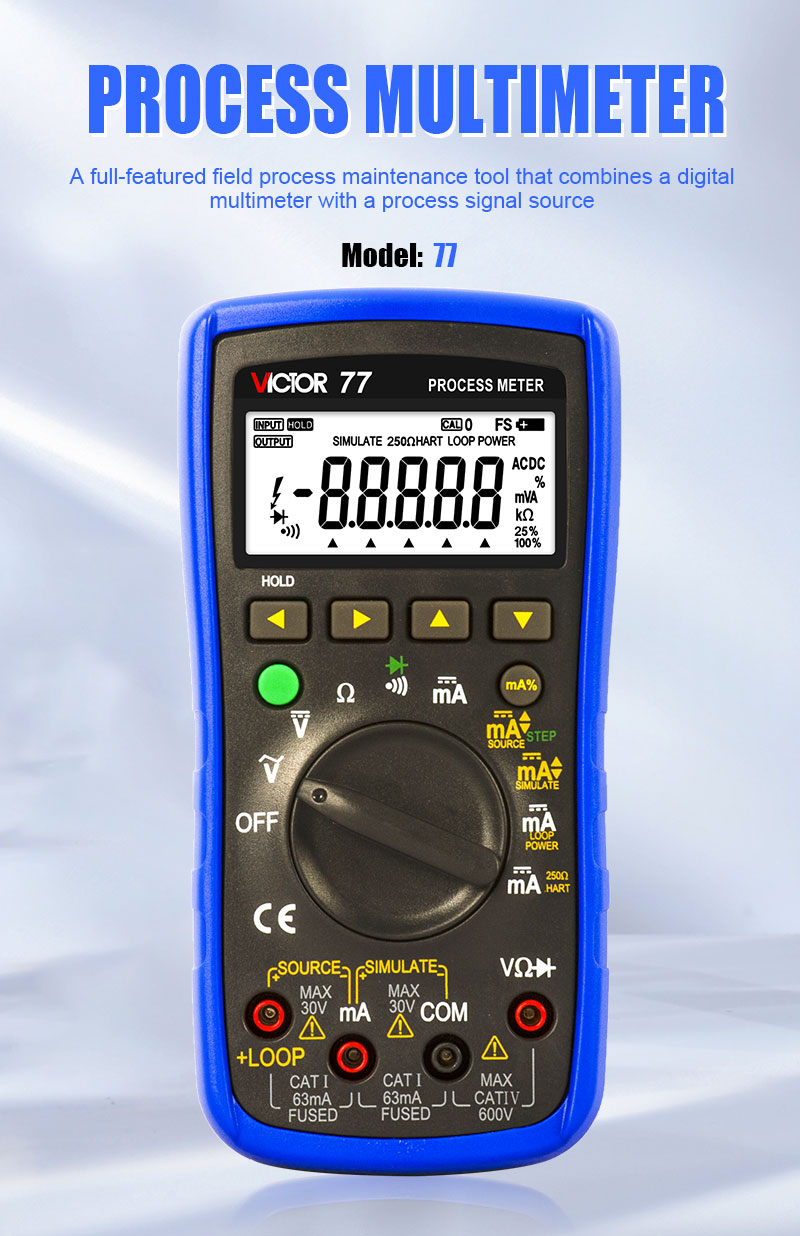

1, The digital multimeter and process signal source into one of the on-site process maintenance tools.
2, Loop Detection Function
Simultaneously, the 24V loop is supplied and current is measured. Built-in 250Ω HART loop resistor
for easy use of HART communication equipment without the need for a separate load resistance.
3, Output Function
4 ~ 20mA current bit by bit set, manual step output function.
SIMULATE function analog transmitter.
Measurable with mA and percentage.

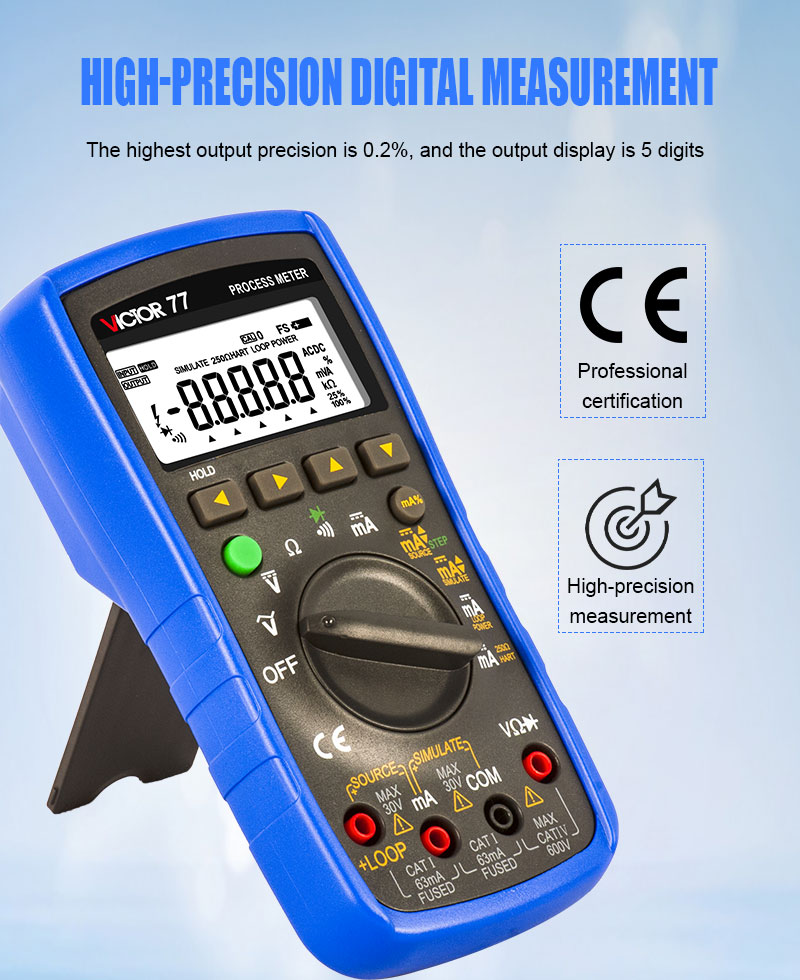

The highest output precision of 0.2%, the output is displayed as 5.
4, Measurement Function
AC voltage, DC voltage, ohm, DC current, on and off, diode.

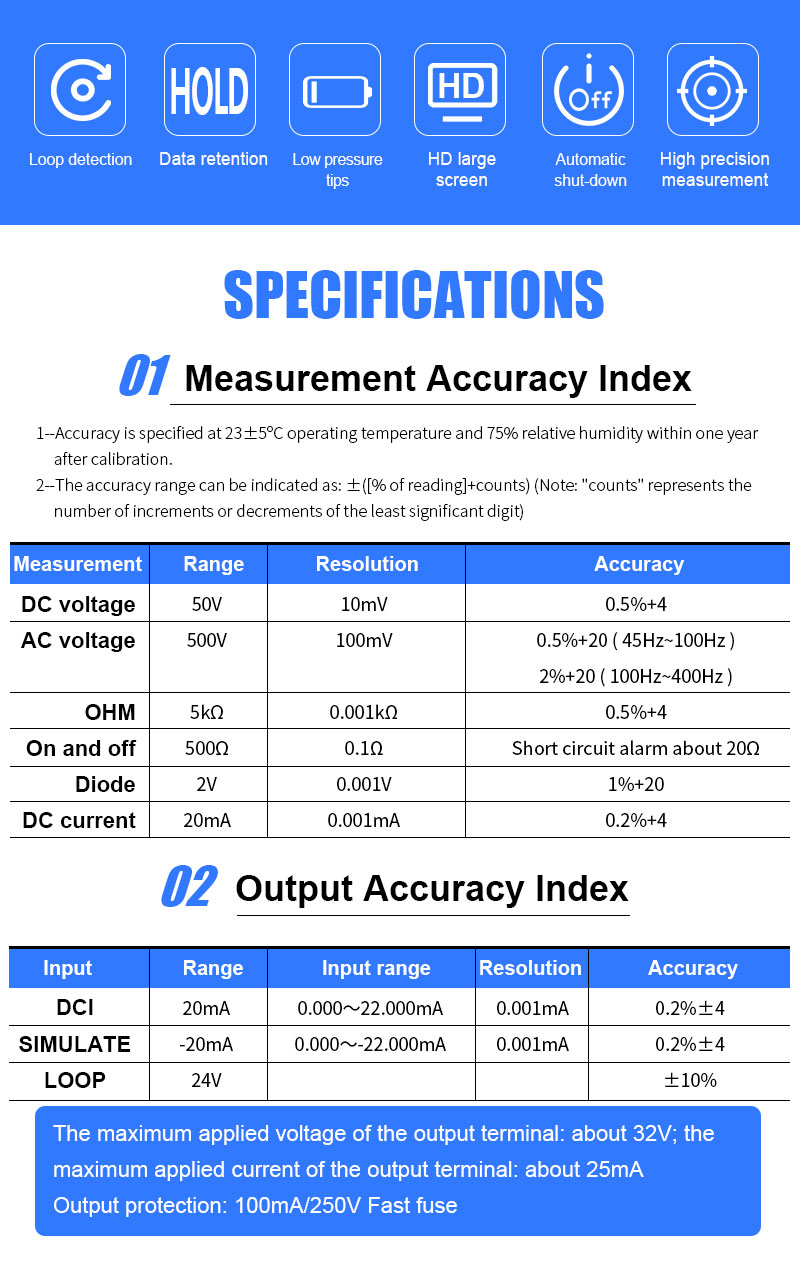

Measuring the highest accuracy of 0.5%, Current measurements show 5, The remaining 4 display.
Measurement rate: 2.5 times / sec.
Measurable with mA and percentage.
Data retention function.
5, Using panel calibration technique.
