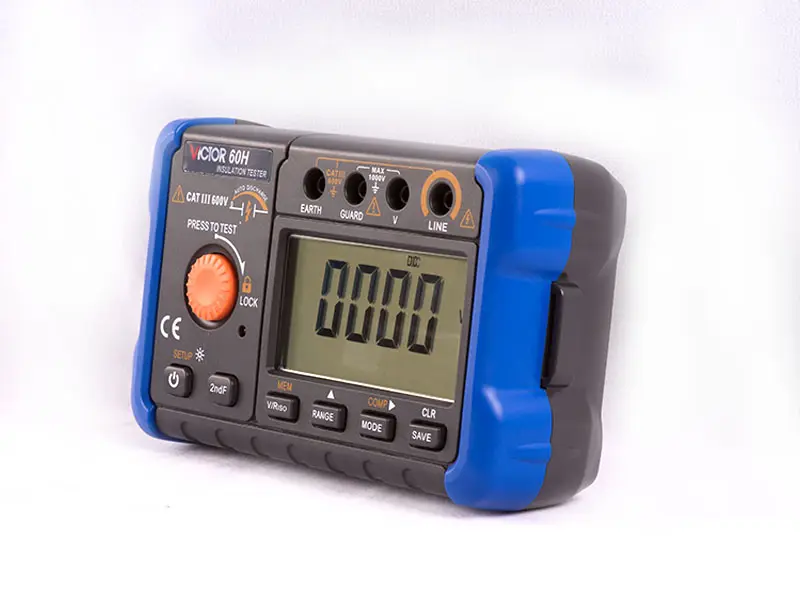

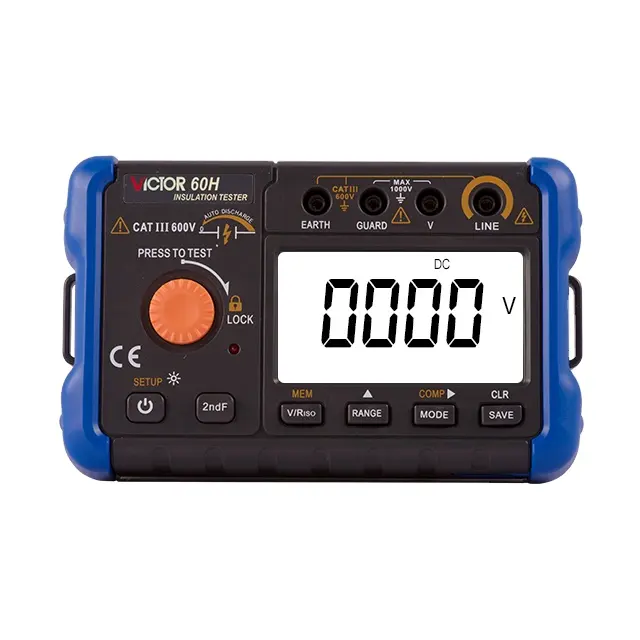

VICTOR 60H Insulation Resistance Tester

美元 $47.50 - 美元 $54.15

美元 $50.00 - 美元 $57.00

生产所需时间:

40 日

运送方式:

EXW

品牌:

VICTOR

型号编号:

60H

Low Battery: :

displays battery mark

Display Screen: :

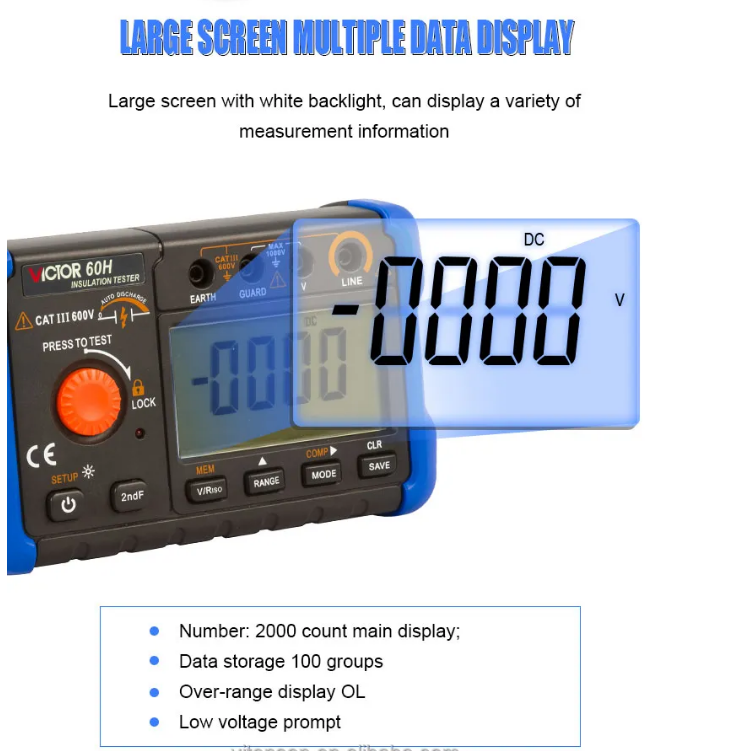

displays in 2000 counts

Storage Temperature: :

-20~60℃

描述

联络供应商

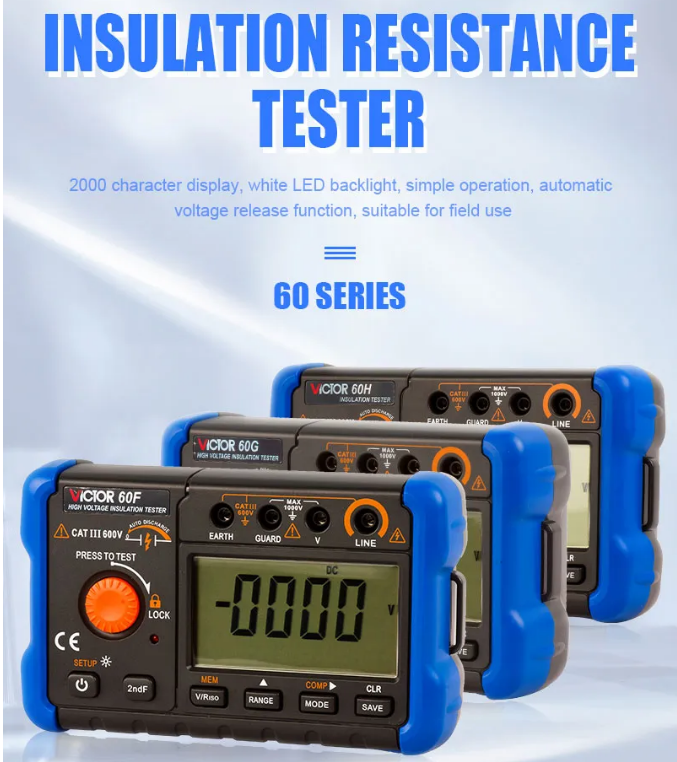

Project		60F	60G	60H
Insulation resistance	Resistance range	50V /200MΩ	N/A	N/A
		100V / 500MΩ	N/A	100V / 200MΩ
		250V / 2000MΩ	250V /2000M	250V / 500MΩ
		500V /5GΩ	500V /5GΩ	500V /1GΩ
		1000V /10GΩ	1000V /10GΩ	1000V /20GΩ
		1500V /20GΩ	N/A	N/A
		2000V /50GΩ	N/A	N/A
		2500V /100GΩ	2500V /50GΩ	N/A
Voltage test	DC Range	0～1000V	30～1000V	0～1000V
Voltage test	AC Range	30～750V	30～750V	30～750V
PI		√	√	√
DAR		√	√	√
COMP		√	√	√
Short circuit current		About 1.3mA	About 1.3mA	About 1.3mA
TIME		√	√	√
Automatic release voltage		√	√	√
Power Supply		Alkaline battery1.5V(LR6) ×The 8 section	Alkaline battery1.5V(LR6) ×The 8 section	Alkaline battery1.5V(LR6) ×The 8 section
Automatic shutdown		√	√	√
Backlight		The white LED	The white LED	The white LED
Storage		100 groups	100 groups	100 groups
adapter interface		√	√	√
Size		178（L）×110（W）×59（D）mm	178（L）×110（W）×59（D）mm	178（L）×110（W）×59（D）mm
Weight		About600g（Does not contain a battery）	About600g（Does not contain a battery）	About600g（Does not contain a battery）
Standard Quantity Per Carton		12 pcs	12 pcs	12 pcs
Standard Carton Measurement		430×350×225mm	430×350×225mm	430×350×225mm
Standard Carton Cross Weight		12.4KG	12.2KG	10.8KG

Features:
1.The design conforms to the following Safety Requirements:
IEC61010-1(CAT Ⅲ 600V,POLUTION degreeⅡ)
IEC61557-1,2(Electronic safety requirements for low voltage distribution system below AC 1000V and DC 1500V )
2.Insulation measurement voltage in large ranges: 100V,250V,500V,1000V.
3.Insulation resistance measurement as high as 20GΩ.

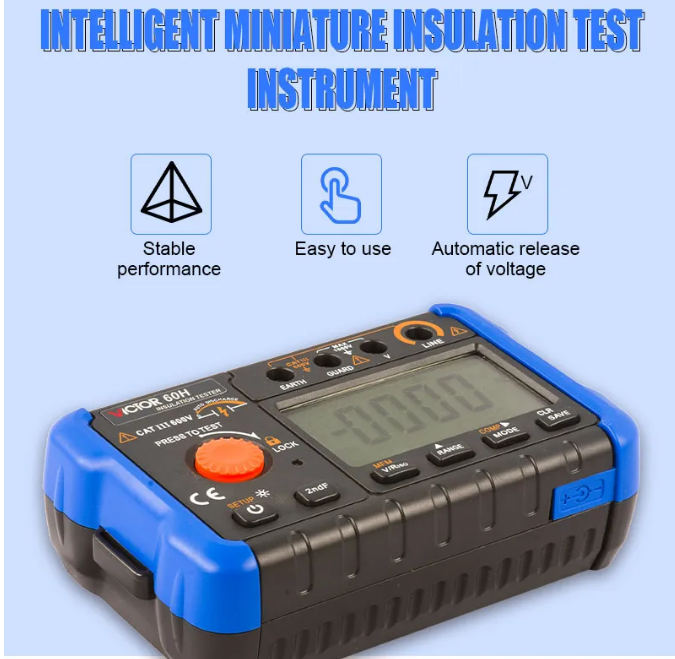

Features of high accuracy, stable performance, easy operation and reliability.
Professional in electric equipment maintenance, testing and inspection.

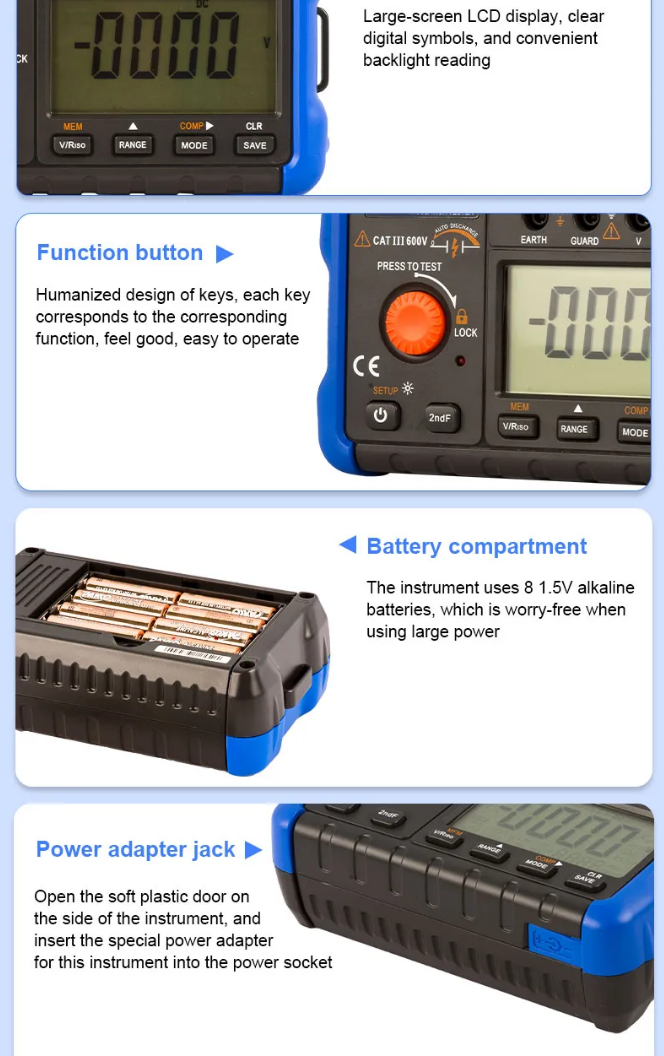

Red lid to protect the button and screen of the meter.
Storage pouch included, smooth zipper closure.

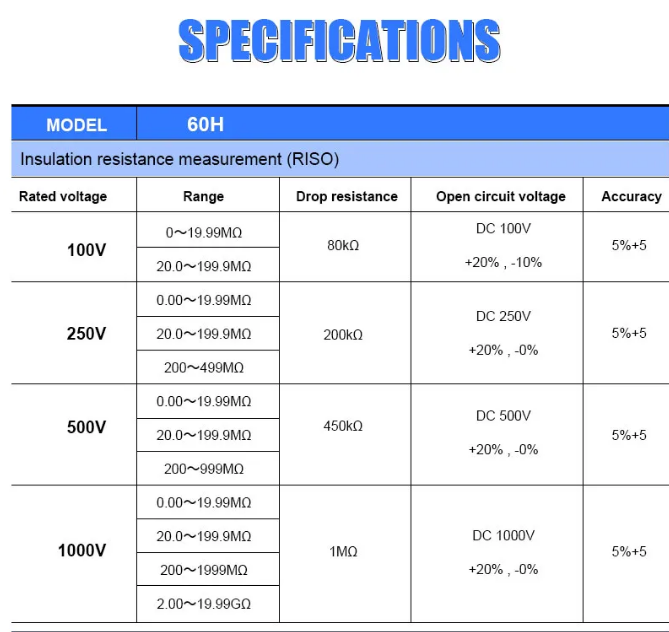

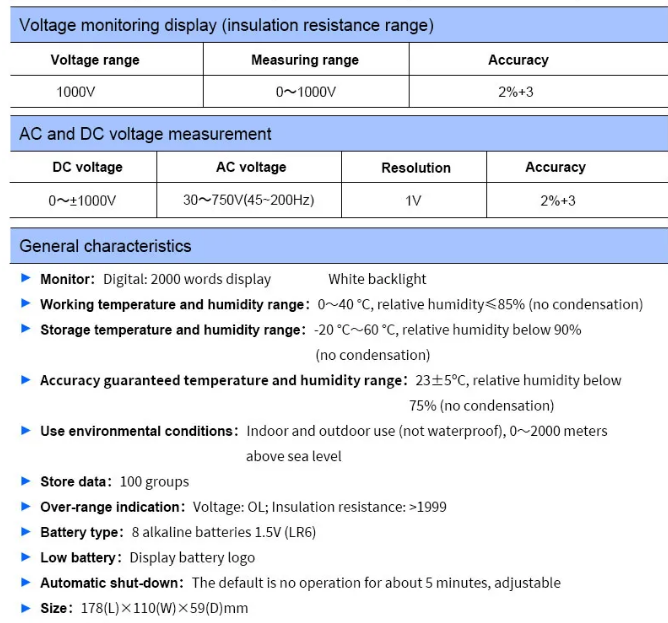

Specifications:
Max. Display: 2000 counts
Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10%
100V: 0.00MΩ~100MΩ ±(5%+5)
250V: 0.00MΩ~99.9MΩ ±(5%+5) ; 100MΩ~5.5GΩ ±(5%+5)
500V: 0.00MΩ~99.9MΩ ±(5%+5) ; 100MΩ~5.5GΩ ±(5%+5)
1000V: 0.00MΩ~99.9MΩ ±(5%+5) ; 100MΩ~5.5GΩ ±(5%+5)
Load Current: 50V(R=50KΩ) 1mA 0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%
500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
Short Circuit Current: <2mA
AC Voltage (V): 30V~750V ±(2%+3)
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
