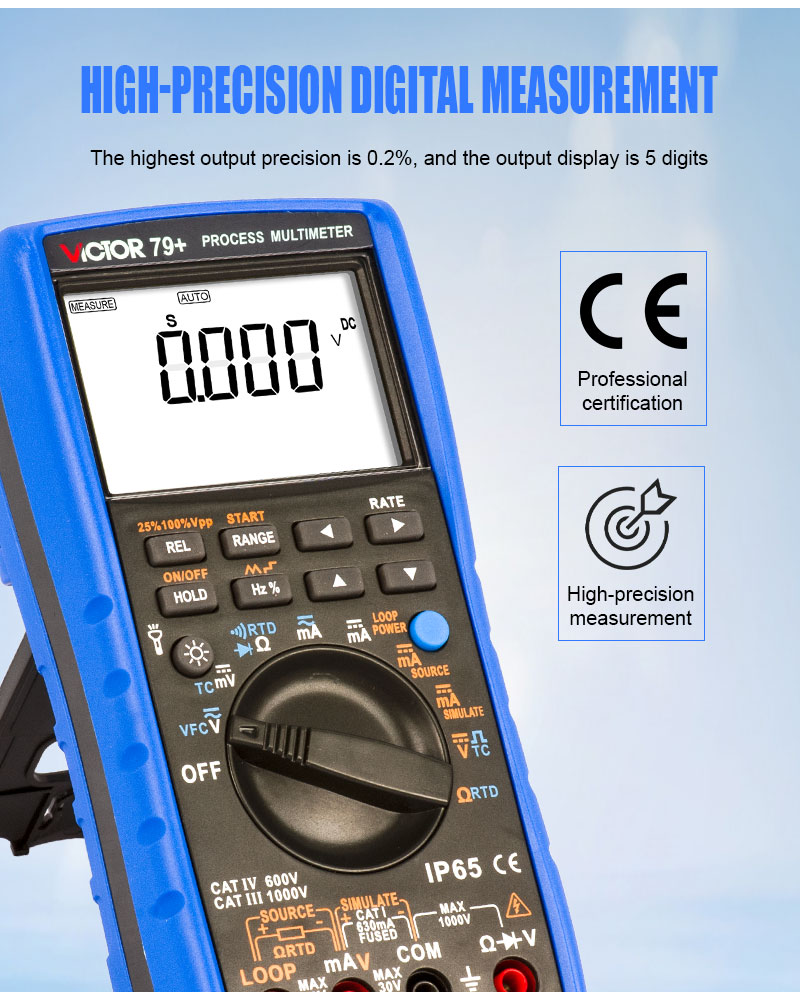

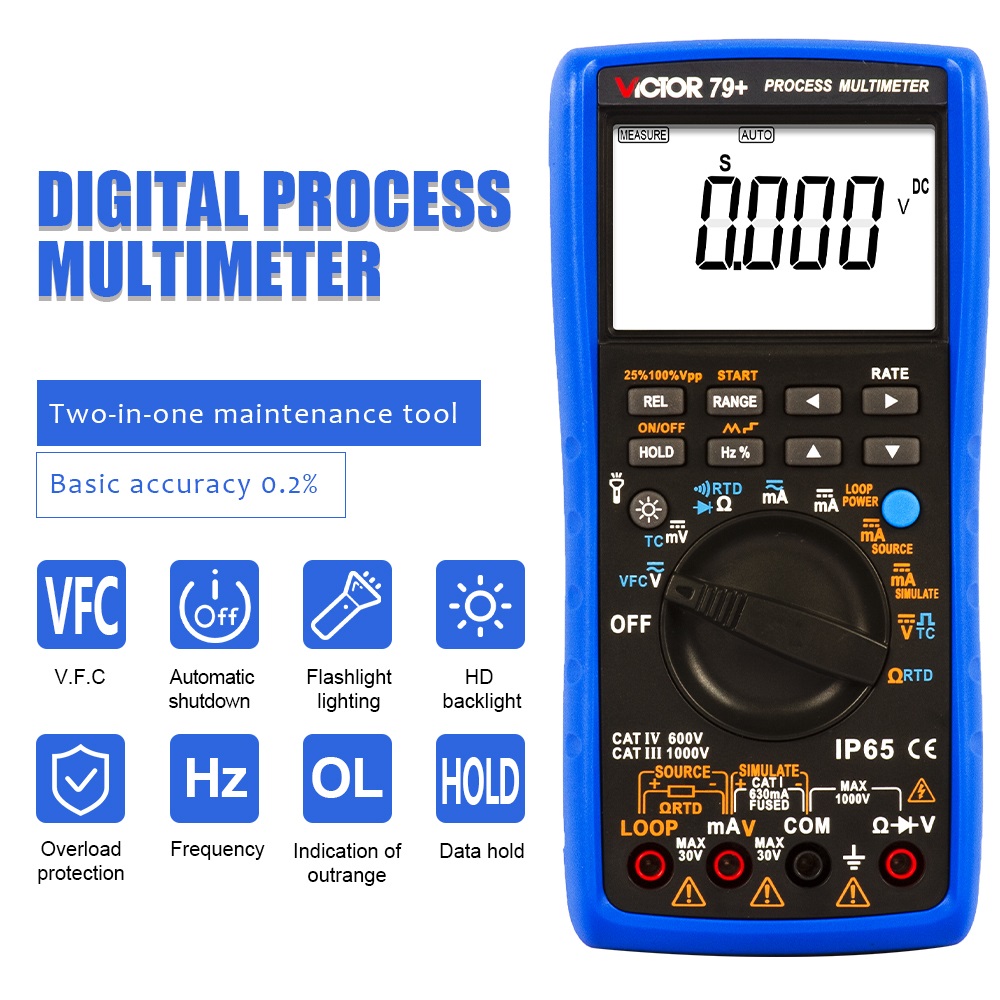

VICTOR 79+ Digital Process Multimeter
分享此页面
美元 $180.50 - 美元 $209.00
美元 $190.00 - 美元 $220.00
生产所需时间:
40 日
运送方式:
EXW
应用:
Digital Process Multimeter
品牌:
Victor
型号编号:
79+

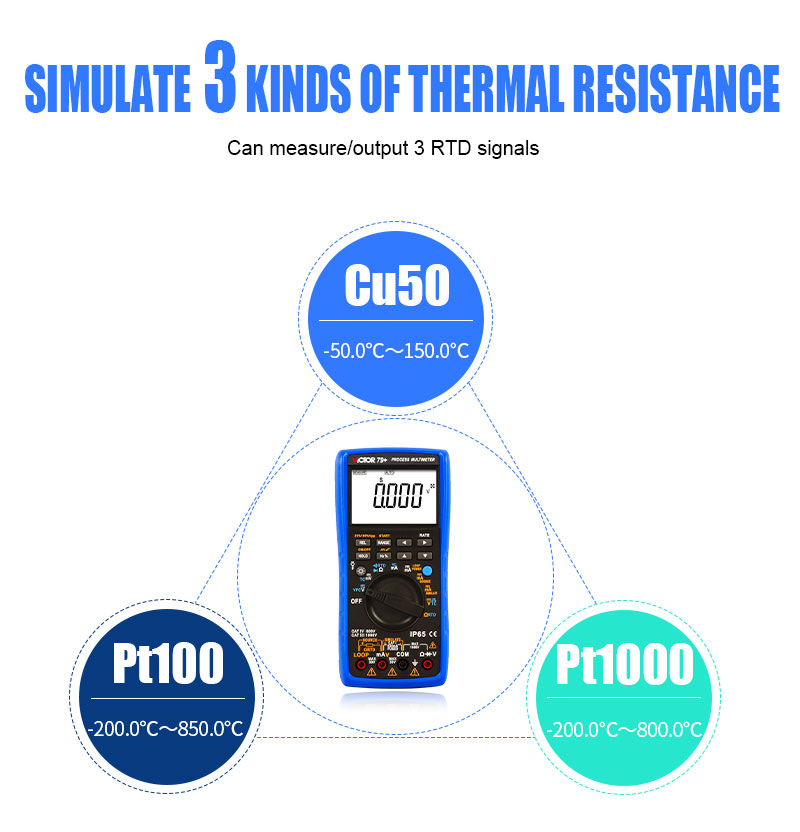

RTD measurement: :
Pt100 Pt1000 Cu50
Thermocouple input/output: :
R/S/B/K/E/J/T/N
VFC: :
600V
RTD output: :
Pt100 Cu50
DCA output: :
30mA
Resistance output: :
400Ω
LOOP::
24V
Frequency input/output: :
10kHz
描述
联络供应商
描述

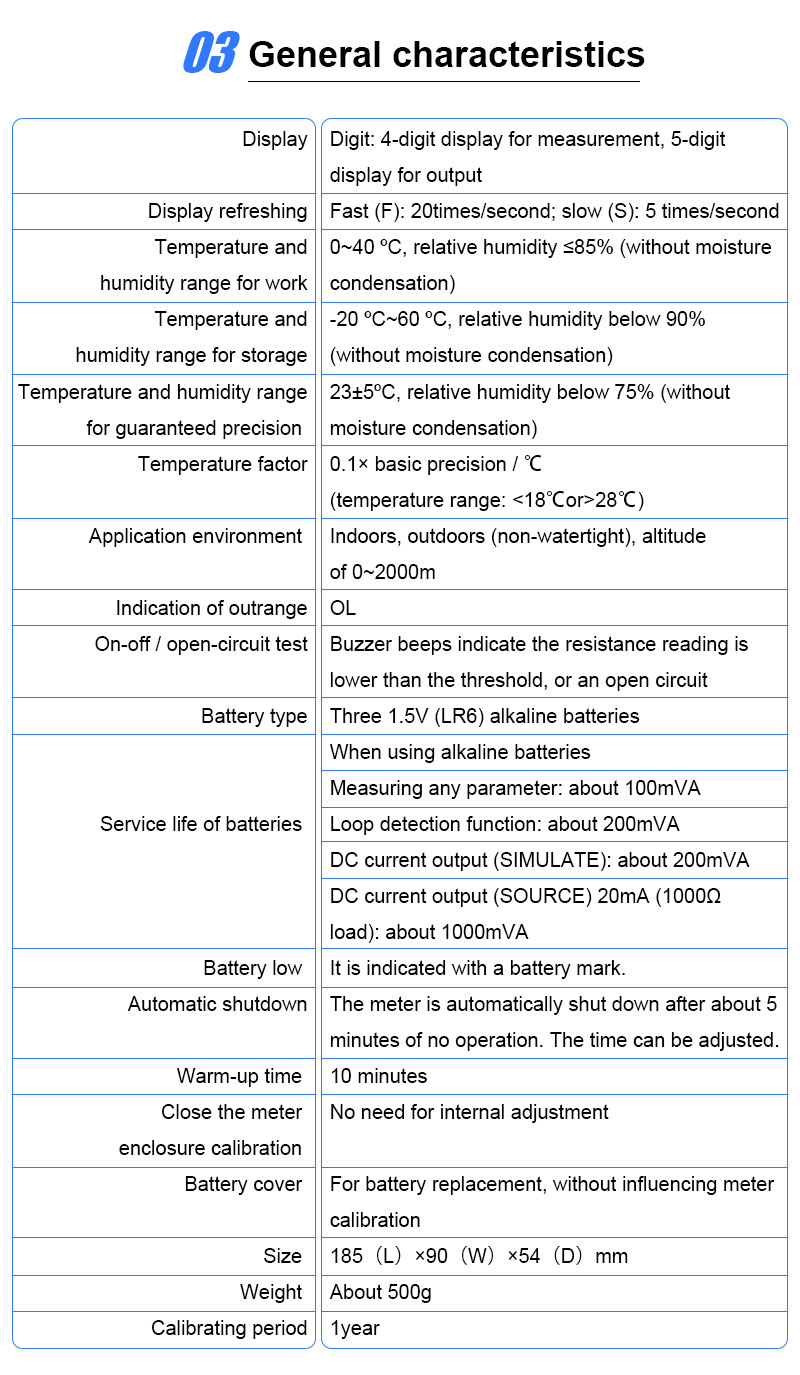

General characteristics
Display
Digit: 4-digit display for measurement, 5-digit display for output
Display refreshing
Fast (F): 20times/second; slow (S): 5 times/second
Temperature and humidity range for work
0~40 ºC, relative humidity ≤85% (without moisture condensation)
Temperature and humidity range for storage
-20 ºC~60 ºC, relative humidity below 90% (without moisture condensation)
Temperature and humidity range for guaranteed precision
23±5ºC, relative humidity below 75% (without moisture condensation)
Temperature factor
0.1× basic precision / ℃ (temperature range: <18℃or>28℃)
Application environment
Indoors, outdoors (non-watertight), altitude of 0~2000m
Indication of outrange
OL
On-off / open-circuit test
Buzzer beeps indicate the resistance reading is lower than the threshold, or an open circuit
Battery type
Three 1.5V (LR6) alkaline batteries
Service life of batteries
When using alkaline batteries
Measuring any parameter: about 100mVA
Loop detection function: about 200mVA
DC current output (SIMULATE): about 200mVA
DC current output (SOURCE) 20mA (1000Ω load): about 1000mVA
Battery low
It is indicated with a battery mark.
Automatic shutdown
The meter is automatically shut down after about 5 minutes of no operation. The time can be adjusted.
Warm-up time
10 minutes
Close the meter enclosure calibration
No need for internal adjustment

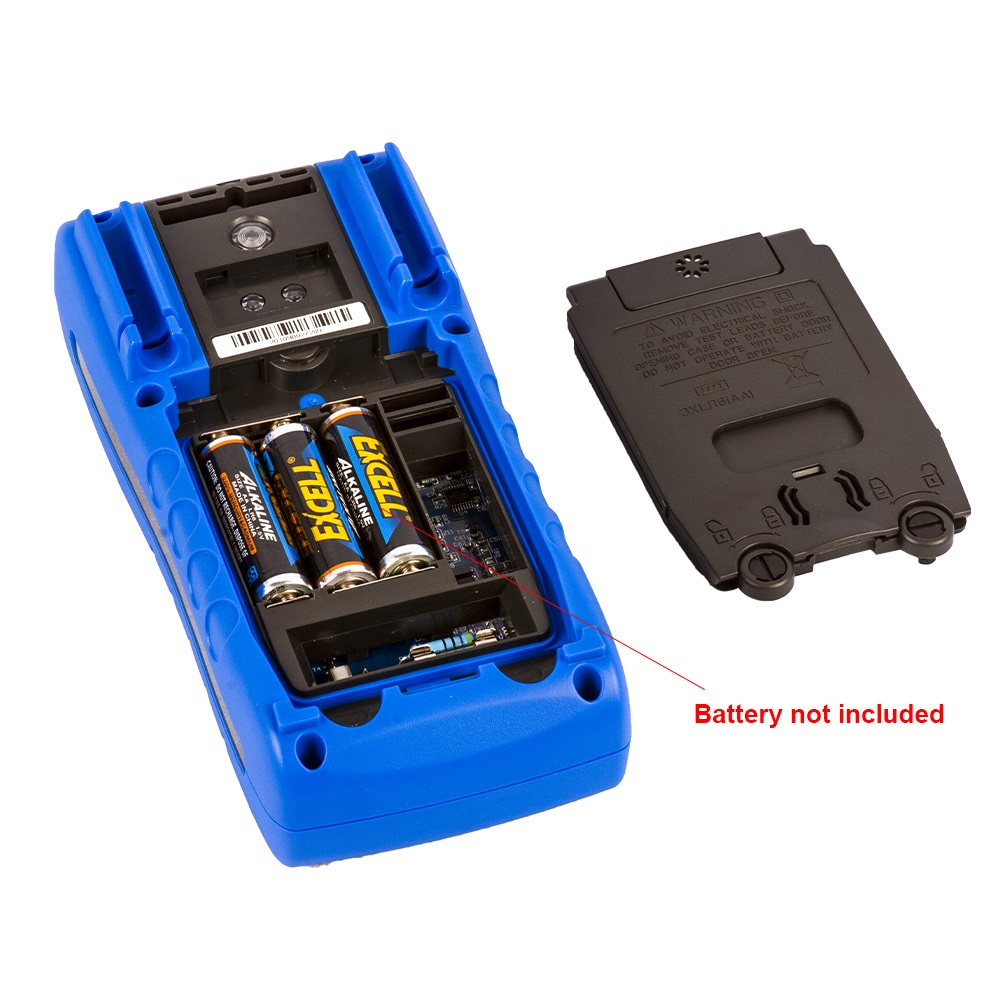

Battery cover
For battery replacement, without influencing meter calibration

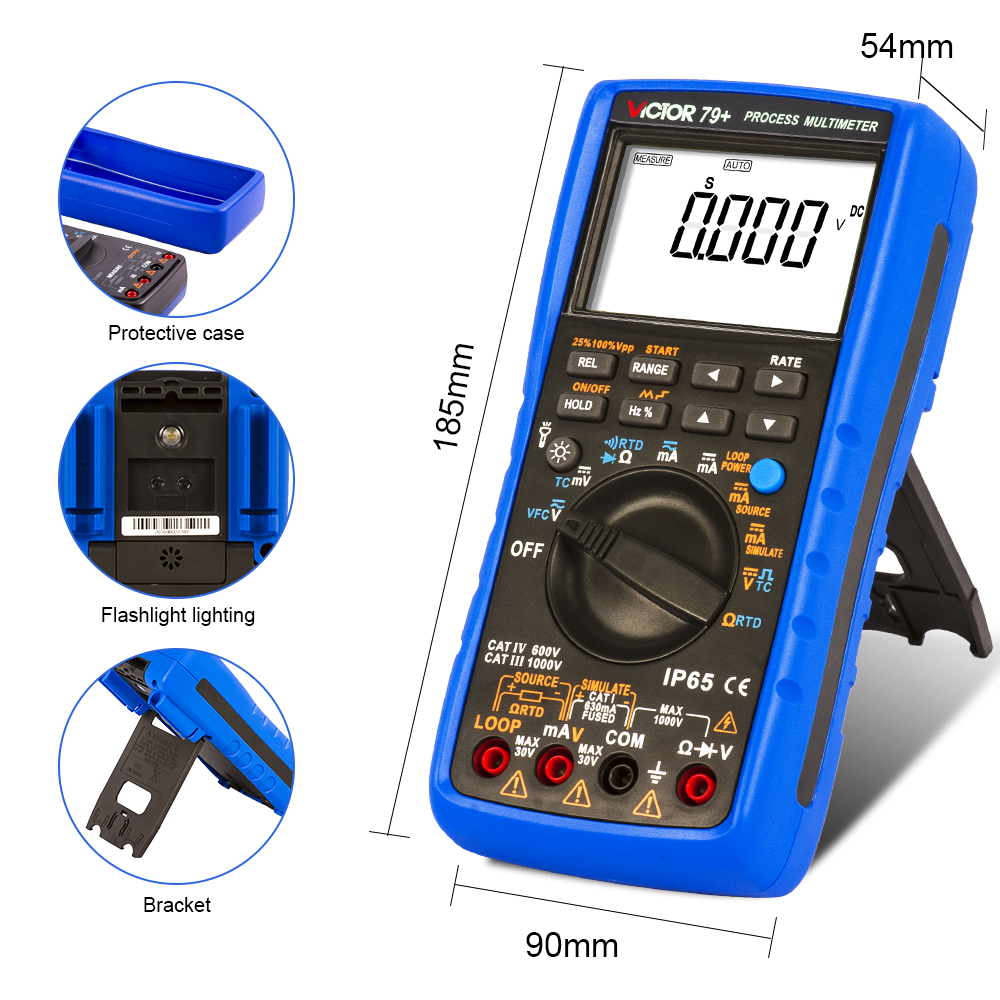

Size
185(L)×90(W)×54(D)mm
Weight
About 500g
Calibrating period
1year
Input characteristics
Function position
Input impedance (nominal value)
V
10MΩ,<100pF
mV
>2.5GΩ
mA

Common-mode rejection ratio
Series-mode rejection ratio
DCV、DCmV
80dB (dc to 50Hz / 60Hz/1KΩ)
40dB (50Hz / 60Hz)
ACV、ACmV
60dB (dc to 50Hz / 60Hz/1KΩ)


Open-circuit voltage
Full-scale voltage
Ohm
2.5V
2.2V
Diode
< 3.5V
2.2V
On-off
< 1V
600mV

Typical short-circuit current
Ohm
600Ω
6kΩ
60kΩ
600kΩ
6MΩ
60MΩ
0.8mA
0.2mA
20μA
2μA
0.2μA
< 0.1μA
Diode
0.2mA (typical value)
