Constructions

Heavy-duty die-cast aluminum housing.

A clean, smooth design blending harmoniously into outdoor environments.

UV stabilized polyester powder paint finish for durability and corrosion resistance.

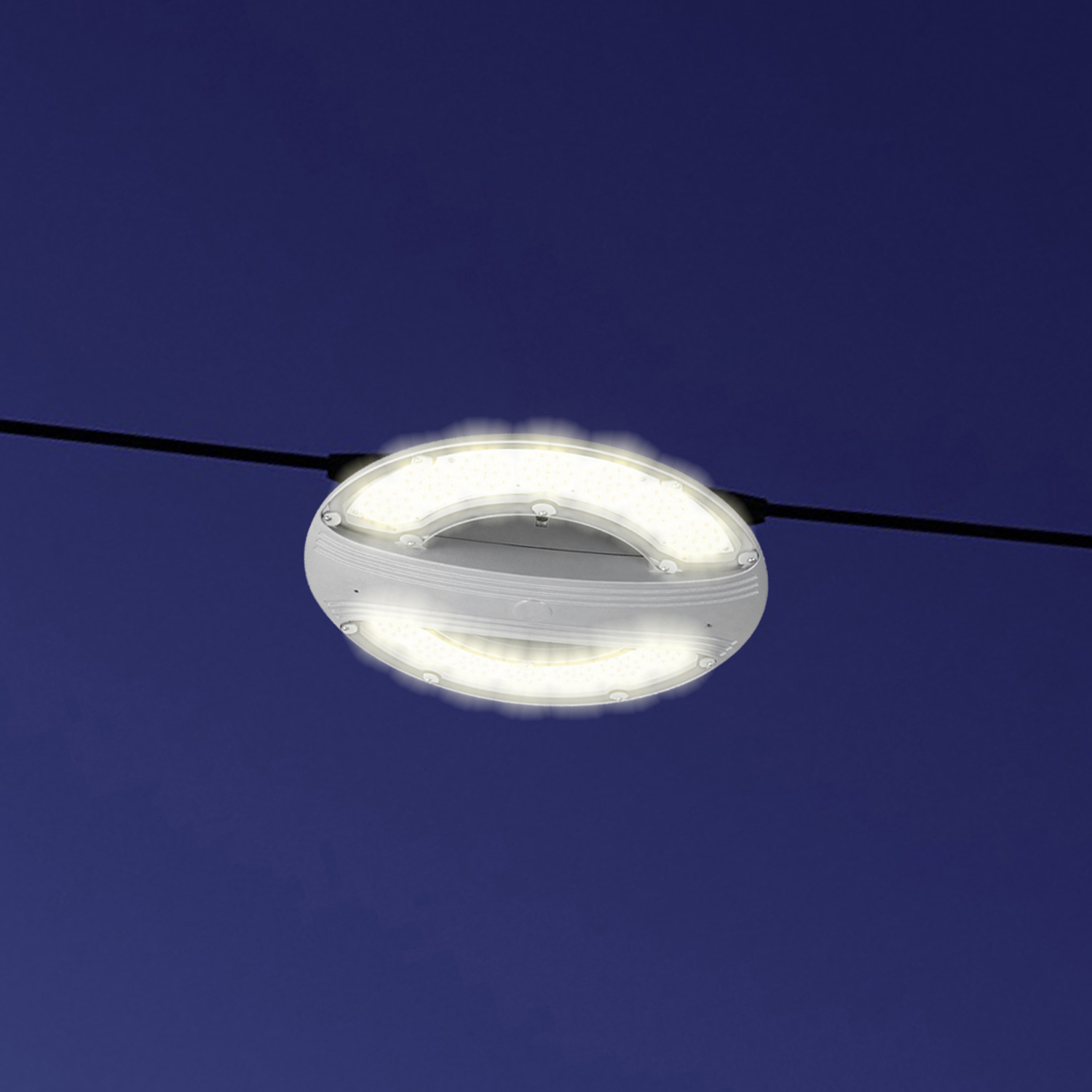

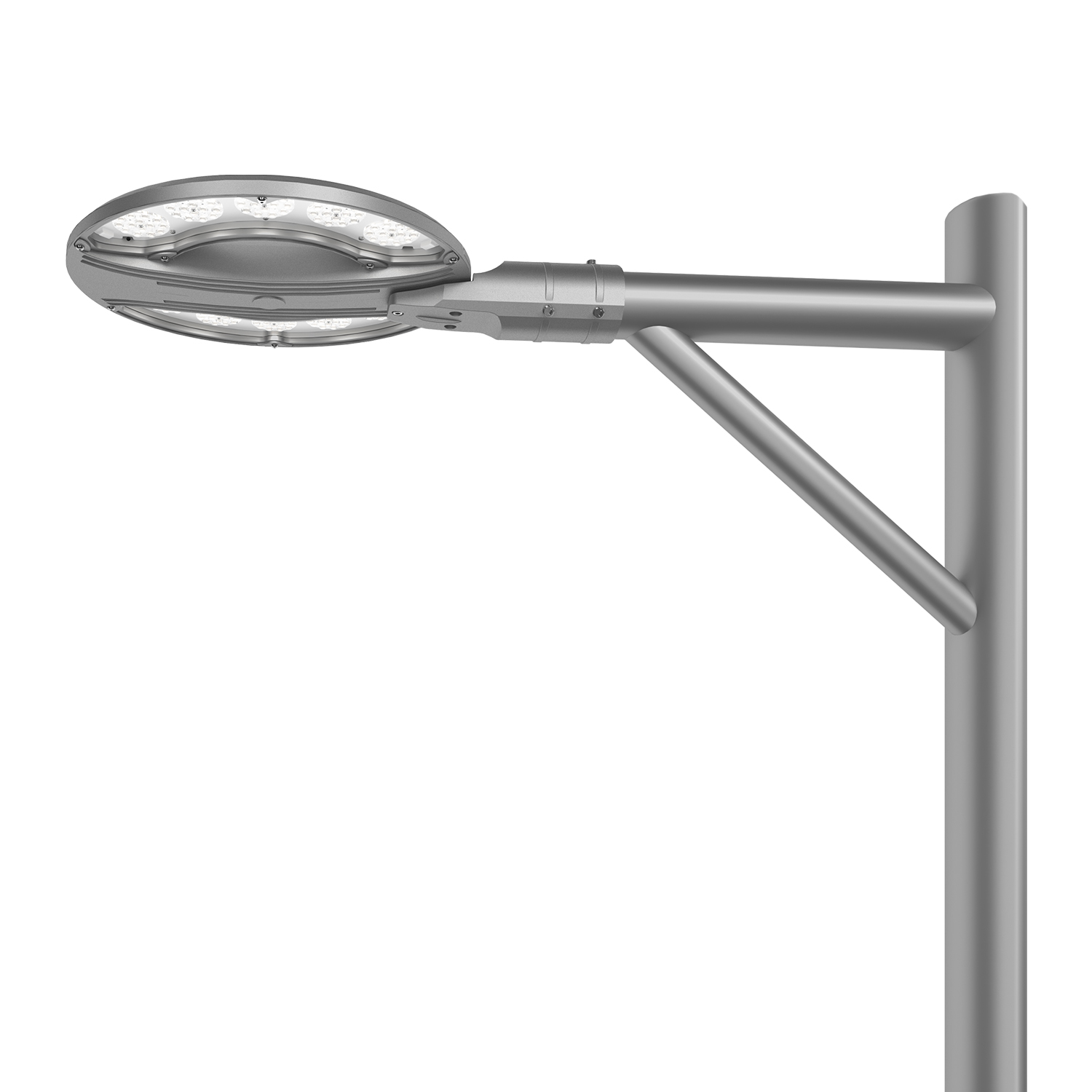

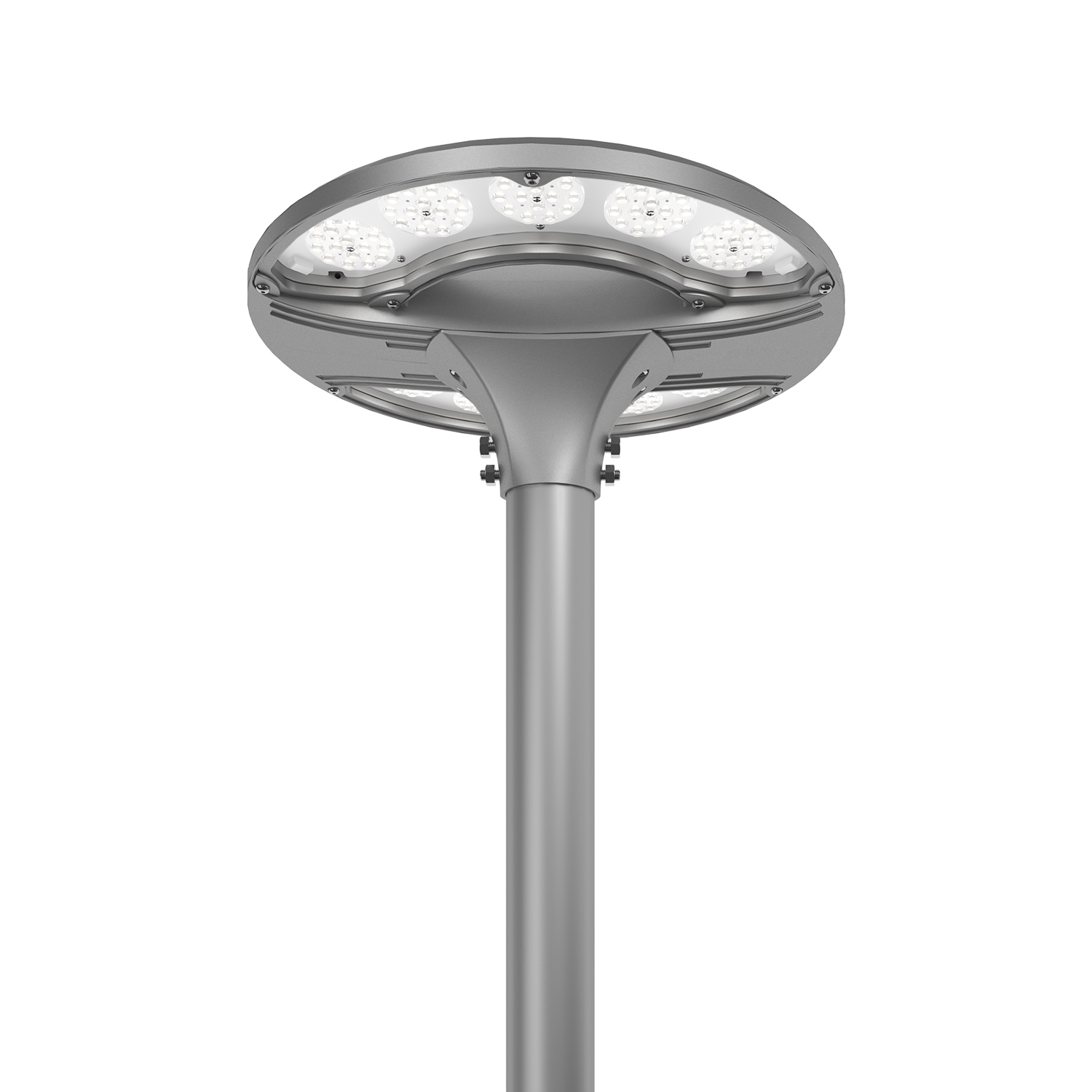

Multiple mounting options: Post top I&II, side entry, and cable suspending installation available.

Optical system

Precision engineered individual lenses made of optical grade Mitsubishi polycarbonate for maximum light intensity, with Tempered Glass Cover to protect the optics.

Micro-lens systems produce IESNA Type V distributions.

Delivers improved visual comfort by lower glare and providing a wider smoother and more uniform light output.

Optical systems maintain an IP66 rating.

Available in 2700K, 3000K, 4000K, 5000K, 5700K, 6500K CCT.

Cutoff classification: Cutoff, no up-light pollution.

Minimum CRI of 70, 80, and 90 optional.

Electrical

1-10V/ PMW/ timer dimming, 3 timer modes, Dim-to-Off with standby power <= 0.5W.

Constant current Inventronics driver (For North America) or Mean well driver (For Europe), 100-277Vac, 50-60Hz.

High-efficiency driver: up to 93.5%, minimum efficiency 87.5%.

Operating temperature rating of -40°F to 122°F (-40°C to 50°C).

Class I or Class II optional.

Finish

Rugged, weather-tight design and 3G vibration ratings ensure durability even in harsh environments.

Warranty

5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for a detailed agreement.
