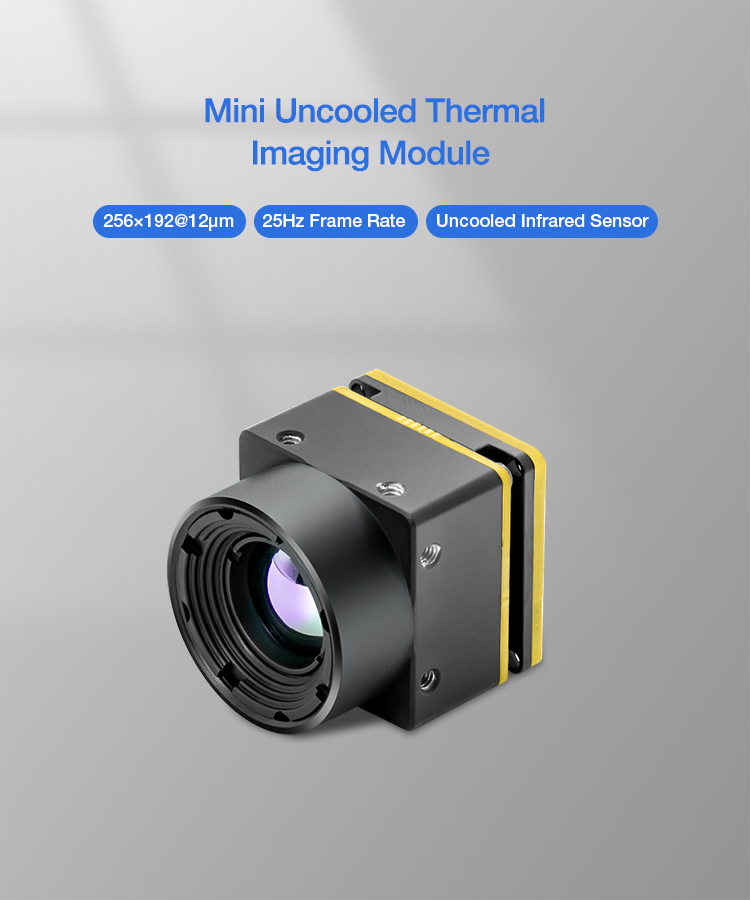

Mini Uncooled Infrared Thermal Imaging Core Camera Module

美元 $399.00 - 美元 $413.25

美元 $420.00 - 美元 $435.00

生產所需時間:

10 日

運送方式:

express delivery

Max. Resolution:

256*192

Detector Frame Reta:

50Hz/25Hz

Spectral Band:

8-14μm

Weight:

Less Than 8g

Function:

Thermal image

Detector:

Wlp Uncooled Vox Infrared Focal Plane Detector

Video Output Format:

DVP/SPI

描述

聯絡供應商

Product Description

Smallest Lightest Uncooled Calibration 50Hz 25Hz IR Infrared Sensor Drone Mini Thermal Imaging Camera Module

Mini256 is a long-wave infrared（8~14μm）camera module designed for consumer electronics. It captures infrared radiation and outputs a uniform thermal image with radiometry. Featured by compact size, low power consumption, the product is suitable for security camera, temperature measurement tools, smart home appliances and other fields.

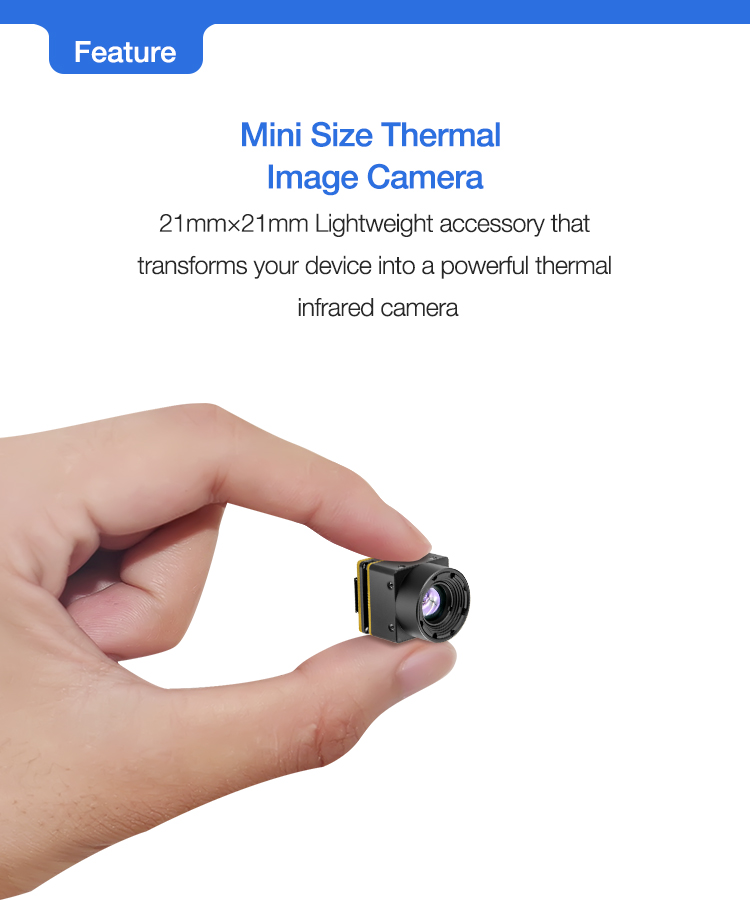

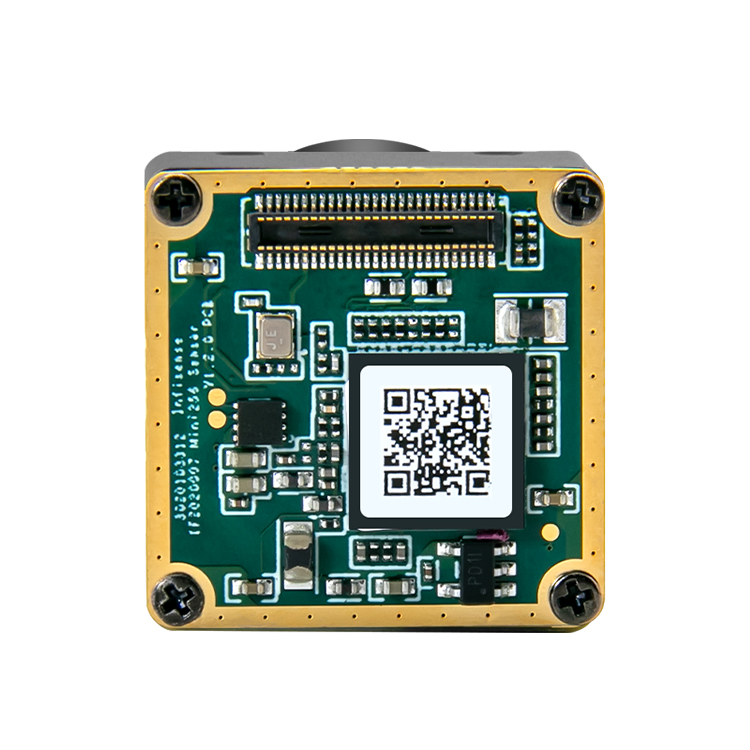

The thermal image camera module adopts new self-developed 12μm VOx WLP detector and is equipped with an ASIC processing chip independently developed by InfiRay®, featuring extremely small size, lighter weight, and lower power consumption. Its 640-resolution thermal iamging module has a size of 21mm×21mmx21mm, which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.

Features

Focus on the consumer thermal imaging market;

12μm VOx long wave infrared sensor with WLP package，256 x 192;

Frame rate: 25Hz;

Excellent Optical design matching high resolution sensor, leading to outstanding image;

Full array temperature data output;

ASIC for infrared imaging and radiometry, low power consumption, good performance, low user development difficulty;

Specification

Camera
Sensor Technology	Uncooled VOx microbolometer
Spectral Band	8～14 μm
Frame Rate	25Hz
Pixel Pitch	12μm
Thermal Imaging
Brightness Adjustment	0~255, optional
Contrast Adjustment	0~255, optional
Polarity	White-hot/Black-hot
Palette	Supported
Digital Zoom	0.25~2.0× continuous zoom
Mirroring	Vertical/Horizontal/Diagonal
Reticle	Show/Hide/Move
Image Processing	TEC-less algorithm
	Non-uniformity correction
	Digital filtering noise reduction
	Digital detail enhancement
Thermal Camera Power Supply and Power Consumption
Input Supply Voltage	Three-way: 1.8V, 3.3V, and 5V
Typical Power Consumption@25°C	＜0.35W/＜0.50W
Thermal Camera Output and Communication Interface
Video Output format	DVP/SPI
Optional Expansion Board Interfaces
Power Supply	5V-12V
Power Protection	Overvoltage, undervoltage, and reverse connection protection
Output and Control Interface 1	BT.656 digital video interface, I2C control

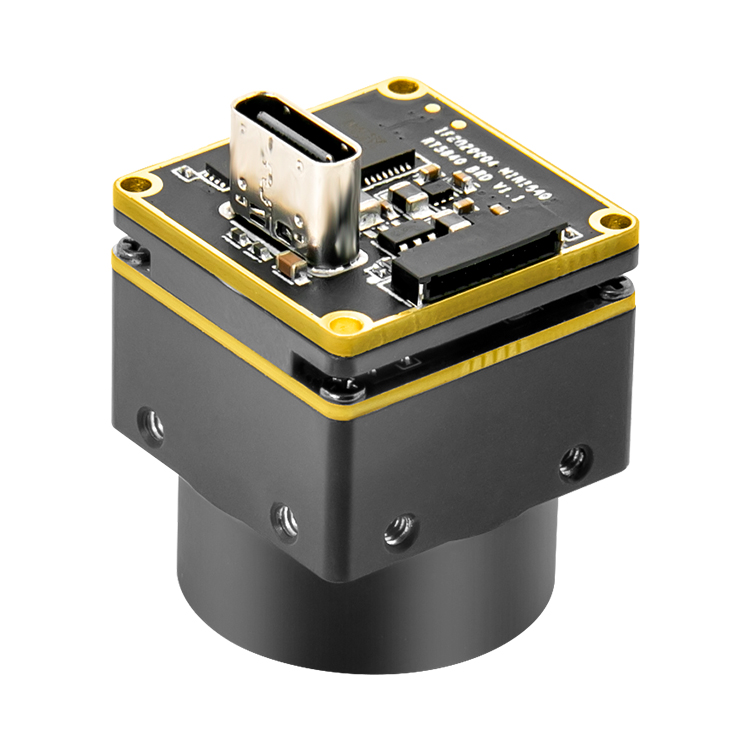

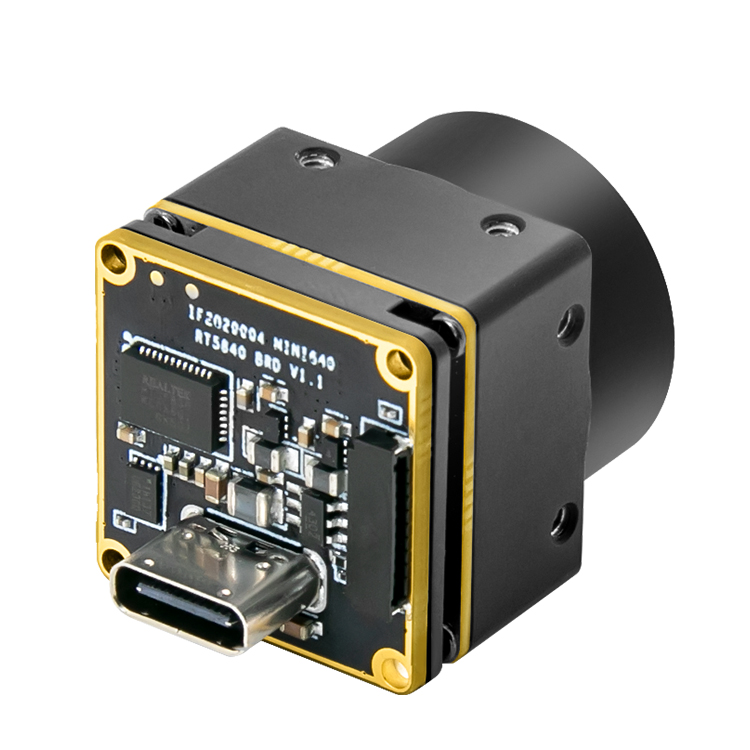

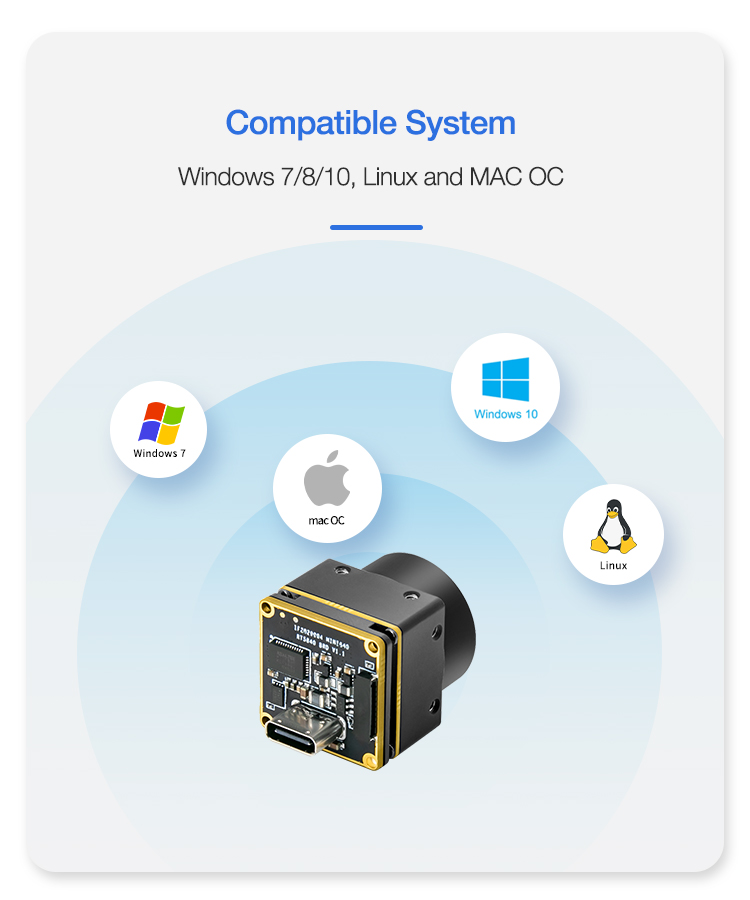

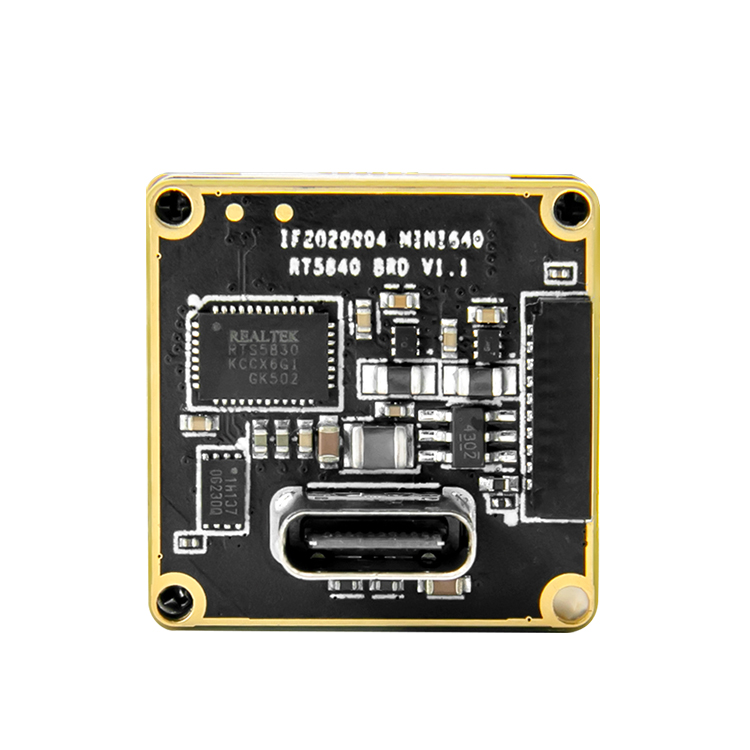

Output and Control Interface 2	USB2.0 image output, SDK for Linux/Windows

Company Profile

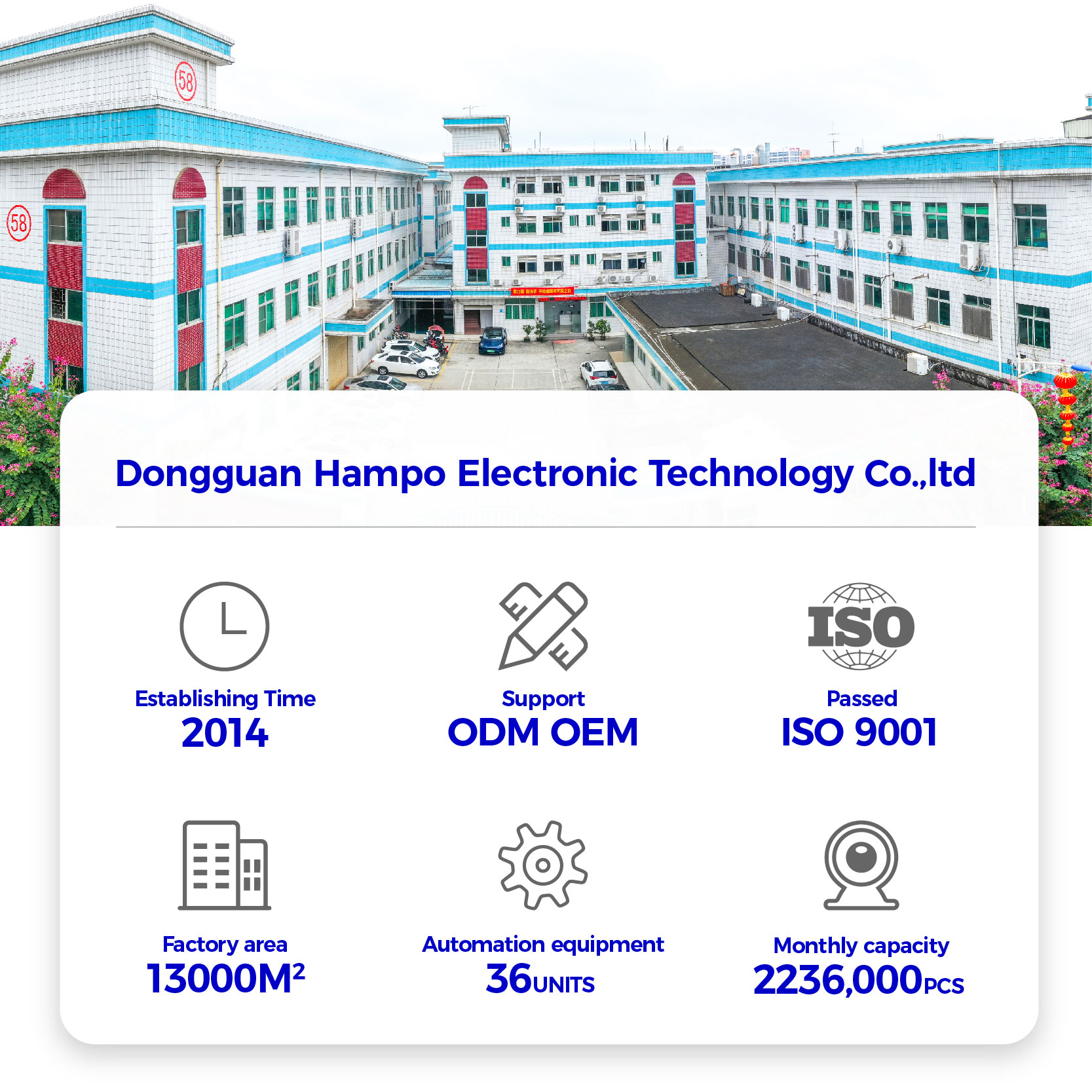

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
