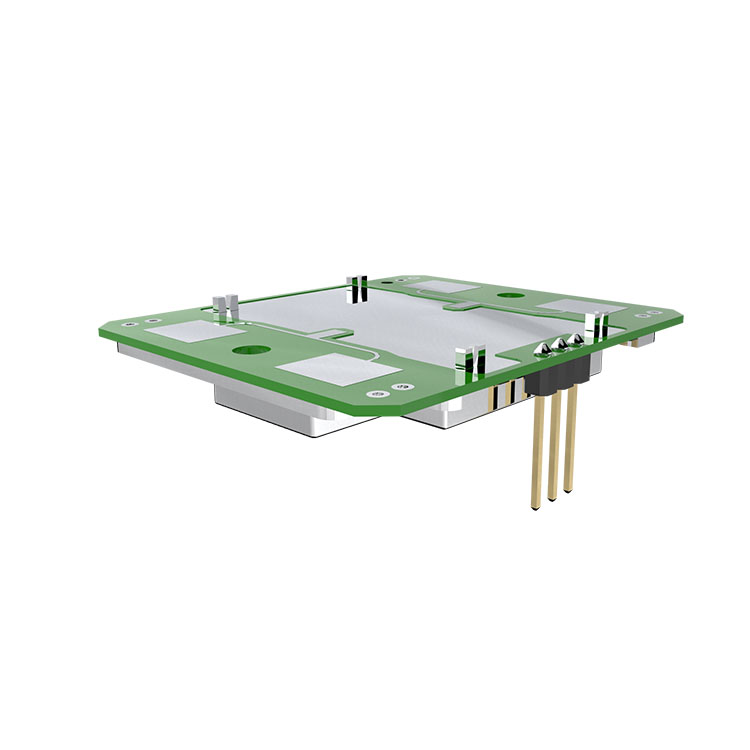

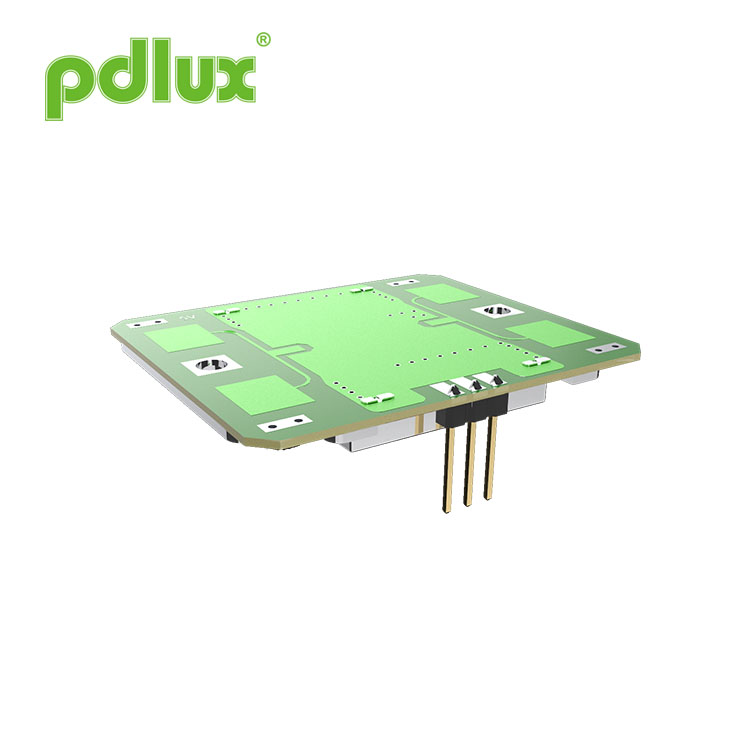

PDLUX PD-V9S 10.525ghz Microwave Wireless Motion Sensor Hb100 Radar Sensor Module for Intelligent Application
美元 $1.50 - 美元 $2.50
生產所需時間:
20 日
描述
聯絡供應商
描述

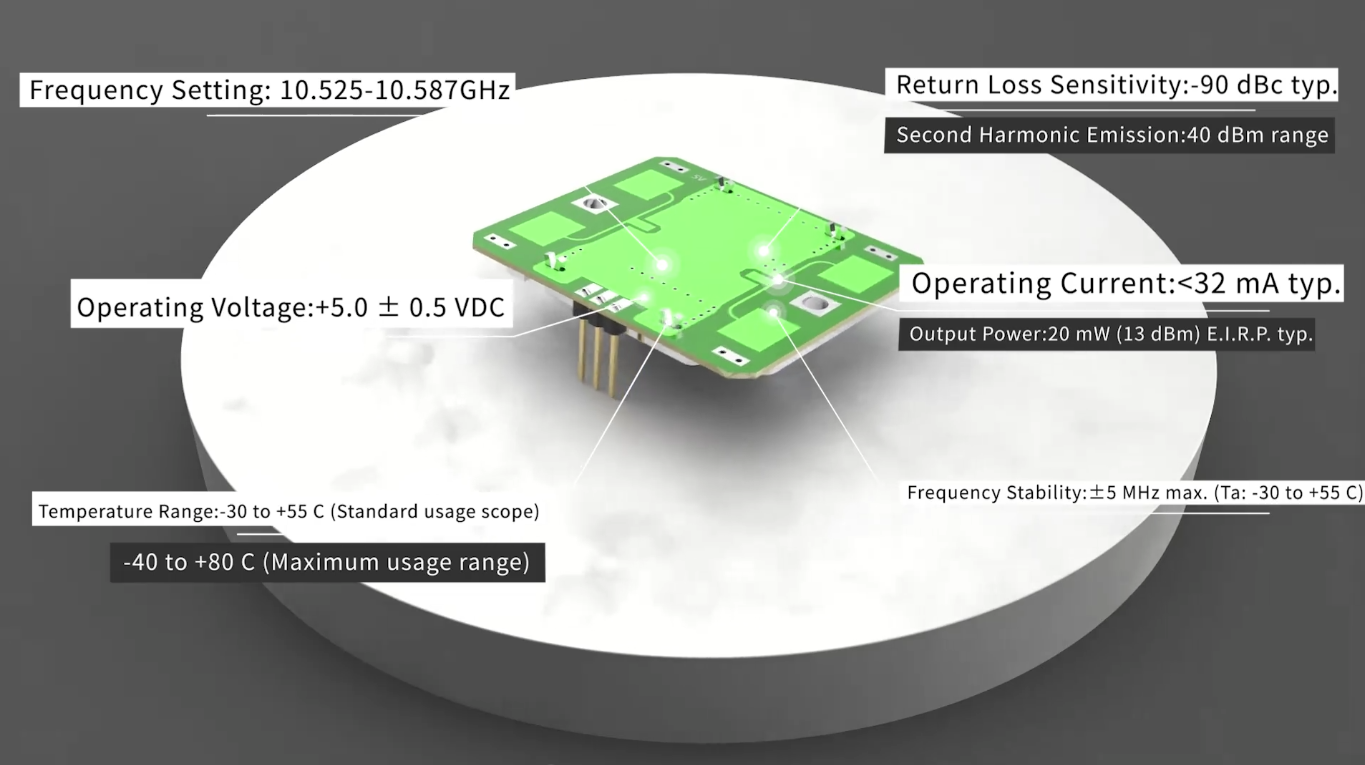

| Item | Specifications | |
| Frequency Setting | 10.525GHz ±20M | |
| Condition | Ta = +25 C ，Vin = +5 VDC | |
| Operating Voltage | +5.0 ± 0.5 VDC | |
| Operating Current | <32 mA typ. | |
| Output Power | 20 mW (13 dBm) E.I.R.P. typ. | |
| Frequency Stability | ±5 MHz max. (Ta: -30 to +55 C) | |
| Return Loss Sensitivity | -90 dBc typ. | |
| Second Harmonic Emission | -40 dBm range | |

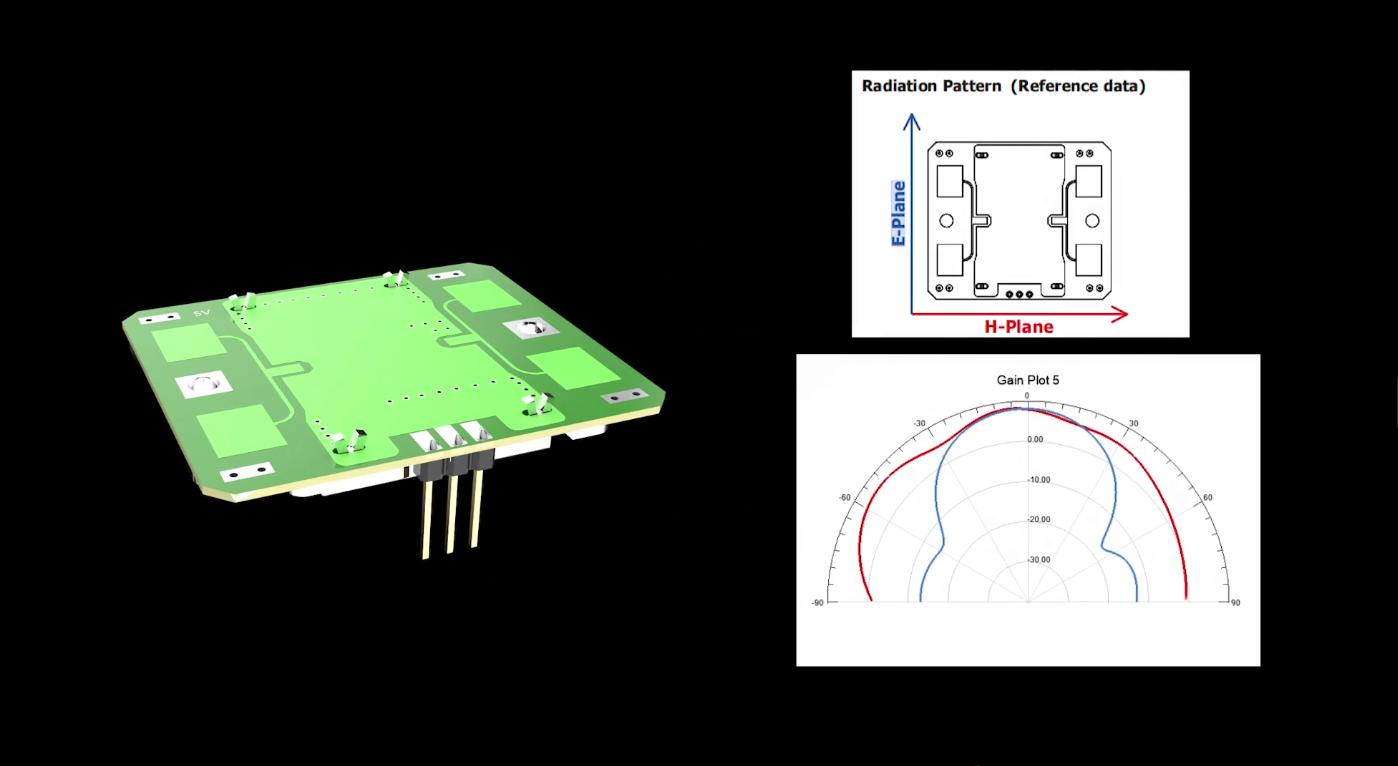

| Antenna Beamwidth (-3 dB) | E-Plane | 36 degree nom. (The oretical full angle of 72 degrees) |
| H-Plane | 72 degree nom. (The oretical full angle of 144 degrees) | |
| RF Interface | Patch Antenna | |
| Temperature Range | -30 to +55 C (Standard usage scope), -40 to +80 C (Maximum usage range) | |
| Regulation for compliance | ETS 300 440 | |
