Project | Model
Performance
parameters |

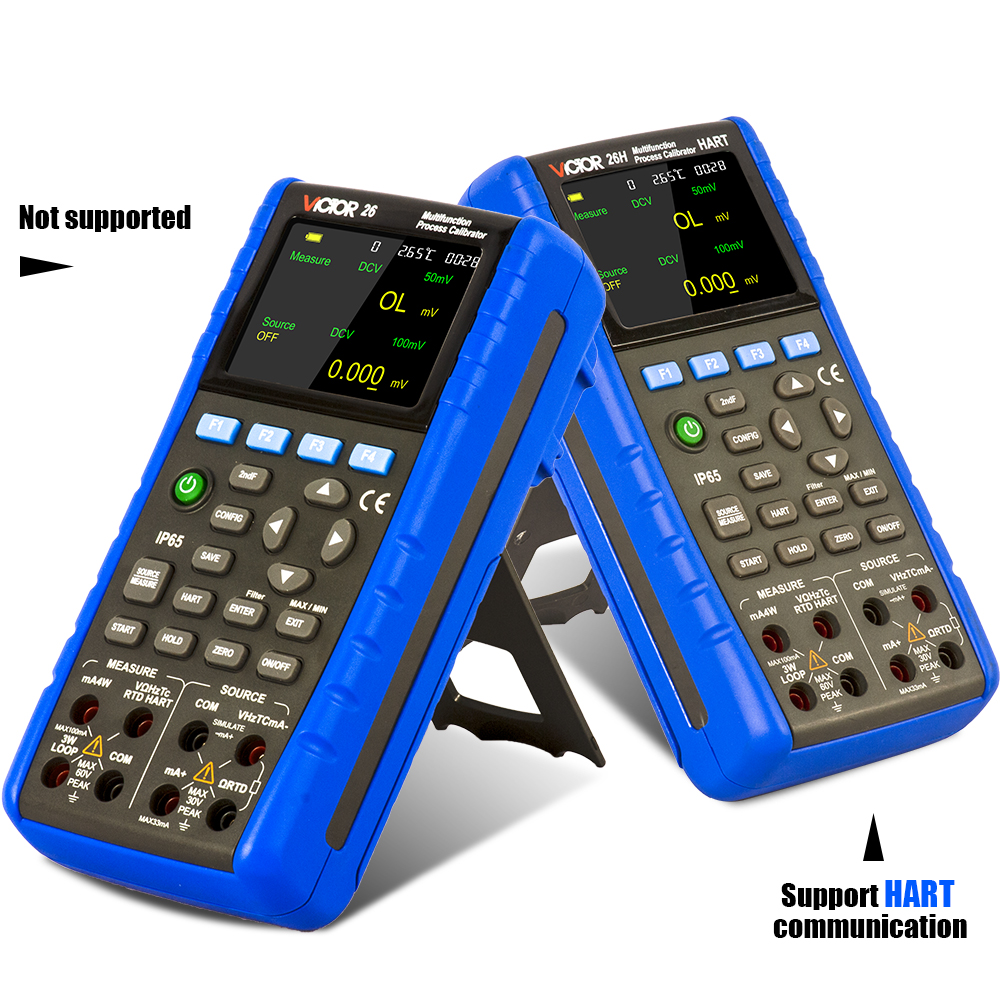

VICTOR 26
|
VICTOR 26H
|

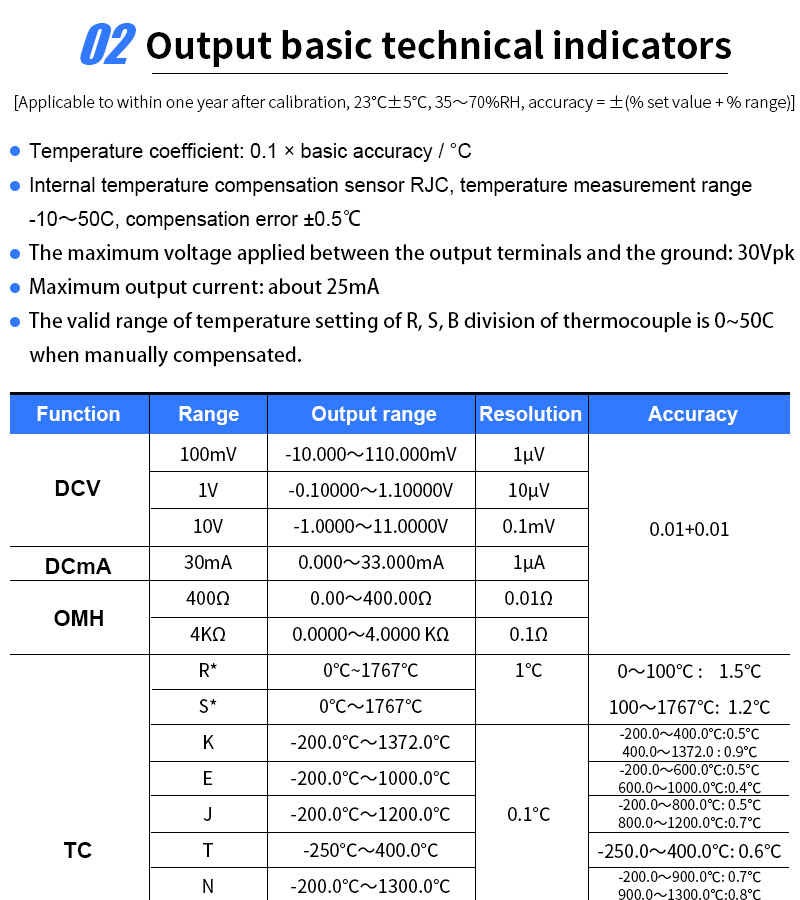

Source | DC millivolt | Range | -5 ～ 110mV | -5 ～ 110mV |
Accuracy=
±(% of the set value+% of range) | 0.01%+0.01% | 0.01%+0.01% |
Resolution | 1uV | 1uV |
DC voltage | Range | -1 ～ 11V | -1 ～ 11V |
Accuracy=
±(% of the set value+% of range) | 0.01%+0.01% | 0.01%+0.01% |
Resolution | 10uV/0.1mV | 10uV/0.1mV |
DC current | Range | 0 ～ 33mA | 0 ～ 33mA |
Accuracy=
±(% of the set value+% of range) | 0.01%+0.01% | 0.01%+0.01% |
Resolution | 1uA | 1uA |
Sink current | Range | 0 ～ 33mA | 0 ～ 33mA |
Accuracy=
±(% of the set value+% of range) | 0.01%+0.01% | 0.01%+0.01% |
Resolution | 1uA | 1uA |
External power
supply | 5 ～ 28V | 5 ～ 28V |
Resistance | Range | 0 ～4KΩ | 0 ～4KΩ |
Accuracy=
±(% of the set value+% of range) | 0.01%+0.01% | 0.01%+0.01% |
Resolution | 0.01Ω/0.1Ω | 0.01Ω/0.1Ω |
Thermocouple | Range | R/S/K/E/J/T/B/N/L/U | R/S/K/E/J/T/B/N/L/U |
Accuracy | 0.4℃ | 0.4℃ |
Resolution | 0.1℃/1℃ | 0.1℃/1℃ |

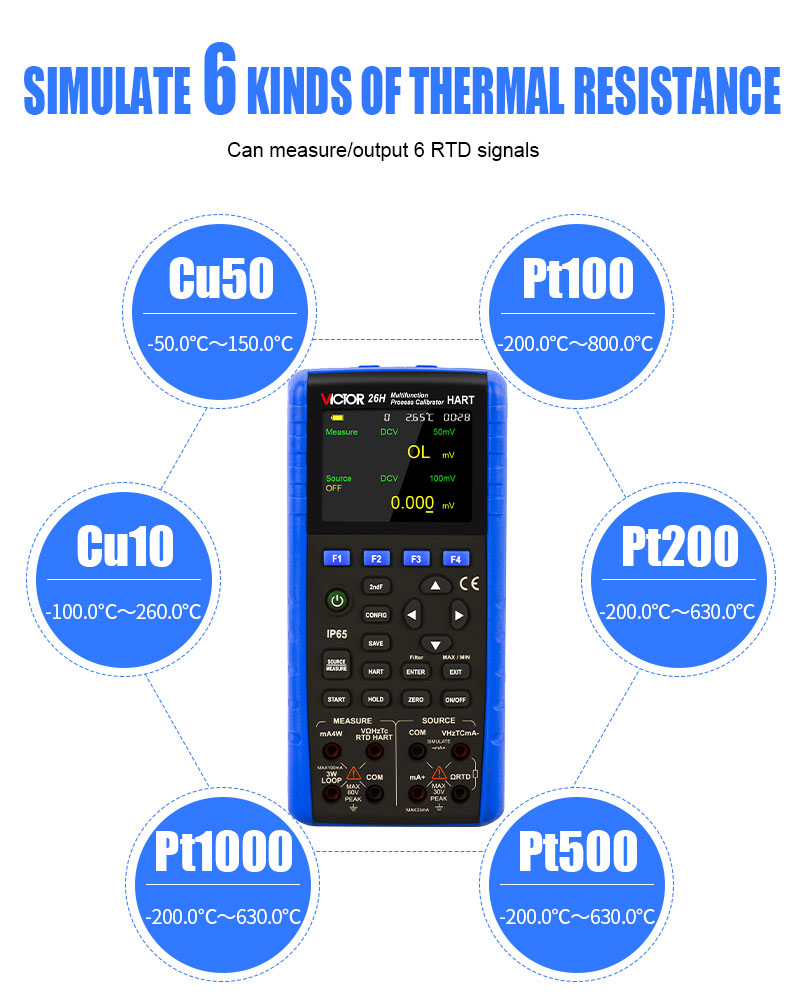

RTD | Range | Pt100/Pt200/Pt500/
Pt1000/Cu10/Cu50 | Pt100/Pt200/Pt500/
Pt1000/Cu10/Cu50 |
Accuracy | 0.2℃ | 0.2℃ |
Resolution | 0.1℃ | 0.1℃ |
Frequency
(Hz) | Range | 1Hz ～110KHz | 1Hz ～110KHz |
Accuracy | ±2words | ±2words |
Resolution | 0.01Hz/1Hz/0.1KHz/2KHz | 0.01Hz/1Hz/0.1KHz/2KHz |
Frequency(CMP) | Range | 60～1200 CPM | 60～1200 CPM |
Accuracy | ±2words | ±2words |
Resolution | 1CPM | 1CPM |
Pulse | Frequency | 1Hz ～10KHz | 1Hz ～10KHz |
Range | 1 ～100000cyc | 1 ～100000cyc |
Accuracy | ±2words | ±2words |
Resolution | 1cyc | 1cyc |
Switch | Range | 1Hz ～110KHz | 1Hz ～110KHz |
Accuracy | ±2 | ±2 |
Resolution | 0.01Hz/1Hz/0.1KHz/2KHz | 0.01Hz/1Hz/0.1KHz/2KHz |
Pressure | Range | Depends on the pressure module | Depends on the pressure module |
Accuracy=
±(% of the set value+% of range) | Depends on the pressure module | Depends on the pressure module |
Resolution | 5 digit display | 5 digit display |
