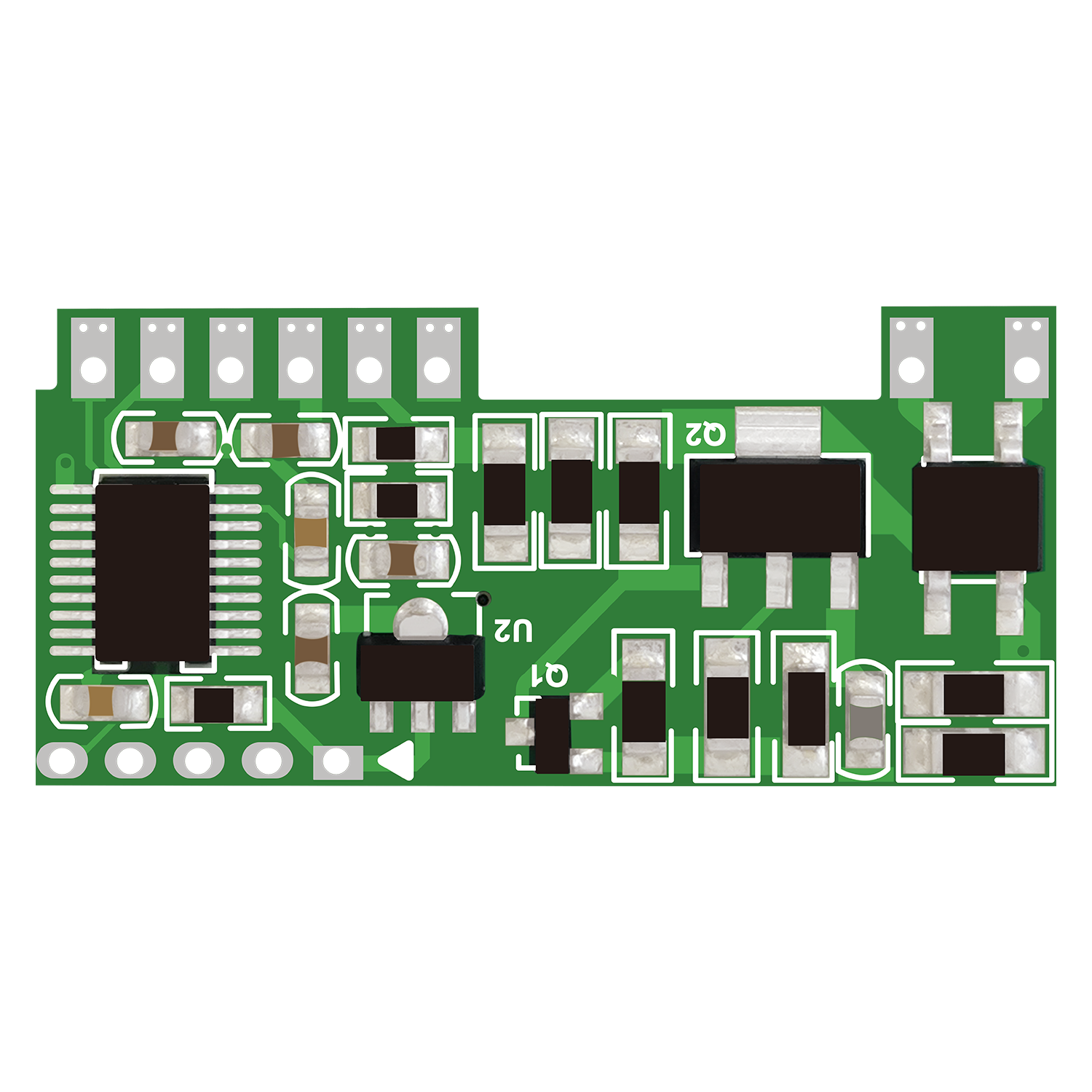

0-10V Triac Dimming Module (4-in-1)
美元 $2.00 - 美元 $2.50
生產所需時間:
15 日
運送方式:
Buyer specified.
品牌:
RICOVO
型號編號:
RK-TRIAC-V1
描述
聯絡供應商
描述
Model: RK-TRIAC-V1
Supported Protocols: 0-10V, 10V PWM, Potentiometer, Triac
Supported Functions: Supports both 0-10V and Triac dimming.
Power Supply: DC 5-15V (ripple less than 200mV).
Output Signal: 1 channel PWM (4KHz, 5mA, minimum dimming depth is 0.3%, frequency can be customized).
Triac Interface: AC 200-240V.
Working Temperature: -20~80 °C.
Board Size: 37.5X17.5X1.2mm.
Installation Method: Gold finger/Pin header.
