10.4 inch IPS LCD module 1024*768 TFT LCD screen with LVDS interface

美元 $20.00 - 美元 $45.00

生產所需時間:

25-45 日

運送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech

型號編號:

MTF104XA15A-V1

是否可訂造:

可以

尺寸:

10.4inch

描述

聯絡供應商

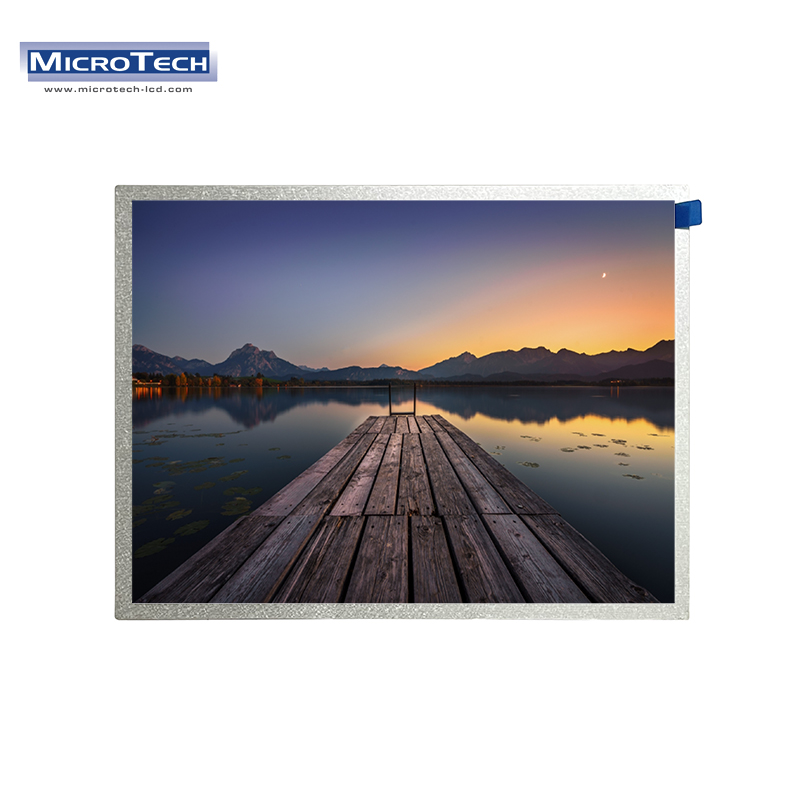

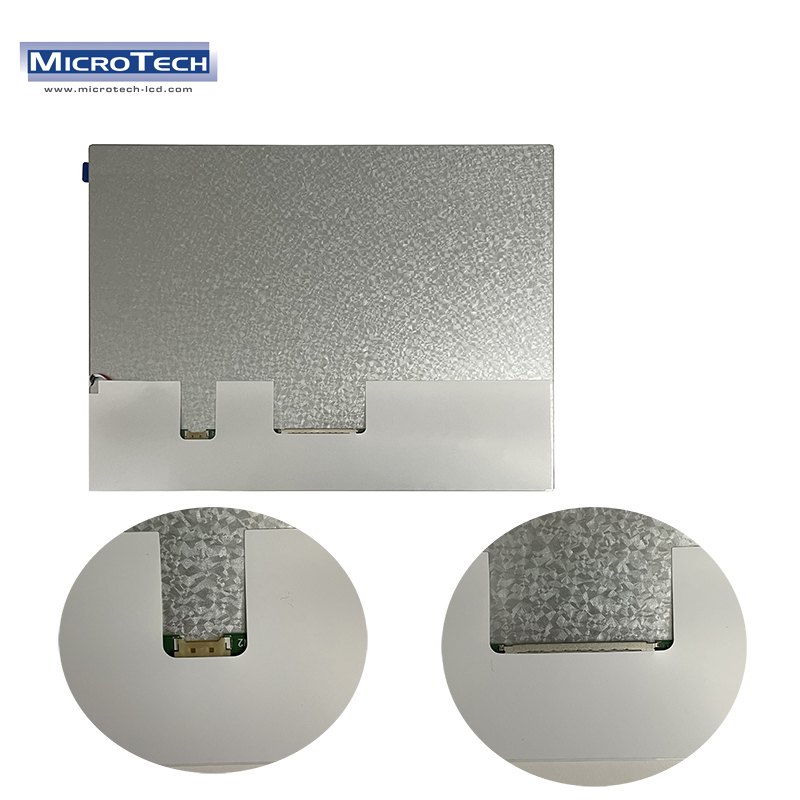

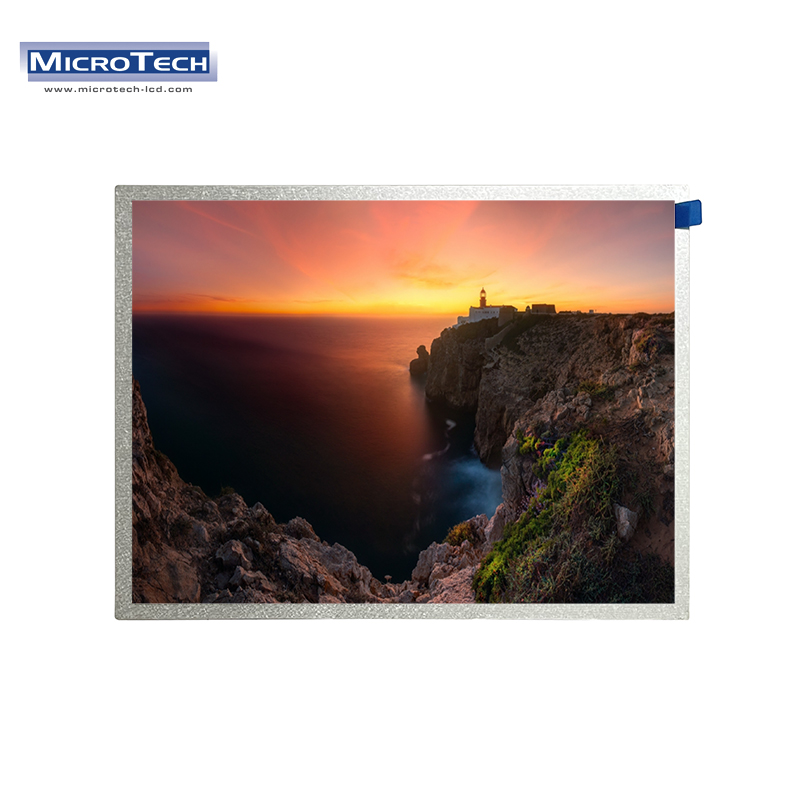

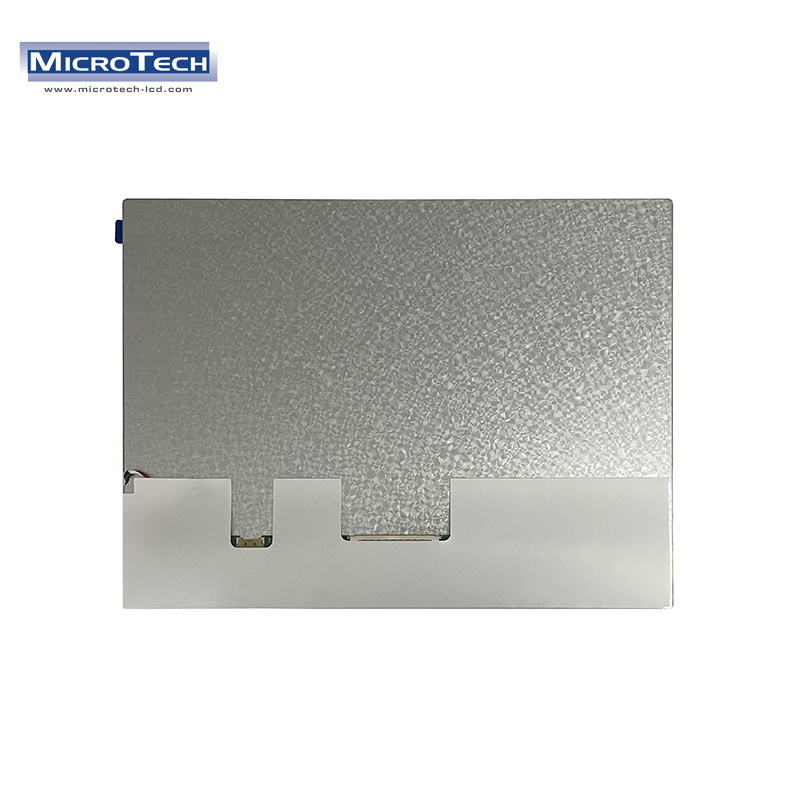

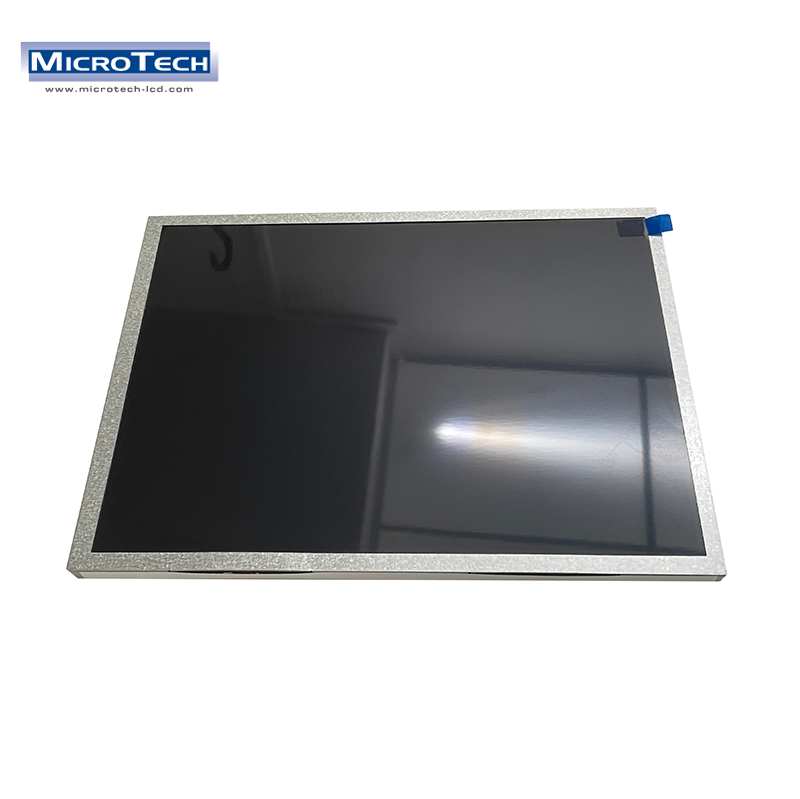

10.4 inch IPS LCD module 1024*768 TFT LCD screen with LVDS interface

MTF104XA15A-V1 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor (TFT) as switching devices. This panel has a 10.4 inches diagonally measured active display area with resolution 1024 x 768. This product is composed of a TFT LCD panel, polarizers, driver ICs, FPC and PCBA

Item	Description	Unit
Display Size	10.4	inch
Display Type	Transmissive, a-Si	-
Active Area (HxV)	210.432 (H)x 157.824 (V)	mm
Number of Dots (HxV)	1024 x RGB x 768	dot
Pixel Pitch(HxV)	0.2055x0.2055	mm
Color Arrangement	RGB Stripe	-
Color Numbers	256K/16.7M	-
Outline Dimension (HxVxT)	220.53 (H) x 168.02 (V) x 1.04 (D)	mm
NTSC (CIE1931) (Under C light)	60(Typ.)	%
White Point (x,y) (Under C light)	x:0.318,y: 0.366(Typ.)
Response Time	W30	ms
Viewing Angle (Light On) (R/U/L/D)	CRN 10 @ R/L/U/D(80780780780°) (Min.)
Surface Treatment	HC
Contrast Ratio (Light On)	1000:1 (Typ)
Operation Temperature	-30-80	℃
Storage Temperature	-30-80	℃
Interface	LVDS
Weight	100	g
Panel power consumption	TBD	W
