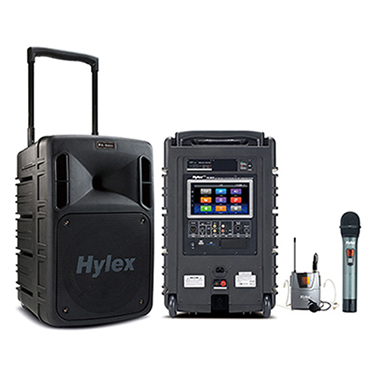

The internal system operation is using 7 inch high resolution cypress true touch panel (1024x600) with WIFI connection can be remote controlled by Miracast with smart phone & other mobile devices.
The internal WIFI connection can be connected with any mobile hot spot or broadband router for browsing any video & audio website from internet to be broadcasted.
The Miracast operation is available to both Android & IOS systems.
The internal computer processor is octa core (A83T/DDR3.512MP*2=1GB).
The PA-9010 / 880 with the octa core processor contain HDMI output.
Build in USB2.0 (support maximum 32GB) & SD (support maximum 32GB) external signal connection terminals with great scalability.
Build in blue tooth 4.0 wireless transmission technology (0 ~ 10M) allow to be connected with audio wirelessly from smart phone, pad & other mobile devices.
Build in UHF PLL 200CH wireless microphone system with auto scan & IR synchronizes functions.
It allows to be installed with maximum 4 channels of wireless receivers.
Supported with wireless inter-link broadcast function allow to be connected with many units wirelessly at same time for large space application.
AUDIO LINK function can series connected many sets of them by wire for large space application.
The volume control is independent to each internal & external audio source (music & wired / wireless microphone) with one master volume control to all.
The music & microphone (wired & wireless) tone (treble & bass) are built in with separate master control.
The microphone system contains priority & master echo effect with volume control to both internal wireless microphone receiver & external wired microphone input.
The speaker cabinet is made of intensify plastic with single injection process.
It is also designed with hidden compartment allow to placed 2 sets of microphone transmitters.
The speaker cabinet is built in with pull rod & wheels can be moving around like trolley.
It is built in with 8 inch bass speaker unit & 2 inch high efficiency treble unit with horn.
