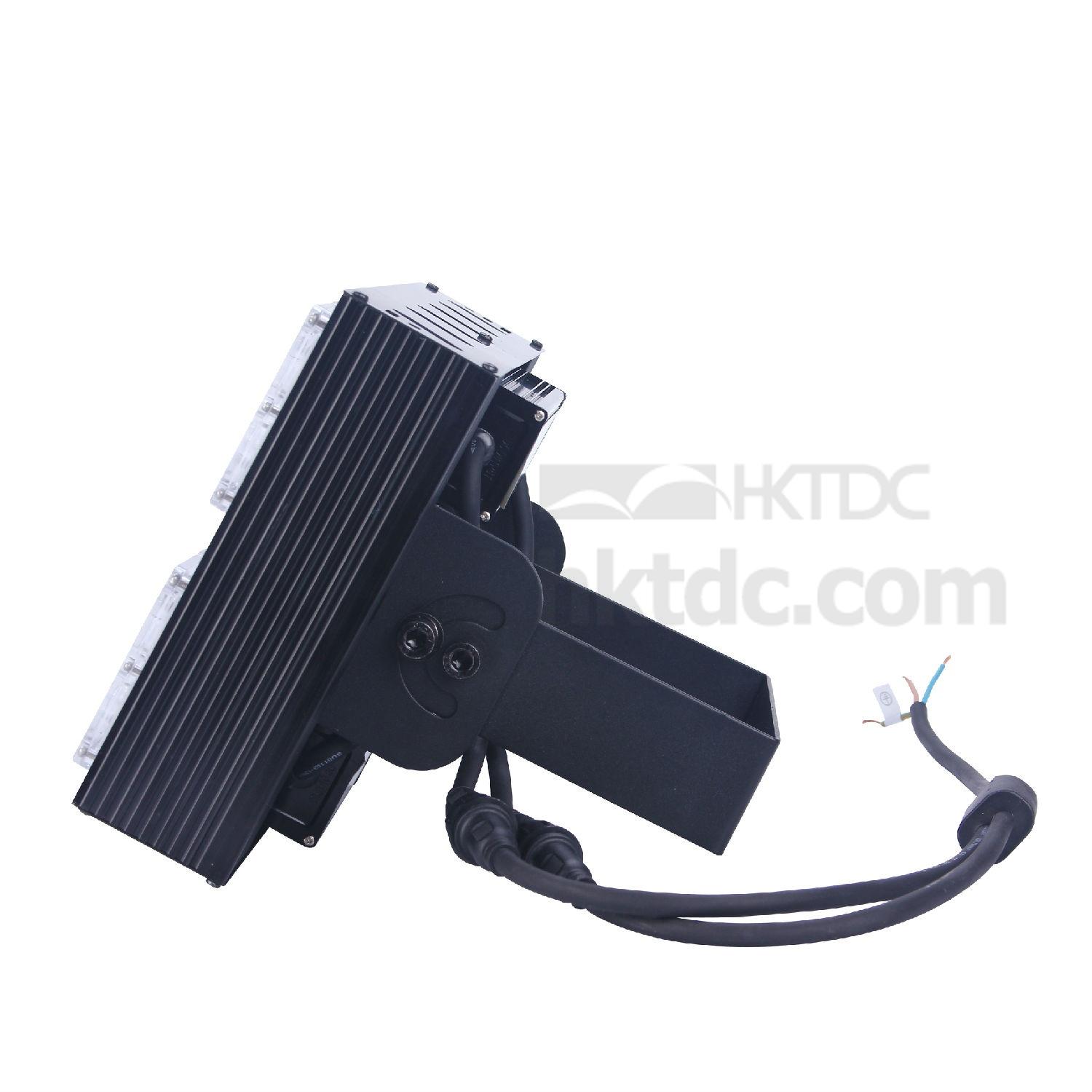

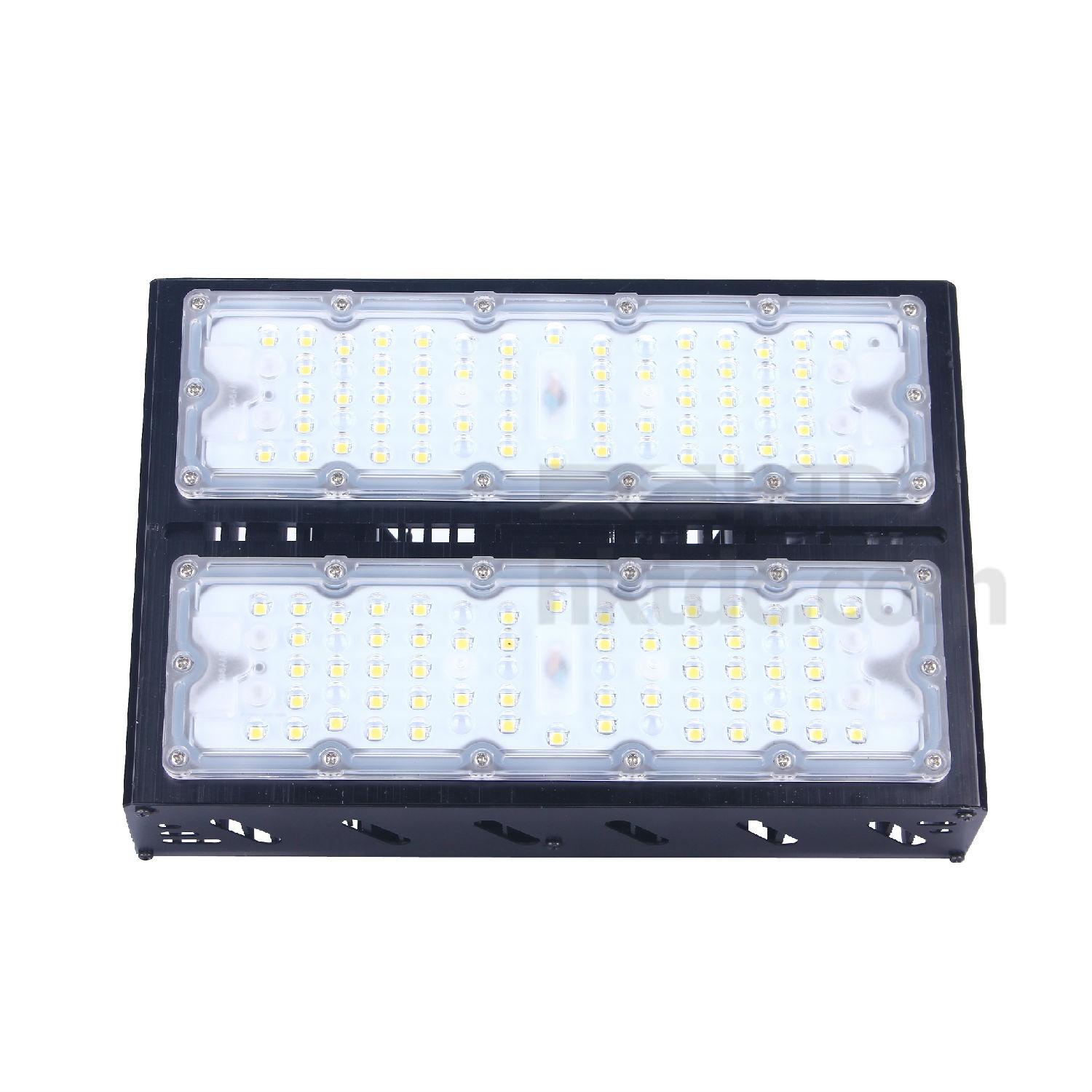

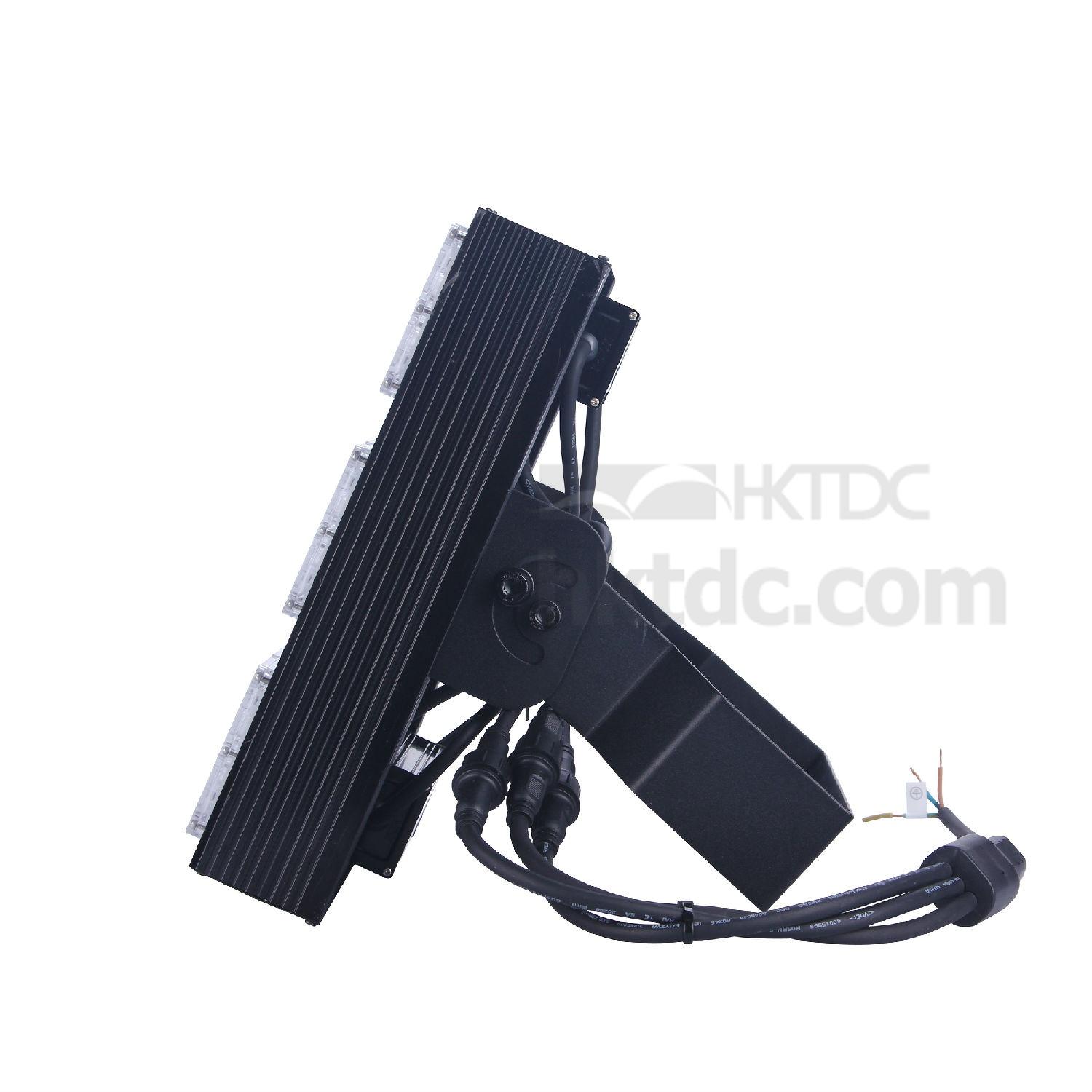

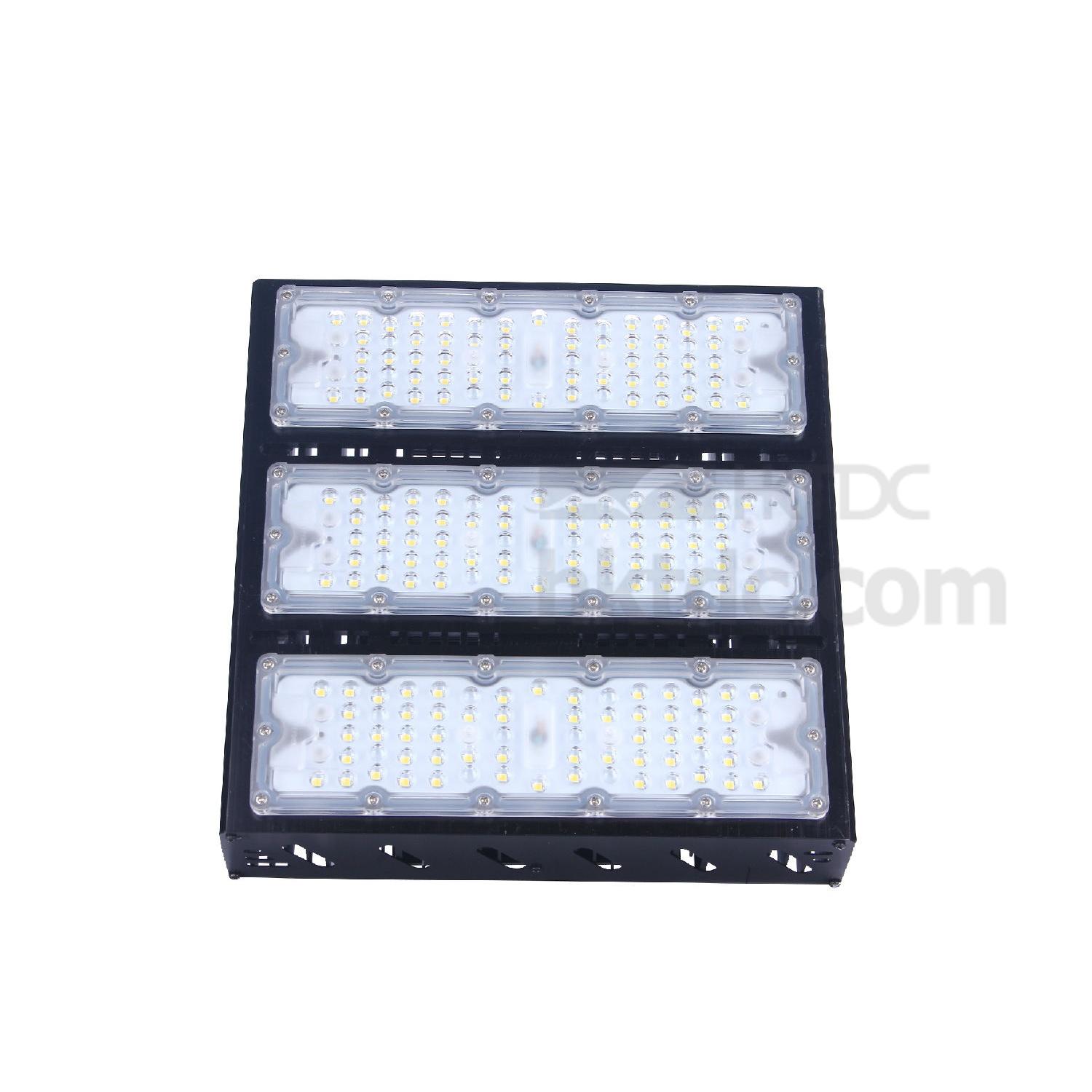

100W SMD LED Floodlight of Module Type 85-277VAC
港口:
Shenzhen, China
防護等級:
IP67
可定制:
是
電壓(伏):
85-277VAC
證書:
中國3C認證, 歐盟CE認證, 歐盟EMC認證, 德國GS認證, 歐盟LVD認證, 日本PSE認證, 符合RoHS指令, 澳洲SAA認證, 美國UL認證, 德國VDE證書
光源:
發光二極管照明燈泡
主體物料:
鋁
電源:
交流電
樣式:
現代
表面處理:
拋光 - 不銹鋼
包含燈泡:
包含
適用環境:
建築物外牆, 公路, 工業, 廣場, Warehouse
描述
聯絡供應商
描述
New Type: 30W, 50W, 100W, 150W, 200W, 300W, 400W, 500W LED Floodlight of Module Type

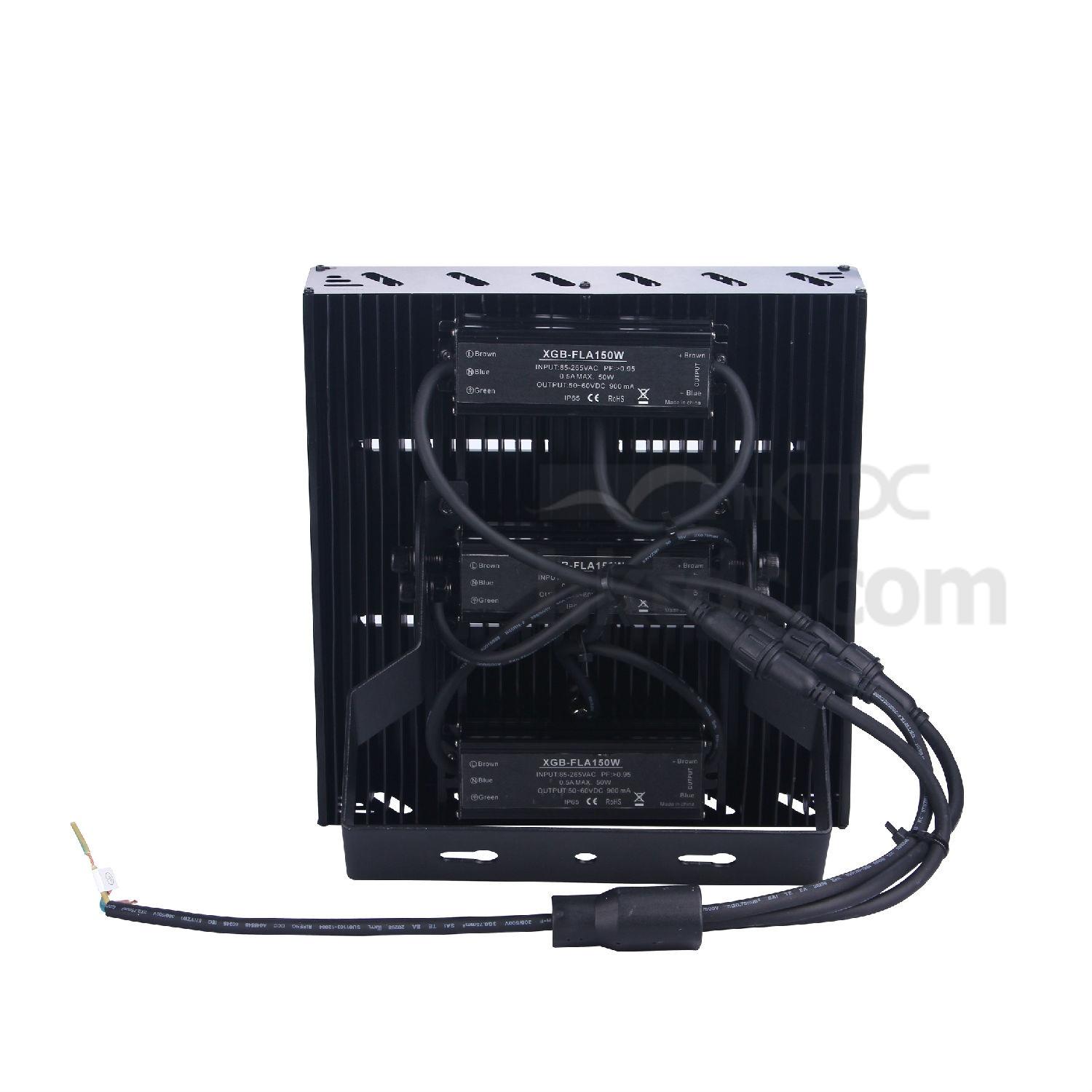

1. Power Supply
◆ 150,000 Hour electrolytic driver IC
◆ Constant current power supply, 85-277VAC, water proof, IP68, PF0.98, 90% efficiency
◆ Electritic design of anti-statics, anti-overvoltage of 4000VAC, anti-thunderstrike, anti-surge
◆ IP67 connector of electrical wire. red wire: live, blue wire: neutral, green wire: earth
2. Optoelectricity
◆ SMD LED3030, 160lm/w(lumen of LED chip)
◆ 100lm/w for floodlight
◆ 80% Lumen maintenance after 60,000 hours
◆ SMD LEDs3030 not completely arrayed in the middle area to avoid heat accumulation
◆ 60°, 90°, 80°×120° beam angle for option
3. Aluminum Heat Sink & Heat Dissipation
◆ Die-casting aluminum, electroplated and polished to a deep, high polish
◆ Module design for high performance of heat dissipation
◆ Alluminum straight fins heat sink designed to increase its surface area. 34pcs of heat sink fins designed. More air bypasses the fins
◆ The power supply is 2mm-distance from heat sink, to avoid heat result from the power and the heat sink to dispate to each other
◆ IP67 rated, class Ⅰ, avaiable to withdraw dust and moisture
◆ Rugged and durable
◆ Two aluminum panels applied to fix the aluminum straight fins of heat sink
1. Power Supply
◆ 150,000 Hour electrolytic driver IC
◆ Constant current power supply, 85-277VAC, water proof, IP68, PF0.98, 90% efficiency
◆ Electritic design of anti-statics, anti-overvoltage of 4000VAC, anti-thunderstrike, anti-surge
◆ IP67 connector of electrical wire. red wire: live, blue wire: neutral, green wire: earth
2. Optoelectricity
◆ SMD LED3030, 160lm/w(lumen of LED chip)
◆ 100lm/w for floodlight
◆ 80% Lumen maintenance after 60,000 hours
◆ SMD LEDs3030 not completely arrayed in the middle area to avoid heat accumulation
◆ 60°, 90°, 80°×120° beam angle for option
3. Aluminum Heat Sink & Heat Dissipation
◆ Die-casting aluminum, electroplated and polished to a deep, high polish
◆ Module design for high performance of heat dissipation
◆ Alluminum straight fins heat sink designed to increase its surface area. 34pcs of heat sink fins designed. More air bypasses the fins
◆ The power supply is 2mm-distance from heat sink, to avoid heat result from the power and the heat sink to dispate to each other
◆ IP67 rated, class Ⅰ, avaiable to withdraw dust and moisture
◆ Rugged and durable
◆ Two aluminum panels applied to fix the aluminum straight fins of heat sink
