1024*600 custom LCD panel TFT LCD 10.1 inch 2000 high brightness display module

邁高達科技有限公司

查詢

比較及批量查詢

美元 $15.00 - 美元 $30.00

生產所需時間:

25-45 日

運送方式:

Support Express · Sea freight · Land freight · Air freight

型號編號:

MTF101WS28A-V1

品牌:

Microtech-lcd

是否可訂造:

可以

尺寸:

10.1inch

描述

聯絡供應商

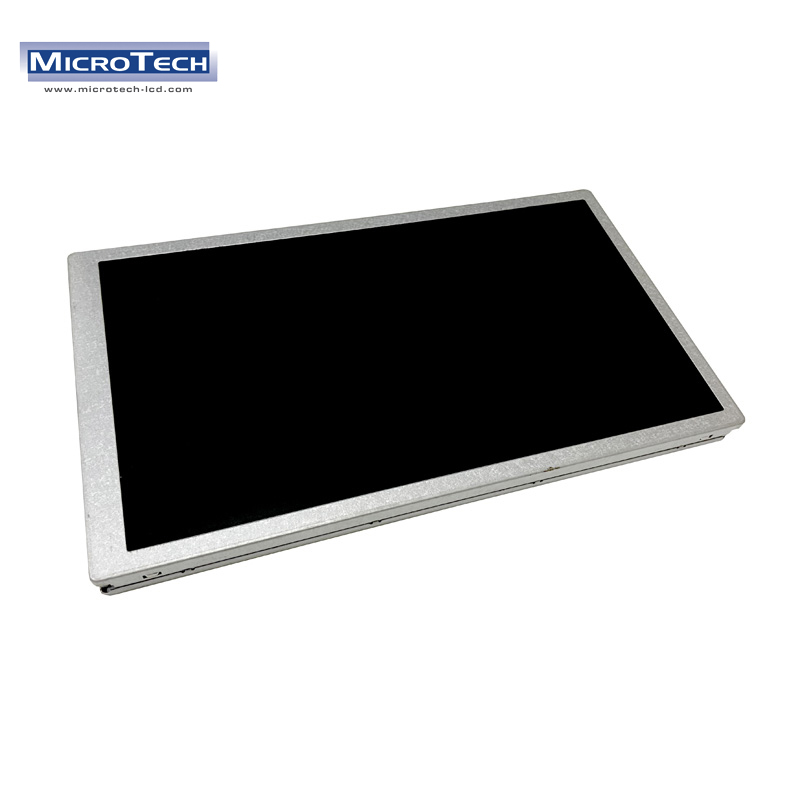

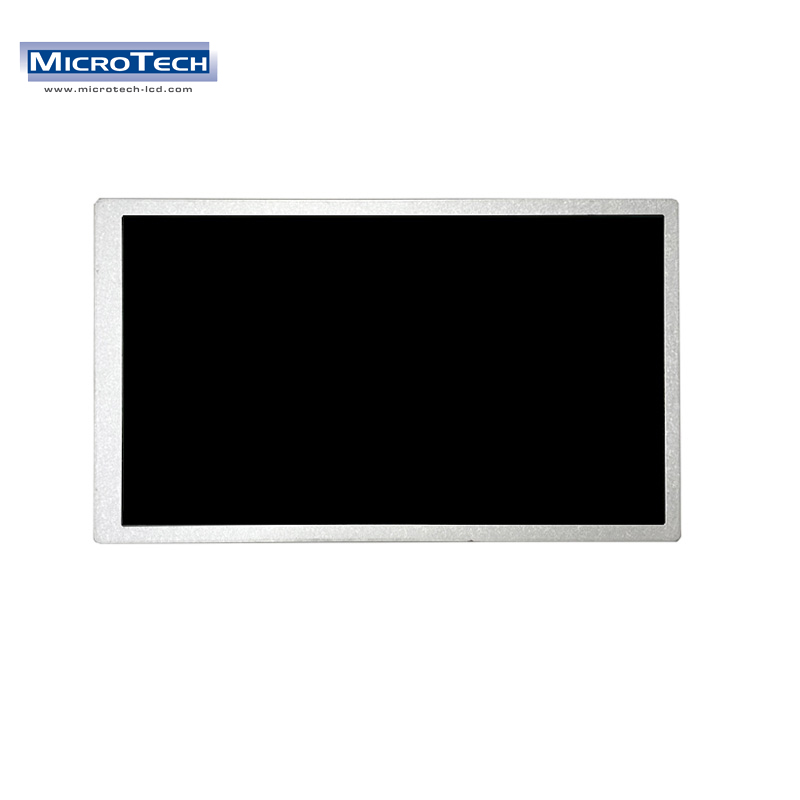

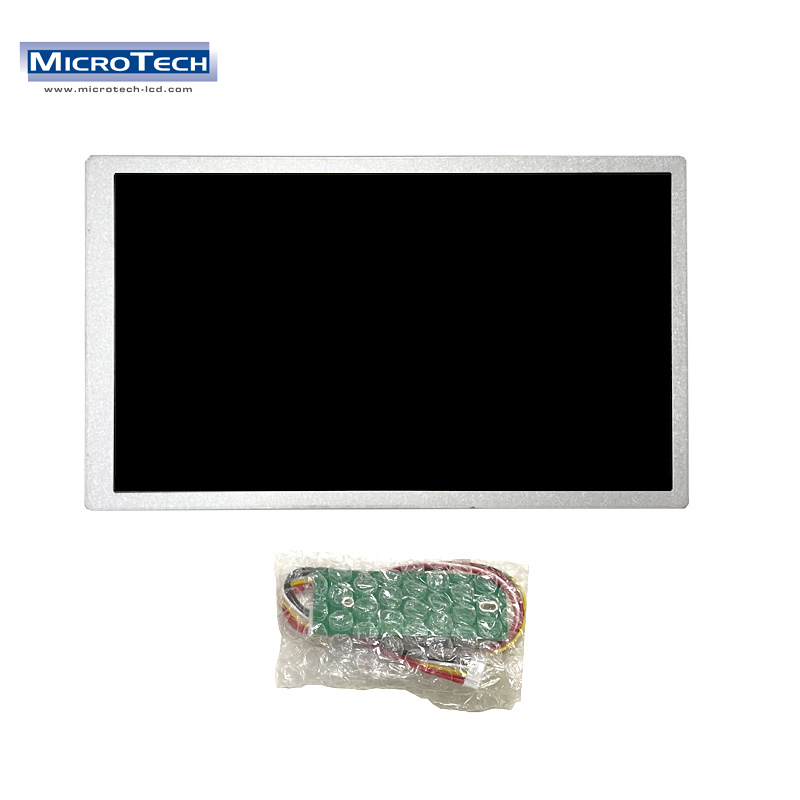

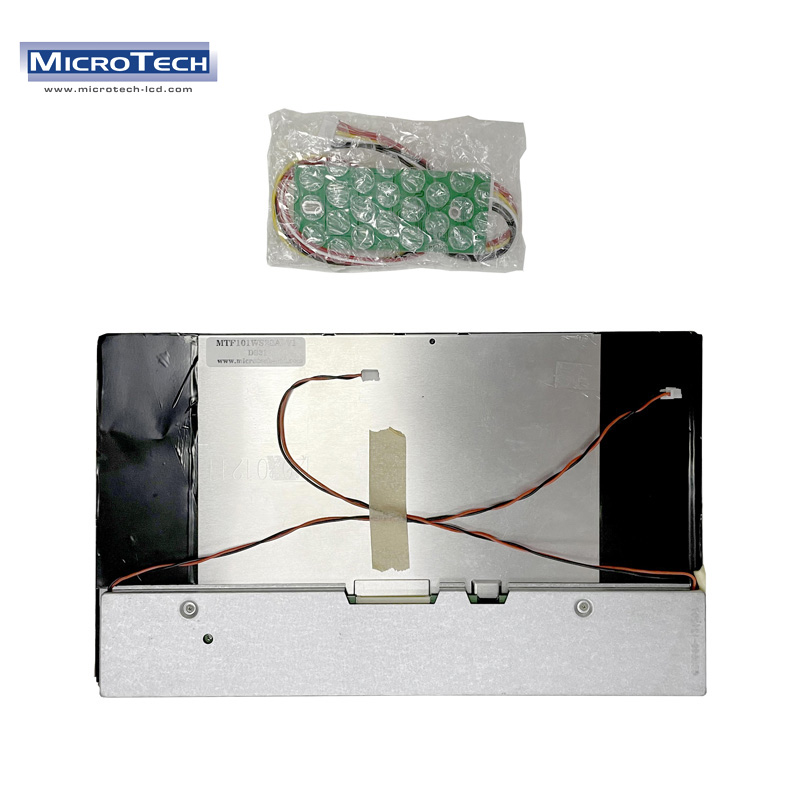

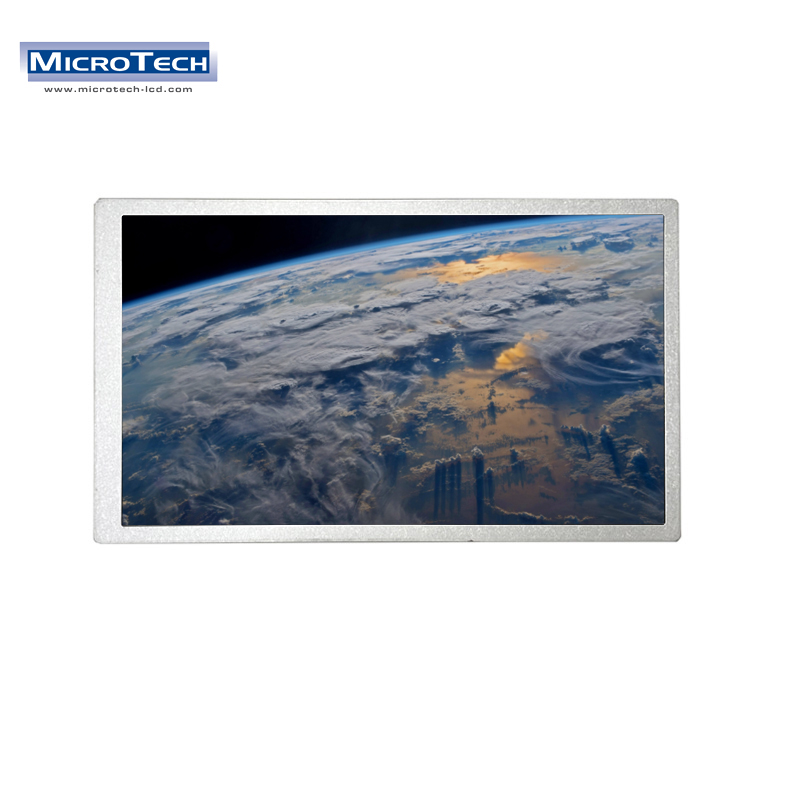

The MTF101WS28A-V1 is a color active matrix thin film transistor (TFT) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCDpanel, a backlight system, column driver and row driver circuit. This TFT LCD has a 10.1-inchdiagonally measured active display area with WSVGA resolution (1024 horizontal by 600vertical pixels array).

Items	Specifications	Unit
Screen Diagonal	10.1	Inch
Active Area	222.72(H) x 125.28(V)	mm
Pixels H x V	1024(RGB) x600
Pixel Pitch	0.2175(H) x 0.2088(V)	mm
Pixel Arrangement	RGB Vertical Stripe
Display Mode	Normally White
White Luminance	2000 (Typ.)	cd /m²
Contrast Ratio	500 (Typ.)
Response Time	16 (Typ.)	ms
Input Voltage	3.3 (Typ.)	V
Weight	440 (Max)	g
Outline Dimension (H x V x D)	244.0(Typ.)x 143.0(Typ.)x12.4(Typ.)	mm
Electrical Interface (Logic)	LVDS
Support Color	262K/16.7M
Surface Treatment	Anti-glare, Hard-Coating (3H)
