10W 20W Die Cast Aluminum LED Flood Light Housing | 燈飾

Zhongshan Leelo Lighting Co.,Ltd

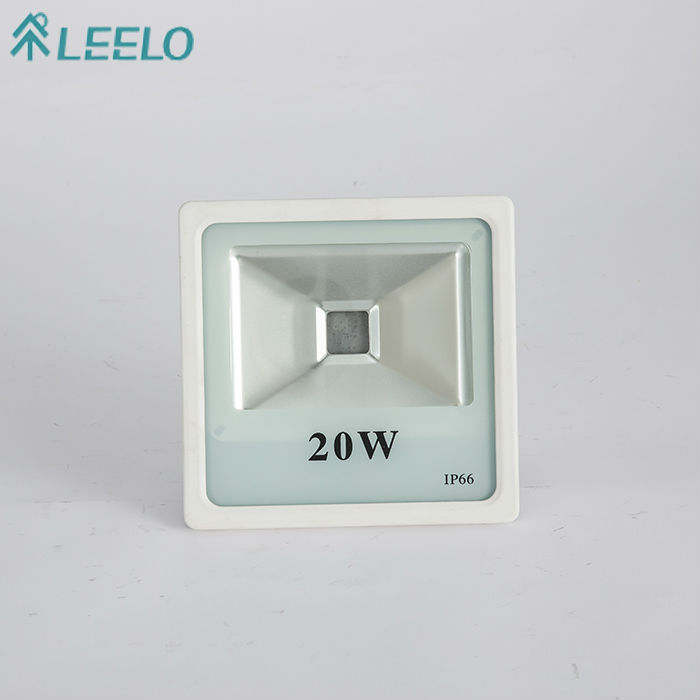

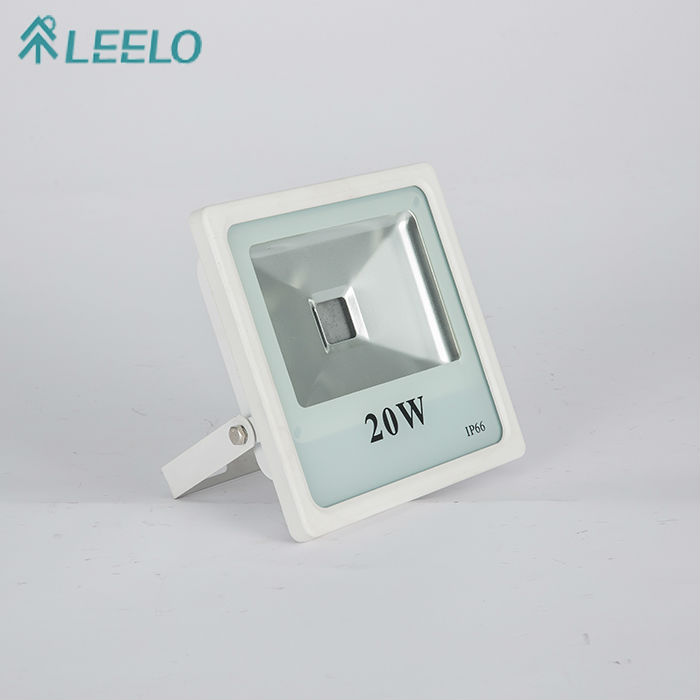

10W 20W Die Cast Aluminum LED Flood Light Housing

產品型號:

LEM20W-T

品牌名稱:

Leelo

顏色:

Black，White, Gray

尺寸:

13.5cm x 11.5cm x 3.6cm

港口:

Zhongshan, China

付款方式:

T/T

最低訂購數量:

50 pieces

可定制:

是

描述

聯絡供應商

10W/20W Multifunctional Flood Light Housing
Model No.: LEM10W,LEM20W
Outline: rectangle
Dimension of Body(LxWxT): 135mm x 115mm x 36mm
Thickness of radiating: fin thick
IP Rating: IP66
Net Weight: 0.332kg
Housing Material: aluminum ADC12
Panel Type: Metal or Aluminum
Color: Black/White/Gray
Bean angle:120°
working temperature: -20°C-50°C
SMD Reflectors hole size: 67mm x 27mm
Application Suitable for: COB or SMD
Standard configuration: Light body+tempered
glass + reflector + waterproof rubber ring + holder + sevral screws
Notes: The product is only fittings not finished product, couldn't be light up. If you need finished product, you need driving power and LED chip. The product need to be assembled by professional. Please tear off the protective film from the reflector before make assembly.
