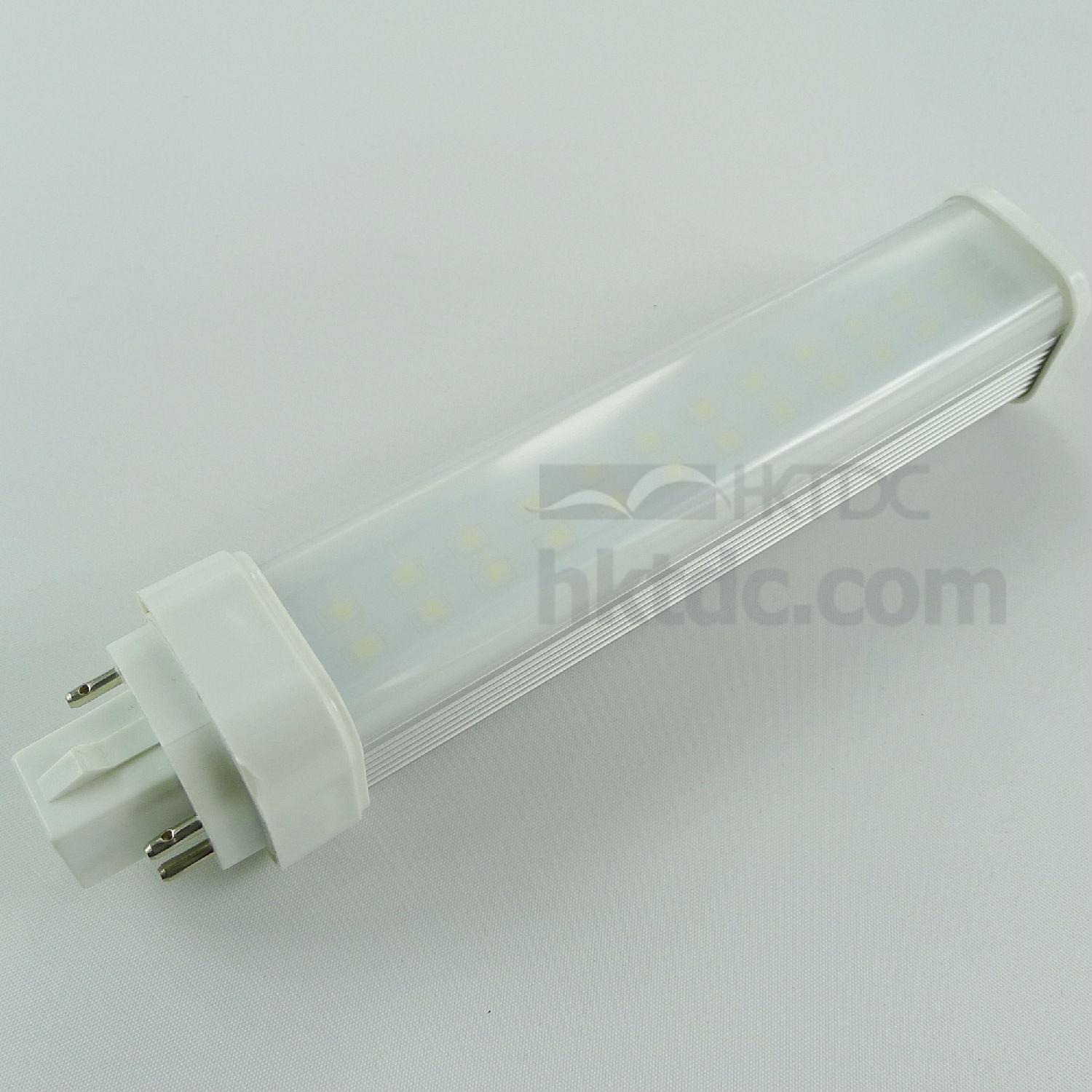

11W G24 LED PL Tube
生產所需時間:
7 - 15 日
產品型號:
GT-PL/S111A
品牌名稱:
GT
顏色:
Silver
尺寸:
D34 x 172mm
港口:
Ningbo
付款方式:
T/T
最低訂購數量:
1,000
波束角 (度):
160
色溫:
2700K ~ 6500K available
平均壽命 (小時):
30000
LED芯片品牌:
Epistar
LED芯片型號:
SMD2835
電壓(伏):
195-265
證書:
歐盟CE認證, 歐盟EMC認證, 歐盟LVD認證, 符合RoHS指令
底座類型:
B22, E26, E27, G23, G24, GX23-2
LED芯片數量:
26
適用環境:
浴室, 睡房, 廚房, 客廳, 書房, 陽臺, 商業
描述
聯絡供應商
描述
SPECIFICATION:
• Part number: HL-PLS111A
• Description: Patented 11W dimmable LED PL-C tubes for downlight
• Basic size: 34(D) x172mm
• Materials: Aluminum body+ frosted PC cover,
• Base: G24D/G24Q/GX23-2/G23-2/E26/E27/B22 available, 180deg rotatable
• LED: LM80 Epistar 0.5W 2835 LED x 26pcs
• Input1: 85~135VAC or 195~265VAC, 50/60Hz,PF>0.9, Dimmable
• Input2: 85~300VAC universal voltage, PF≥0.5, non-dimmable
• Power: 11W
• Output flux: 1000~1150Lm, 100Lm/W
• View angle: 160deg.
• Beam color (CCT): 2700K~7000K available
• CRI(Ra): >80
• Replace: 26W PL-C energy saving lamp
• Package: color box
FEATURES:
• Easy to replace 26W PL-C CFL
• Aluminum housing with good heat dissipation
• Over-voltage, over-current, over-heating and surge protection
• Dimmable.
• High flux efficiency, high PF and Ra
• Switching cycles > 15000
• Lumens maintenance at 6000Hrs.: ≥90%
• Operating temperature range: -25℃ ~ 45℃
• Long life up to more than 50,000 hours
• Three years limited warranty
• Comply with CE,RoHS standards
CAUTION:
• Can’t be used in fully enclosed luminaires
• Dry location only
• Don't confuse 12V, 120V, 230V, 277V input voltage.
• Directly replace the Inductance ballast CFL without refitting the original light.
• Electronic ballast must be bypassed.
OTHERS:
• Please put label “Future re-lamping of this luminaire requires the use of a self-ballasted LED lamp. The ballast has been bypassed in this fixture.” on fixtures.
• Part number: HL-PLS111A
• Description: Patented 11W dimmable LED PL-C tubes for downlight
• Basic size: 34(D) x172mm
• Materials: Aluminum body+ frosted PC cover,
• Base: G24D/G24Q/GX23-2/G23-2/E26/E27/B22 available, 180deg rotatable
• LED: LM80 Epistar 0.5W 2835 LED x 26pcs
• Input1: 85~135VAC or 195~265VAC, 50/60Hz,PF>0.9, Dimmable
• Input2: 85~300VAC universal voltage, PF≥0.5, non-dimmable
• Power: 11W
• Output flux: 1000~1150Lm, 100Lm/W
• View angle: 160deg.
• Beam color (CCT): 2700K~7000K available
• CRI(Ra): >80
• Replace: 26W PL-C energy saving lamp
• Package: color box
FEATURES:
• Easy to replace 26W PL-C CFL
• Aluminum housing with good heat dissipation
• Over-voltage, over-current, over-heating and surge protection
• Dimmable.
• High flux efficiency, high PF and Ra
• Switching cycles > 15000
• Lumens maintenance at 6000Hrs.: ≥90%
• Operating temperature range: -25℃ ~ 45℃
• Long life up to more than 50,000 hours
• Three years limited warranty
• Comply with CE,RoHS standards
CAUTION:
• Can’t be used in fully enclosed luminaires
• Dry location only
• Don't confuse 12V, 120V, 230V, 277V input voltage.
• Directly replace the Inductance ballast CFL without refitting the original light.
• Electronic ballast must be bypassed.
OTHERS:
• Please put label “Future re-lamping of this luminaire requires the use of a self-ballasted LED lamp. The ballast has been bypassed in this fixture.” on fixtures.
