120V US, NOM STANDARD, UL, CE, DOB module, LED PCB, PCBA, IC, linear solution

美元 $0.60 - 美元 $3.60

生產所需時間:

15 日

運送方式:

Plane, Ship, Train, DHL

是否可訂造:

可以

特性:

CE Standard, ERP Technical

材料:

Aluminum PCB

可調亮度:

是

光源:

發光二極管照明

燈具樣式:

現代

應用:

Indoor Lighting

描述

聯絡供應商

1) High PF value leads to low power consumption.

2) Integrated circuit, compact size, flexible and innovative design.

3) Over temperature protection, over voltage protection, surge protection.

4) Low THD. Easier to pass EMC test and other certificate tests.

5) High light efficiency and low thermal resistance.

6) Multiple color temperatures and CRI for your choice.

7) Rich variety of designs and shapes.

8) Can be used for indoors and outdoors

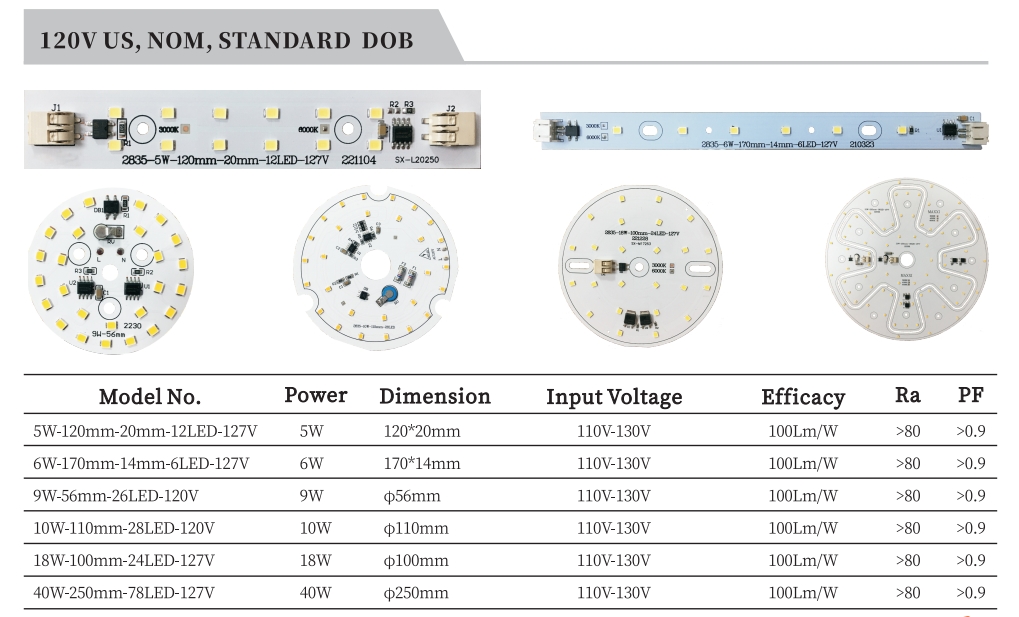

120V US, NOM STANDARD DOB
Model No.	Power	Dimension	Input Voltage	Efficacy	Ra	PF
5W-120mm-20mm-12LED-127V	5W	120*20mm	110V-130V	100Lm/W	>80	>0.9
6W-170mm-14mm-6LED-127V	6W	170*14mm	110V-130V	100Lm/W	>80	>0.9
9W-56mm-26LED-120V	9W	φ56mm	110V-130V	100Lm/W	>80	>0.9
10W-110mm-28LED-120V	10W	φ110mm	110V-130V	100Lm/W	>80	>0.9
18W-100mm-24LED-127V	18W	φ100mm	110V-130V	100Lm/W	>80	>0.9
40W-250mm-78LED-127V	40W	φ250mm	110V-130V	100Lm/W	>80	>0.9
