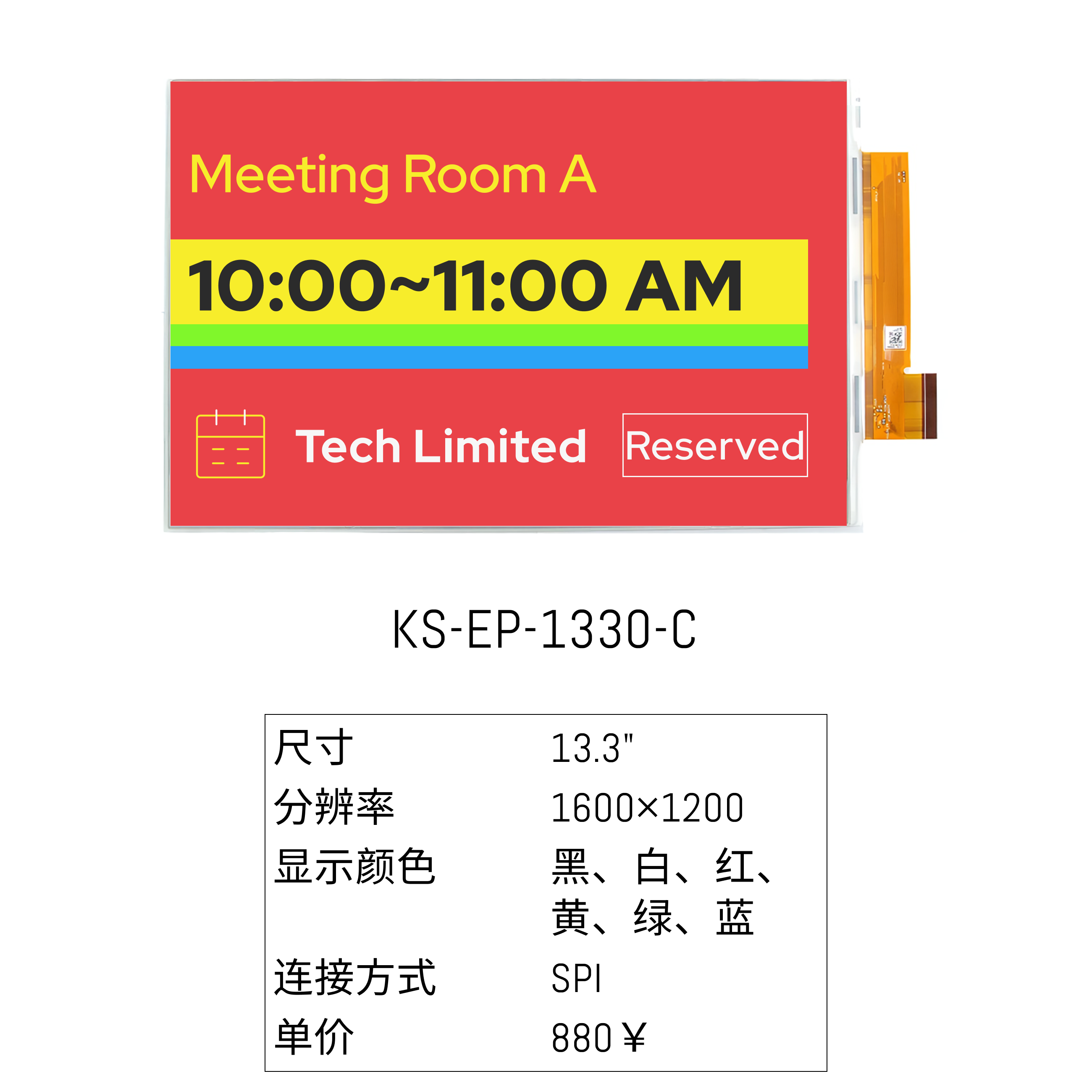

13.3-Inch Six-Color E-Paper Display Module

The 13.3-Inch Six-Color E-Paper Display Module is a high-quality electronic paper display designed for smart retail, digital signage, industrial control, and IoT applications. Featuring advanced E-Paper Display (EPD) technology, it supports six display colors: Black, White, Red, Yellow, Green, and Blue, providing vibrant images, sharp text, and eye-catching graphics while maintaining ultra-low power consumption.

Unlike conventional LCD and OLED displays, the e-paper display consumes power only during image refresh. Once the content is updated, the displayed image remains visible even when power is disconnected, making it an ideal solution for battery-powered devices and applications that require long operating life.

The module features a reflective display with no backlight, delivering a comfortable paper-like viewing experience and excellent readability under ambient light or direct sunlight. With a wide viewing angle of nearly 180°, users can clearly view text and images from almost any direction.

Equipped with a standard SPI interface, the display can be easily integrated into embedded systems and is compatible with popular development platforms such as Arduino, ESP32, STM32, Raspberry Pi, and other SPI-compatible microcontrollers. Its stable performance and reliable operation make it suitable for both prototype development and mass production.

Features

• 13.3-inch six-color electronic paper display
• Supports Black, White, Red, Yellow, Green, and Blue
• Ultra-low power consumption
• Reflective display with no backlight
• Paper-like viewing experience
• High contrast and vivid color presentation
• Excellent sunlight readability
• Wide viewing angle (nearly 180°)
• Image retention without continuous power
• Standard SPI communication interface
• Stable performance and long service life
• Easy integration with embedded systems

Applications

• Electronic Shelf Labels (ESL)
• Digital signage
• Smart retail displays
• Advertising displays
• Information boards
• Smart home devices
• Industrial equipment
• Medical devices
• IoT terminals
• Warehouse and logistics labels
• Asset management systems
• Public information displays

Specifications

• Display Size: 13.3 inches
• Display Technology: Electronic Paper Display (EPD)
• Display Colors: Black / White / Red / Yellow / Green / Blue
• Interface: SPI
• Viewing Angle: Nearly 180°
• Refresh Mode: Full Refresh
• Display Type: Reflective, No Backlight
• Power Consumption: Power required only during screen refresh

The 13.3-Inch Six-Color E-Paper Display Module combines a large display area, vivid six-color performance, excellent readability, and ultra-low power consumption, making it an ideal solution for digital signage, electronic shelf labels, commercial advertising, industrial control systems, and a wide range of embedded and IoT applications requiring reliable, energy-efficient, and visually engaging display technology.
