13MP IMX258 Allwinner AF SoC Network Camera Module

美元 $38.00 - 美元 $43.70

美元 $40.00 - 美元 $46.00

生產所需時間:

35 日

運送方式:

express delivery

型號編號:

GN-CAI183

CPU:

V536

Sensor:

IMX258

Sensor Size:

1/3.06“

Resolution:

4224*3192

FOV:

79.8°

Focus Tyoe:

Customised:

Yes

描述

聯絡供應商

Product Description

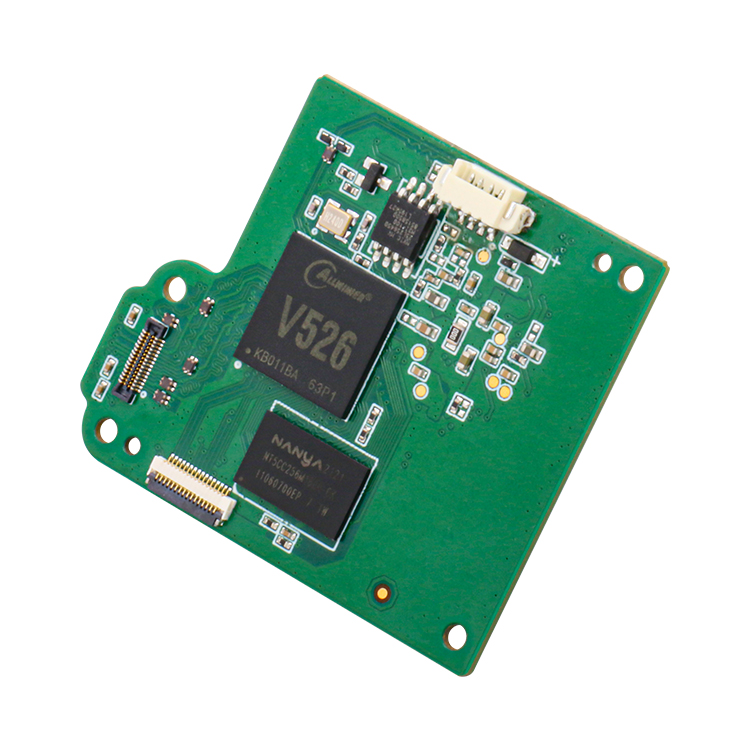

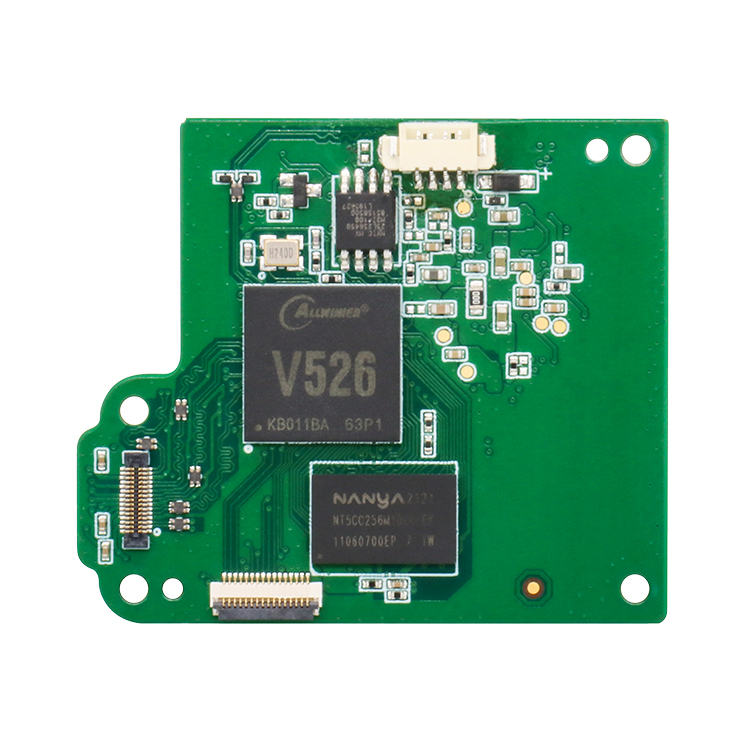

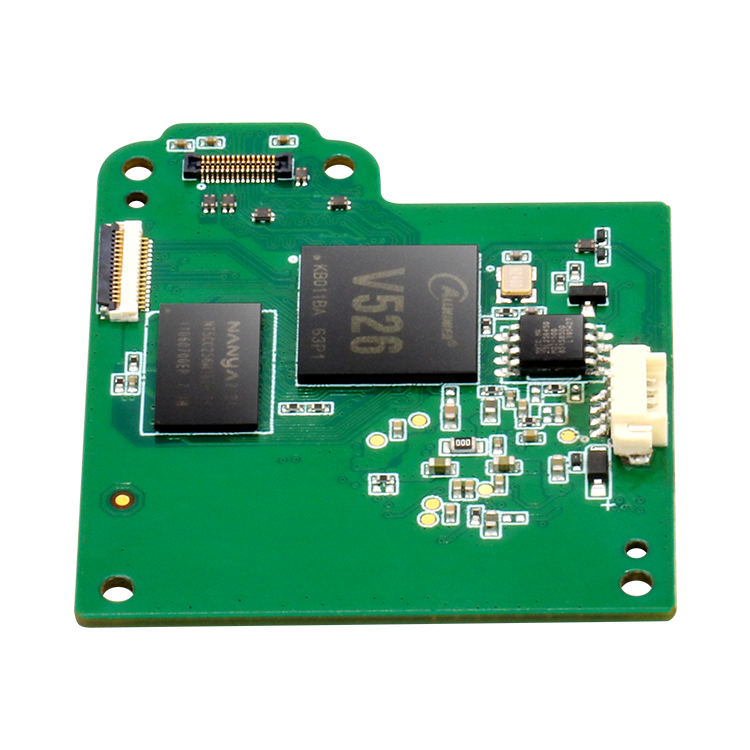

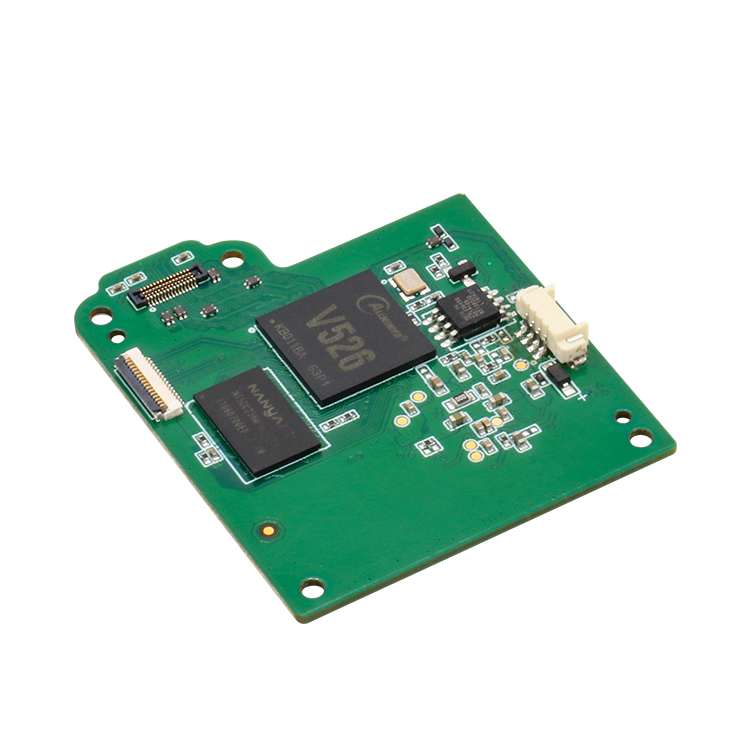

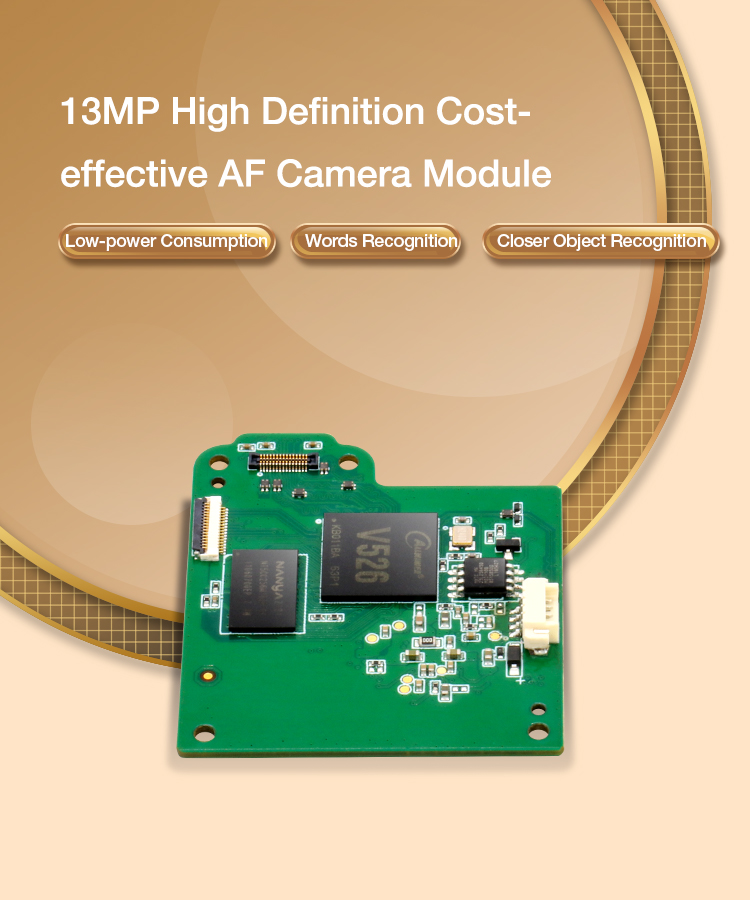

GN-CAI183 is a high-performance, low-power consumption solution of camera module base on Allwinner V536. Mainly developed for words recognition, tongue detection and closer object recognition, it adopts 13MP advanced Sony image sensor, auto focusing,can judge details quickly and accurately.It is a cost-effective AF camera module.

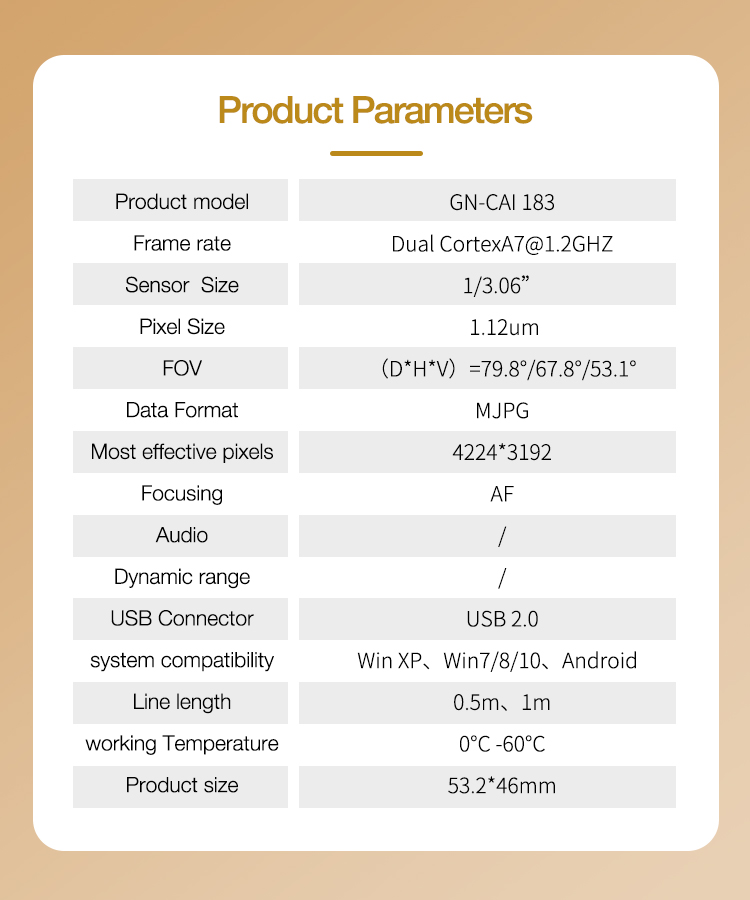

Specification

DSP
CPU	V536
Frame Rate	Dual core CortexA7@1.2GHZ
Technics	28nm
DDR	32-bit DDR3/DDR4/LPDDR3/LPDDR4
Storage	EMMC5.0 Max 64G
Camera
Sensor	IMX258
Sensor Size	1/3.06“
Support Format	MJPG/YUV
Resolution	4224*3192
Pixel Size	1.12um
Lens	Focus length：3.46mm TTL：3.94
	FOV（DHV）=79.8°/67.8°/53.1°
	TV DISTORTION≤1.5%
	Mount：M6.5*P0.25
Focusing	AF
Voltage	5V
Storage Temperature	-20~70℃
Compatible System	Windows7/10

Key Features

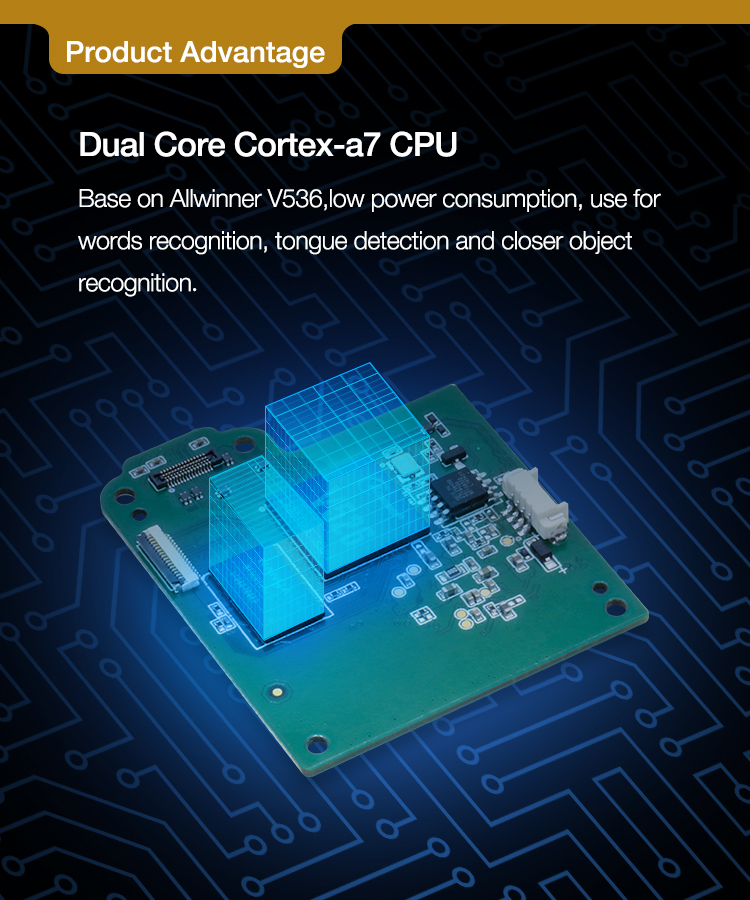

1.Dual core Cortex-a7 CPU
2.1/3.06" 13MP high resolution sensor
3.13MP@30fps/1080P@60fps
4.AF auto focusing, fast and accurate framing
5.Adjust strong sunlight and compensation under backlight,Gamma,color enhancemen etc function
6.Low power consumption
7.USB2.0 interface

Company Profile

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
