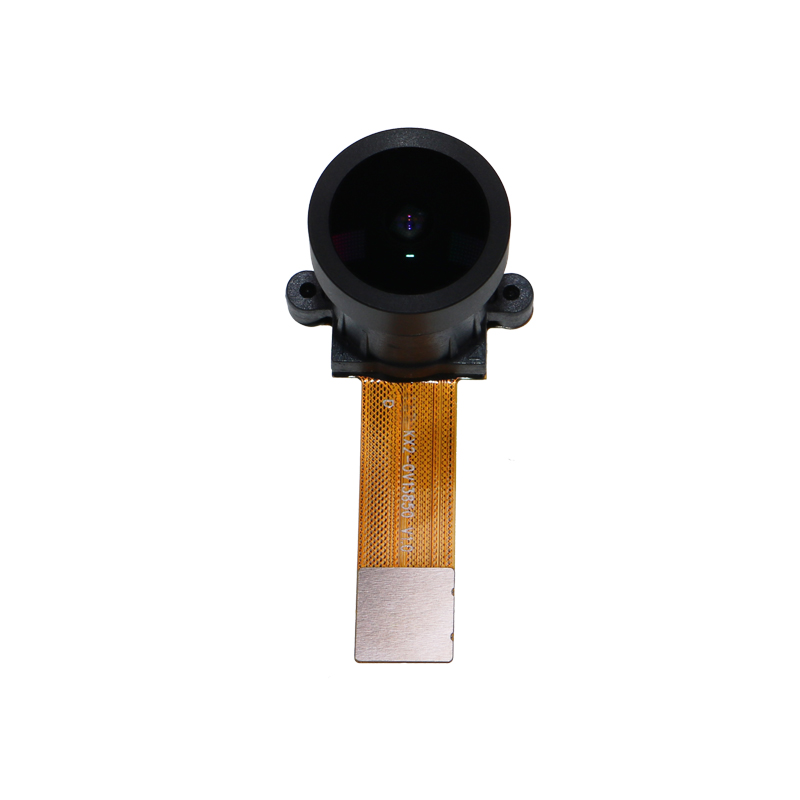

13mp High Resolution OV13850 MIPI Camera Module

美元 $25.65 - 美元 $27.55

美元 $27.00 - 美元 $29.00

生產所需時間:

7 日

運送方式:

express delivery

Model Number:

HAMPO-KX2-OV13850 V1.0

Image Sensor:

OV13850

View Angle:

170°(DFOV)

Focusing:

Resolution:

13MP

Module Size:

40.05 x 22.00mm

Interface:

MIPI

描述

聯絡供應商

Product Description

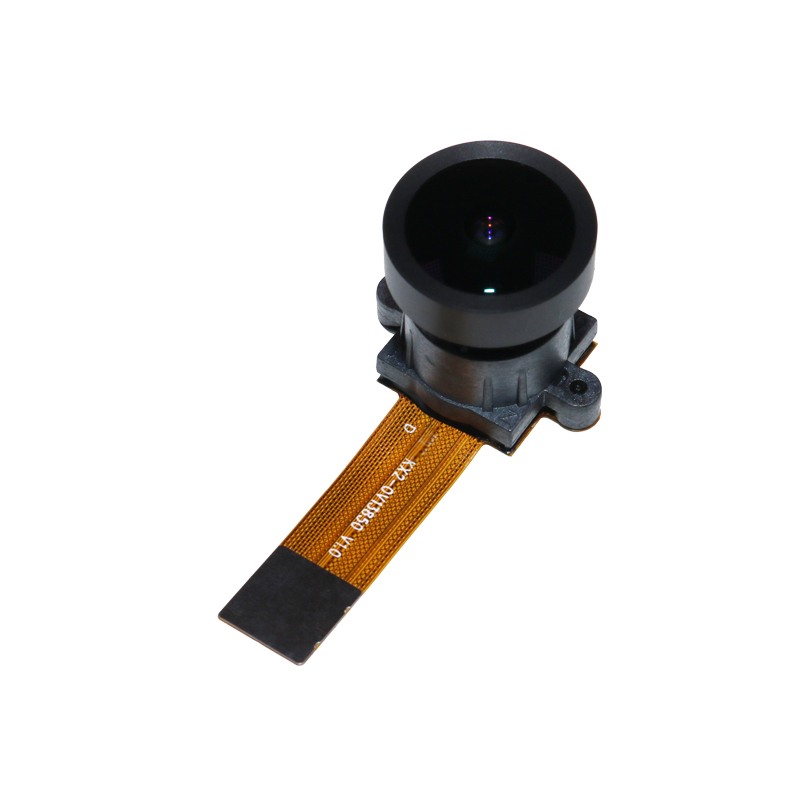

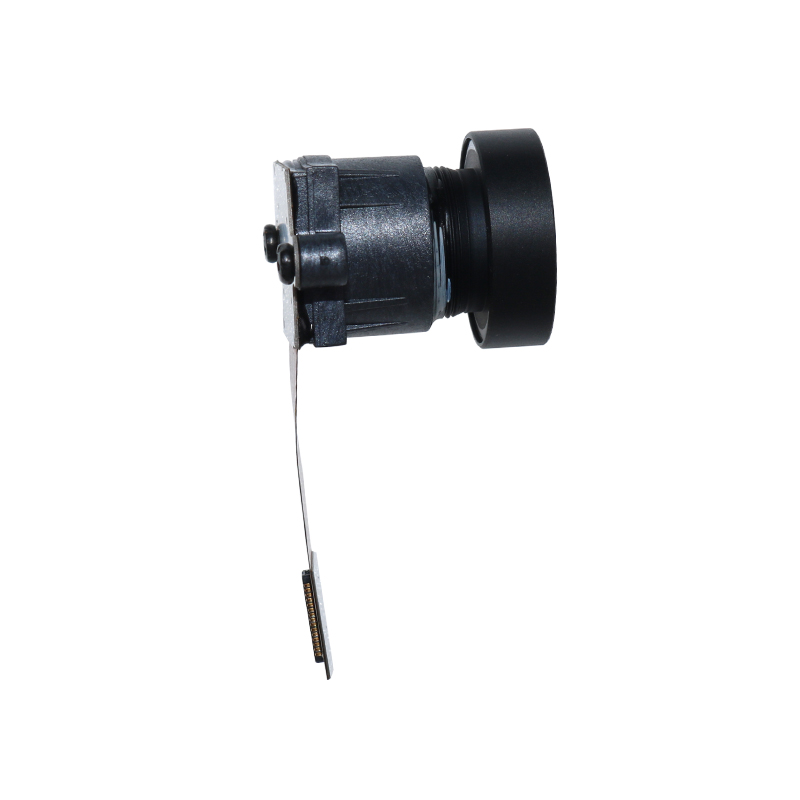

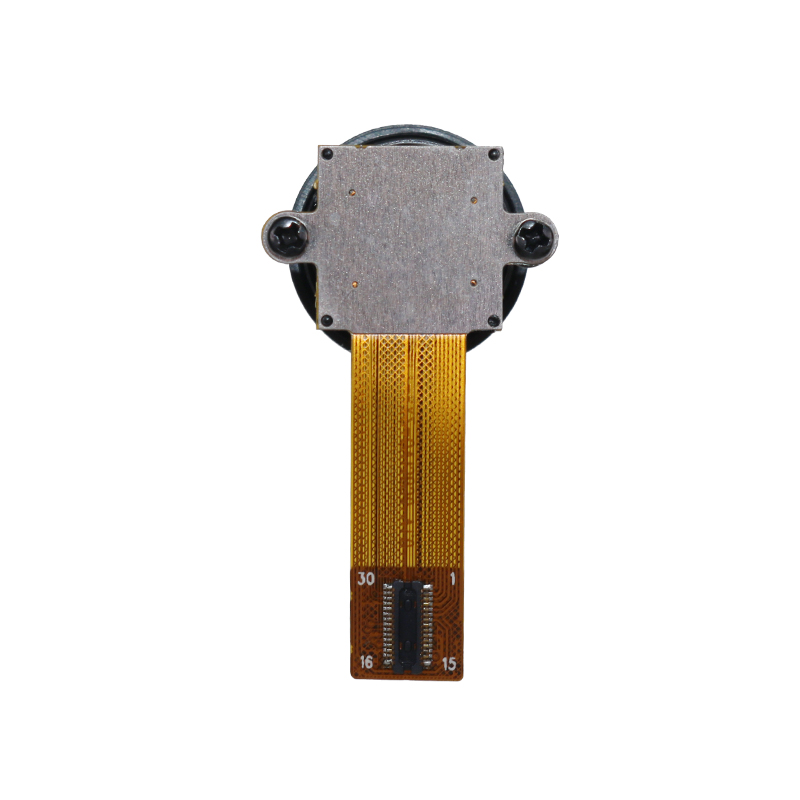

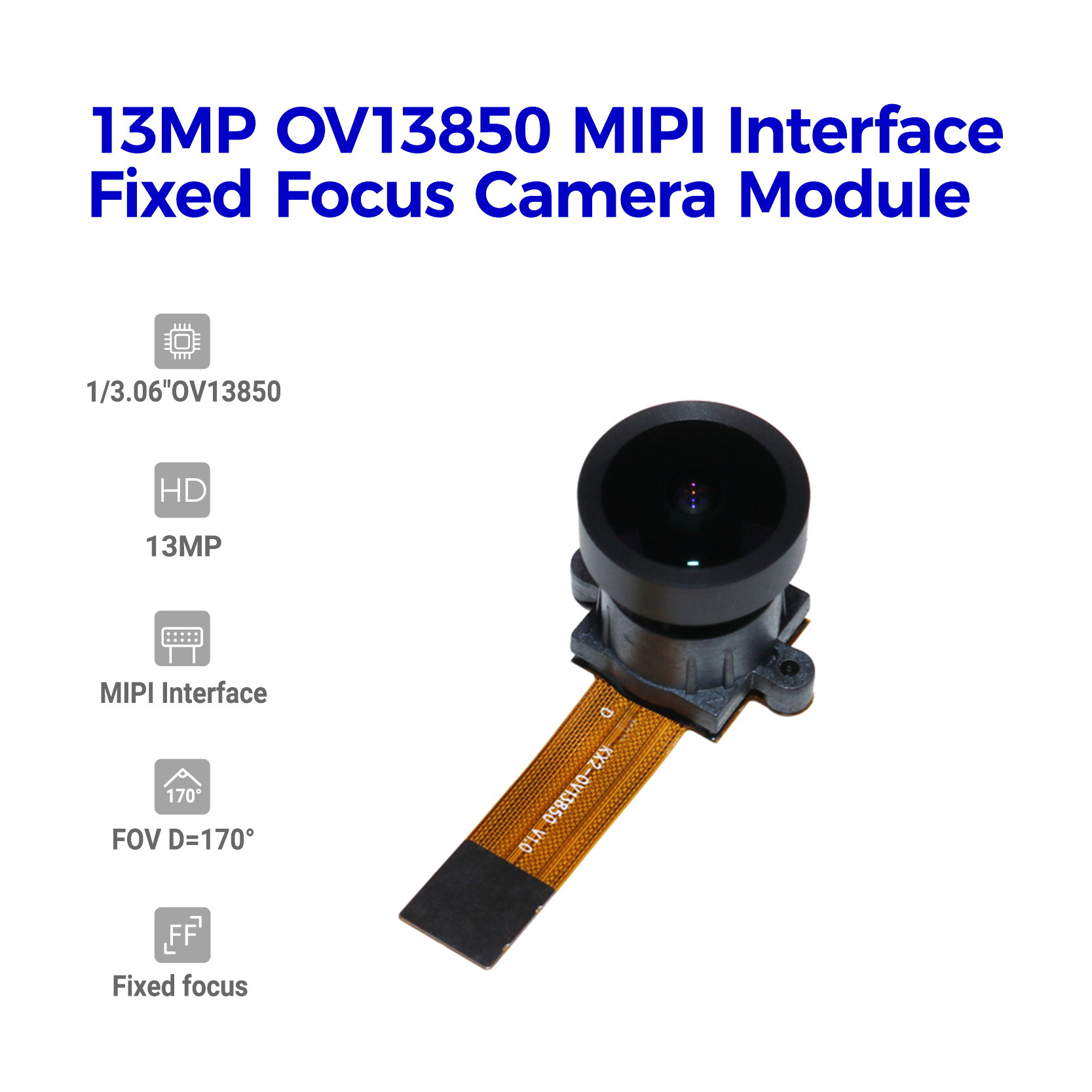

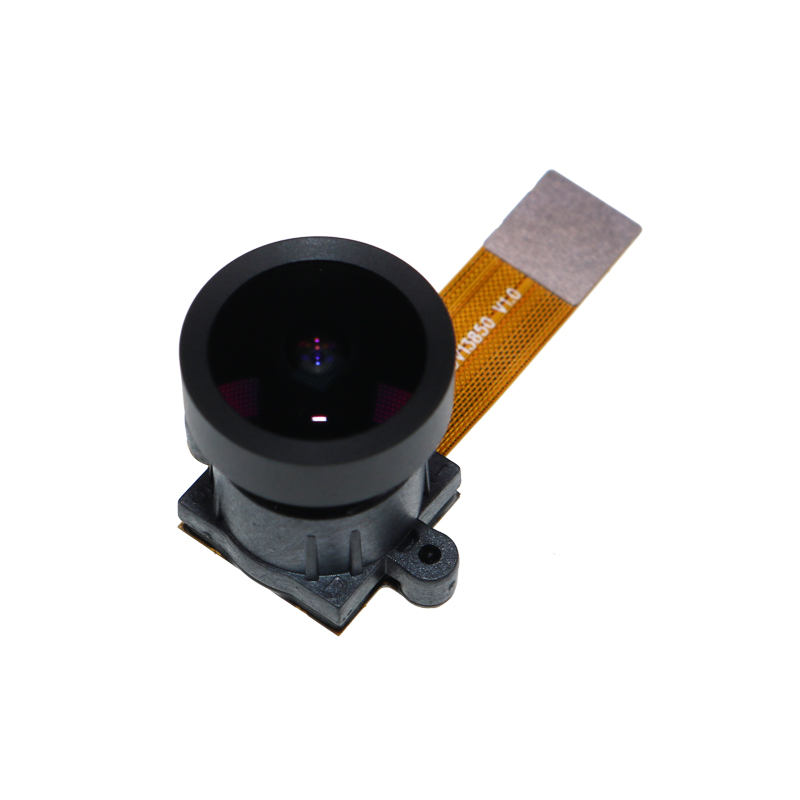

HAMPO-KX2-OV13850 V1.0 is a 13mp MIPI interfaca mini camera module for mobile phone, adopting a 1/3.06-inch OV13850 image sensor which supports an active array of 4224 x 3136 pixels (13.2-megapixels) operating at 30 frames per second (fps) for zero shutter lag and can seamlessly transition between recording video and capturing still images. Additionally, the sensor supports 4K2K ultra-high definition video at 30 fps with full horizontal field of view (FOV) and electronic image stabilization (EIS), as well as high frame rate 1080p HD video at 60 fps with EIS to enable high quality videos.

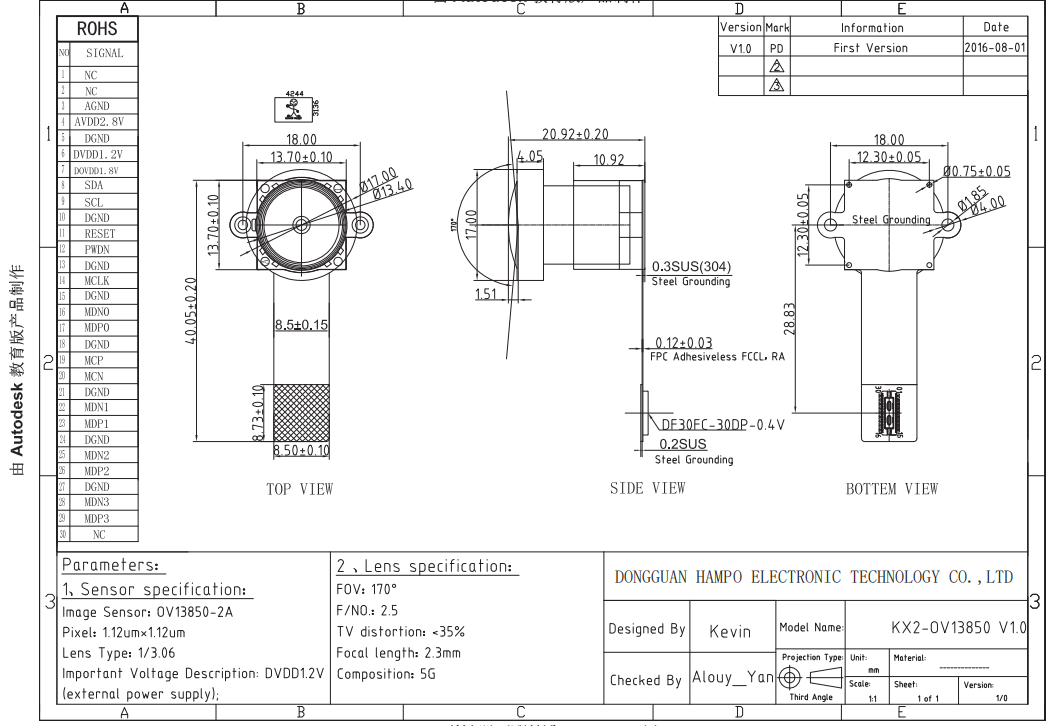

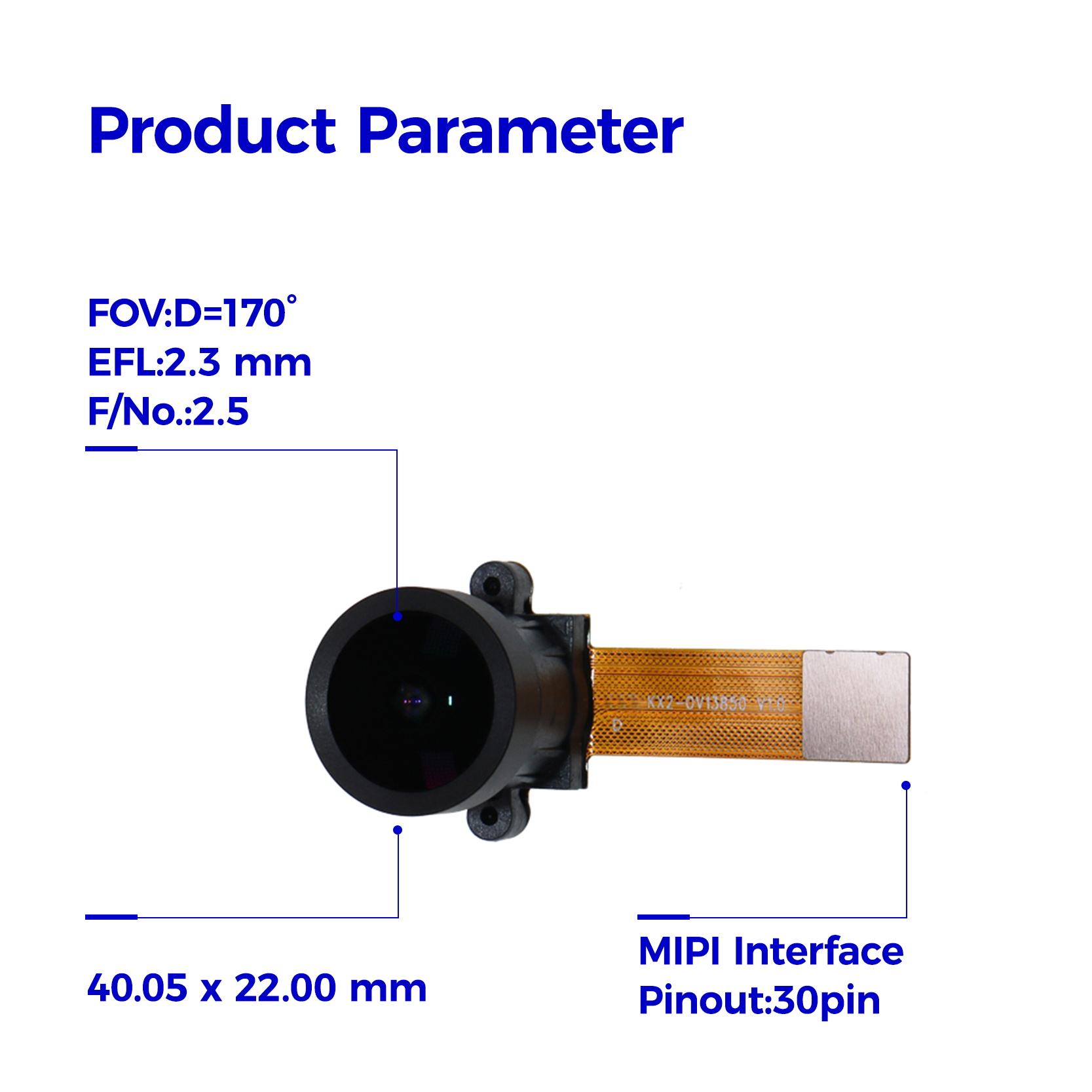

Specification
Camera Module No.
HAMPO-KX2-OV13850 V1.0
Resolution
13MP
Image Sensor
OV13850
Sensor Size
1/3.06"
Pixel Size
1.12 um x 1.12 um
EFL
2.3 mm
F/No.
2.5
Pixel
4224 x 3136
View Angle
170.0°(DFOV)
Lens Dimensions
13.70 x 13.70 x 20.92 mm
Module Size
40.05 x 22.00 mm
Focusing
Fixed Focus
Interface
MIPI
Auto Focus VCM Driver IC
NONE
 Lens Type
650nm IR Cut
Operating Temperature
-20°C to +85°C
Key Features
PureCel™ image sensor
1.12 µm x 1.12 µm pixel
optical size of 1/3.06"
31.2° CRA for <6 mm z-height
programmable controls for frame rate, mirror and flip, cropping, and windowing
support for image sizes:
13.2MP (4224x3136),
10MP (16:9 - 4224x2376),
4K2K (3840x2160),
EIS 1080p (2112x1188),
EIS 720p (1408x792), and more
13.2MP at 30 fps
two-wire serial bus control (SCCB)

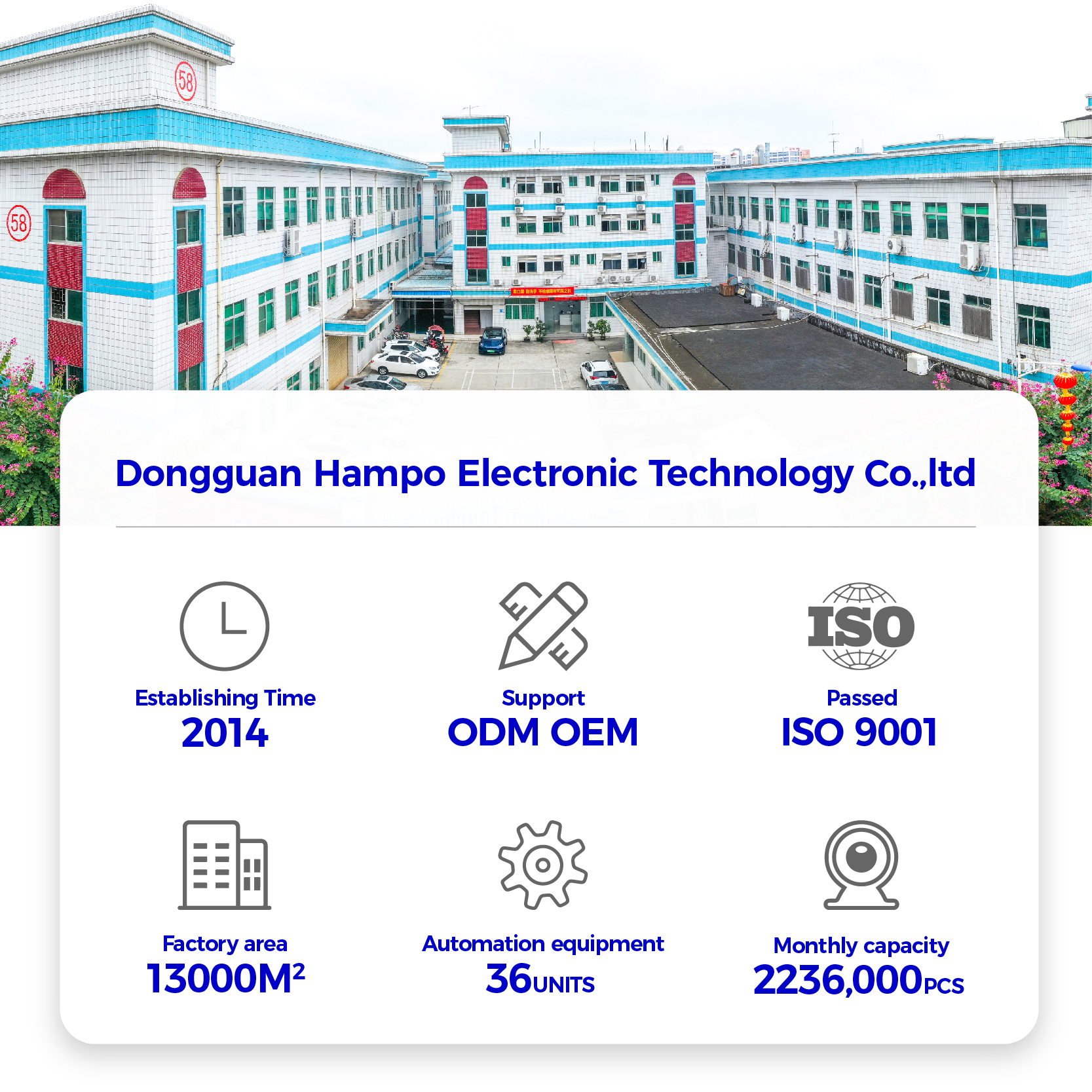

Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
