15.0 inch LCD screen 1024*768 TFT LCD module 20pin LVDS interface

美元 $35.00 - 美元 $60.00

生產所需時間:

25 日

運送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech

型號編號:

MTF150XA05A-V1

是否可訂造:

可以

尺寸:

15.0inch

描述

聯絡供應商

15.0 inch LCD screen 1024*768 TFT LCD module 20pin LVDS interface

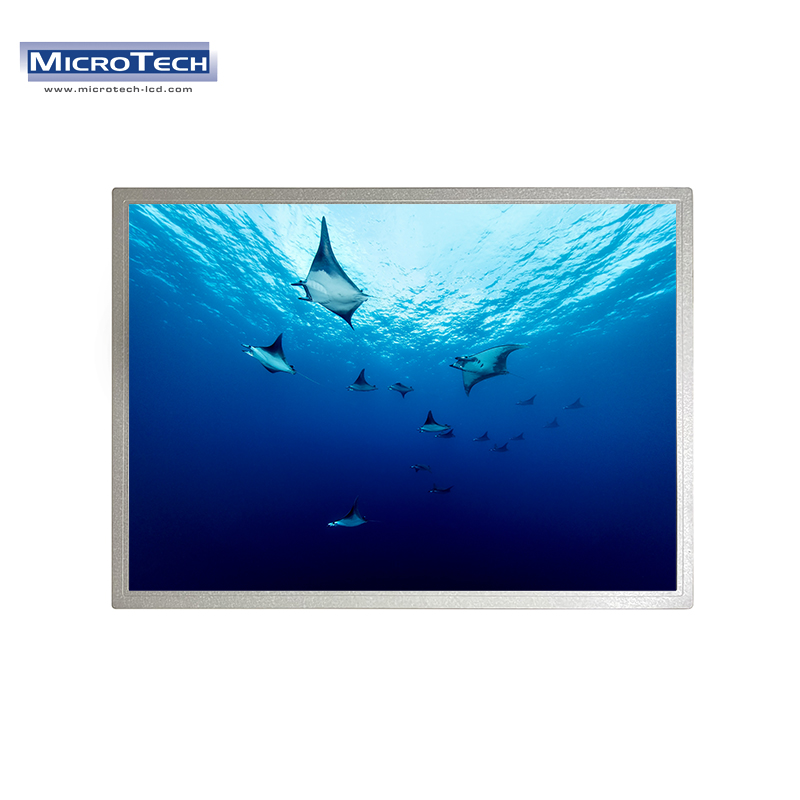

MTF150XA05A-V1 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.

	Specification	Unit	Note

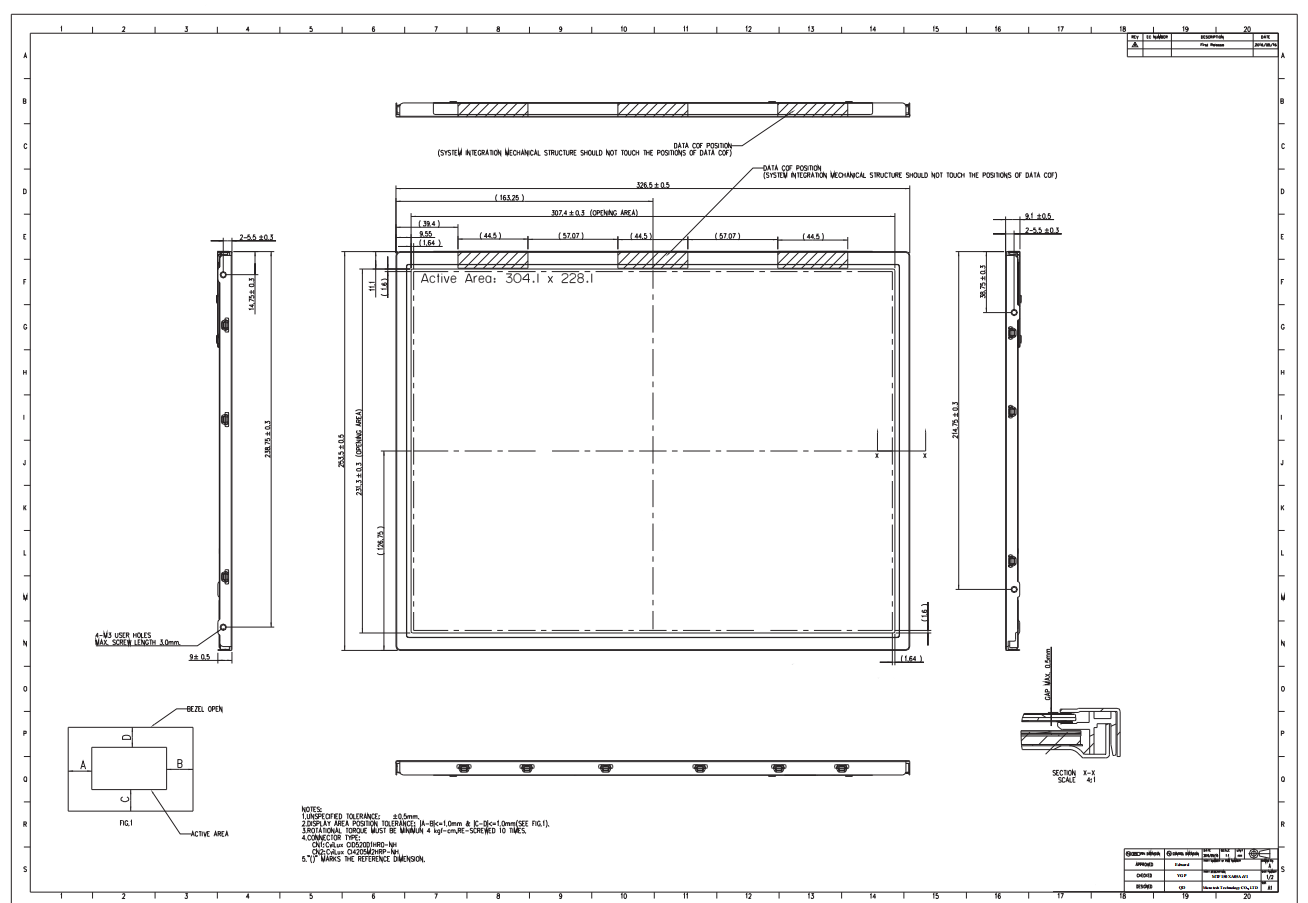

Active Area	304.1 (H) x 228.1(V)(15.0H diagonal)	mm	(1)
Bezel Opening Area	307.4(H) x 231.3(V)	mm	(1)
Driver Element	a-Si l r l active matrix	-	-
Pixel Number	1024 x R.G.Bx 768	pixel	-
Pixel Pitch	0.297(H) xO.297(W)	mm	-
Pixel Arrangement	RGB vertical Stripe	-	-
Display Colors	16.2M/262K	color	-
Display Mode	Normally Black	-	-
Surface Treatment	Hard Coating (3H), Anti-Glare	-	-
Module Power Consumption	7.4	w	Max.
