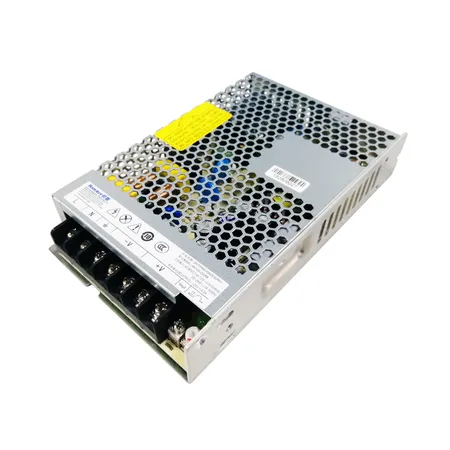

150W 12V/12.5A Single-Rail Output Switching Power Supply, AC/DC Switching Adapter
美元 $12.00 - 美元 $16.00
生產所需時間:
30 日
運送方式:
Negotiable
品牌:
Huntkey
型號編號:
HKI150-120NB
Output:
12V/12.5A
Input:
90-132VAC/176-264VAC (switch to change)
Protections:
OVP, OCP, OTP, UVP, SCP
Dimensions:
159*97*30mm
Certificates:
CE, CB, CCC, RoHS
描述
聯絡供應商
描述
150W Single-Rail Output
Features:
- Switch to change input voltage range
- Small size, slim in height of 30mm
- All-round protections, including OVP, OCP, OTP, UVP & SCP
- High efficiency, transfer efficiency at least 80%
- Low ripple, can lower than 150mVp-p
- Operating temperature from -30 to 70 Celsius degree
- High capacitive load, 2000uF/A at the least
- High reliability, 100% burn-in test, 3-year warranty
- Choices for parallel or unparallel operation
- Environment friendly, lead free, CCC(5000m), CB, CE certified
Specifications:
Model | HKI150-120NB | HKI150-240NB | HKI150-480NB | ||
Output | DV/DC | 12V/12.5A | 24V/6.5A | 48V/3.3A | |
Voltage Regulation Range | 10.8~13.2V | 21.6~26.4V | 43.2~52.8V | ||
Current Regulation Range | 0~12.5A | 0~6.5A | 0~3.3A | ||
Regulation Precision | ±1% | ±1% | ±1% | ||
Ripple | <100mVp-p | <100mVp-p | <150mVp-p | ||
Input | Lowest Efficiency | 84% | 86% | 86% | |
Voltage Range | 90~132VAC/176-264VAC(Switch to change) | ||||
Surge Current | Cold boot<40A/230VAC | ||||
Protections | OVP | 115%-135%(Rated Voltage), auto restore | 115%-135%(Rated Voltage), power off to restore | ||
OCP | 120%-180%(Rated Current), auto restore | ||||
OTP | To ensure all components will not exceed a certain temperature, auto restore | ||||
UVP | Input UVP activation point:<=60Vac, UVP restoration point:>=70Vac | ||||
SCP | To protect components without being damaged or burned, auto restore | ||||
Environment | Operating | -30~+70°C, 5~85﹪RH, no condensation (please refer to load-deflection curve) | |||
Storage | -40~+85°C, 5~95﹪RH, no condensation | ||||
Vibration | 10~500HZ, 5G, 10 minutes/cycle, 60 minutes for each X-, Y-, Z-direction | ||||
Safety & EMC | Safety Standards | GB4943, EN62368 | |||
EMC Standards | EN55032 Class B, GB9254 Class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 | ||||
Hi-Pot | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC | ||||
Others | Dimensions | 159*97*30mm | |||
Packing | 30pcs/14kg | ||||
Mechanical Specifications | 8 | ||||
