2.3MP AR0234 Global ShutterMIPI Camera Module

美元 $28.50 - 美元 $42.75

美元 $30.00 - 美元 $45.00

生產所需時間:

7 日

運送方式:

express delivery

Model Number:

HAMPO-DMT-AR0234 V1.0 IR940S

Image Sensor:

AR0234 Global Shutter

View Angle:

68.0°(DFOV)

Focusing:

Resolution:

2.3MP

Module Size:

60.00 x 26.00 mm

Interface:

MIPI

描述

聯絡供應商

Product Description

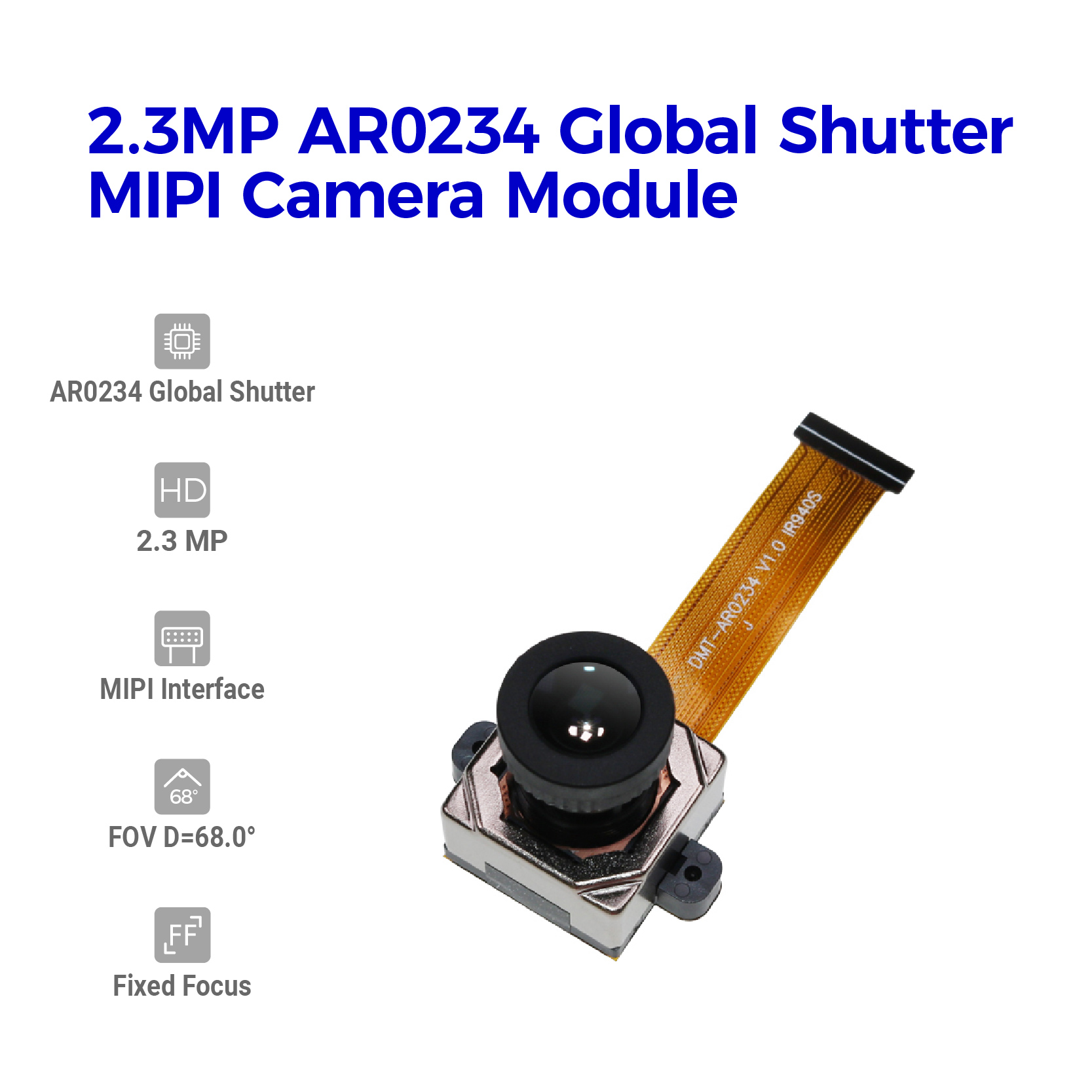

HAMPO-DMT-AR0234 V1.0 IR940S is a 2.3MP OnSemi AR0234 Global Shutter MIPI Interface 940nm IR Pass
Auto Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.

APPLICATIONS :Mobile camera ,Digital still camera ,Camcorder ,Web camera ,Action camera

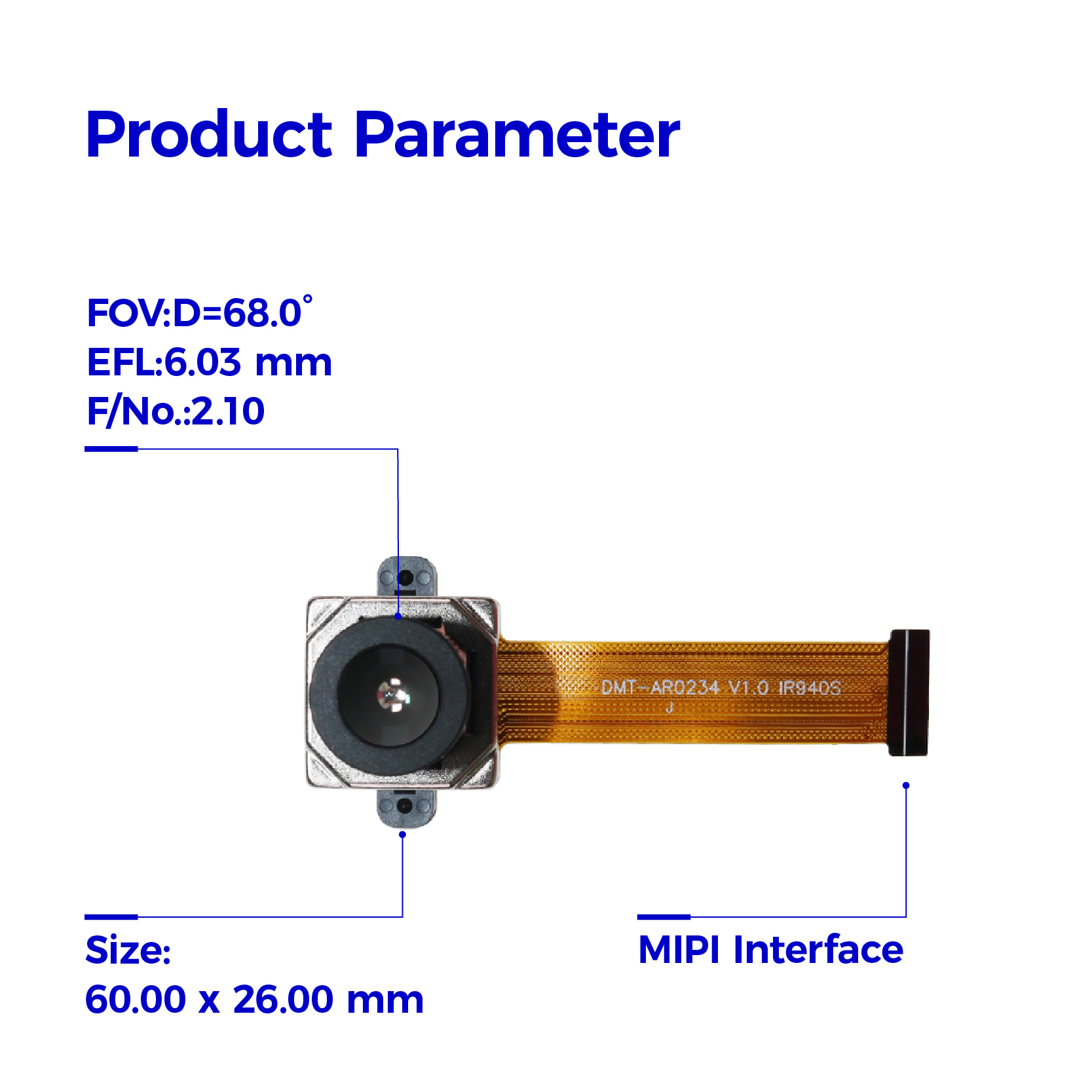

Specification

Camera Module No.
HAMPO-DMT-AR0234 V1.0 IR940S
Resolution
2.3MP
Image Sensor
AR0234 Global Shutter
Sensor Type
1/2.6"
EFL
6.03 mm
F.NO
2.10
Pixel
1920 x 1200
View Angle
68.0°(DFOV) 57.0°(HFOV) 35.0°(VFOV)
Lens Dimensions
Lens Dimensions
Module Size
60.00 x 26.00 mm
Module Type
Auto Focus
Interface
MIPI
Auto Focus VCM Driver IC
DW9714P
Operating Temperature
-30°C to +70°C

Key Features120mA output driver with 10-bit resolution DAC
Smart Actuator Control (SACTM) modes
Supply voltage (VDD): 2.3V to 4.3V
I/O voltage (VIN): 1.8V to VDD
Fast mode and Fast mode plus I2C interface compatible
Power On Reset (POR)
Power Down (PD) mode current consumption less than 1uA
Package: 6-pin WLCSP (0.77mm x 1.14mm x 0.30mm)
The mipi camera module can be used for auto focus applications in mobile cameras, digital still cameras, camcorders, web cameras and action cameras.
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
