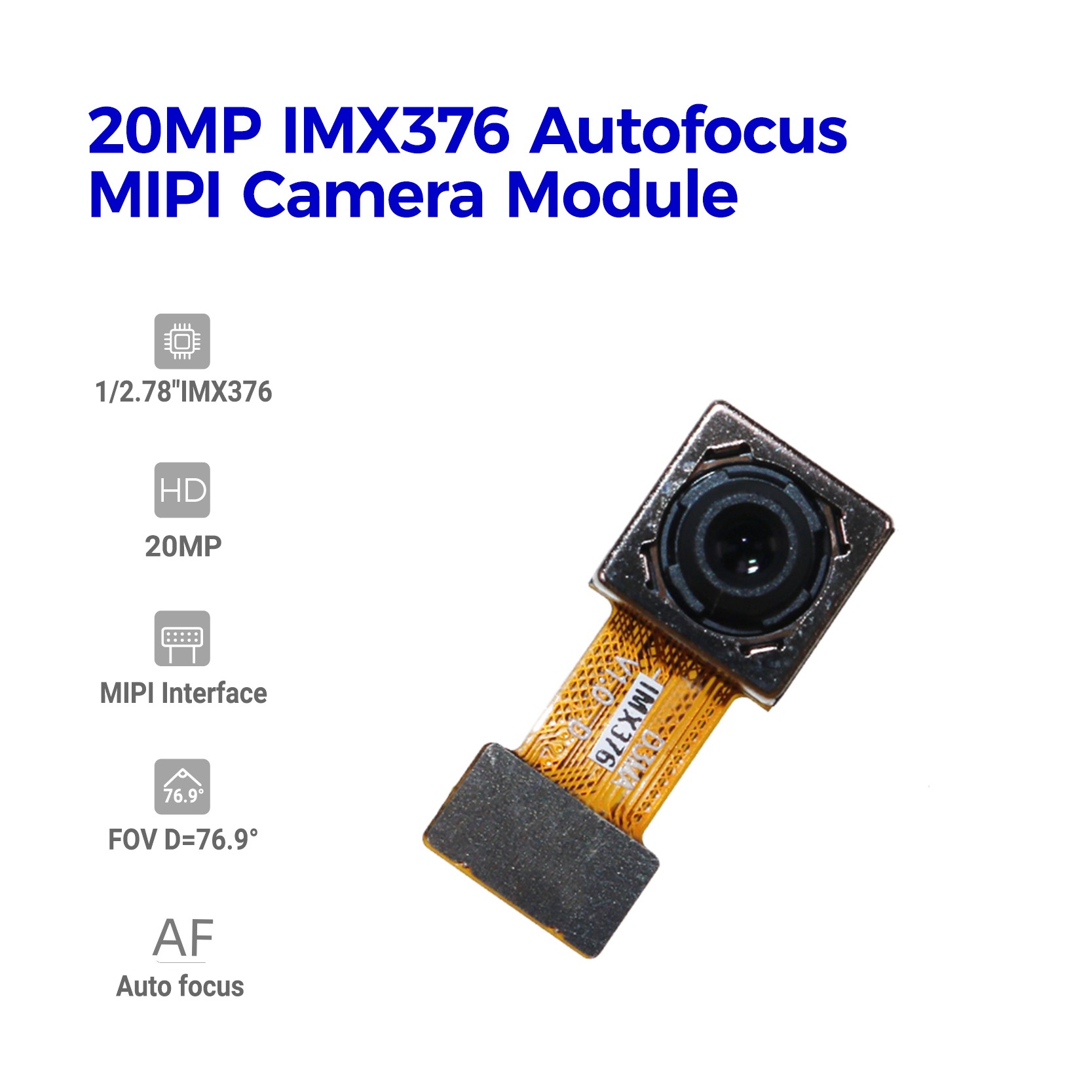

20MP IMX376 AutofocusMIPI Camera Module

美元 $21.85 - 美元 $29.45

美元 $23.00 - 美元 $31.00

生產所需時間:

7 日

運送方式:

express delivery

Model Number:

HAMPO-D3MA-IMX376 V1.0

Image Sensor:

IMX376

View Angle:

76.9°(DFOV)

Focusing:

Resolution:

20MP

Module Size:

21.00 x 8.80 mm

Interface:

MIPI

描述

聯絡供應商

Product Description

HAMPO-D3MA-IMX376 is a diagonal 6.475 mm (Type 1/2.78) 20 Mega-pixel CMOS active pixel type Mipi camera module with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D
converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor)
through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed.
It operates with four power supply: analog 2.8 V, 1.8V, digital 1.05 V and 1.8 V for input/output interface and achieves
low power consumption. It is optionally operational with conventional three power supplies by using an analog power
supply voltage of 2.8V.

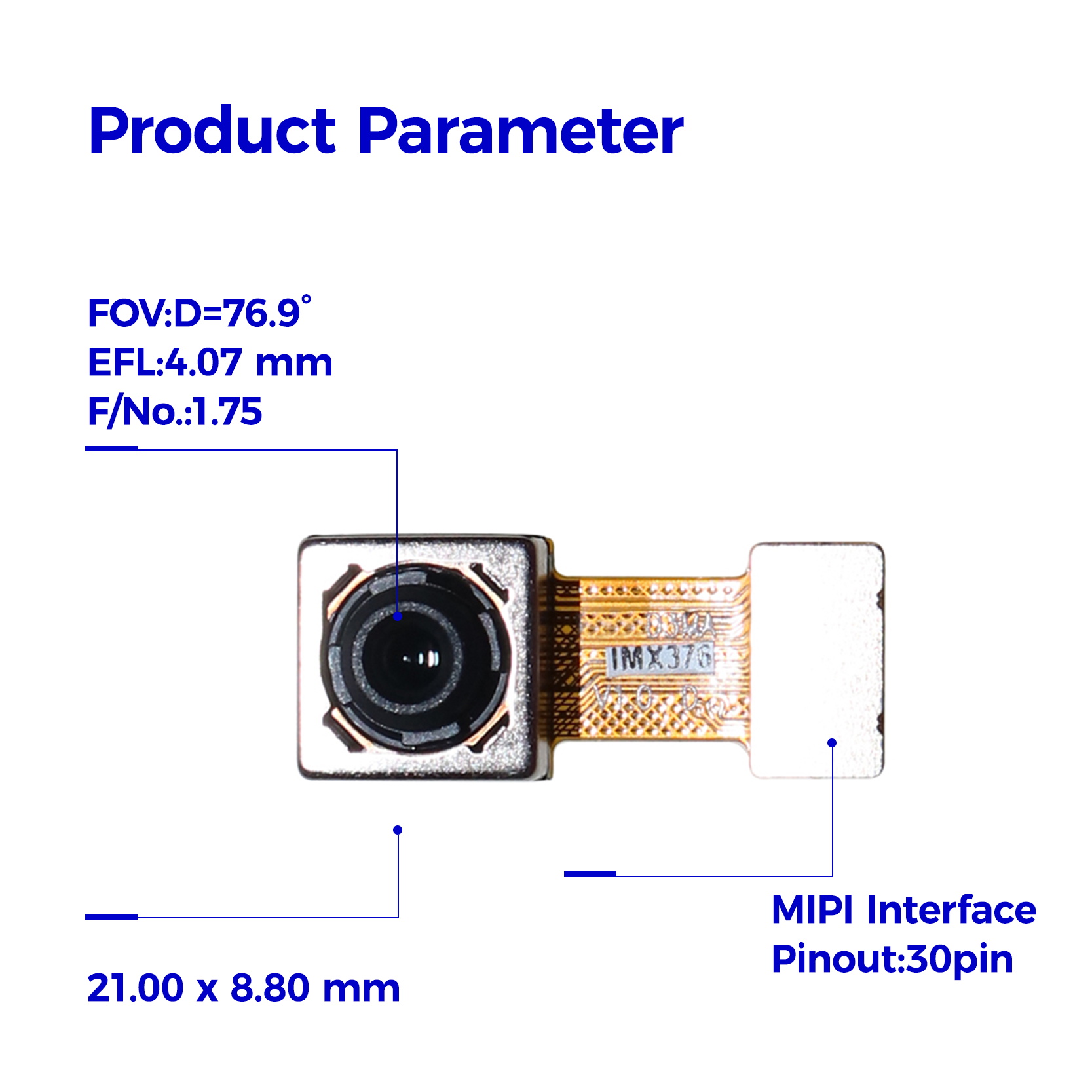

Specification

Camera Module No.	HAMPO-D3MA-IMX376 V1.0
Resolution	20MP
Image Sensor	IMX376
Sensor Size	1/2.78"
Pixel Size	1.00 um x 1.00 um
EFL	4.07 mm
F/No.	1.75
Pixel	5216 x 3896
View Angle	76.9°(DFOV) 64.4°(HFOV) 50.7°(VFOV)
Lens Dimensions	8.80 x 8.80 x 5.89 mm
Module Size	21.00 x 8.80 mm
Focusing	Auto Focus
Resolution	20MP
Interface	MIPI
Auto Focus VCM Driver IC	DW9763
Lens Type	650nm IR Cut
Operating Temperature	-20°C to +60°C

Key Features
◆High Frame Rate 30fps@Full resolution / 120fps@2x2 Adjacent Pixel Binning (4:3) / 150fps@2x2 Adjacent Pixel
Binning (16:9)
◆Electronic Image Stabilization (EIS)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆Pixel binning readout function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.3Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication
◆Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
◆12K bit of OTP ROM for users
◆Quad Bayer Coding color filter arrangement
