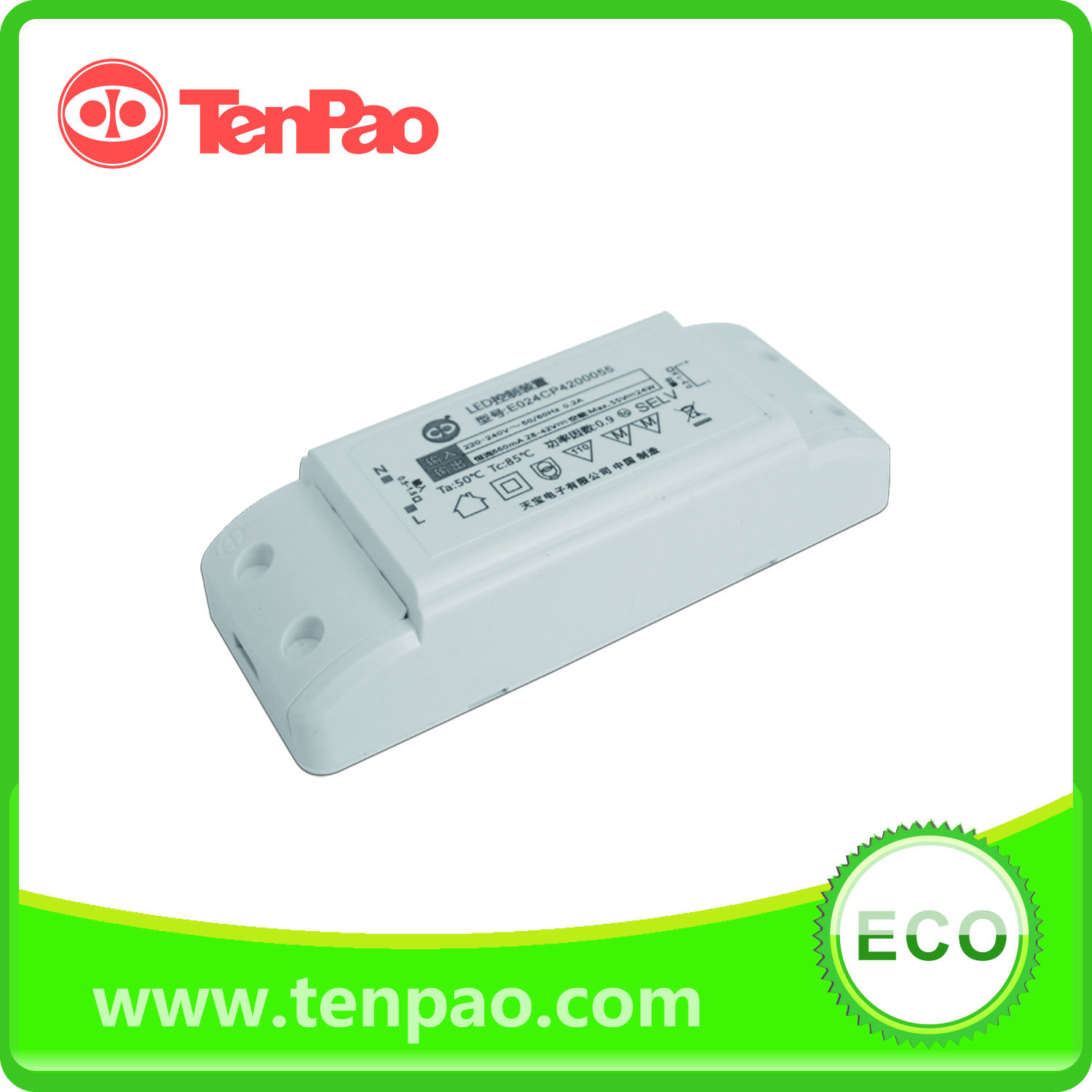

24W LED Driver Indoor Lighting
產品型號:
E024CP
品牌名稱:
Ten Pao
尺寸:
115 x 45 x 27.5mm
保養期:
3 Years
輸出電壓(伏):
18Vdc-30Vdc, 28Vdc-42Vdc, 42Vdc-60Vdc, 50Vdc-70Vdc
輸入電壓(伏):
176-264Vac, 47-63Hz
描述
聯絡供應商
描述
- Series: E024CP
- Features: Economic model;Constant-current design; High power factor;
- Full protective cabinet; Elegant appearance;
- Isolation design; Natural convection cooling; 3 years warranty;
- Output: 18Vdc-30Vdc | 28Vdc-42Vdc | 42Vdc-60Vdc | 50Vdc-70Vdc
- Output Current: 800mA |550mA | 400mA | 350mA
- Output Power: 24W
- Constant Current Precision: ±5%
- Input Voltage: 176~264Vac 47-63Hz
- Power Factor: >0.95
- Efficency: 83% | 84% | 85% | 85%
- Over Load Protection: Hiccup mode, auto recovery
- Over Voltage Protection: Hiccup mode, auto recovery
- Short Circuit Protection: Hiccup mode, auto recovery
- Operating Temperature: -20℃ to~+60℃
- Safety Standards: CCC GB19510/CE EN61347-2-13
- EMC Standards: EN55015/GB17743
- Dimension(mm): 115 x 45 x 27.5mm(L x W x H)
- Main Application: Panel light; Grille light; Down light
