2MP OV2710 Low Light Dual Lens Camera Module

美元 $35.00 - 美元 $38.00

生產所需時間:

7 日

運送方式:

FOB SZ

型號編號:

003-1018

Sensor:

OV2710

FOV:

D=89°

TTL:

15.29MM

Resolution:

1920*1080

Illumination:

0.5lux

描述

聯絡供應商

Product Description

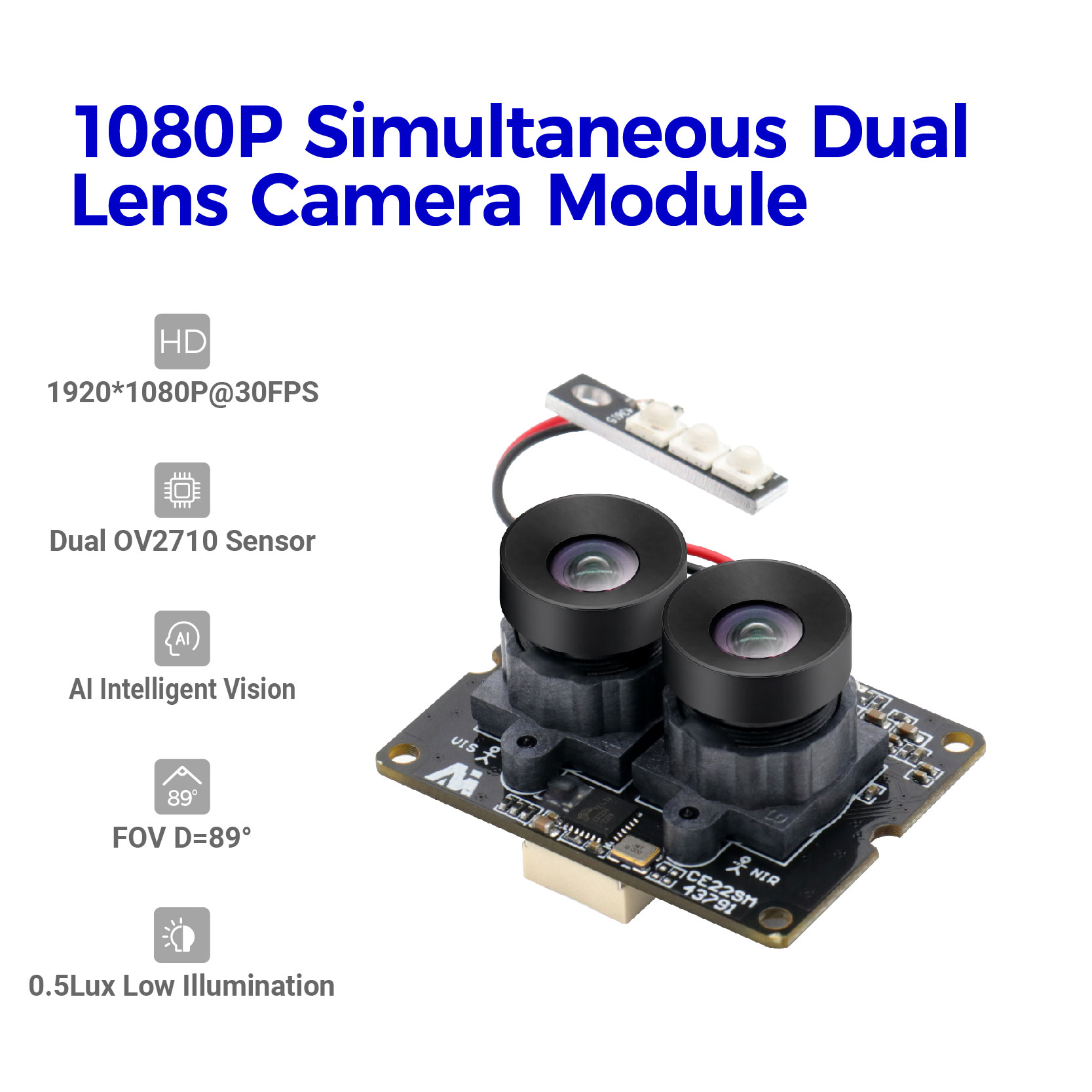

Hampo 003-1018 is a a simultaneous dual lens USB camera module, with dual 1/2.7" CMOS Omnivision OV2710 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery about 0.5Lux of low illumination. The PCB board size is about 80*16*20(mm).

                                                                                                                                                                                                                                     The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy，widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints.

Key Features

Synchronized dual lens camera module: This 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.

Full HD 1080P Resolution: The camera module adopt two 1/2.7” OV2710 sensor. The max frame rate 1920*1080@ 30fps for each.

Excellent Low Light Performance: Adopting Omnivision OV2710 CMOS sensor, feature at 0.5Lux illumination and high quality image under the low light condition.

Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux.

Wide Application: This mini 80*16*20(mm) camera board can be installed in most hidden and narrow position for access control system, advertisement machine, ATM machin, self-service terminal etc. application.

Specification

Camera
Model No.	003-1018
Camera	RGB Camera	IR Camera
Max Resolution	1920*1080P	1920*1080P
Sensor	1/2.7" OV2710	1/2.7" OV2710
Frame Rate	MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS; 1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS	MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS; 1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS
Pixel Size	3.0μm*3.0μm	3.0μm*3.0μm
Output Format	YUY2/MJPG	YUY2/MJPG
Illumination	0.5Lux	0.5Lux
Lens
Focus	Fixed focus	Fixed focus
FOV	D=89° H=76°	D=89° H=76°
Lens Mount	M12 * P0.5mm	M12 * P0.5mm
Focusing Range	3.3ft (1M) to infinity	3.3ft (1M) to infinity
Power
Working Current	200mA	200mA
Voltage	DC 5V	DC 5V
