2MP OV2735 Low Light Robot Vision Camera Module

美元 $20.90 - 美元 $26.60

美元 $22.00 - 美元 $28.00

生產所需時間:

5 日

運送方式:

express delivery

Model Number:

HAMPO-003-1664

Special Features:

Low Power

Resolution:

1920*1080

Compression Format:

MJPG/YUV

Focusing:

Fixed focus

Sensor:

CMOS, 1/2.7" ov2735

Function:

Low light

Customized support:

OEM, ODM

Frame Rate:

30fps

PCB Size:

38*38(mm)/32*32(mm)

FOV:

D=95° H=86°

描述

聯絡供應商

Product Description

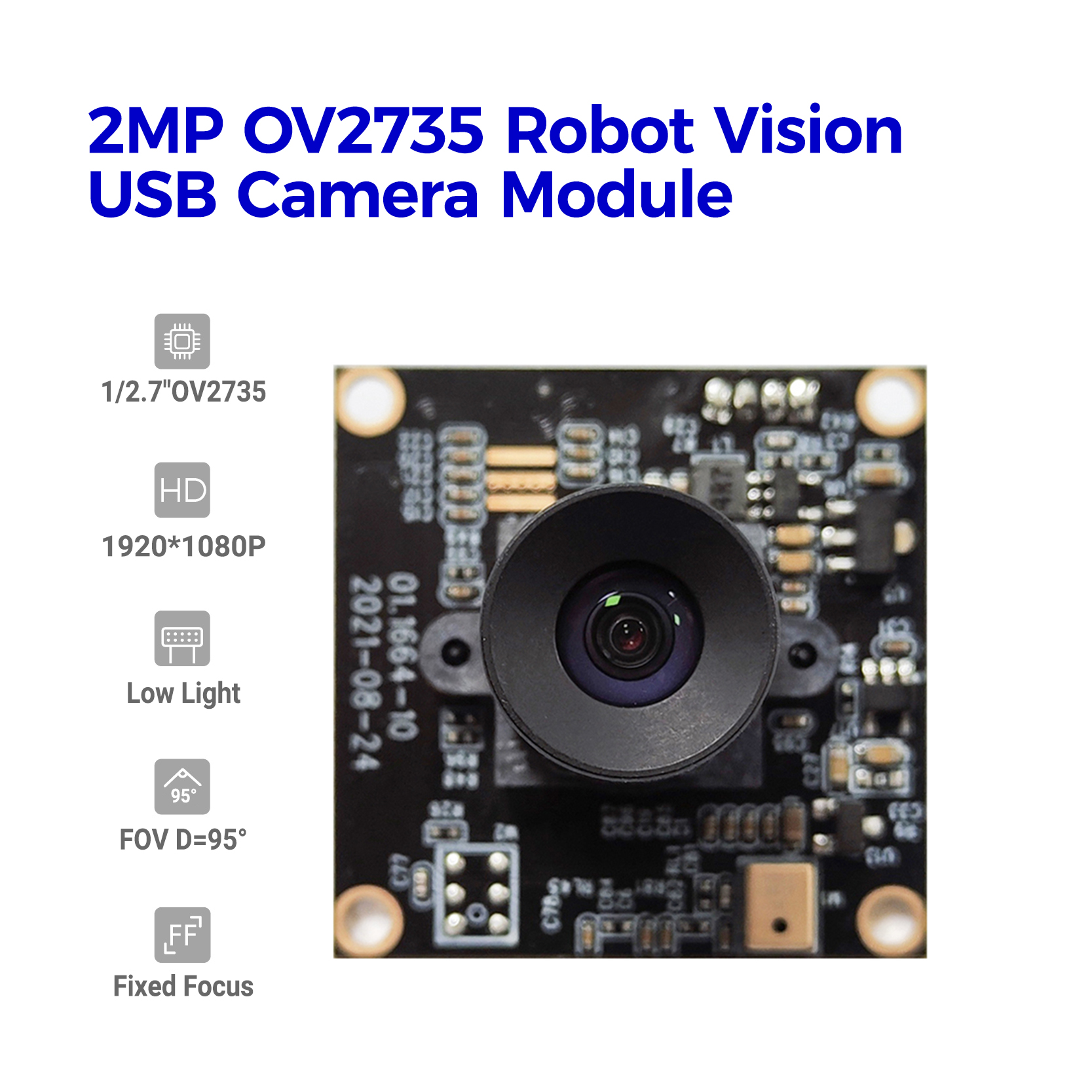

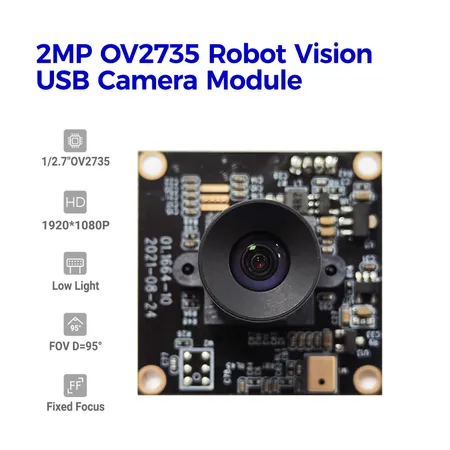

Hampo 003-1664 is a 2MP full HD low light camera module, which adotping a high-performance 1/2.7" OMNIVISION’s OV2735 image sensor that brings 1080p high-definition (HD) video capture to mainstream security cameras. The 1080P usb camera module offers technical advancements such as support for low-power mode, stable image quality within operating temperatures ranging from 0°C to 60°C, and dramatically reduced power consumption.

Key Features

More than HD: This camera module adopts 1/2.7" Omnivision OV2735 sensor for full HD 1920*1080P image quality and smooth video.

Capture Video with Audio: High frame rates,   the 2MP OV2735  camera module captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps.
Low Power&Low Light: The camera module feature low power and good low light performance.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny32mm x 32mm camera board can be installed in most hidden and narrow position for notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.

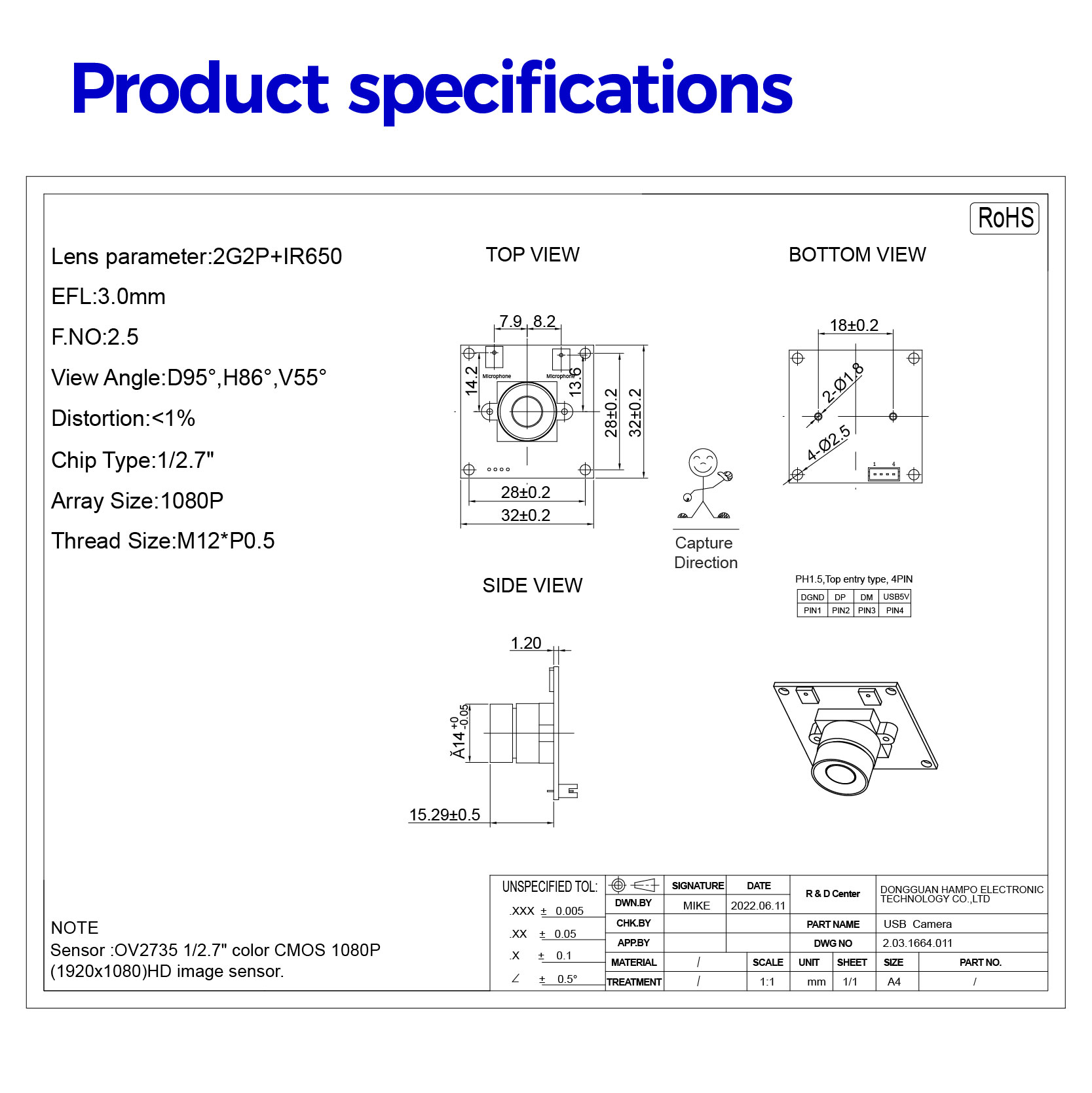

Specification

Camera
Model No.	003-1664
Max Resolution	1920*1080P
Sensor	1/2.7" OV2735
Frame Rate	MJPG 30fps@1920 x 1080/60fps@720P
Pixel Size	3.0μm*3.0μm
Output Format	YUY2/MJPG
Dynamic Range	72dB
Lens
Focus	Fixed focus
FOV	D=95° H=86°
Lens Mount	M12 * P0.5mm
Focusing Range	3.3ft (1M) to infinity
Power
Working Current	MAX 200mA
Voltage	DC 5V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
Operating Temp	0°C~60°C
PCB Size	32*32MM(Hole pitch compatible with 28x28mm)
Cable Length	3.3ft (1M)
TTL	15.29MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

Applications

Machinary equipment All-in-one machine
Robot
Document scanner
Industrial machine

DroneMedical auxiliary equipment
Security camera
Face recognition
ATM
Access control system smart terminal

Company Profile

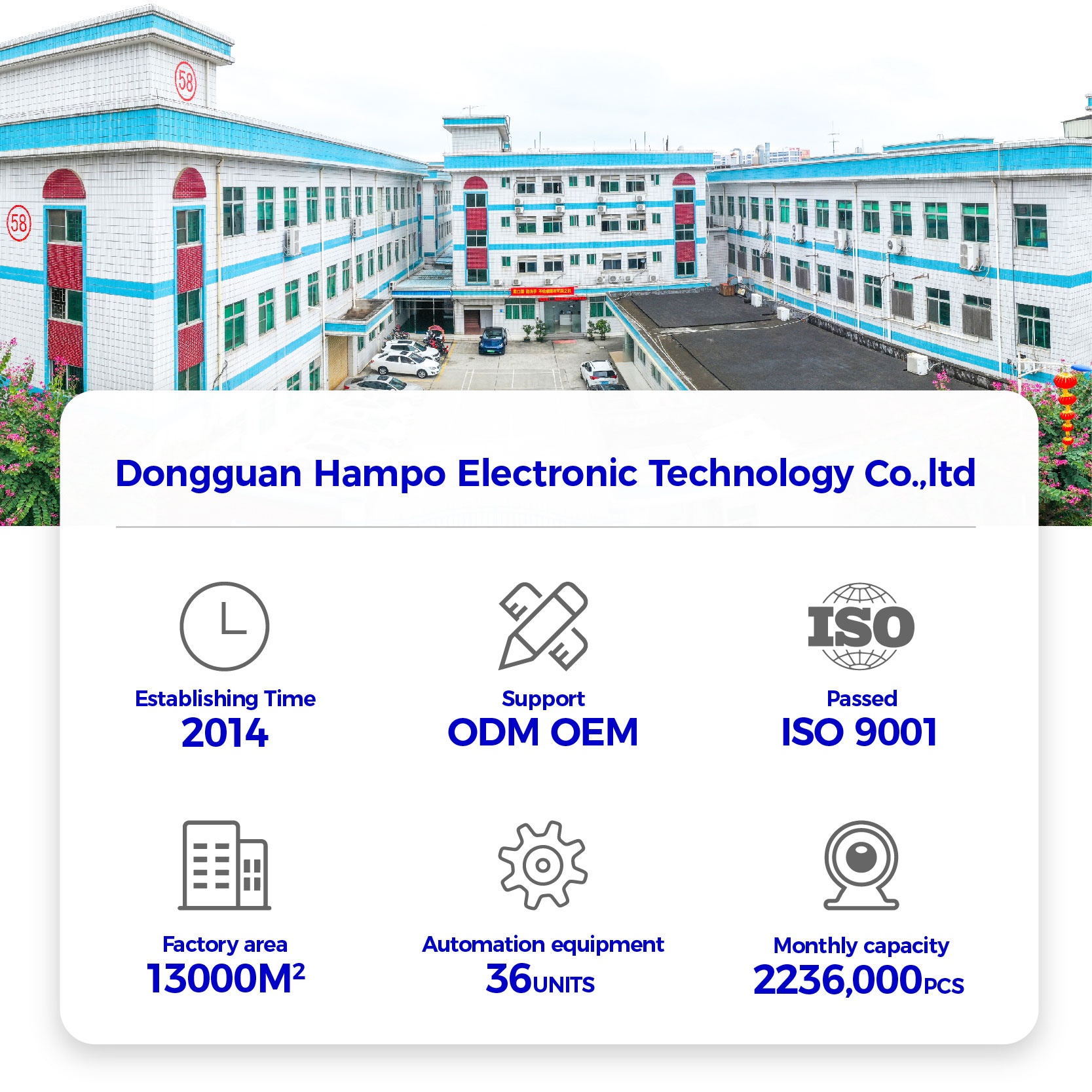

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

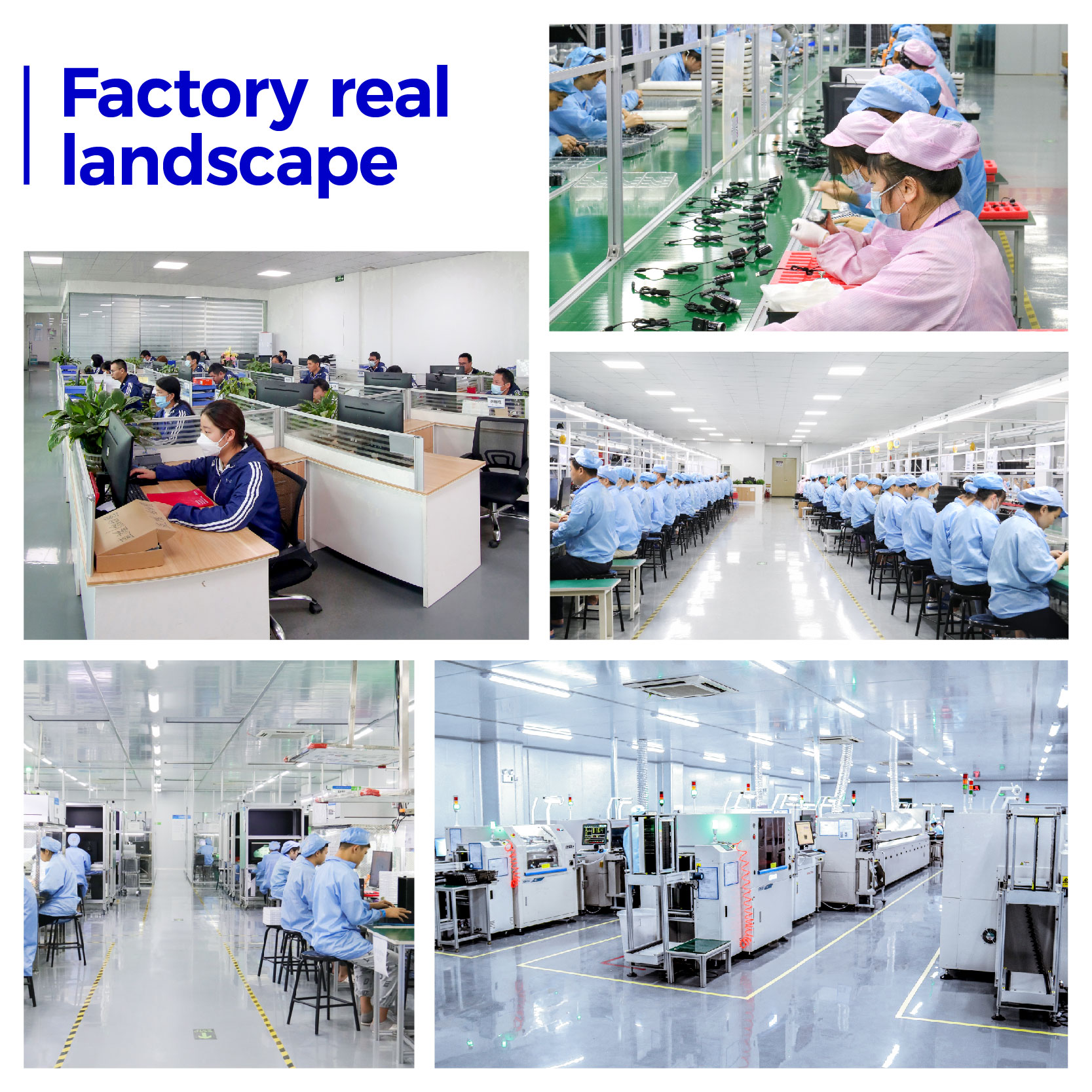

Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
