2MP Ov2710 Fixed Focus Mipi Camera Module

美元 $15.20 - 美元 $18.05

美元 $16.00 - 美元 $19.00

生產所需時間:

7 日

運送方式:

express delivery

Model Number:

HAMPO-KR6-OV2710 V3.0

Image Sensor:

OV2710

View Angle:

120°(DFOV)

Focusing:

Resolution:

2MP

Module Size:

47.85 x 22.00 mm

Interface:

MIPI

描述

聯絡供應商

Product Description

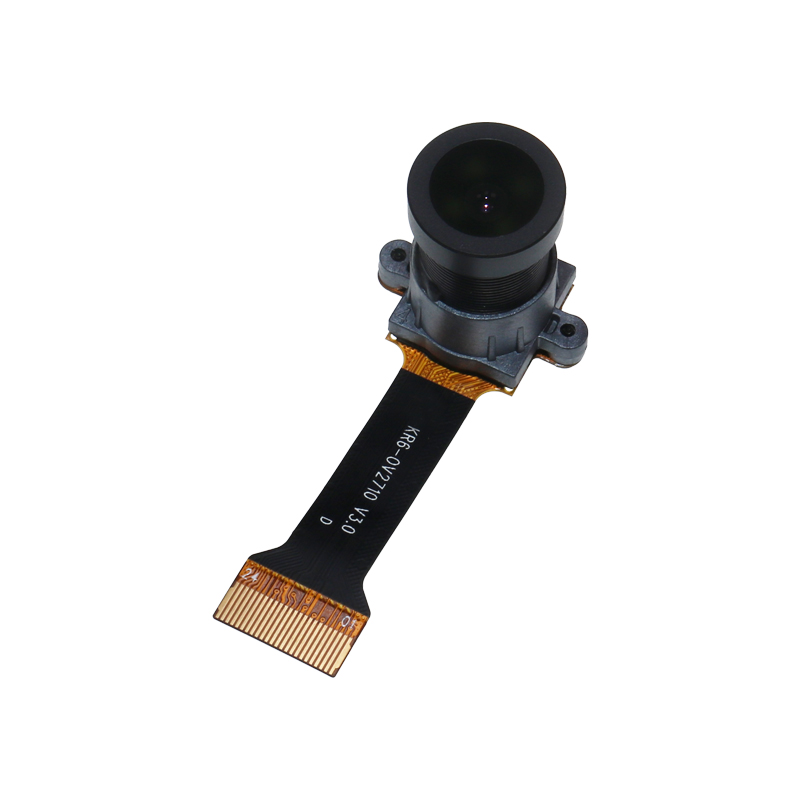

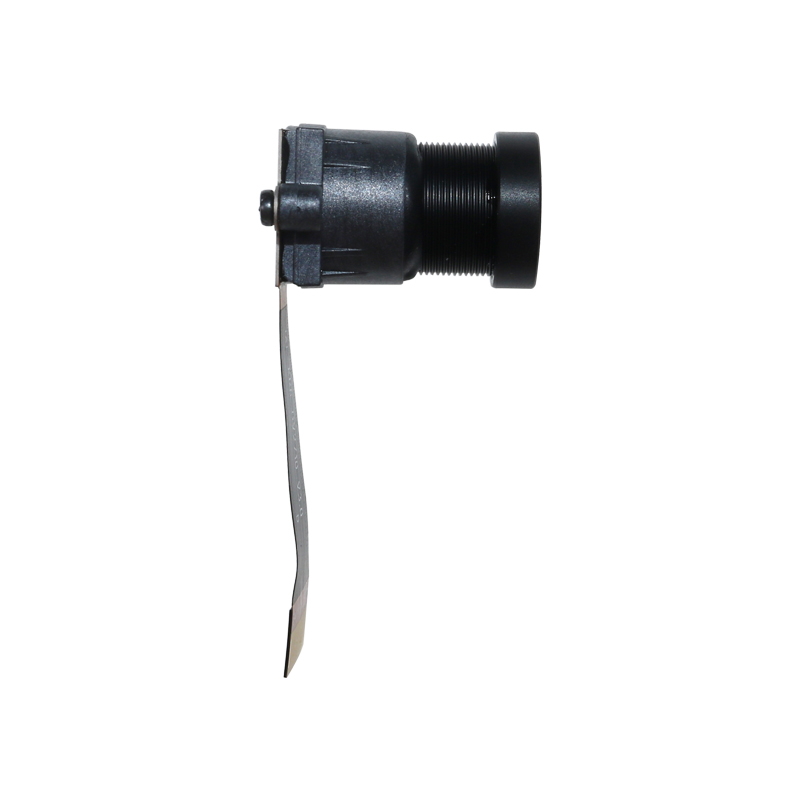

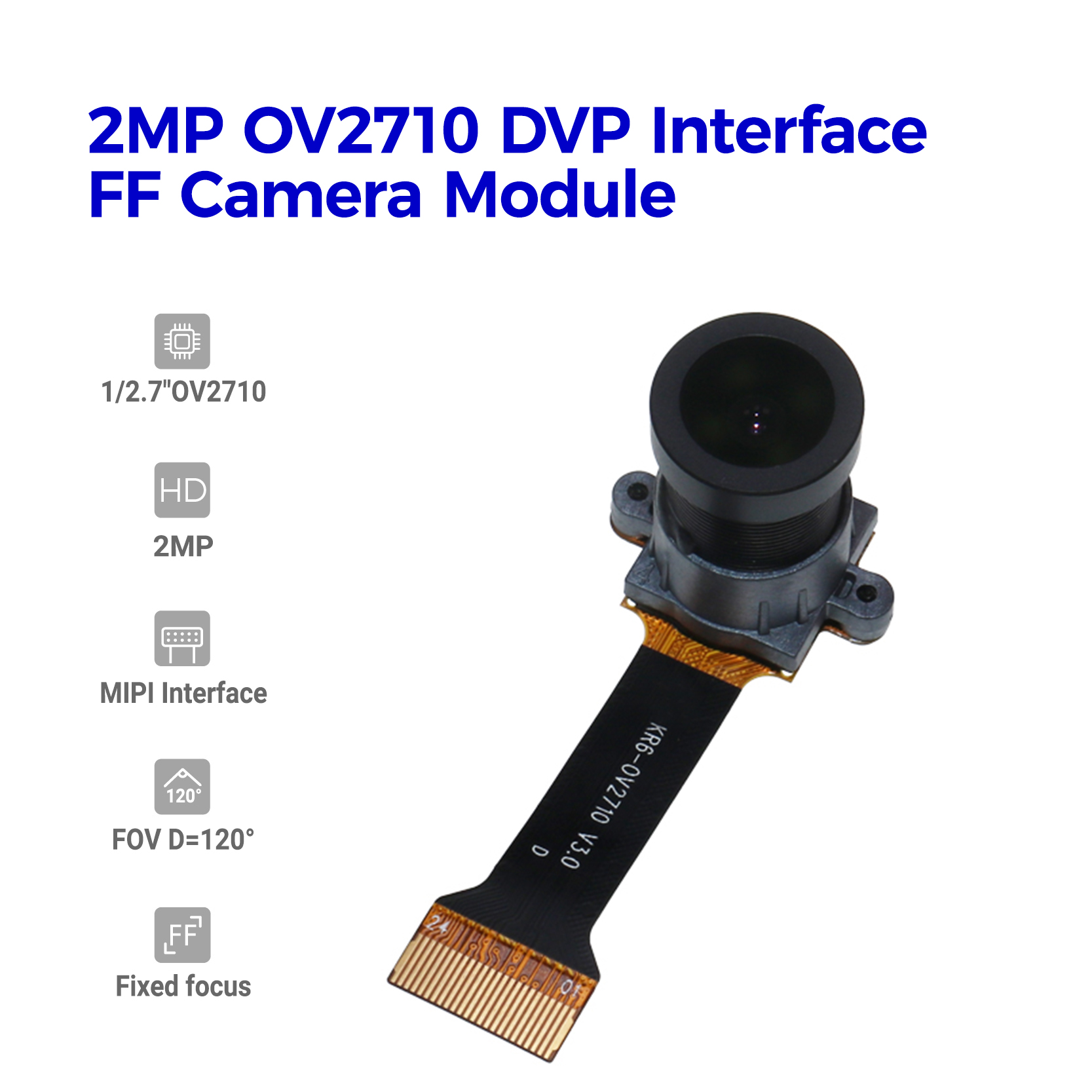

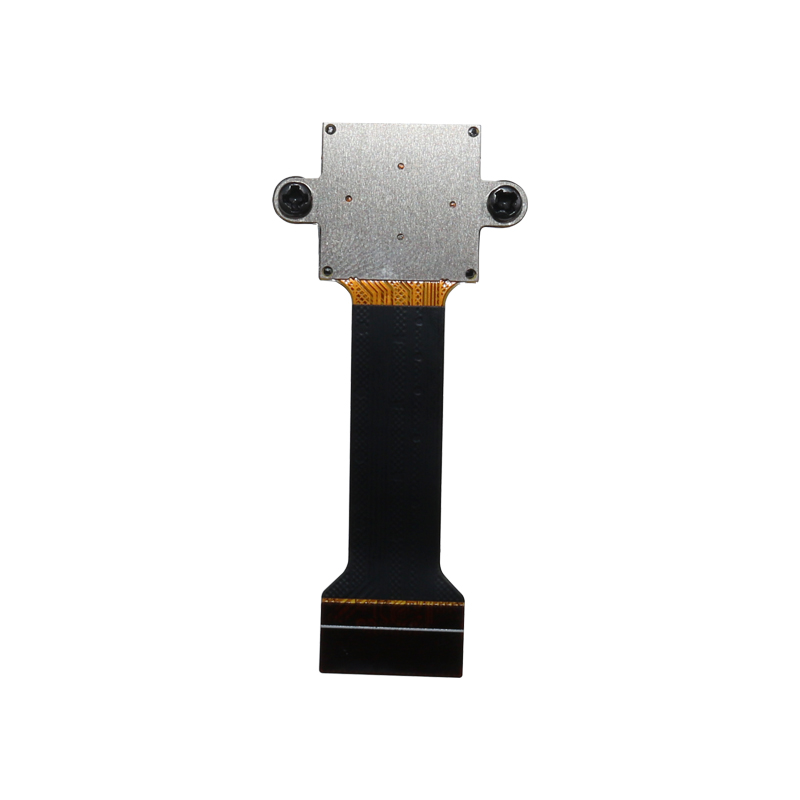

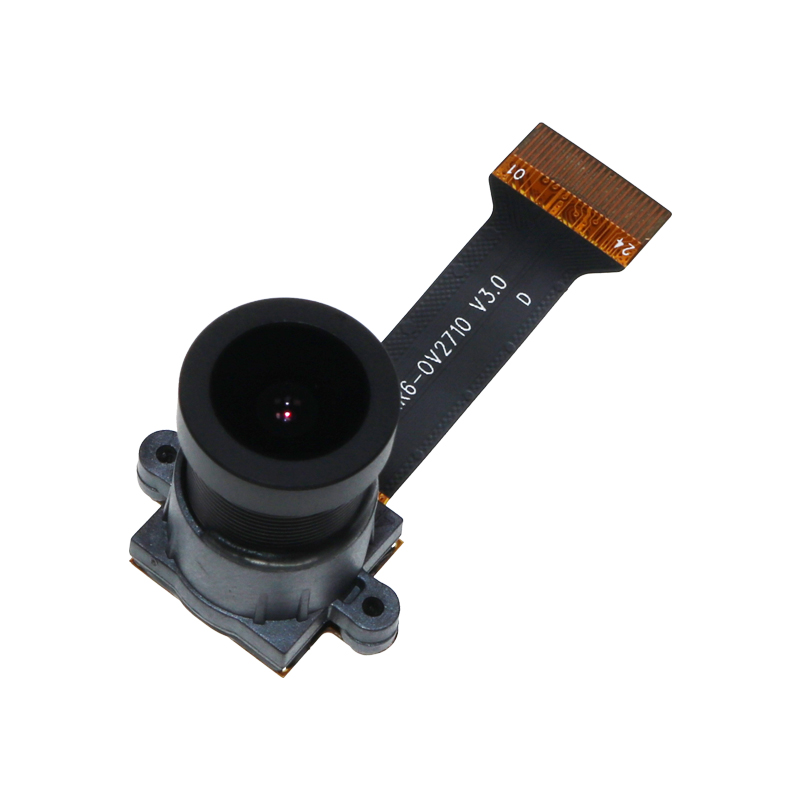

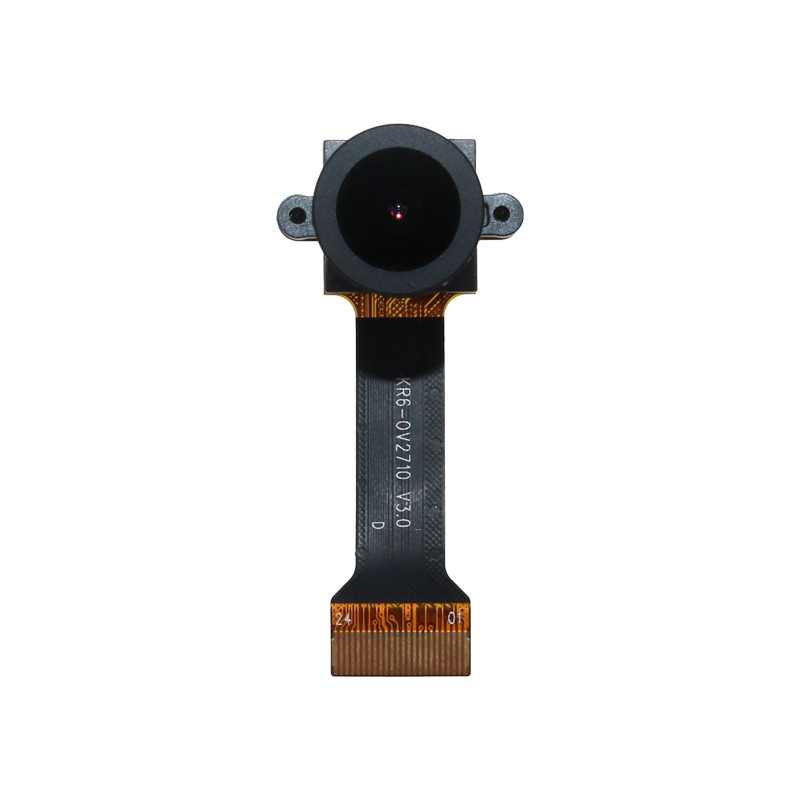

HAMPO-KR6-OV2710 V3.0 is a 2MP OmniVision OV2710 DVP Parallel Interface M12 Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.

Applications :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.

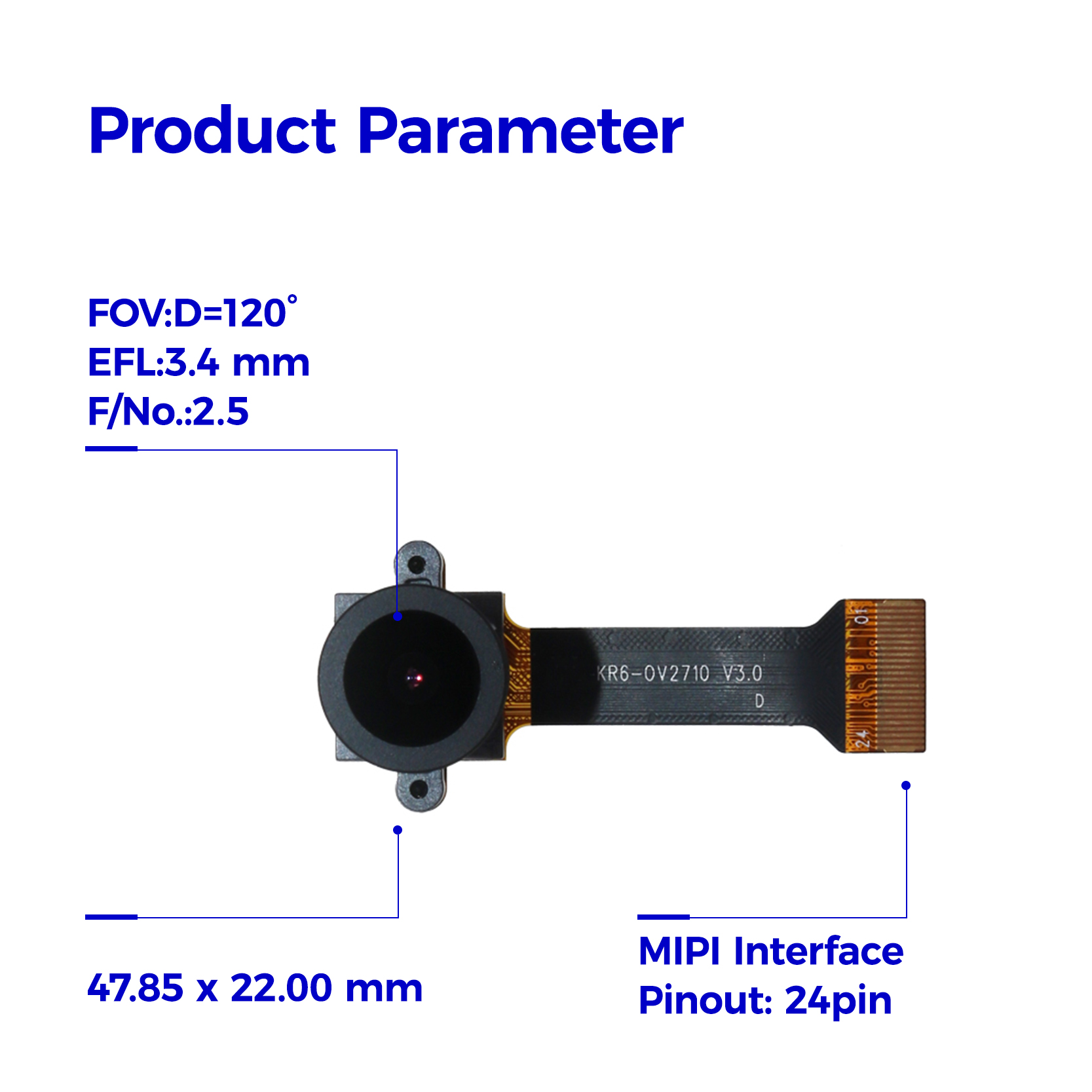

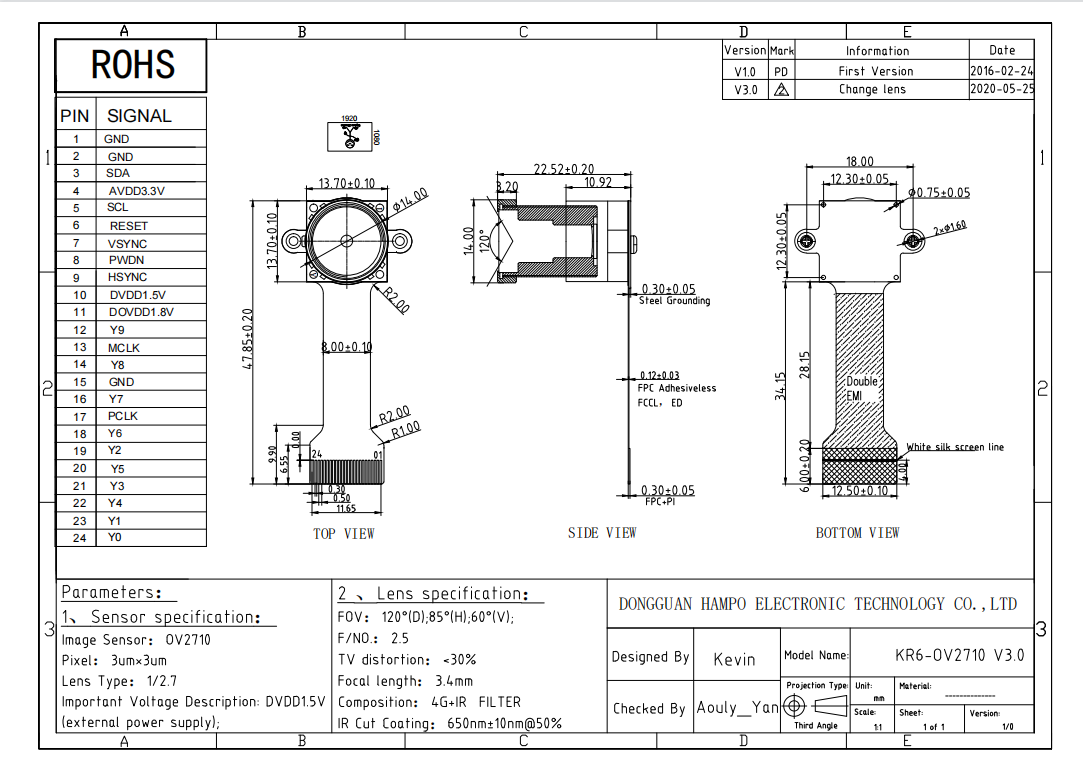

Specification
 Camera Module No.
HAMPO-KR6-OV2710 V3.0
Resolution
2MP
Image Sensor
OV2710
Sensor Size
1/2.7"
Pixel Size
3.0 um x 3.0 um
EFL
3.40 mm
F/No.
2.50
Pixel
1920 x 1080
View Angle
120.0°(DFOV) 85.0°(HFOV) 60.0°(VFOV)
Lens Dimensions
13.70 x 13.70 x 22.52 mm
Module Size
47.85 x 22.00 mm
Focusing
Fixed Focus
Interface
DVP Parallel
 Lens Type
650nm IR Cu
Operating Temperature
-30°C to +85°C
Key Features
programmable controls: gain, exposure, frame rate, image size, horizontal mirror, vertical flip, cropping, windowing, and panning

support for one lane MIPI interface (up to 800 Mbps)
support for 8-/10-bit RAW RGB output format

support for image sizes:
- 1080p at 30 fps
- cropped 720p at 60 fps
- VGA at 120 fps

support for black sun cancellation

embedded one-time programmable (OTP) memory

on-chip phase lock loop (PLL)

built-in 1.5V regulator for core
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
