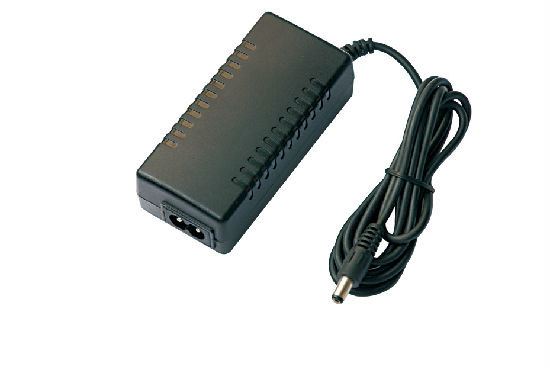

30W Wall Type/Desktop type AC Adaptor

Feature:plastic case,small volume,high efficiency,energy star standard,over voltage,over current,short circuit protection

Input Specification:
input voltage:90-264Vac 47-63Hz
inrush current:40A/230V
line regulate:±1% Max

Output specification：
output voltage tolerance:±5%
ripple&noise(mVp-p):﹤1% output voltage
load regulate:±5% Max
start time:≤5S(240Vac input,load 100%)
output current:0-4.5A
low standby power:0.5W Max
MTBF:up to 50000 hours at full load at 25℃

Output protection:
over load protection:protect in 110%-140% rated watt,auto-recovery
over voltage protection:limited voltage
short circuit protection:auto-recovery after short circuit

Insulation:input to output Hi-pot:3000Vac/5mA 1Min

Resistance:input to output resistance:≥100MΩ , 500Vdc

Environment:operating temperature: 0℃-45℃   10%-90%RH
storage temperature: -20℃-85℃ 10%-90%RH

Size:83*45*36mm(wall type)   96*44*30mm(desktop type)   83*43.5*39.5(interchangeable type)

Safety standard:CCC、CE、UL、CEC、FCC、CUL、CSA、ERP、CB、KC、PSE
