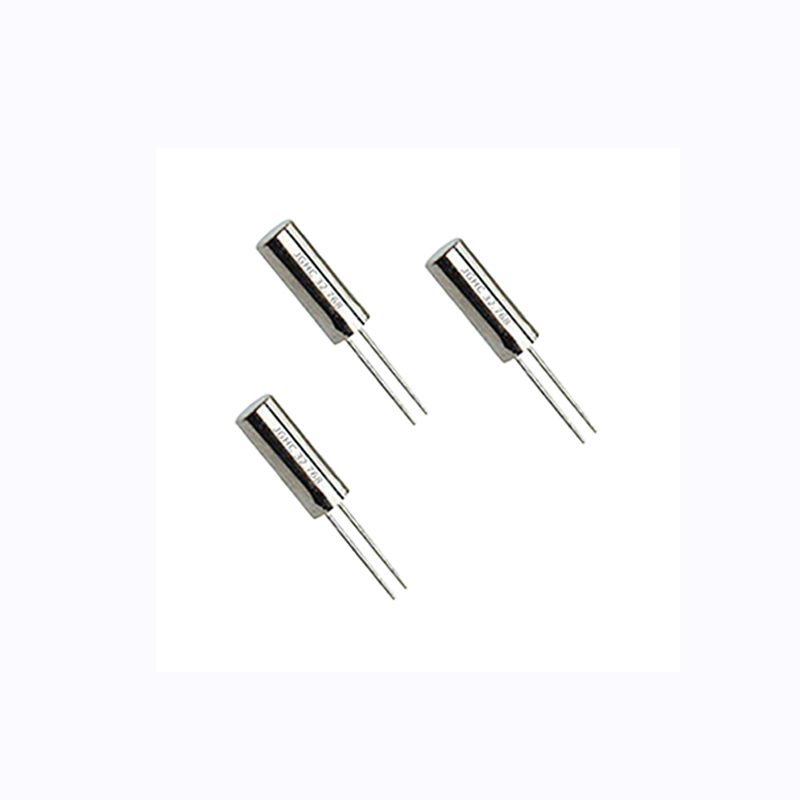

32.768KHz DT-26 DIP Crystal 32.768K Xtal
品牌:
JGHC晶光华
是否可訂造:
可以
型號編號:
Y26
尺寸:
2.0x6.0mm
Nominal Frequency:
32.768KHz
Load Capacitance:
7pF/9pF/12.5pF
Frequency Difference:
10ppm/20ppm
描述
聯絡供應商
描述
32.768khz Clock Crystal Resonator Y26 Series
Features
Application for variety products reference clocks.
reliable environmental performance.
RoHS Compliant / Pb Free.
Crystals specifications
ITEMS/TYPE | Y26 |
Nominal Frequency | 32.768KHz |
Load Capacitance | 7pF,9pF,12.5pF, or specify |
Frequency Tolerance (at 25℃) | ±20ppm, or specify |
Operating Temperature Range | -70~+70℃, or specify |
Parabolic Coefficient (B) | (-0.03±0.01) 10-6 * / ℃2 |
Shunt Capacitance (C0) | 2.0pF typical |
Drive Level | 1.0μW Max. |
Aging (at 25℃) | ±3ppm/year Max. |
Storage Temperature Range | -55~+125℃ |
Dimensions and patterns(unit:mm)
